Castaly Industrial 12" Spiral Insert Head Jointer, JT-0012S, 3HP, 1PH, 230V

Castaly Industrial 12" Spiral Insert Head Jointer, JT-0012S, 3HP, 1PH, 230V

• Cast iron body and precision ground table.
• 3-belt drive mechanism.
• Large table size for more working area.
• Two side hand wheels individually adjust each side of table, for accurate cutting.
• Large cast iron fence with quick lock easily adjusts in any position up to 45 degrees.
• Main cutter head guard is spring-loaded & adjusted to protect operator from exposure to cutter head while passing workpieces through the cutterhead.
• Totally sealed ball bearings, high quality for long life.
• Front scale to easily read depth of cut.

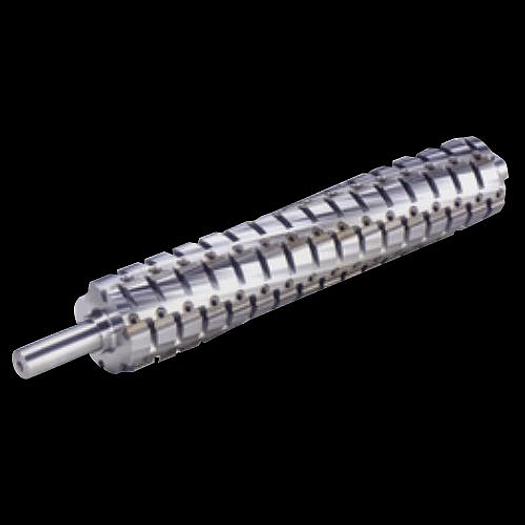

• Balanced steel insert cutter head.
• Heavy sheet metal cabinet stand.

SPECIFICATIONS

Table Area (L x W) 72" x 13-3/8"

Planning Width 12"

Spindle Size 3-3/8" x 12" L

Spindle Speed RPM 5250

Fence Size (L x H) 44-7/8" x 4-7/8"

Fence Position range 45°

Side-groove 3/4"

Motor 3HP, 1PH, 230 V

Packing Size (L x W x H) 74" x 22" x 28"

N.W. 836 LBS

G.W. 1056 LBS
