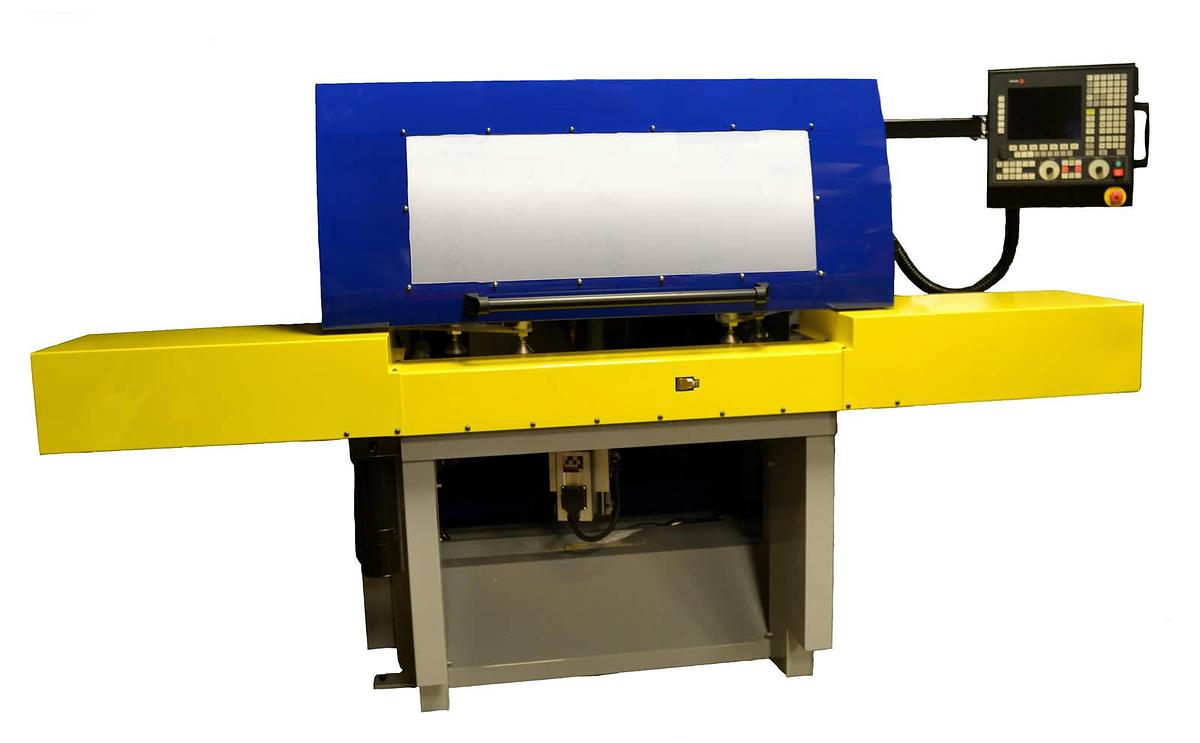

US Concepts CSR-750CNC Automatic CNC Stair Router
US Concepts CSR-750CNC Automatic CNC Stair Router
Contact us for price
or
Call 920-452-4494
Description
- Heavy Duty construction with Cast iron arms and walls
- FAGOR CNC 8055i/A 3-axes package
- Standard programs are:
- Standard Box Step with Round Nose
- Blunt Nose with Rake or Straight Riser
- Open Pan Rout with partial Riser or no Riser
- Temporary Stair Rout
- Center Open Horse Cut
- Open Stringer cut with 45° Riser relief
- Two 5HP High speed router motors
- Two adjustable speed drive controllers
- Automatic board advance every cycle
- Networking, and remote data entry and supervision
- Max material width 12″
- Material thickness: ¾” – 3-1/2″
- Tool shank capacity ¾”
- Max. feed speed 300 FPM
- Communication ports: RS232, USB, network
- Machine dimensions 94″L x 60″D x 64″H
- Weight approx. 4200 lbs
- Dust outlet 8″
Specifications
| Manufacturer | US Concepts |
| Model | CSR-750CNC Automatic CNC Stair Router |
| Condition | New |
| Stock Number | N/A |
