Doucet Air Table, 3 x 5 and Many Other Available Sizes for Panels up to 200lbs

Doucet Air Table, 3 x 5 and Many Other Available Sizes for Panels up to 200lbs

Contact us for price

orCall 920-452-4494

Description

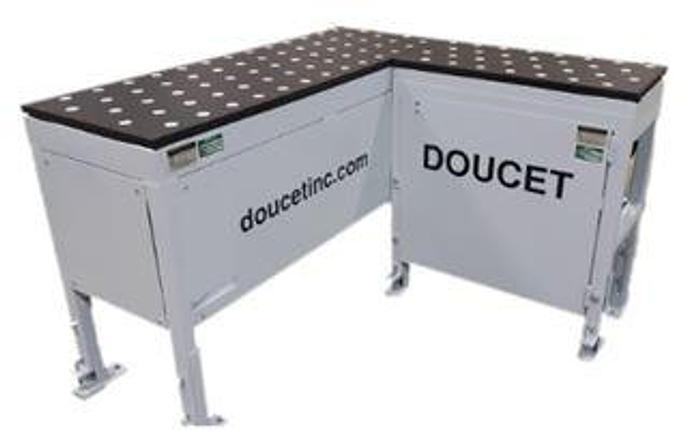

Doucet Air Table, 3 x 5 and Many Other Available Sizes for Panels up to 200lbs


Designed for effortless handling of panels, air tables are typically used with an edgebander or a panel saw. Can also be used at the end of a return conveyor.

FEATURES

  • A square, rectangular or irregular work surface as dictated by your panel sizes
  • Tables are available in many shapes and/or sizes, with or without vertical stroke command include a built-in air flotation turbine
  • The work surface features nine self-releasing flotation outlets per square foot


Table dimensions: 3' x 5'

9 self-releasing flotation outlets per square foot

Each outlet is self-locking by polyethylene balls

Built-in air flotation turbine

Pneumatic stroke up/down to lift panel to same working height than the edgebander

Up/Down stroke movement is triggered manually by operator on foot pedal Power and control components are installed into the BT3 return conveyor panel

Panel maximum weight 200 lb


Specifications

ManufacturerDoucet
ModelAir Table
ConditionNew
