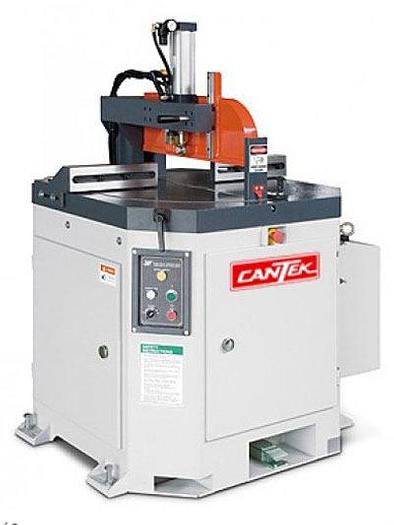

Cantek PCM-508 Pneumatic Cut-off Saw w/ Rotary Table

Cantek PCM-508 Pneumatic Cut-off Saw w/ Rotary Table

$16,000 (USD)

orCall 920-452-4494


The Cantek PCM508 20” Miter Cut-Off Saw is a precision pneumatic saw designed for cutting miters up to 60o in either direction.   The saw is automatically cycled pneumatically and activated by a foot switch to allow for fast positioning of the workpiece.  Capable of production cutting with up to 40 cuts per minute.  The cutting speed is adjustable to ensure the optimum finish result on your workpiece no matter the species or size.  The rotary table runs on ball bearings to ensure effortless rotation of the blade according to the desired cutting angle. The workpiece is clamped pneumatically, and the clamping guard runs on linear guideways for smooth and fast clamping operation.  The PCM508 is available with optional infeed and outfeed conveyor systems with manual stops or can be fitted with an automatic stop system such as Tigerstop for added productivity.


Table can be swiveled to right and left max 45 degree angle, allowing angular cutting 30-45 cuts per minute 20" blade size 1" arbor diameter 3100 RPM blade speed 7.5 HP motor
