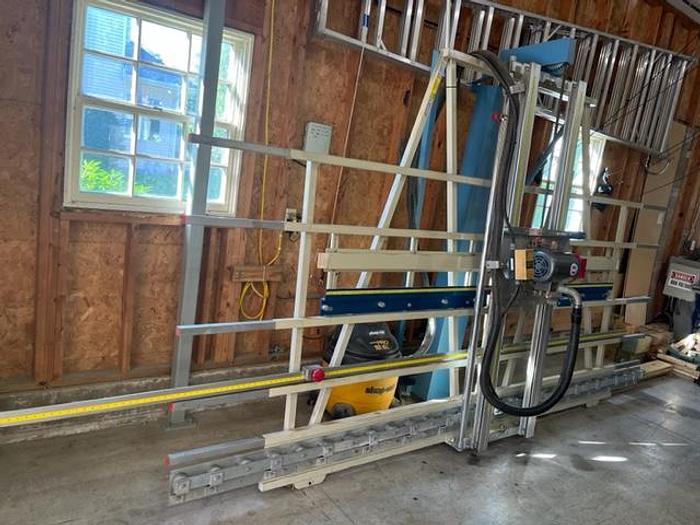

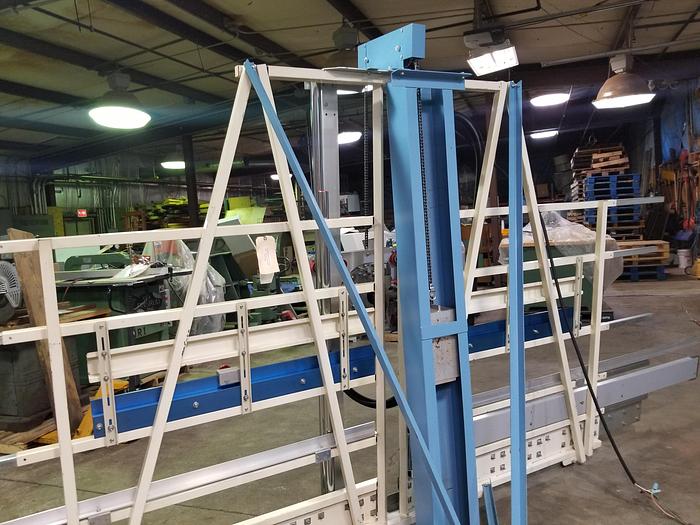

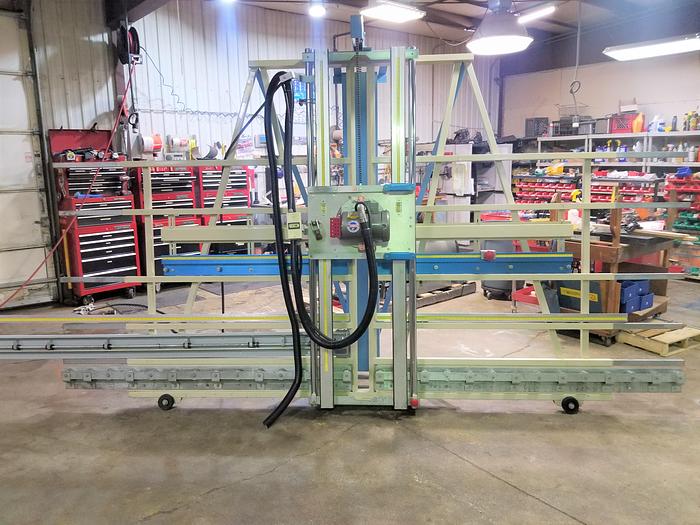

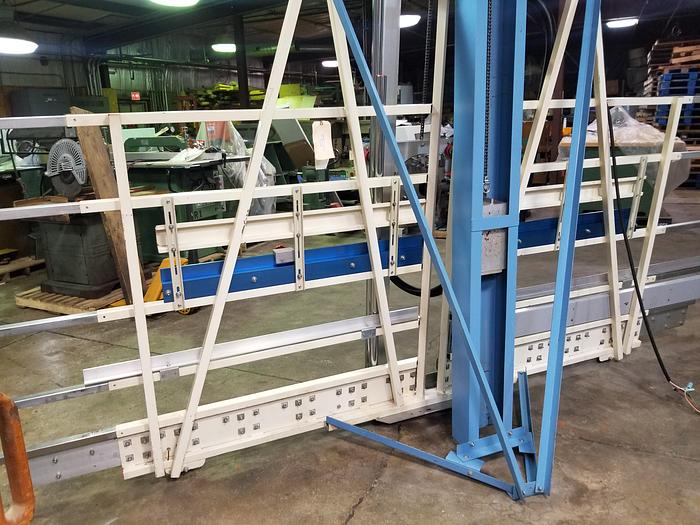

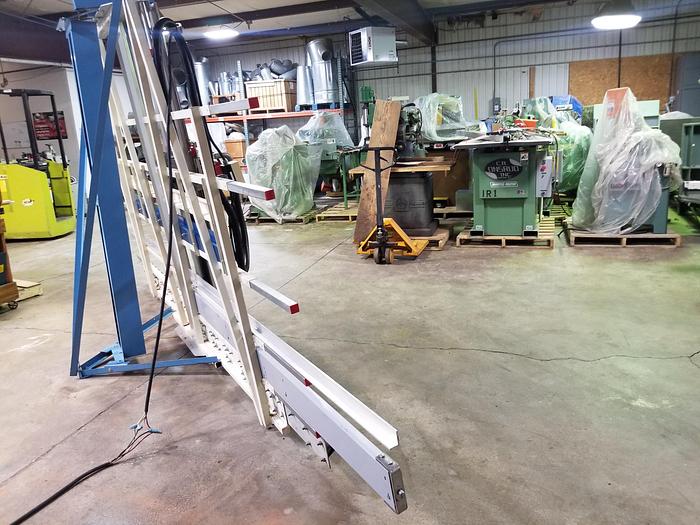

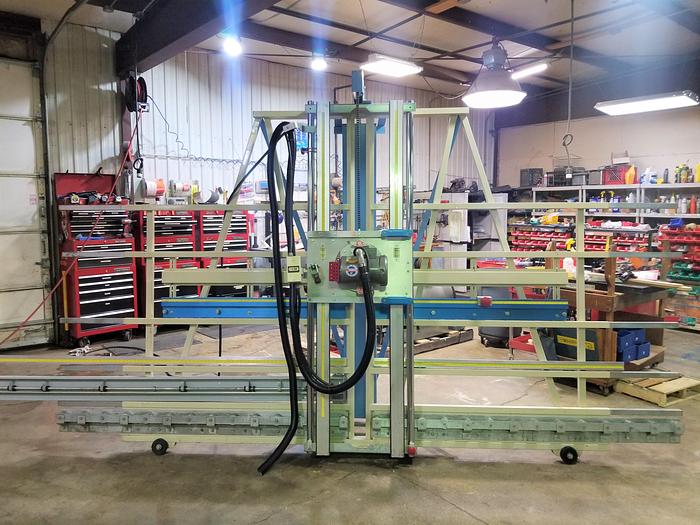

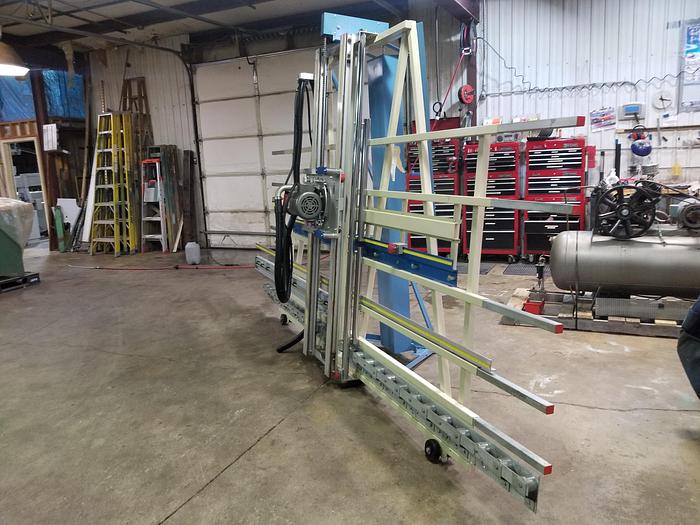

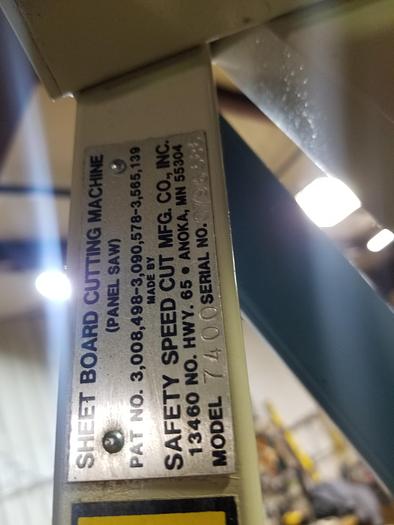

Safety Speed 7400 Vertical Panel Saw, 3HP, 230V 3PH, 2007

Safety Speed 7400 Vertical Panel Saw, 3HP, 230V 3PH, 2007

Cleaned and checked, very good condition.

Welcome to cutting at the highest production and accuracy level. If continuous sawing and tight tolerance is required for your operation, these units will deliver. Every component of this saw represents quality and performance. Showcasing heavy duty induction motors, heavy extruded beams with precise dual-vee bearings, and the sturdiest frame on the market, these powerhouse machines will deliver cutting accuracies to 0.005” guaranteed.

Standard Equipment

• 3 Hp, 3 phase continuous duty induction saw motor.
• Welded steel frame and integrated stand system.
• Dual V-track precision guide system.
• Adjustable vertical and hori- zontal rulers.
• Quick stop gauges (8′ left, 5′ right).
• Saw blade. Quick change from vertical to horizontal cutting.
• Floating pressure saw foot.
• Solid aluminum material rollers.
• Enclosed counterweight system.
• MID-WAY FENCE™.
• Dust collection ready.
• Hold down bar.
• Wheels.
• TUV certified to UL/CSA standards

Features

• Max. Crosscut:  64"/1625mm
• Welcome to cutting at the highest production and accuracy level. If continuous sawing and tight tolerance is required for your operation, these units will deliver. Every component of this saw represents quality and performance. Showcasing 3 Hp, 3~ heavy duty induction motors, heavy extruded beams with precise dual-vee bearings, and the sturdiest frame on the market, these powerhouse machines will deliver cutting accuracies to 0.005” guaranteed.
• Standard Equipment
• 3 Hp, 3 phase continuous duty induction saw motor.
• Welded steel frame and integrated stand system.
• Dual V-track precision guide system.
• Adjustable vertical and hori- zontal rulers.
• Quick stop gauges (8′ left, 5′ right).
• Saw blade. Quick change from vertical to horizontal cutting.
• Floating pressure saw foot.
• Solid aluminum material rollers.
• Enclosed counterweight system.
• MID-WAY FENCE™.
• Dust collection ready.
• Hold down bar.
• Wheels.
• 3 year warranty.
• TUV certified to UL/CSA standards
• Features
• Max. Crosscut:  64"/1625mm
• Max. Rip Cut:  Unlimited
• Max. Cut Thickness:  2-1/8"/55mm
• Cut Accuracy, Straight and Square:  .005"/.13mm
• Saw Blade Diameter:  8"/210mm
• Motor:  3PH 230V
• Frame Length:  156"/3950mm
• Shipping Weight:  1050lbs
• Shipping Dimensions:  160" x 98" x 48"
• Accessories to be included

All specifications to be verified by buyer
