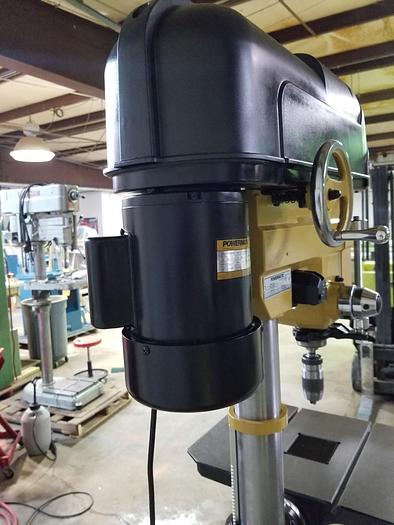

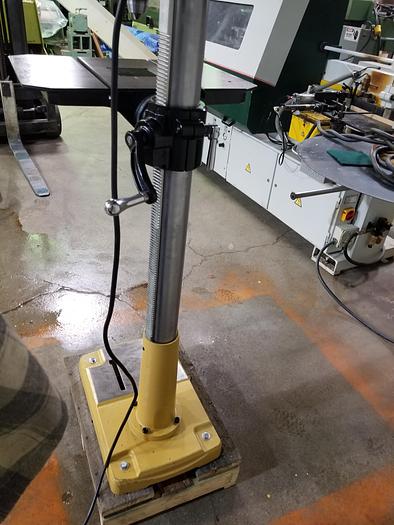

Powermatic 2800B, 18" Drill Press, 1HP, 115V, 1PH, Mechanical Var. Speed, Refurbished

Powermatic 2800B, 18" Drill Press, 1HP, 115V, 1PH, Mechanical Var. Speed, Refurbished

Features

6” of quill travel with one revolution of the handle

Digital RPM readout allows user to optimize the spindle speed to the application

Fence system adjustable for a perfect 90-degree relationship to the table and for rapid alignment of stock

Includes 5/8" keyed chuck

Laser guides provide an accurate indication for tool point

Mechanical variable speed allows for full range of speeds with no belt changes

Oversize cast iron base for added stability

Reversible handles can be mounted on either side of the machine for more comfortable working of the

quill

Two independently adjustable LED work lights eliminates shadows

Work table can be rotated to a full 90 degree position

Specifications

Stock Number 1792800B

Base Dimensions (In.) 13-1/2 x 20-1/2

Base Work Table (In.) 10 x 12

Chuck Size (In.) 5/8

Column Diameter (In.) 3-1/8

Gross Weight (Lbs) 266

Motor Amps 20/15

Motor (HP) 1 HP, 115/230V, 1Ph

Motor Phase 1

Motor Power (HP) 1

Motor Voltage (V.) 115/230

Net Weight (Lbs.) 246

Overall Dimensions (L x W x H) (In.) 18 x 20.25 x 71

Prewired Voltage (V.) 115

Quill Diameter (In.) 2.6

Spindle Distance to Base (In.) 44-3/4

Spindle Travel (In.) 6

Style (Type) Floor

Swing (In.) 18"
