Cantek 25" x 8" Double Surface Planer, GT635ARD, 2015, 50HP Combined, 3PH, Good Operating Condition

Sold

Cantek 25" x 8" Double Surface Planer, GT635ARD, 2015, 50HP Combined, 3PH, Good Operating Condition

$22,995 (USD)

Available quantity:1

Description

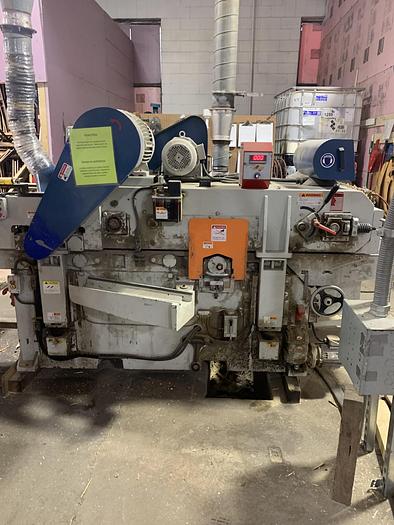

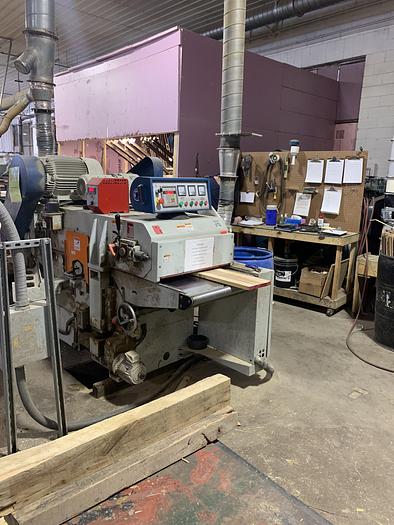

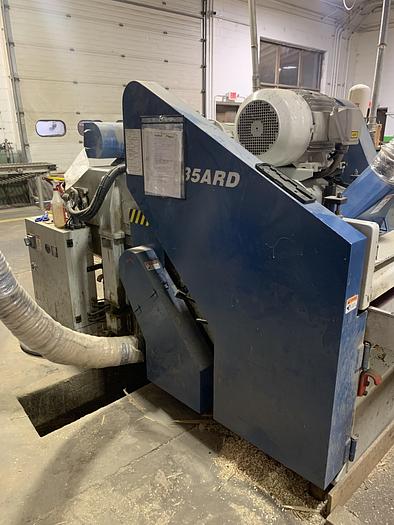

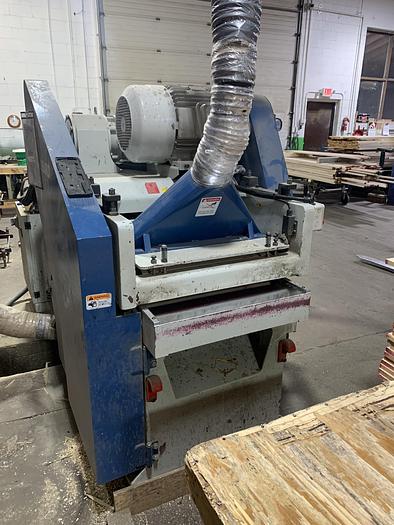

Cantek 25" Double Surface Planer, GT635ARD, 2015, Good Operating Condition, still at a production facility.



  • 25″ x 8″ capacity as standard
  • Cutterheads are spiral insert type with six (6) rows of carbide inserts
  • (2) driven and (1) idle bed roll for superior feeding of even difficult material
  • Swiveling control panel for more ergonomic access to machine controls
  • Inverter variable speed control with feed speeds from 26 to 80 FPM
  • Easy to access external handwheel adjustment of infeed bed
  • Hard chromed worktable for high wear resistance
  • Auto lubrication to conveyor chain, central lubrication for dovetail elevation guideways
  • Section chipbreaker and sectional feed roller before top cutterhead
  • Rubber outfeed top roller to prevent chip marking
  • Over thickness safety shut-off bar across infeed.
  • Ammeter for each motor on control panel to monitor motor load


Maximum working width 25″

Maximum working thickness 8″

Minimum working thickness 0.315″

Minimum workpiece length 12.2″

Bottom head motor 20 HP

Top planing head motor 25 HP

Feed motor 5 HP

Table elevation motor 1/2 HP

Cutterhead diameter 4″

Knife dimensions 30mm x 12mm x 1.5mm w/ bevels (96 pcs per head)

Cutterhead speed 5,400 RPM

Feed speed (variable) 26-80 FPM

Dust ports 2 @ 6”

Table dimensions 27″ x 103″ (32″ from the floor)

Machine voltage 460/3/60 = 69.7 amps

Machine dimensions (LxWxH) 105″ x 45.1″ x 67.7″

Net weight 6600 lbs

Packaging dimensions 109″ x 49″ x 74″

Gross weight 7700 lbs



Specifications

ManufacturerCantek
ModelGT635ARD
Year2015
ConditionUsed
