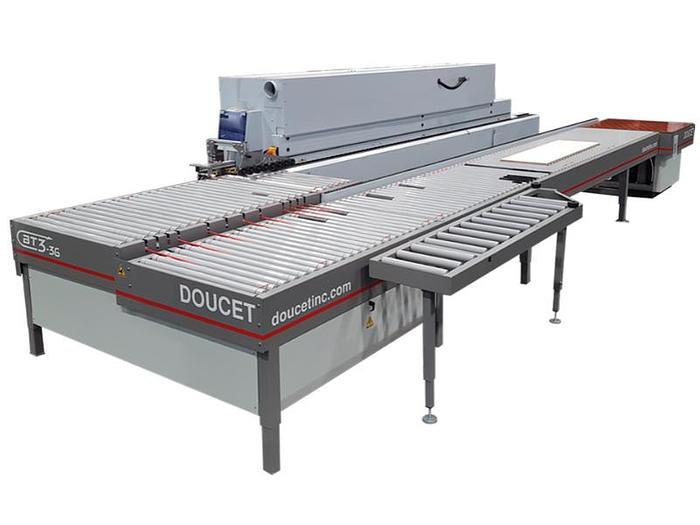

Doucet BT3 Return Conveyor

Doucet BT3 Return Conveyor

Contact us for price

orCall 920-452-4494

Description

NEW

Built around a modular frame, BT3 Return Conveyors are available in 5 roller length models, BT3-24, BT3-30, BT3-36, BT3-48 and BT3-60. All models incorporate the fast, simple and highly effective belt transfer system as follows:

OPERATING PRINCIPLE

  • Its receiving rollers are equipped with a down stroke mechanism that is activated by detection of the trailing end of the panels exiting the equipment.
  • Transfer belts nested in between the rollers are used to side shift product to a set of motorized rollers parallel to your equipment.
  • Those return rollers are 2" lower than the pass line on the equipment in order to avoid interference when overlapping panels are traveling in opposite directions.
  • Once the panel has cleared the reception area, the receiving rollers return to their upper position ready to receive the next panel.
  • BT3 Return Conveyors are built for right or left-handed return, according to the model of edgebander.

OPERATING SPEED

  • BT3 Return Conveyors are equipped with a variable speed drive to match the processing speed of the equipment, receiving table speed is adjustable from 30 to 90 ft/min, belt transfer speed is fixed at 180 ft/min and return conveyor speed is adjustable from 60 to 180 ft/min.


APPLICATION

  • BT3-24, BT3-30 and BT3-36's are ideal for most case-good applications, such as kitchen & bathroom cabinets and living room furniture.
  • BT3-48 and BT3-60 conveyors are best suited for surface finishing applications, such as office furniture and display casings.


OPTIONS:


  • A PT-90 Panel Turner to return long rectangular panels lengthwise after finishing of their narrow sides. Available on all models, this device simplifies processing short sides on long and narrow panels. The panels are turned 90° as part of the transfer process between the receiving and return rollers, thus eliminating panel overhang.
  • Panel Deviator: to redeploy narrow parts over several rollers
  • Air Table
  • Steel Rollers covered by with or without PVC Sleeves
  • Additional receiving table length: 2', 4' or 7' up to a total length of 7', 9', 12'
  • Additional return length, proportional to the equipment available per increments of 1 foot
  • Additional transfer width available per increments of 1 foot
  • Set of 3 additional transfer belts, for heavier panel application
  • Main module on caster mounting
  • Quick release disconnect on caster mounting for return section
  • Motorized infeed arms
  • Panel Accumulation Mode on return rollers
  • Angular Return Section
  • Heavy Duty Models for application where panels exceed 200 pounds



Specifications

ManufacturerDoucet
ModelBT3
ConditionNew
Stock NumberBT3
