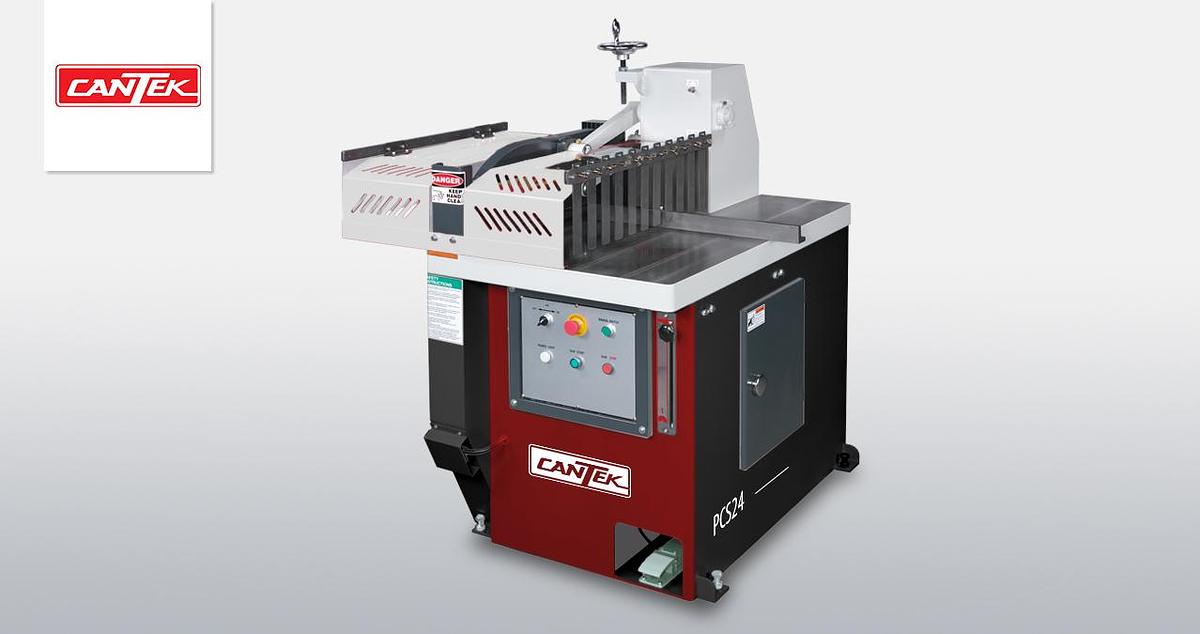

Cantek PCS24M 24″ Blade Capacity PNEUMATIC CUT-OFF SAW w/Non-Ferrous Metals Package, 4" x 19", Cut Capacity, 15HP, 230V, 3PH

Cantek PCS24M 24″ Blade Capacity PNEUMATIC CUT-OFF SAW w/Non-Ferrous Metals Package, 4" x 19", Cut Capacity, 15HP, 230V, 3PH

New Machine!

Available in Right Hand & Left Hand configuration

Cut off capacity (thickness x width): 2″ x 21″, 4″ x 19″, 6″ x 15″, 7″ x 8″

Powerful 15HP main motor

Pneumatic foot pedal operation with adjustable cutting speed from the front of the machine (Optional dual push button control)

Fast cutting cycle with up to 40 strokes per minute

Cast iron table surface is precision ground assuring high cutting accuracy.

Material clamp is easily adjusted for workpiece thickness variation.

CSA/UL magnetic switch

This saw has the Non-ferrous Metals Package included!

Pneumatic & Hydraulic Control

Mist Cooling Lubricator Sprayer Device

Sawblade for cutting Aluminum instead of cutting Wood

Air over Oil Cylinders

Chrome Table

Chrome Plate on Fence

Horizontal Clamps with Pressure Regulator

Cutting capacity (thickness x width) 2″x21″, 4″x19″, 6″x15″, 7″x8″

Cycle speed 40 strokes/min

Cycle operation Air / mechanical

Saw blade size 24″ max. (20″ min.)

Saw arbor diameter 1″

Saw blade speed 2400 RPM

Dust exhaust diameter Ø4″ x 2

Air consumption 27.5 CFM

Motor 15 HP

Table size 45.3″ x 26″

Net weight 1058 lbs

Gross weight 1433 lbs

Machine dimensions (LxWxH) 40.2″ x 45″ x 55″

Packing dimensions (LxWxH) 53.5″ x 35.5″ x 57″

Electrical requirements 460/3/60 = 21 Amps

230/3/60 = 42 Amps

575/3/60 = 17 Amps
