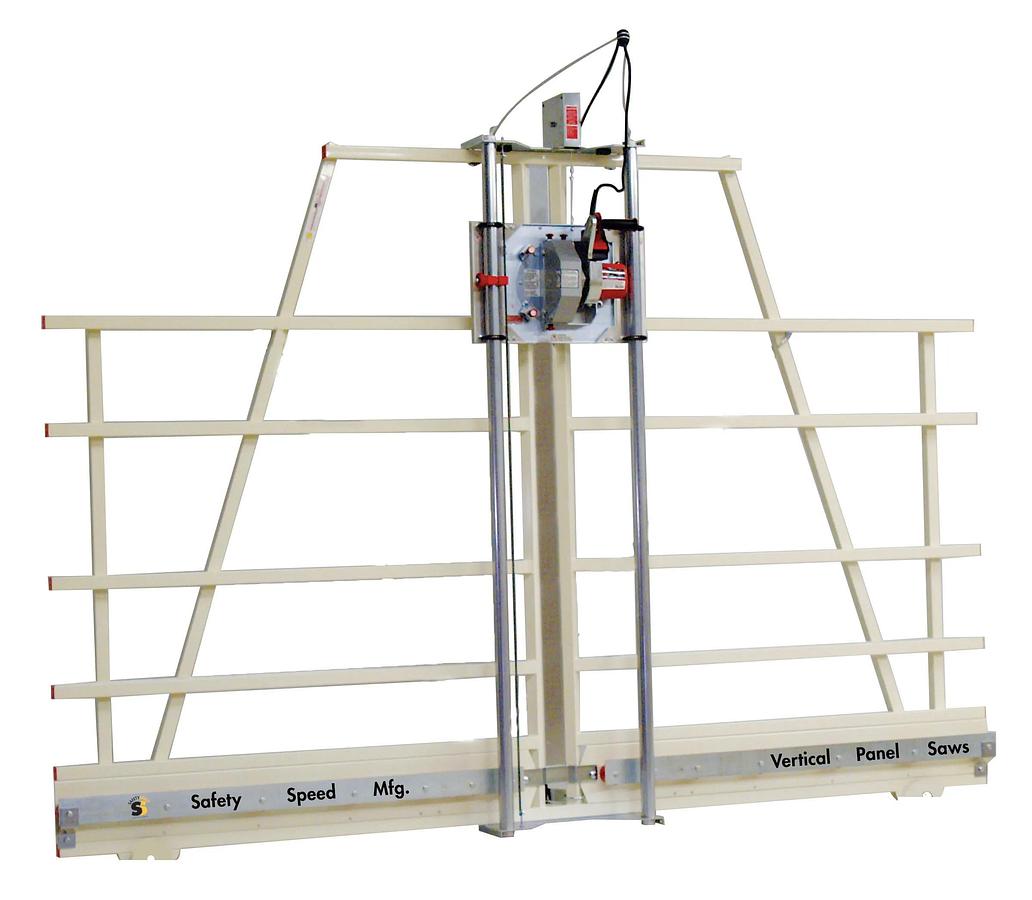

Safety Speed H5 Panel Saw

Our flagship H5 panel saws are ideally suited for customers looking for a full sized vertical panel saw at a very affordable price. This saw has a crosscutting height of 64″ while delivering an accuracy of 1/32″ straight and square. The only difference between this model and our H4 and H6 models are that the they provide 50″, and 74″ maximum crosscuts.

Our most common accessories include a fixed stand, 8″ saw blade, dust collection kit which allows for connecting your panel saw or router to your vacuum system of choice, and our pair of extensions adding 22″ to each side.

Standard Equipment

• Zinc plated 1 ¾”steel guide tubes.
• Milwaukee Tool motor
• 4 Nylatron roller bearing systems.
• Adjustable vertical and horizontal rulers.
• Quick change from vertical to horizontal cutting.
• Thin material pressure guard.
• Injection-molded plastic material rollers.
• Spring loaded counter balance system.
• Integrated dust collection bonnet.
• Extended warranty.
• TUV certified to UL/CSA standards

Weight298 lbsDimensions120 x 11 x 83inMax. Crosscut64"/1625mm

Max. Rip Cut Unlimited

Cut Depth1 ¾"/45mm

Cut Accuracy1/32"/.8mm

Frame Length120"/3050mm

Daily Usage1-3 Hours

Rollers14

Saw Blade Diameter8"/210mm

Saw Blade Bore5/8"

Motor Horsepower, Amperage and Volts3.25 HP, 15 amps, 120 Volt, 3.25 HP, 7.5 amps, 220 Volt

Motor Manufacturer Milwaukee Tool

ModelH5

Country of Origin USA
