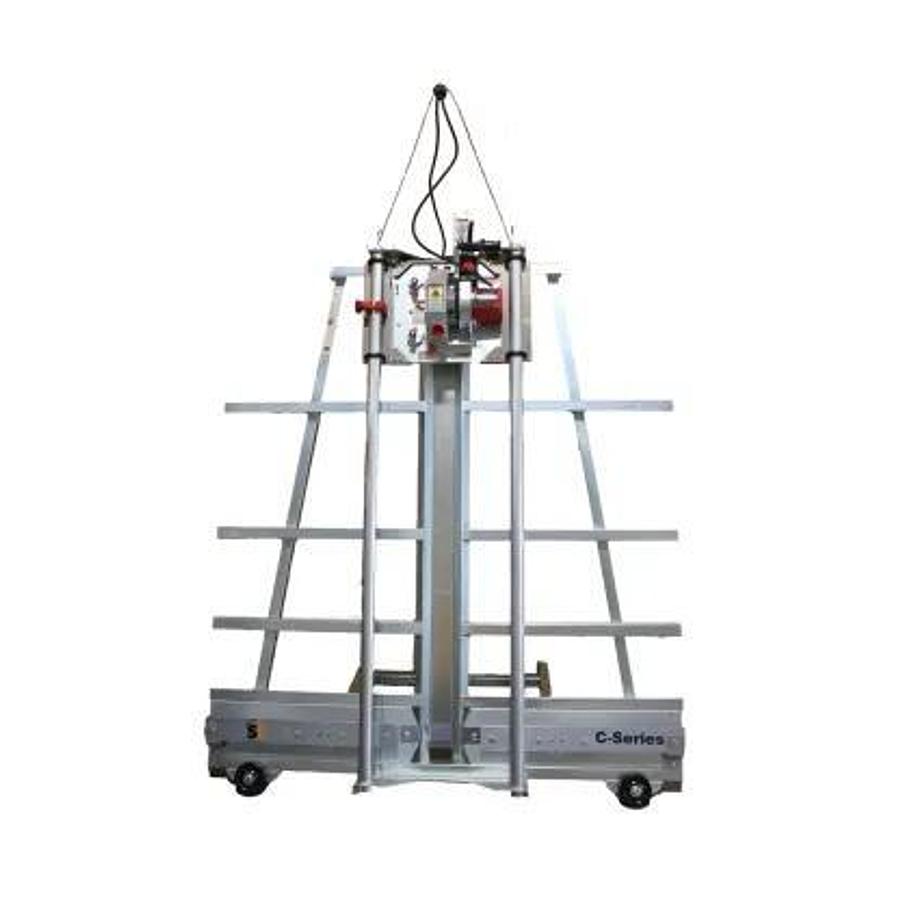

Safety Speed 6480-20C Vertical Panel Saw

Wheels and a folding stand provide portability for your compact panel saw and allow you to move it around your shop as you see fit.

Standard Equipment

• 3 ¼ Hp, 15 amp industrial, Milwaukee Tool motor.
• Folding Stand

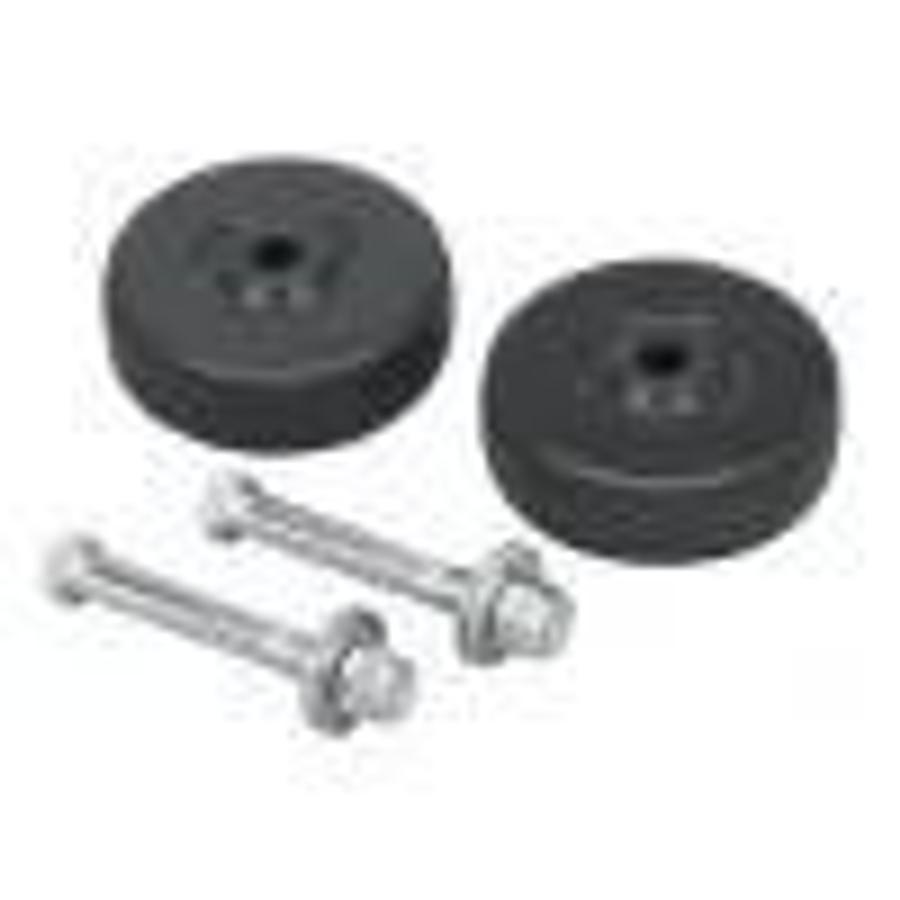

• Wheels
• Zinc plated 1 ¾” steel guide tubes.
• 4 Nylatron roller bearing systems.
• Adjustable vertical and horizontal rulers.
• Quick change from vertical to horizontal cutting.
• Thin material pressure guard.
• Injection-molded plastic material rollers.
• Spring loaded counter balance system.
• Integrated dust collection bonnet.
• Extended warranty.
• TUV certified to UL/CSA standards

Weight189 lbsDimensions60 x 11 x 70inMax. Crosscut50"/1270mm

Max. Rip Cut96"/2450mm

Cut Depth1 ¾"/45mm

Cut Accuracy1/32"/.8mm

Frame Length60"/ 525mm

Saw Blade Diameter8"/210mm

Saw Blade Bore Size5/8"

Daily Usage1-3 Hours

Rollers8

Motor volt and amperage15 amp, 120V, 7.5 amps, 220V

Motor Manufacturer Milwaukee Tool

Machine Footprint15sqft

Machine Length60"/1525mm

Machine Height75"/1900mm

Machine Width with stand attached36"/915mm

Circular Saw Motor Revolutions Per Minute (RPM)5,800 RPM

Country of Origin USA
