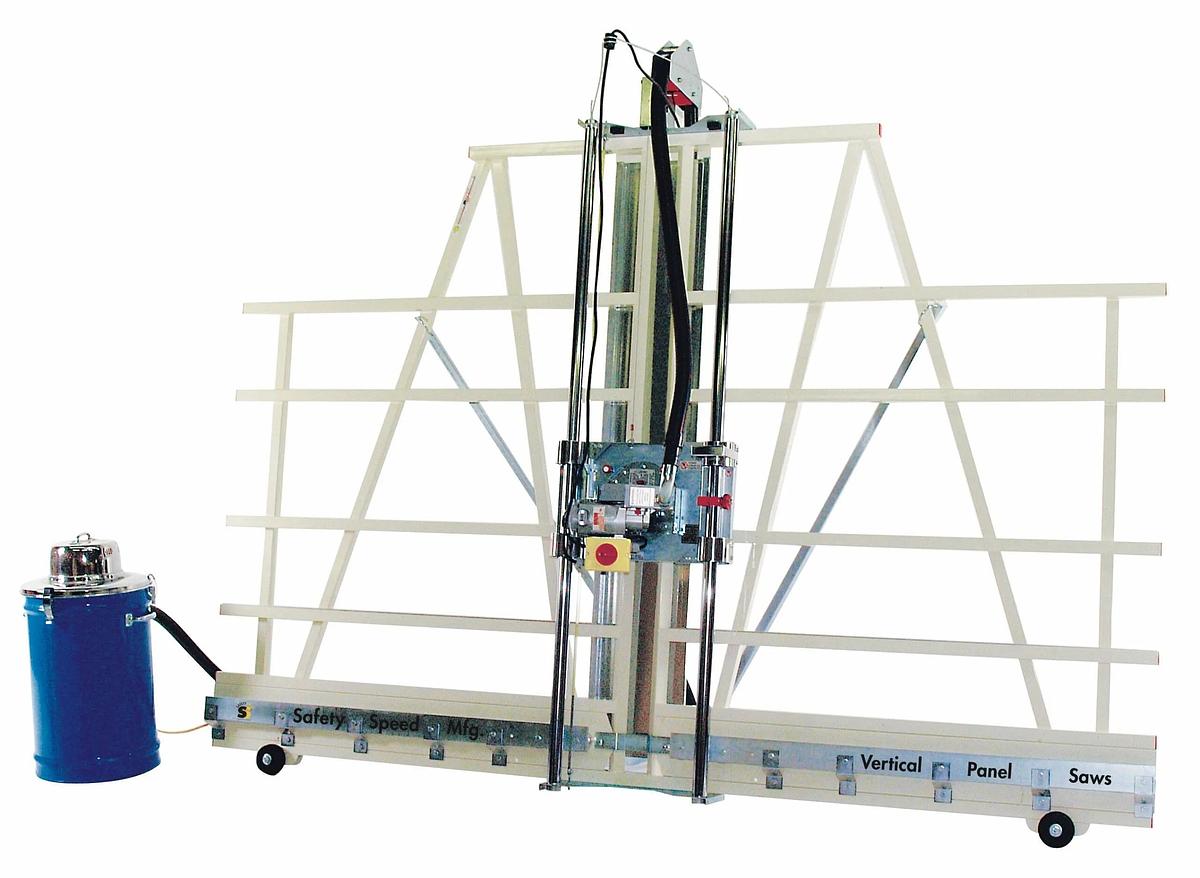

Safety Speed 6800 Panel Saw

Featuring a heavy duty worm drive motor, additional steel frame supports, aluminum wheels and double bearings, this machine will deliver an accuracy of 1/64″. The 6800 can cut sheets up to 74″ without blinking an eye.

Standard Equipment

• 3 Hp worm driven heavy-duty saw motor.
• 10 ft. welded steel frame.
• Chrome-plated 1 3/4″ guide tubes.
• 8 Nylatron roller bearing systems.
• Adjustable vertical and horizontal rulers.
• Quick change from vertical to horizontal cutting.
• Thin material pressure guard.
• Solid aluminum material rollers.
• Enclosed counterweight system.
• Integrated dust collection bonnet.
• TUV certified to UL/CSA standards.

Weight660 lbsDimensions124 x 17 x 98inMax. Crosscut74"/1850mm

Max. Rip CutUnlimited

Cut Depth1 ¾"/45mm

Cut Accuracy1/64"/.4mm

Frame Length120"/3050mm

Daily Usage3-5 Hours

Rollers14

Saw Blade Diameter8"/210mm or 8.25"

Saw Blade Bore5/8"

Motor13 amp, 120V

Country of OriginUSA
