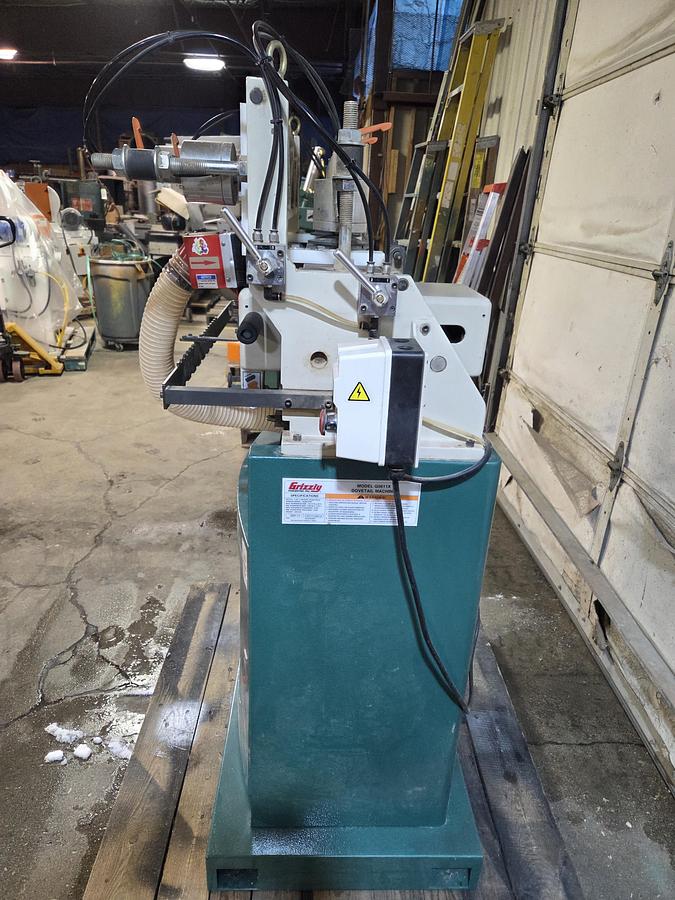

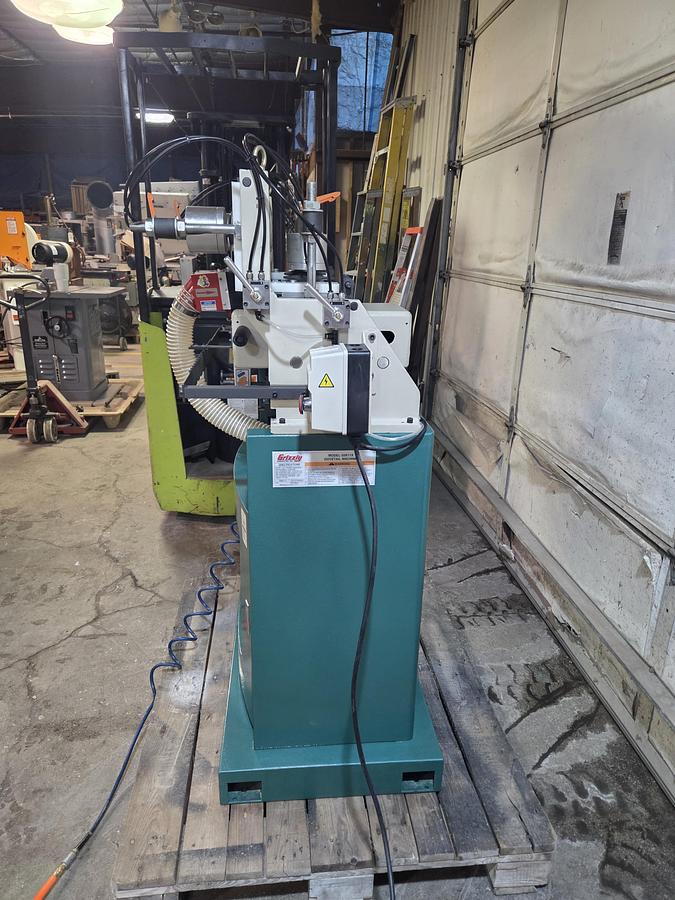

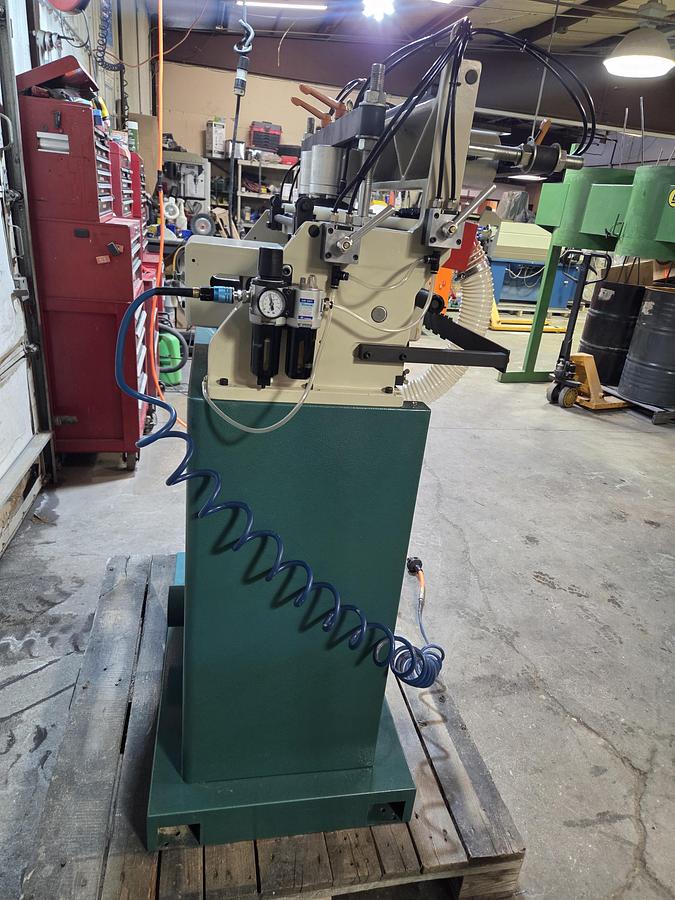

Grizzly GO611X 16.5" Width Cap. Manual Dovetailing Machine, 1PH, 220V, 1PH, 2007 Lower Use

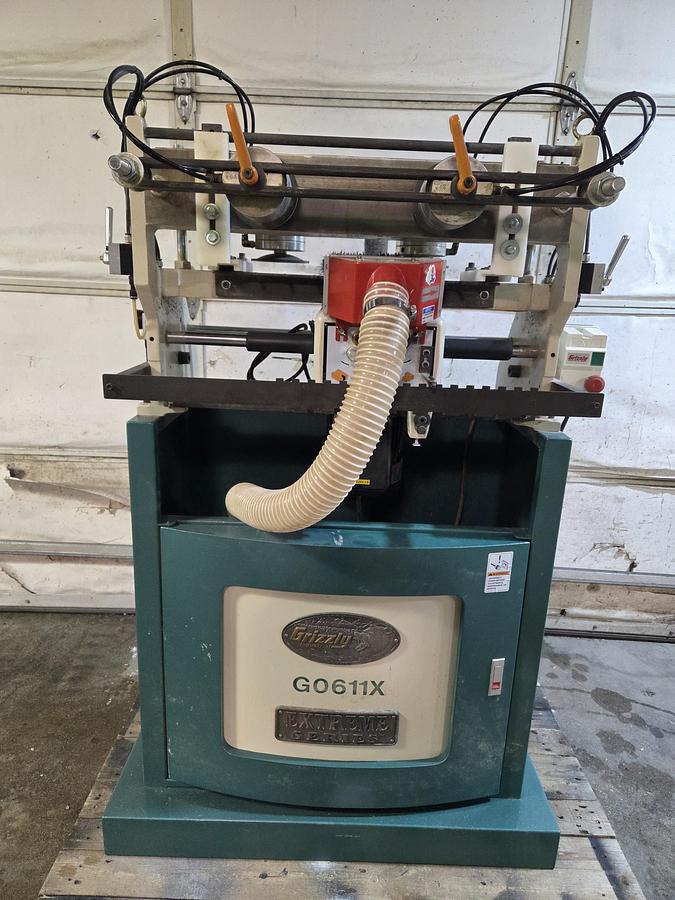

G0611X 16-1/2" Extreme Series Dovetail Machine

Produce strong and attractive half-blind dovetail joints at scale.

Just in, to be Cleaned, Checked

If you're wanting to upgrade from producing dovetails with a dovetail jig, this dovetail machine will quickly pay for itself!

The G0611X features pneumatic clamps for quickly loading workpieces and a 4-sided template for cutting 1", 1-1/2", 2", and 2-1/2" dovetails.

With the ability to cut two joints at a time, the G0644X can produce a 4-sided drawer in under two minutes if the boards are prepared properly.

Also spindle heads are micro-adjustable to give you complete control of dovetail "fit."

The H9388 replacement dovetail bits are available when your stock bits start getting dull.

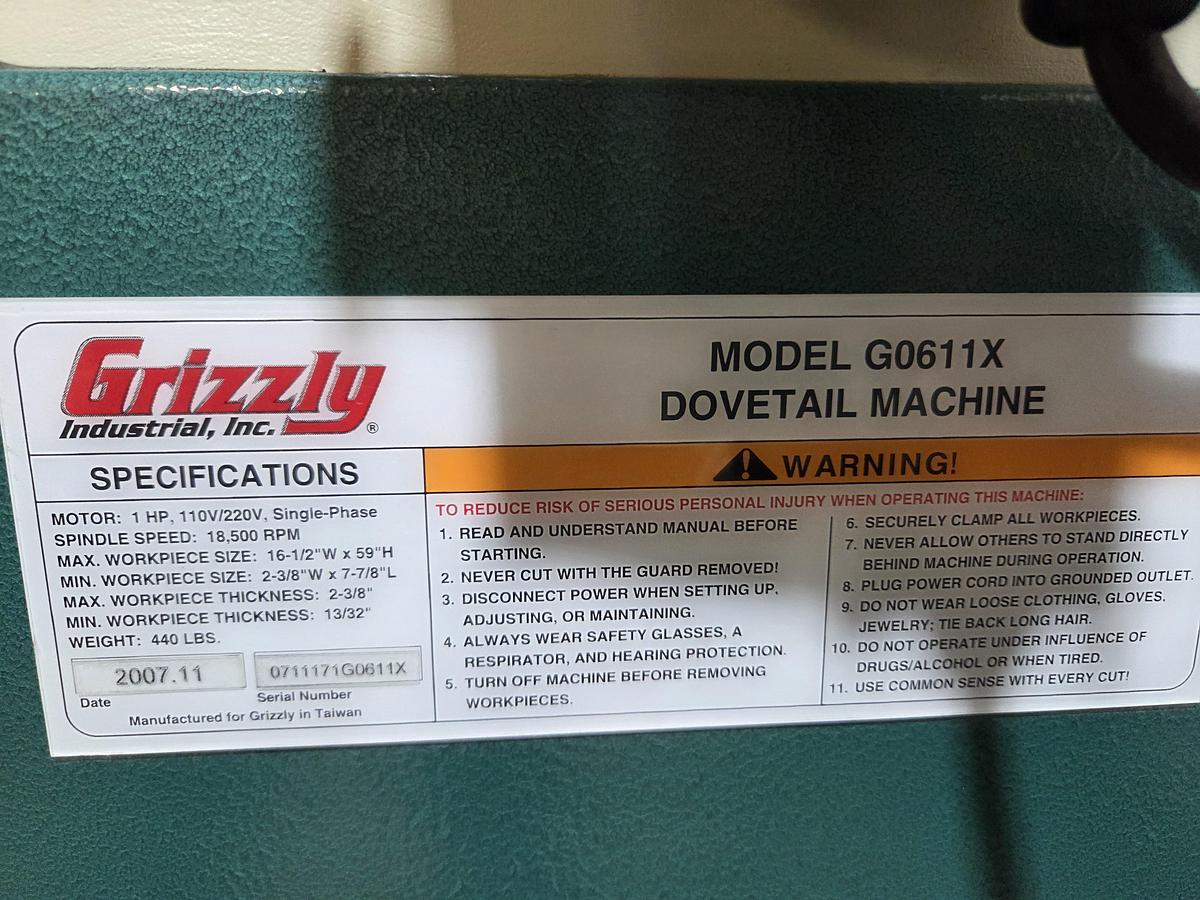

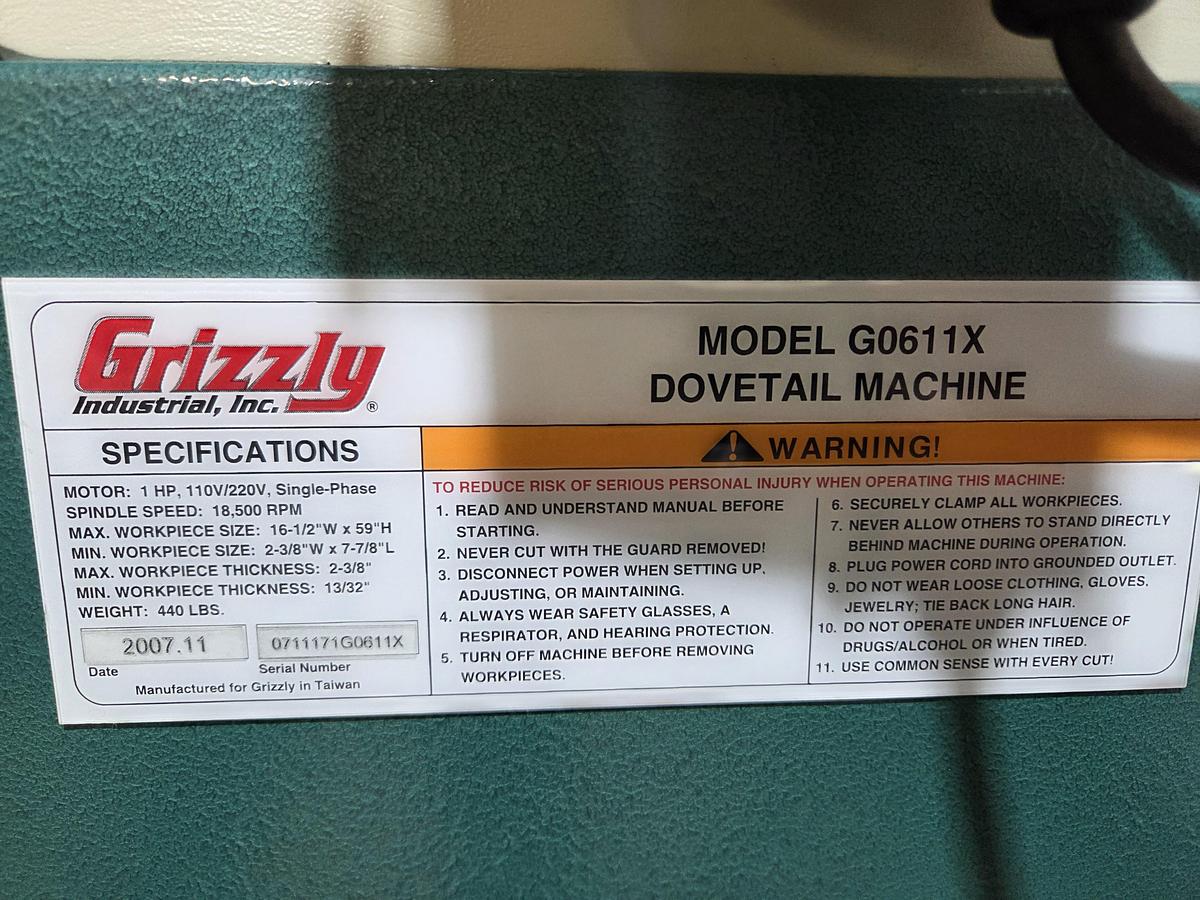

SPECIFICATIONS:

• Motor: 1 HP, 110V/220V (prewired 220V), single-phase, 10A/5A
• Minimum circuit size: 15A @ 120V, 15A @ 240V
• Number of spindles: 1
• Spindle speed: 18,500 RPM
• Dovetail bit: 10° angle x 5/8" long
• Dovetail shank: 12mm
• Maximum dovetail height: 3/4"
• Minimum dovetail height: 3/16"
• Maximum thickness: 2-3/8"
• Minimum thickness: 13/32"
• Maximum stock size: 59" long x 16-1/2" wide
• Minimum stock size: 7-7/8" long x 2-3/8" wide
• Table size: 24" x 7-3/4"
• Floor to table height: 46-7/16"
• Footprint: 37" W x 21-1/4"
• Overall size: 38-5/8" W x 26-1/2" x 56-7/8" H
• Approximate shipping weight: 539 lbs.

FEATURES:

• Micro-adjustable spindle head

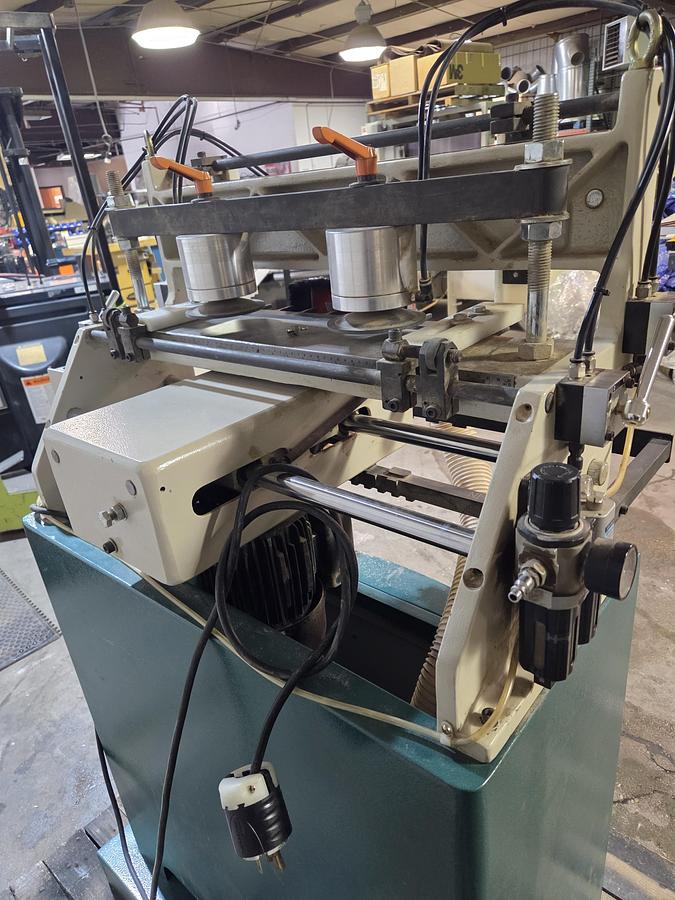

• Dual pneumatic clamping system
• Four-way dovetail template
• Cast aluminum, spring-loaded carriage
• Precision-milled cast-iron table frame
• Hardened and ground chrome steel slide ways

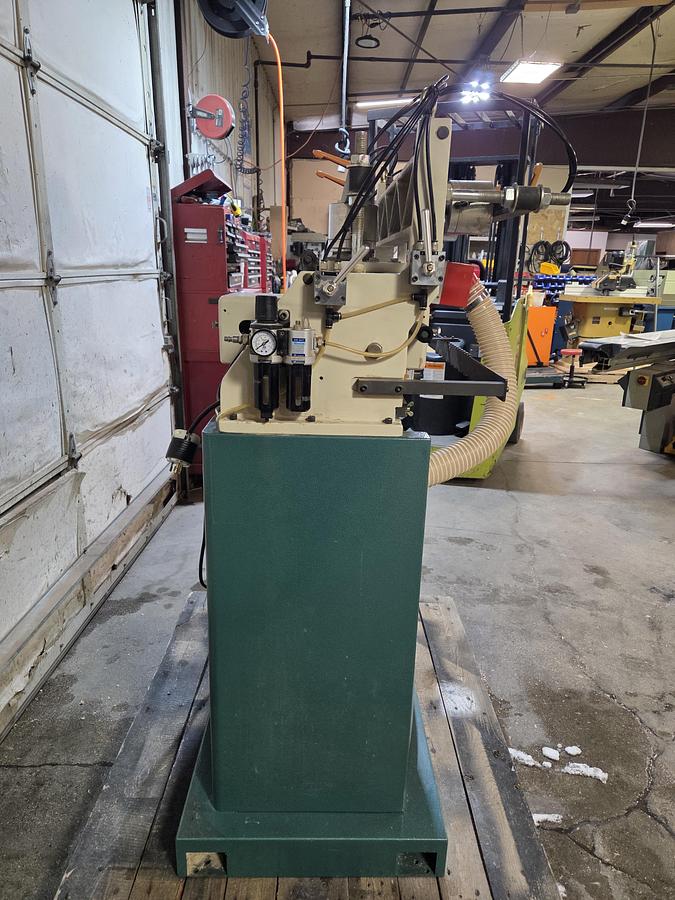

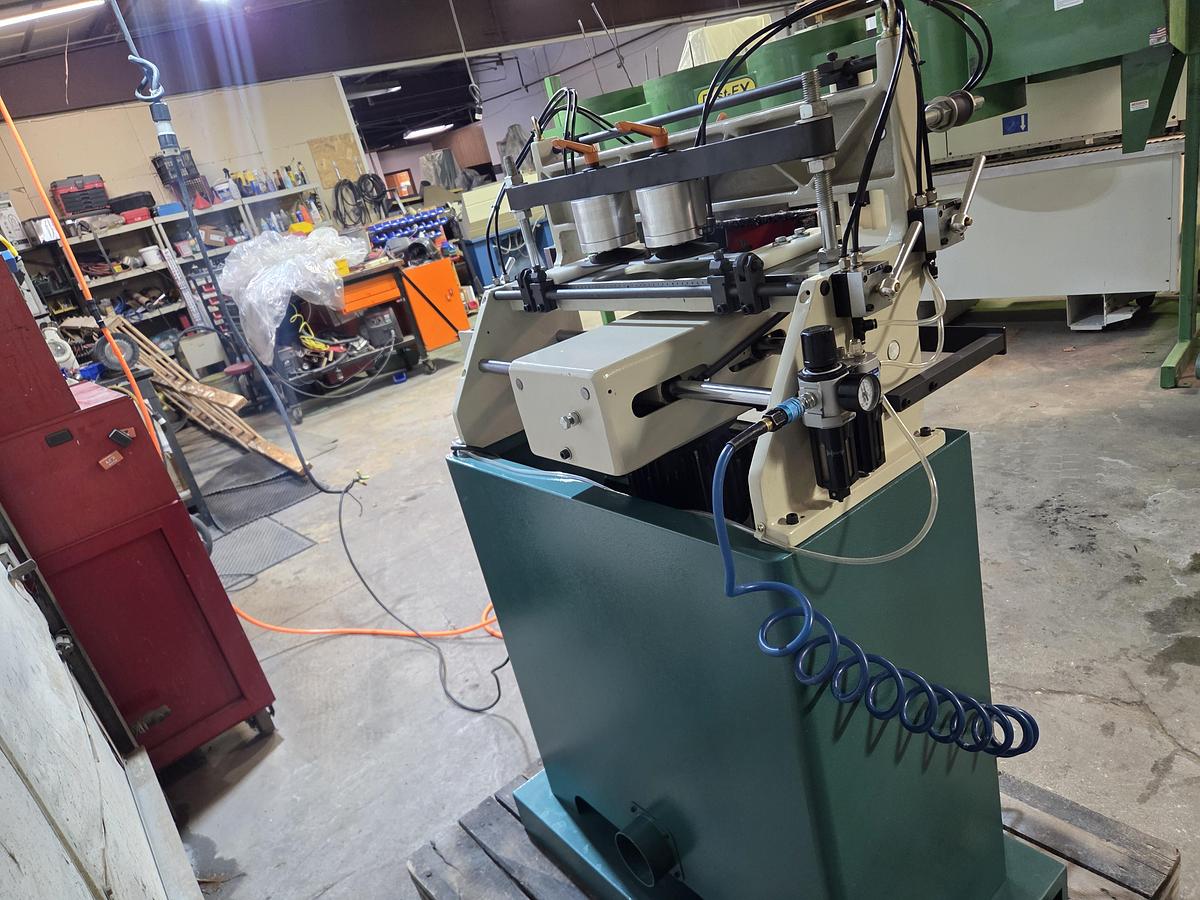

• Quick air-cylinder clamp, air filter/regulator/lubricator with pressure gauge
• Magnetic switch with thermal overload protection
• Ball-bearing linear guides
• Workpiece stops

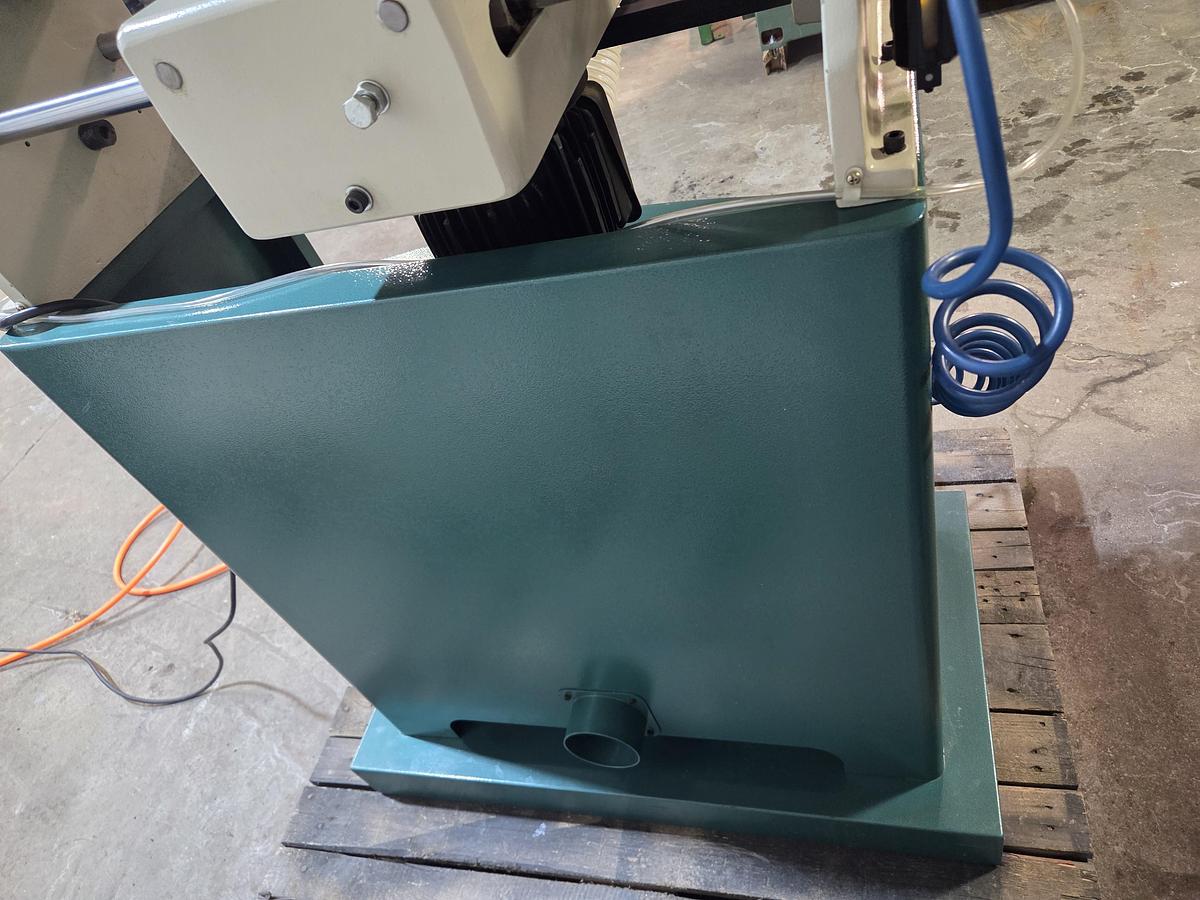

• 4" dust port
