Kreg DK1100FP, Single Spindle, Pneumatic Pocket Hole Machine

Description

Kreg Single Spindle Pneumatic Floor Pocket Hole Machine

New Machine!

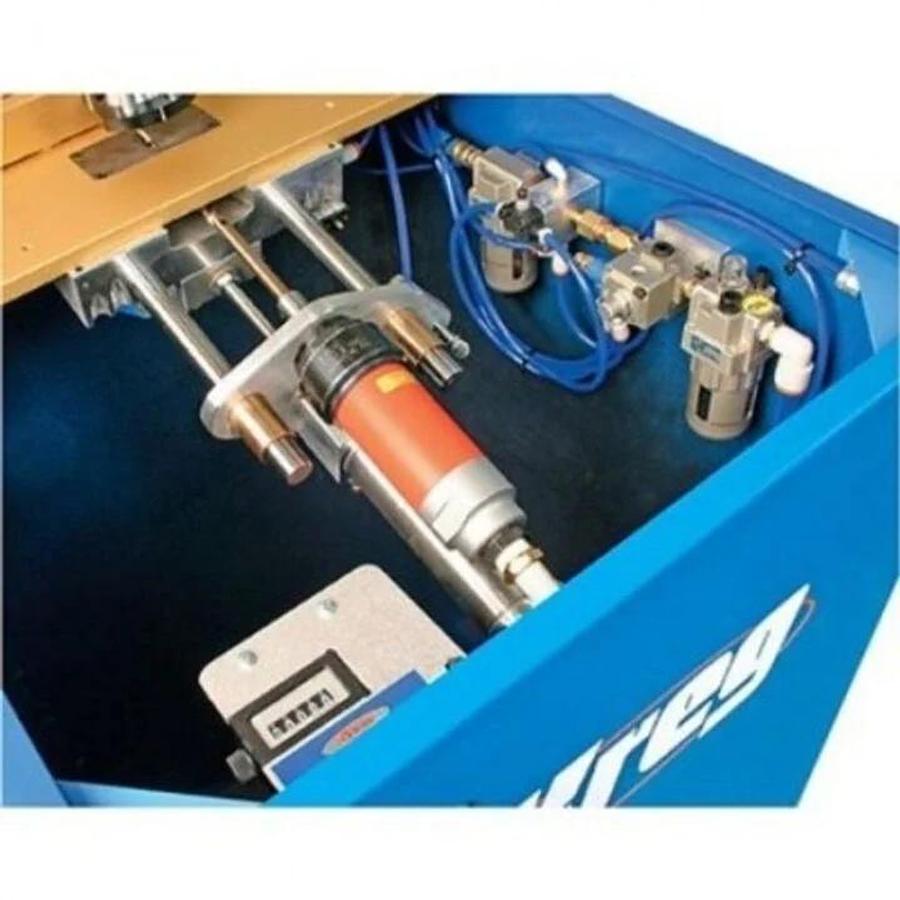

The DK1100 series of machines are the standard in the industry for drilling a single pocket hole at a time. We’ve packed a ton of functional features into these machines that really set them apart from the competition. Choose from electric- or pneumatic-powered, freestanding or bench-mounted to fit the way you build. Each DK1100 machine is built with true industrial-grade motors that provide the power to run day after day – quickly and reliably – in even the most high-production environments. For most shops, this translates into previously unheard of productivity and efficiency. Already set up for pneumatic? This model features an industrial grade 1 1/4-HP pneumatic motor capable of the same pocket hole productivity as the electric version. Requires a compressor able to produce 8 CFM at 120 PSI (50% duty cycle).

Features

Hardened-steel drill guide maximizes drill bit life

Industrial-grade motor for long-lasting service

One-touch, pneumatic operation by foot pedal

Swing Stops for optimized material positioning

Dust collection chute for efficient chip removal

Adjustable Fence

Quick Drill Bit Changes

Specifications:

Horsepower 1.25 HP

Warranty 5 Year

Drill Bit (Shank Diameter) 3/8"

Drill Bit (Pilot) 3/16"

Drill Bit (Length) 1/2"

Air Flow 8 cfm at 50% Duty Cycle

Pressure Rating 120 PSI/minute

Cycle Time 1 Second

Clamping Capacity 4"

Hole-Centering Capability 1/2" to 1-1/2"-Thick Material

Table Height 40"

Height 50"

Width 24"

Depth 24"

Weight 138 lbs
