Maggi Boring System 800 GT

STANDARD EQUIPMENT

HEAD UNIT

Independent spindles

N.7 vertical

N.1 double horizontal -spindle TH1 (X axis) for back/ forth drilling

Manual SIDE-ALIGNER

PANEL EDGE-READER for perfect panel joints

Teleservice Software

Dust-collection nozzle

Wokring table with GENTLE BRUSHES to avoid storage of dust and shavings.

Working process can be in a cycle or back to the operator

HARDWARE & SOFTWARE

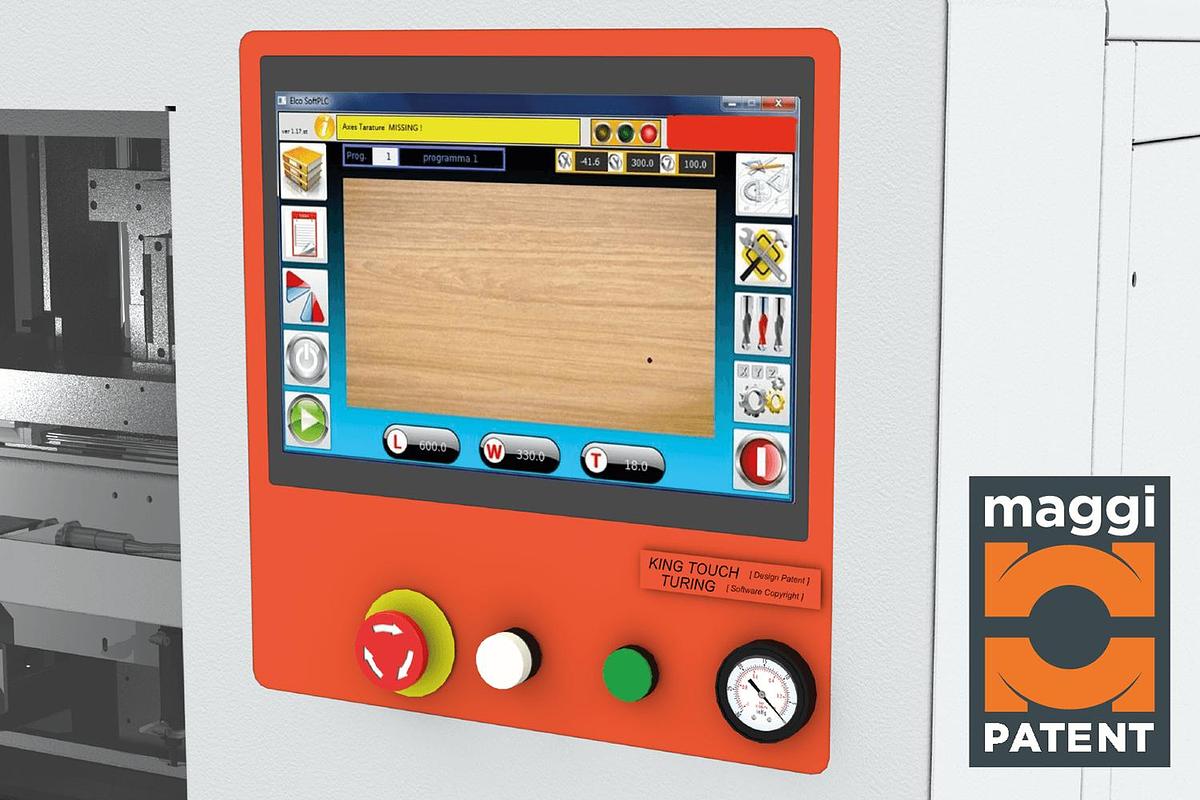

12" touch-screen - NO TEXT System, patented by Maggi

USB and Ethernet ports for file uploading, on-line assistance and system upgrades

System based on Linux Kernel

Up to 1.000 working programs storable

Maximum panel dimension X-Y-Z mm3000 x 800 x 50 mm

Minimum panel dimension X-Y-Z mm300 x 100 x 10 mm

Maximum panel weight25 Kg

Max. axis speed (full and no load)25 m/min - 40 m/min

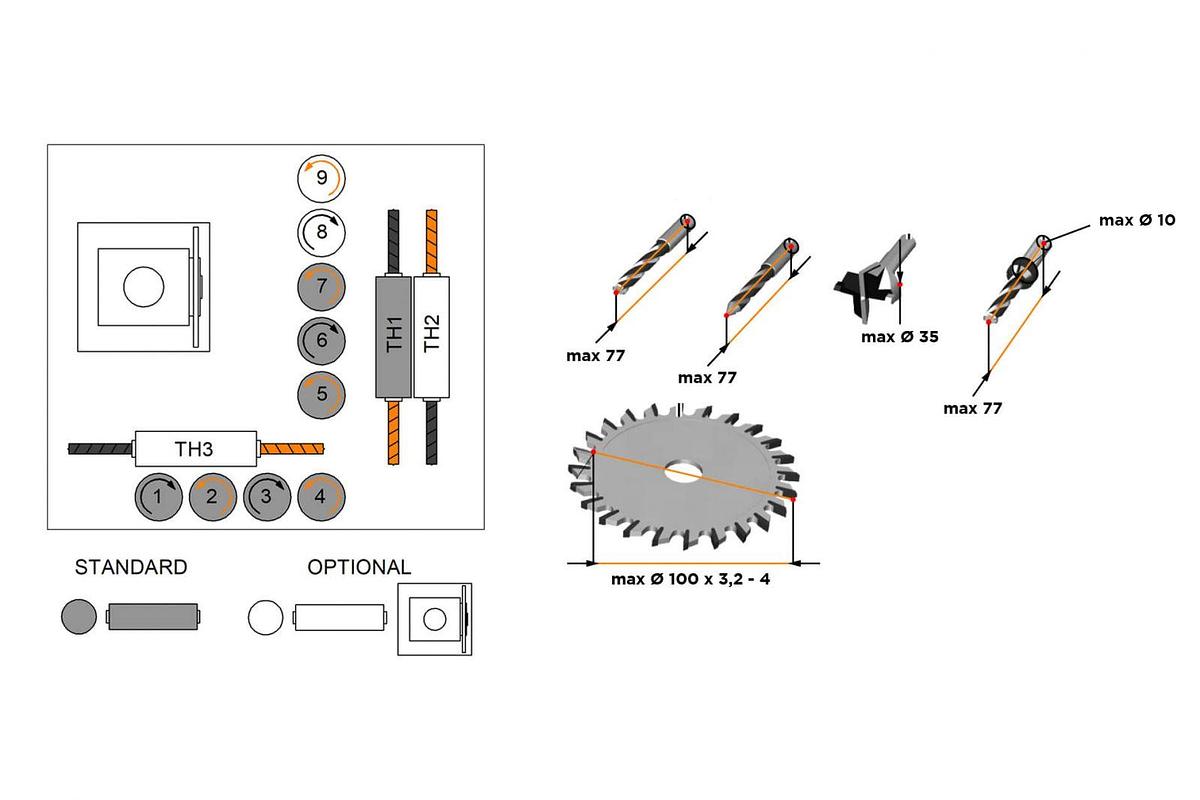

Double horizontal spindles (X axis)n.2 (TH1, TH2)

Double horizontal spindles (Y axis)n.1 (TH3)

Vertical spindles (Z axis)n.9 (4X-5Y)

Spindle interaxis32 mm

Spindle speed3200 RPM

Integrated blade unit, fixed position (X axis)n.1

Blade diameter100 mm

Blade thickness3,2 mm

Blade speed5700 RPM

Motor power (spindles and blade)2,2 kW

Electro spindle manual tool change (power - router holder type - collet chuck type - RPM)

Electro spindle manual tool change (power - collet chuck type - RPM)

Electro spindle manual tool change (power - collet chuck type - RPM)

Total power (full-optional)3 kW ( 8 A)

Dust-collection nozzle diam.160 mm

Air pressure6 bar

Air consumption Q. = 0,75 m3/h

Overall dimensions - net weight1830 x 2000 x 1800 mm. - 975 Kg

Package dimensions (pallet) - gross weight2090 x 2060 x 1900 mm - 1.060 Kg
