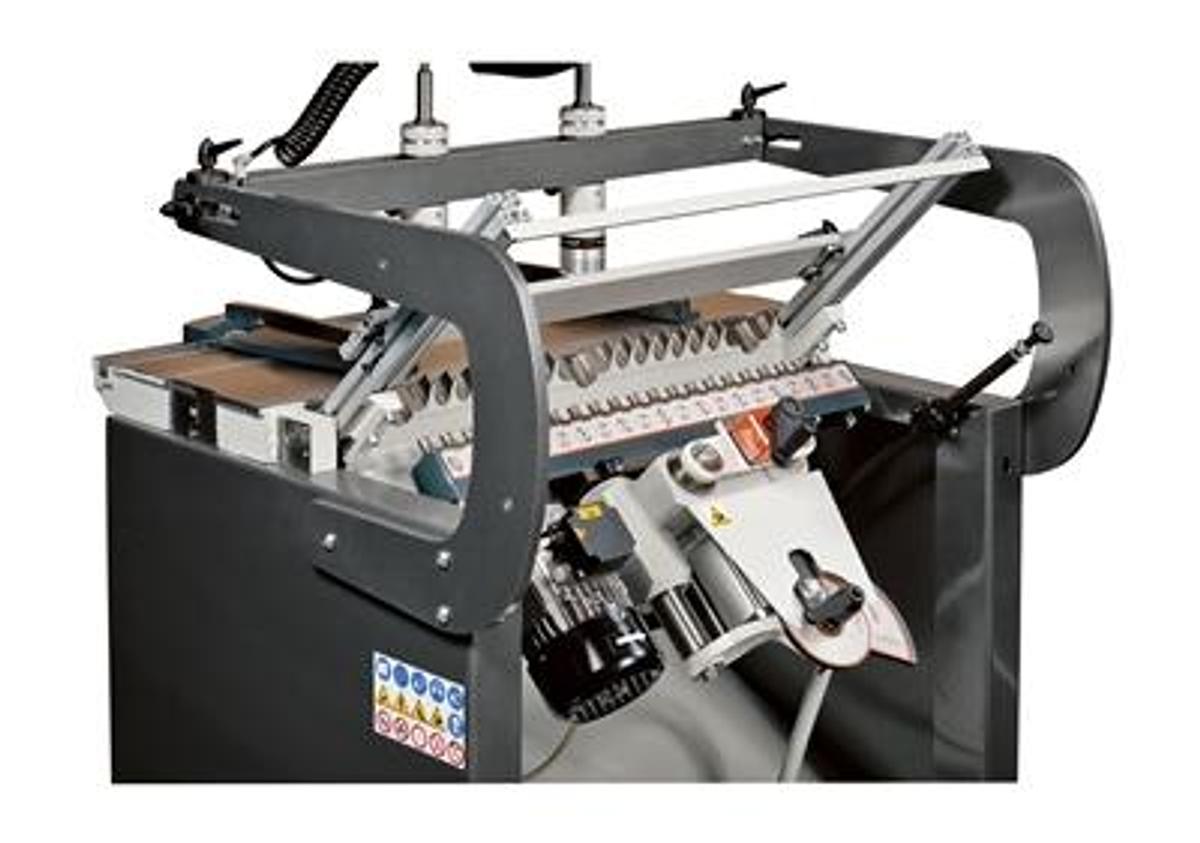

Maggi System 21 Prestige Construction/Line Borer
Maggi System 21 Prestige Construction/Line Borer
$7,650 (USD)
Description

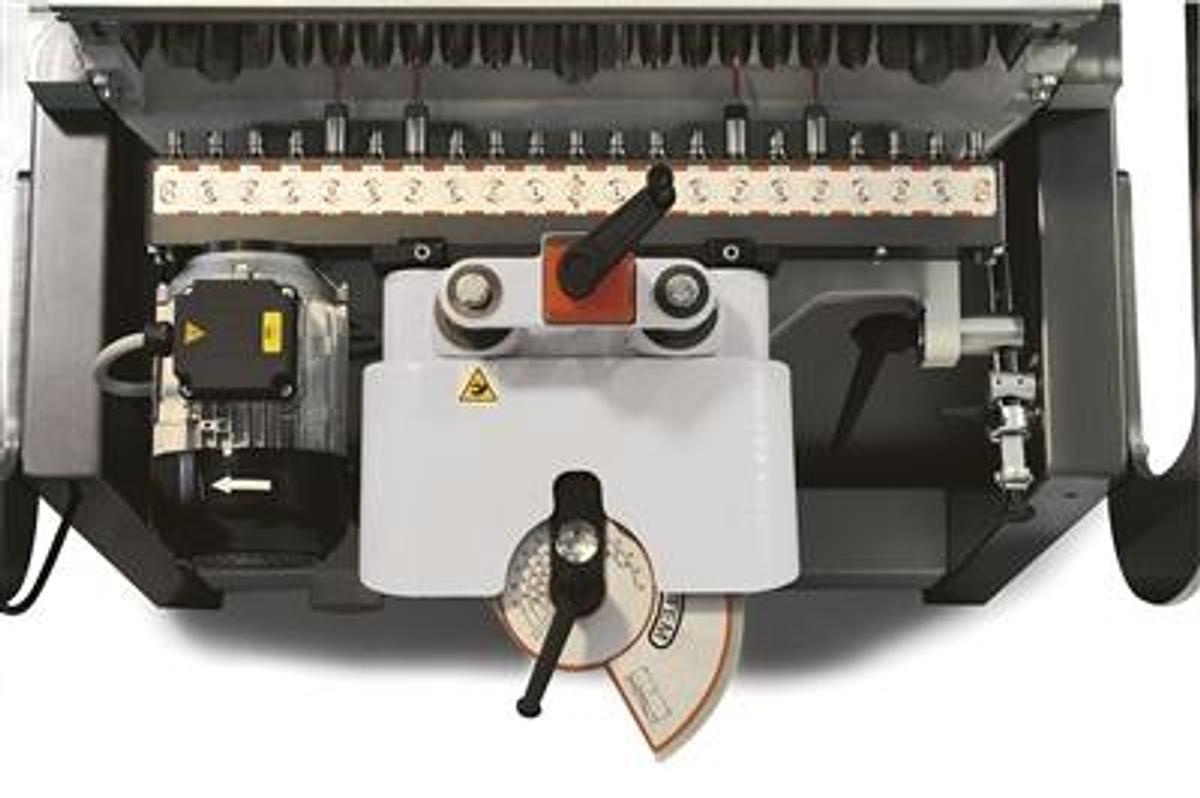

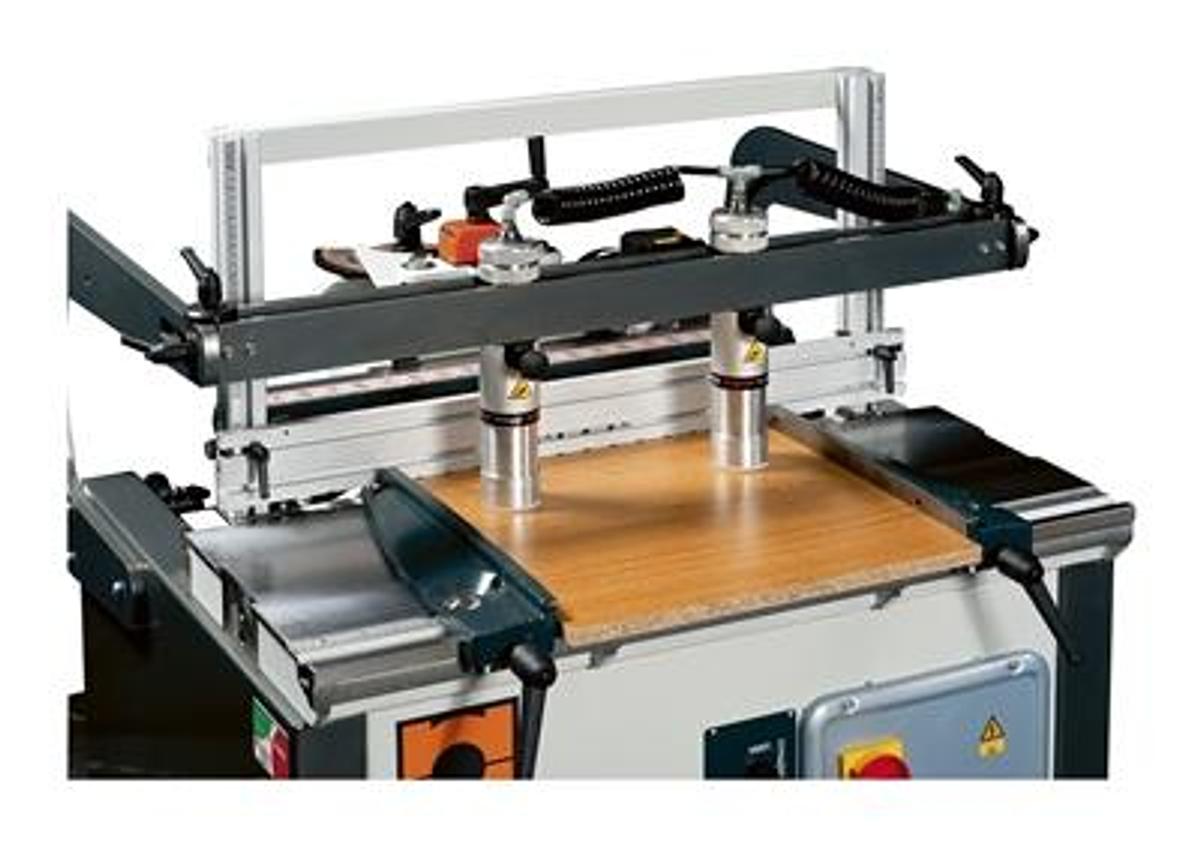

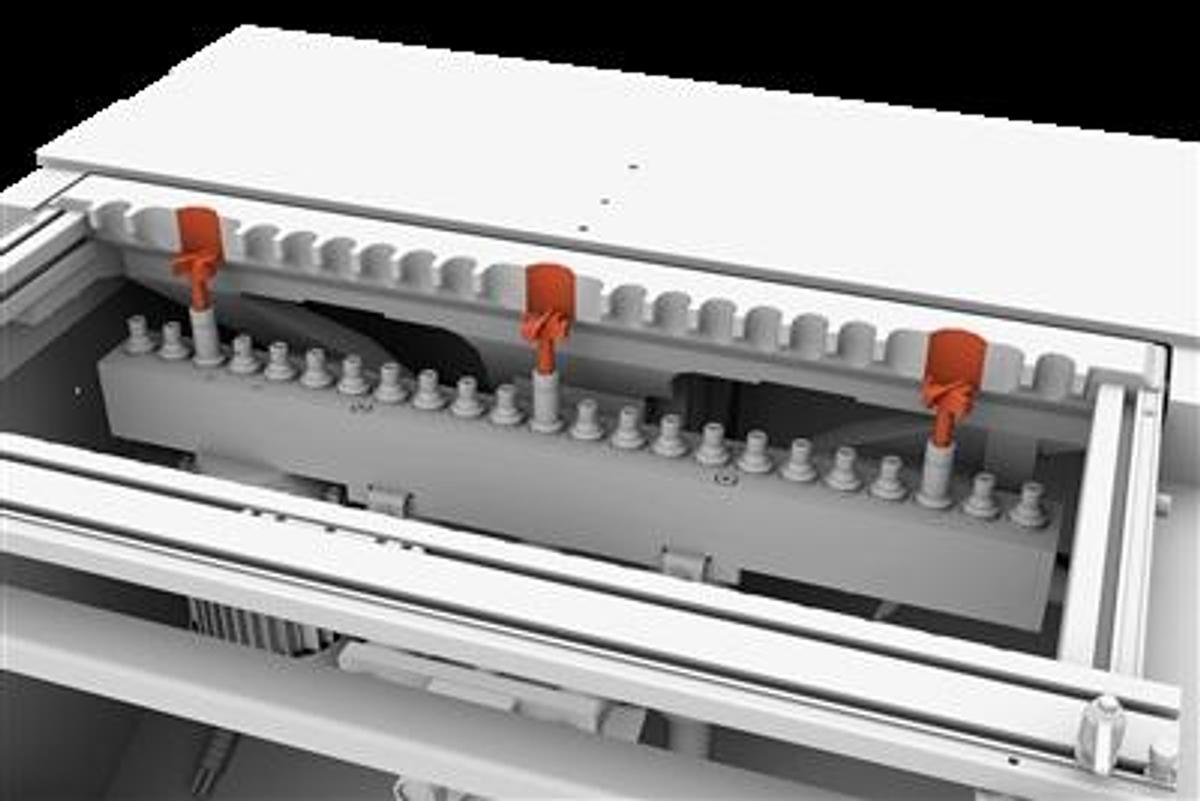

The Maggi System 21 Prestige Boring Machine provides a 21 spindle 32 mm universal drilling solution, with horizontal and vertical boring capabilities and pneumatic tilting of the boring unit with locking points from 0 to 90 degrees for quick set-up at any angle.
- Accurate positioning of the boring unit to the table with digital readout
- Two Voltage Options: 230 Volt Single or Three Phase

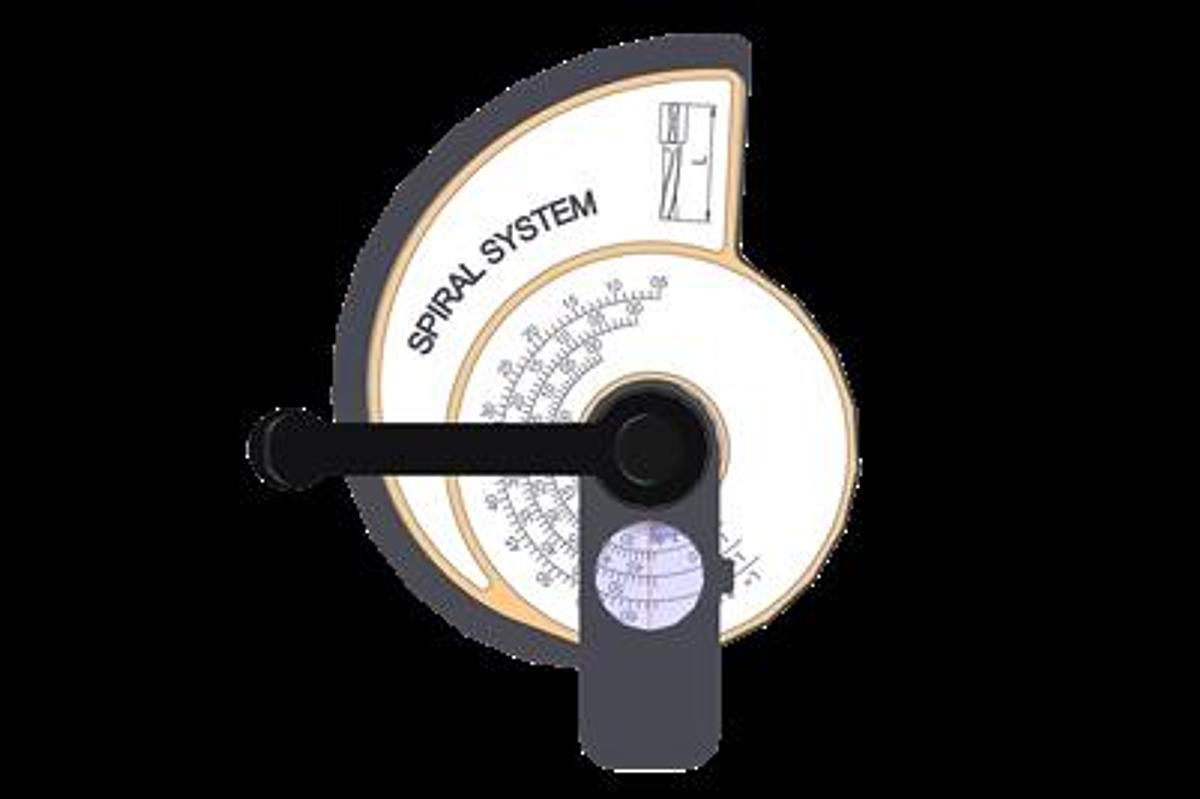

- 0 to 2.5" adjustable drilling depth with patented spiral setting device

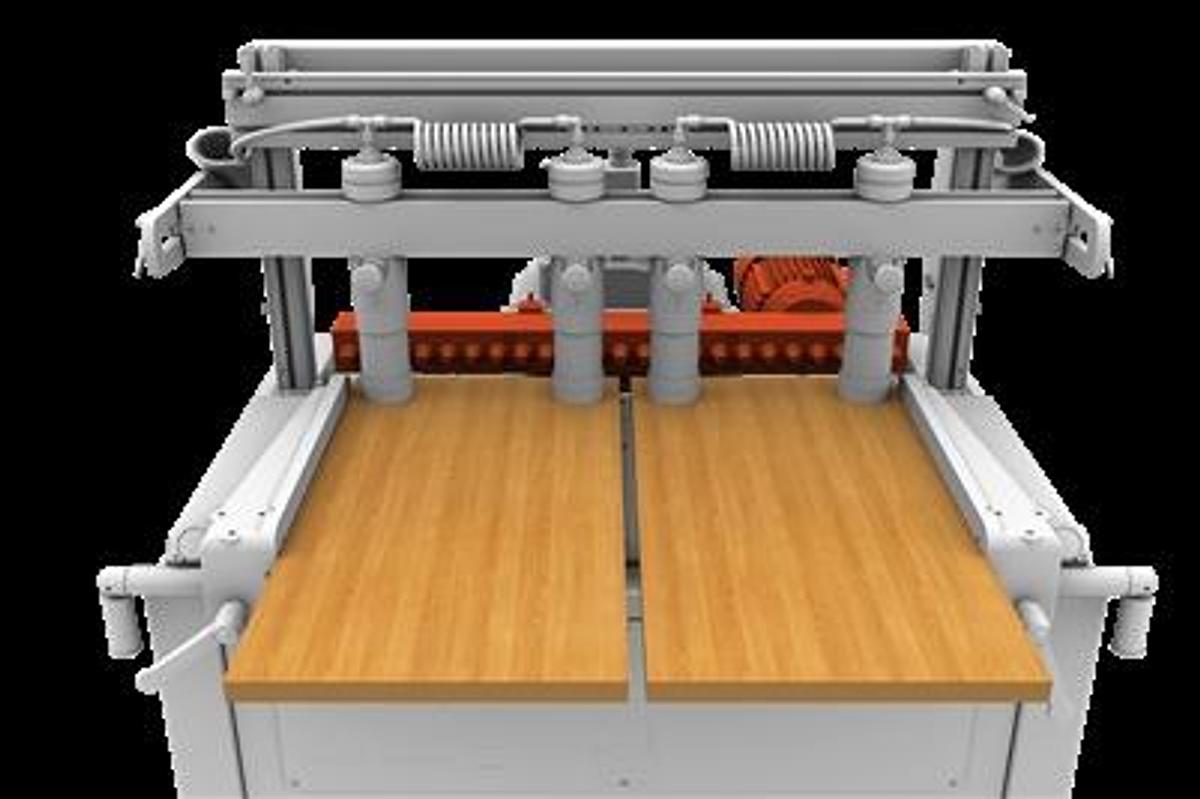

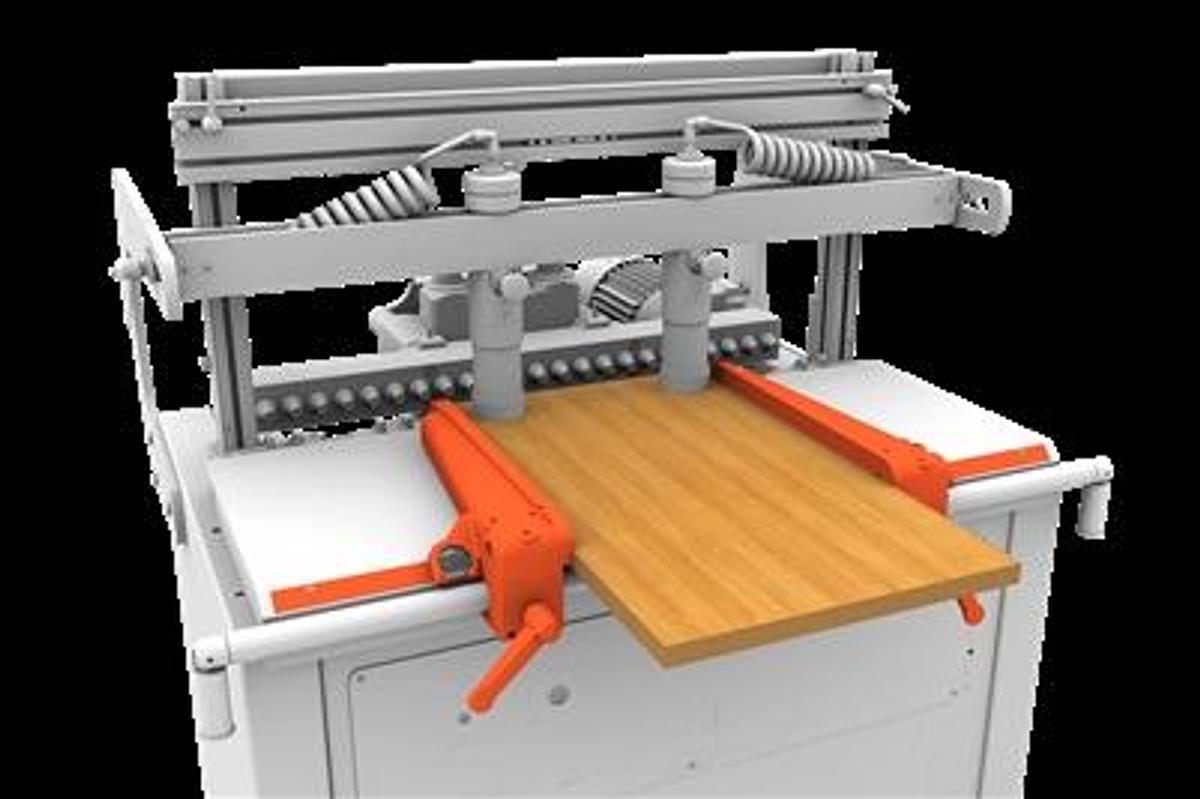

- (2) Patented quick release material clamps with auto-setting to firmly hold material to table
- Powerful 2 HP motor
- 34" x 13" cast iron table

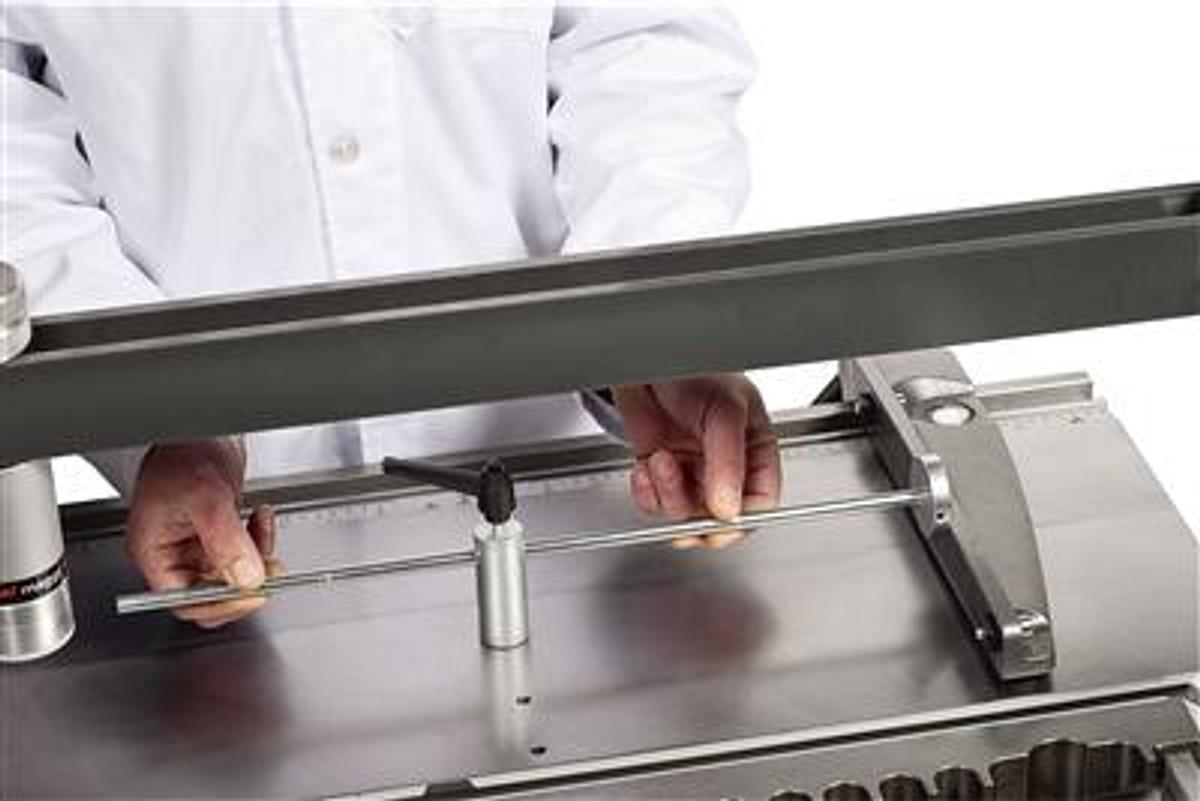

- Cast iron side fences with ruler and magnifying glass
- Mirror imaging device to ensure quick and accurate set-up of the side fences

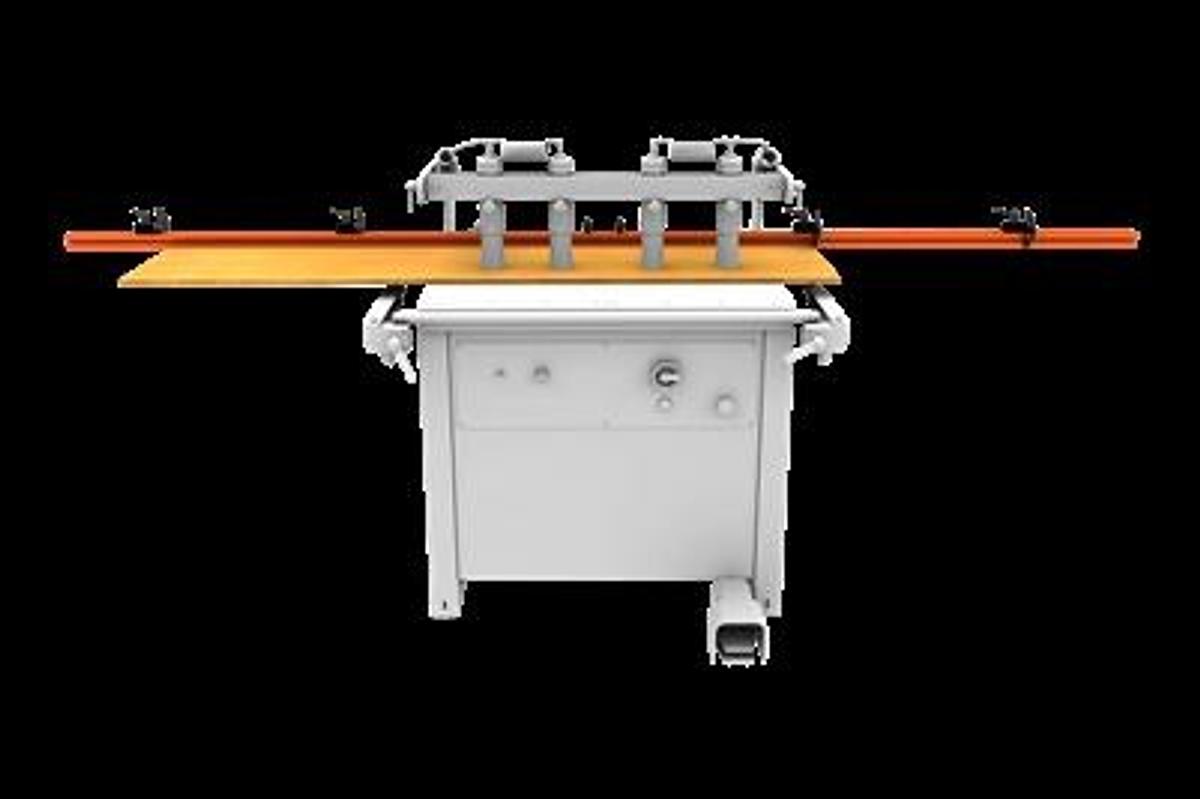

- 120" back fence with (2) stops - Maximum stroke 300 mm (12")

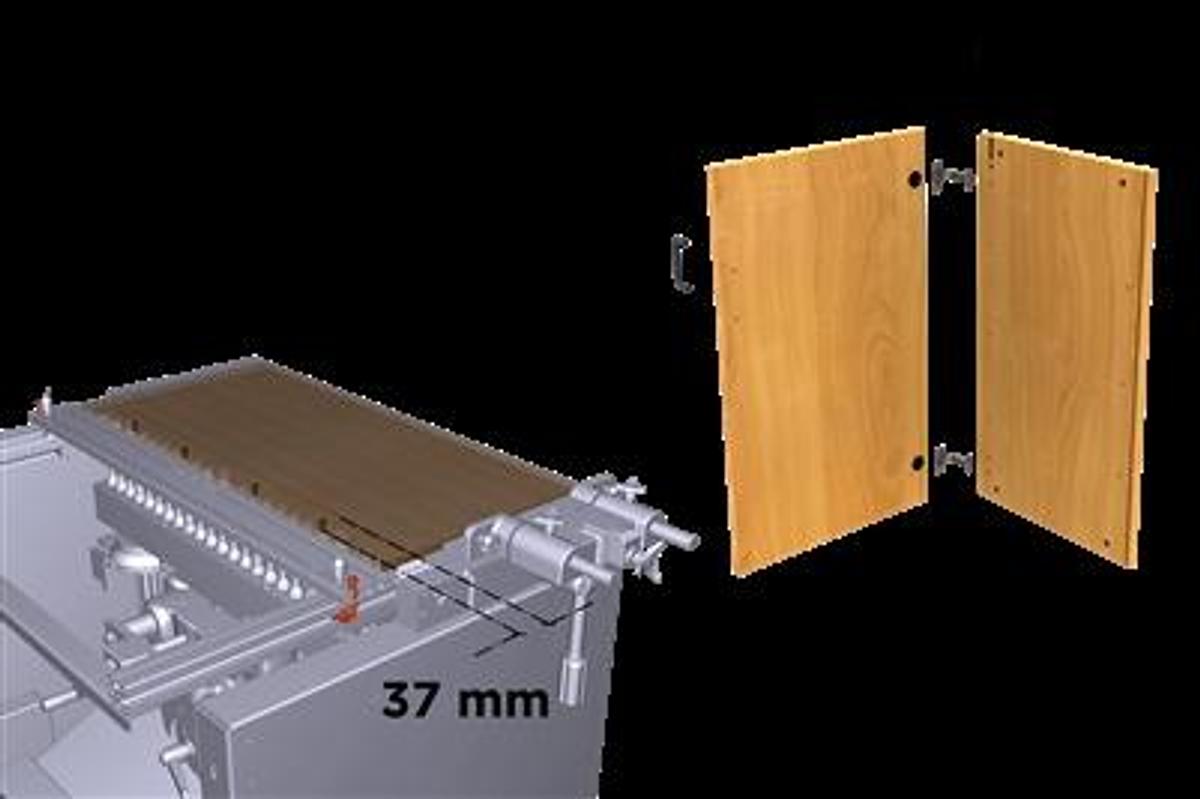

- Fixed stop at 37 mm for hinges
- Foot actuated pneumatic clamps and drill cycle
- Uses 10 LH (red) and 11 RH (black) boring bits
- Includes: Magnetic starter with overload protection and (21) quick change chuck
- Dust Outlet: 3"
- Net weight: 605 lbs.
- Dimensions: 40.5" x 40.5" x 50" Tall
- Crated Dimensions: 42.2" x 37.4" x 40.5" Tall
- Crated Weight: 685 lbs.
OPTIONS:
- 29900100 Stop Reference Pin for Line Boring $215.00
- 26000069 Set of Reference Fences for 45 and 90 degrees $209.00
- 26050801 Extra Stop for Aluminum Fence $139.00
- 29970302 Fence Extension 1000 mm $215.00
- 26028820 Extension Fence Connector Kit $105.00
- 36000061 Additional Quick Change Bit Adaptor $29.00 ea.
- 29971019 Additional Holddown Cylinder Assembly $435.00 ea.
- 26000010 Storage Clamp for extension fences $145.00
- 26000014 Tool Storage tray $199.00
- Hinge Boring Head (Specify Blum, Grass, Salice, or Hettich) $450.00
- Hinge Boring Head - Cabineo (includes three 15 mm RH hinge bits) $895.00
- TDBSE5705LH or RH 5mm x 57mm LH OR RH Brad Point $9.85 ea.
- TDBSE5708LH or RH 8mm x 57mm LH OR RH Brad Point $11.95 ea.
- TDBSEHB5735LH or RH 35mm x 57mm LH OR RH Hinge Point $26.80 ea.
Specifications
| Manufacturer | Maggi |
| Condition | New |
| Stock Number | XXK10 |
