Maggi System 29 Construction/Line Borer

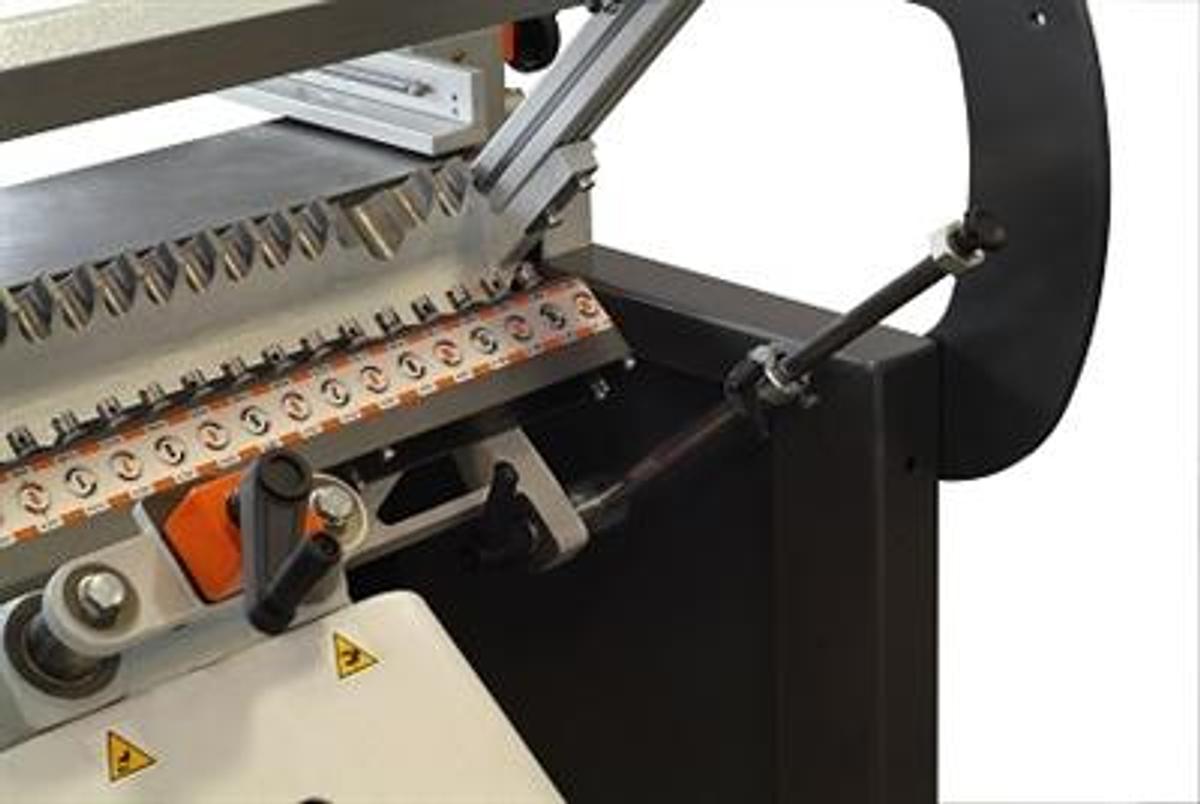

The Maggi System 29 Boring Machine provides a 29 spindle 32 mm universal drilling solution, with horizontal and vertical boring capabilities and pneumatic tilting of the boring unit with locking points from 0 to 90 degrees for quick set-up at any angle.

- Accurate positioning of the boring unit to the table with digital readout

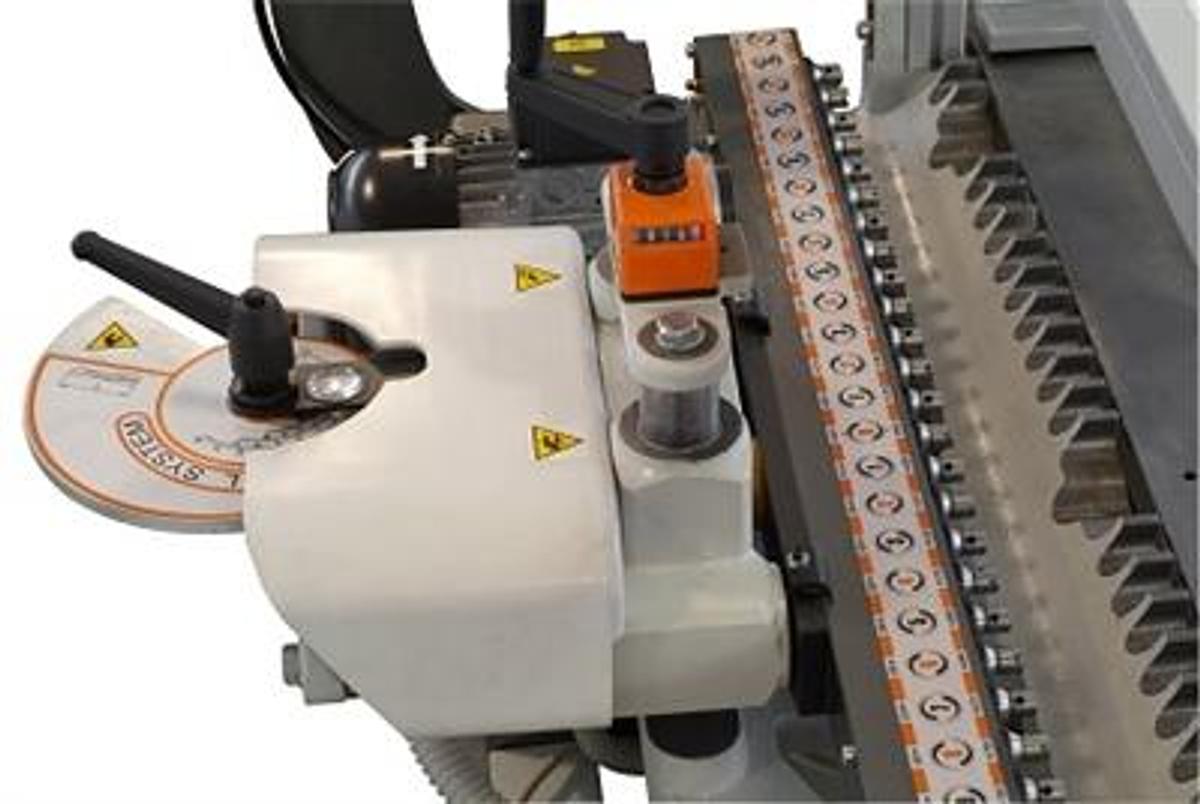

- 0 to 2.5" adjustable drilling depth with patented spiral setting device

- (3) patented quick release material clamps with auto-setting to firmly hold material to table

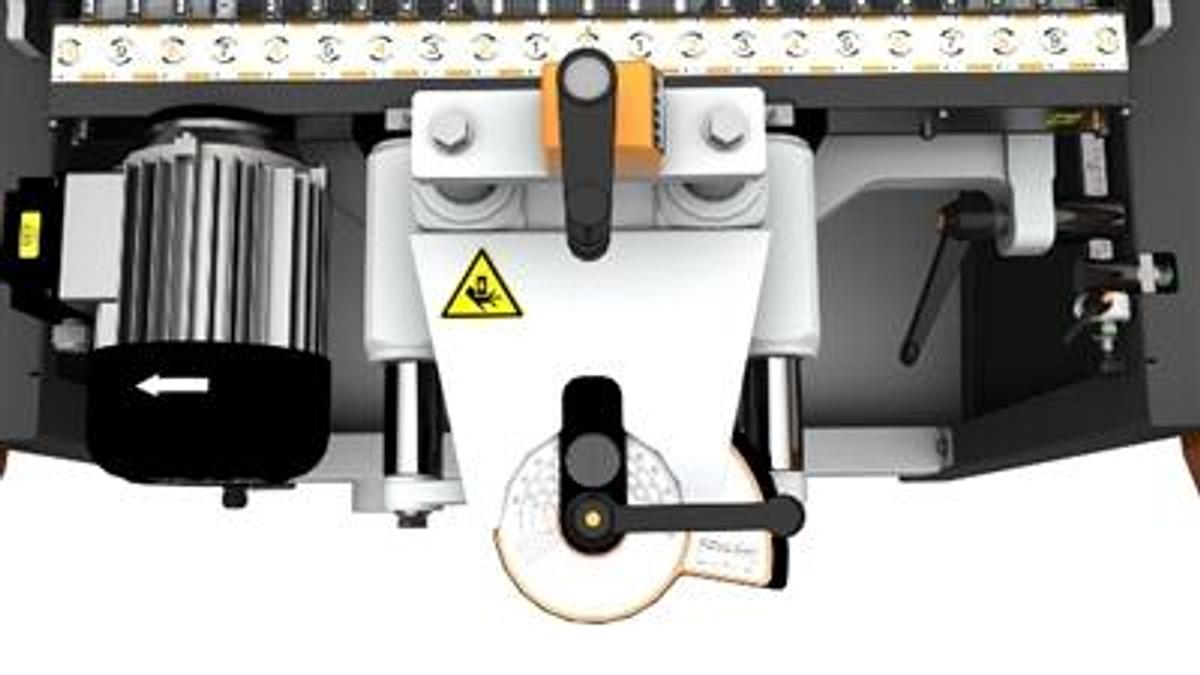

- Powerful 2 HP motor

- 47" x 13" cast iron table

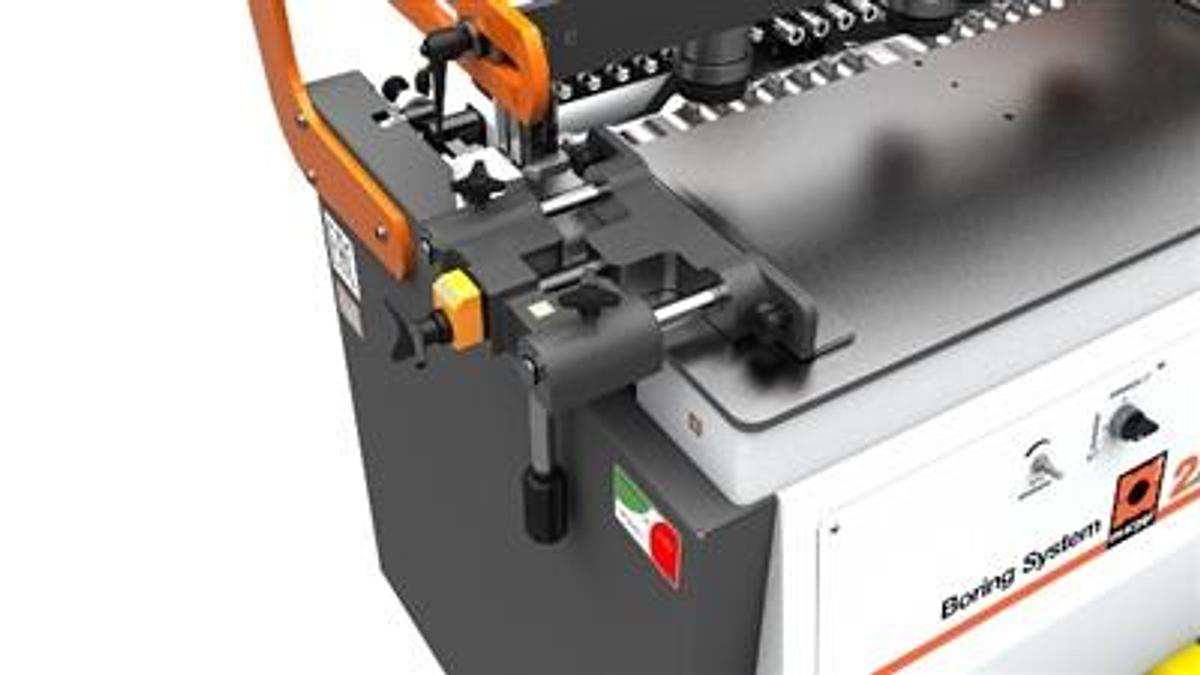

- Side fences with mechanical digital readout for quick and accurate setting

- 120" back fence with (4) stops - Maximum stroke 300 mm (12")

- Fixed stop at 37 mm for hinges

- Foot actuated pneumatic clamps and drill cycle

- Uses 14 LH (red) and 15 RH (black) boring bits

- Includes: Magnetic Starter with overload protection and (29) quick change chucks

- Dust Outlet: 3"

- Net weight: 705 lbs.

- Dimensions: 59.3" x 37.8" x 50" Tall

- Crated Dimensions: 59.8" x 37.4" x 40.5" Tall

- Crated Weight: 815 lbs.

OPTIONS:

- 29900100 Stop Reference Pin for Line Boring $215.00

- 26000069 Set of Reference Fences for 45 and 90 degrees $209.00

- 26050801 Extra Stop for Aluminum Fence $139.00

- 29970302 Fence Extension 1000 mm $215.00

- 26028820 Extension Fence Connector Kit $105.00

- 36000061 Additional Quick Change Bit Adaptor $29.00 ea.

- 29971019 Additional Holddown Cylinder Assembly $435.00 ea.

- 26000010 Storage Clamp for extension fences $145.00

- 26000012 Storage trays for side fences $175.00

- 26000014 Tool Storage tray $199.00

- Hinge Boring Head (Specify Blum, Grass, Salice, or Hettich) $450.00

- Hinge Boring Head - Cabineo (includes three 15 mm RH hinge bits) $895.00

- TDBSE5705LH or RH 5mm x 57mm LH OR RH Brad Point $9.85 ea.

- TDBSE5708LH or RH 8mm x 57mm LH OR RH Brad Point $11.95 ea.

- TDBSEHB5735LH or RH 35mm x 57mm LH OR RH Hinge Point $26.80 ea.
