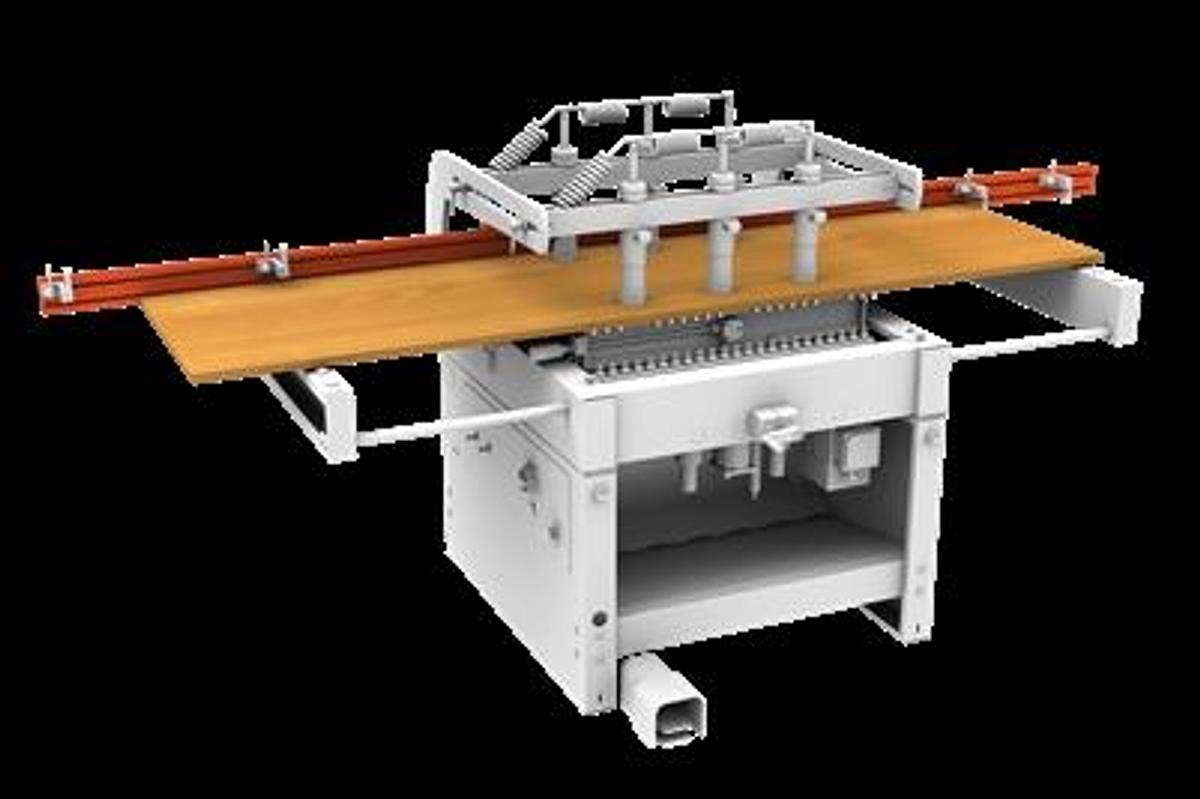

Maggi System 46 Double Row Line Boring Machine

The Maggi System 46 is a semi-automatic multi-spindle boring machine with (2) parallel vertical boring heads ideal for double row boring on kitchen cabinet sides, closet systems, book cases and furniture sides. Maggi has produced more than 5,000 machines and has over thirty years of experience using the highest quality manufacturing standards. 100% made it Italy!

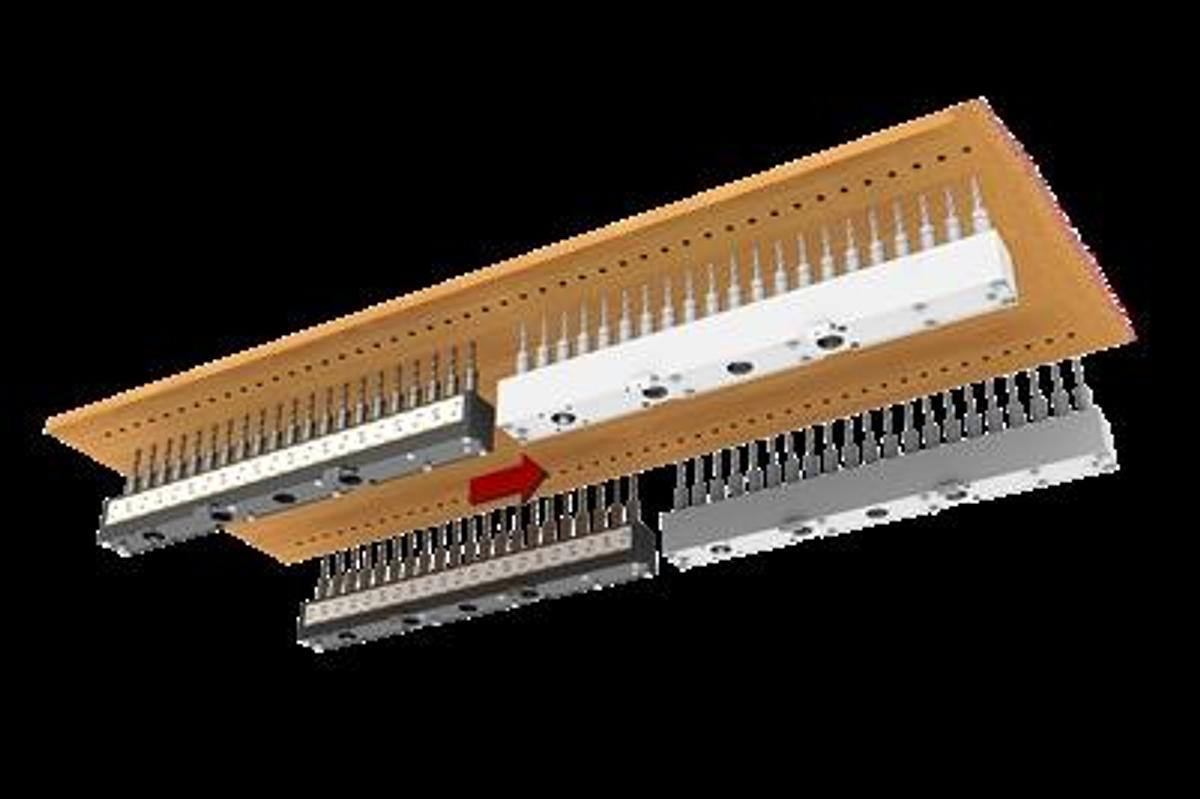

- (2) 23-Spindle heads on 32 mm centers

- Two Voltage Options: 230 Volt Single or Three Phase

- Distance between first and last spindle center of each head is 27-23/32" (704 mm)

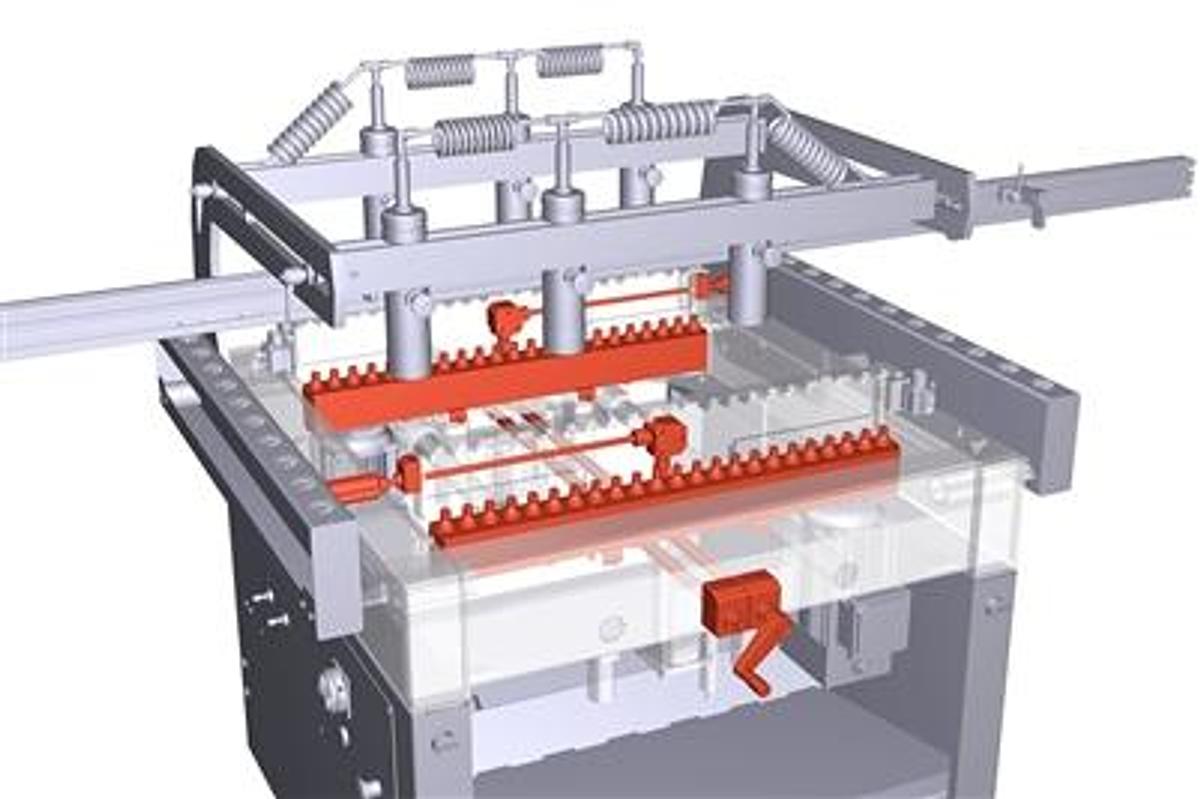

- Front end adjustment for quick and easy set-up

- (2) 2 HP 3,500 RPM motors

- Max. boring depth is 2-1/16" (55 mm)

- Side depth counter system

- Extractable 400 mm support rollers for long panels

- Maximum distance between heads is 25-19/32" (650 mm)

- Minimum width is 5-1/8" (130 mm)

- Distance from fence to first head is 15 mm min. to 494 mm max.

- Distance from fence to second head is 160 mm to 639 mm max.

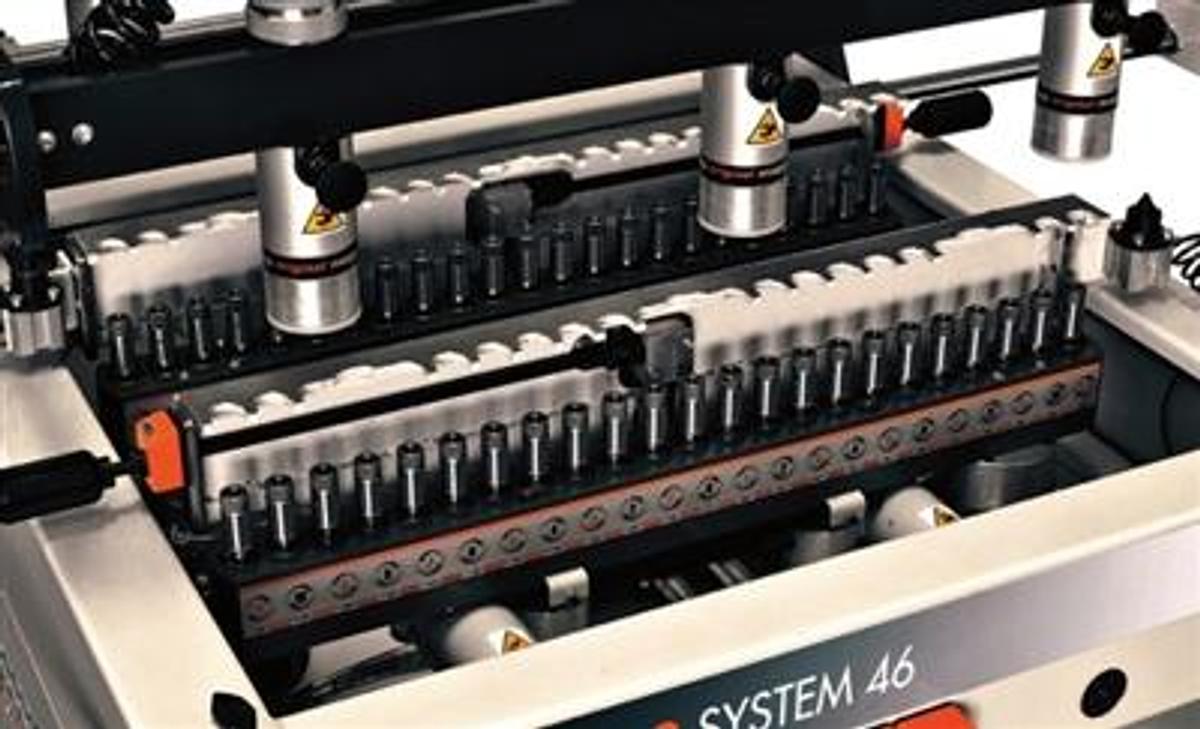

- Complete with: 46 quick change chucks, 10' extension fence with (4) flip-stops and (2) pneumatic reference pins

- (6) Patented safety clamps

- This machine can be used for single or double row line drilling

- Uses 24 LH (red) and 22 RH (black) boring bits

- Working air pressure 94 psi

- Net weight: 820 lbs.

- Crated Dims: 48" x 42" x 45" H

- Crated weight: 951 lbs.

OPTIONS:

- 36000061 Additional Quick Change Bit Adaptor $29.00 ea.

- 29971019 Additional Holddown Cylinder Assembly $435.00 ea.

- 26010051 Extra Stop for Aluminum Fence $139.00

- 26000059 Reference Gauge 704 mm for quick and exact set up of the stops on the long fence $139.00

- 36401806 Extension Fence $320.00

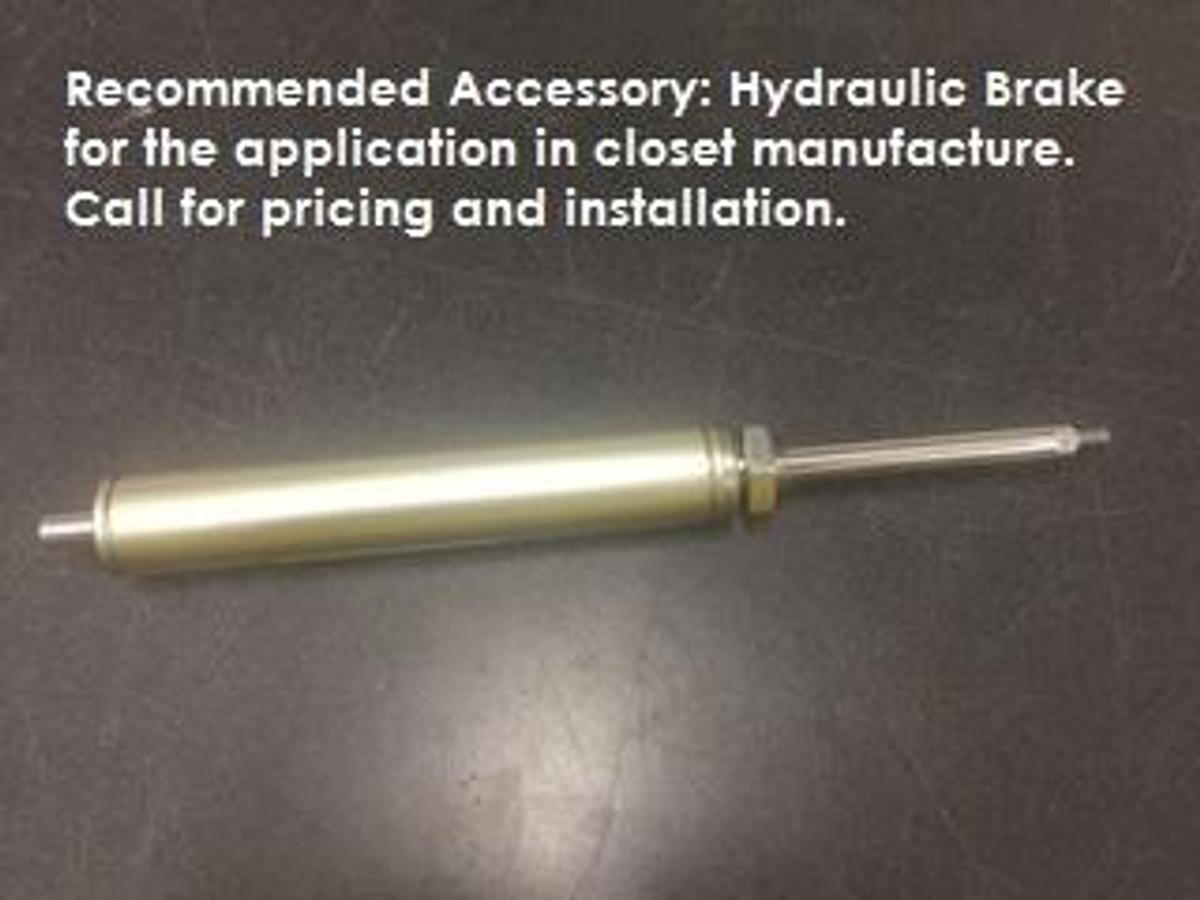

- 26405107 Hydraulic control for head movement installed $545.00 each head

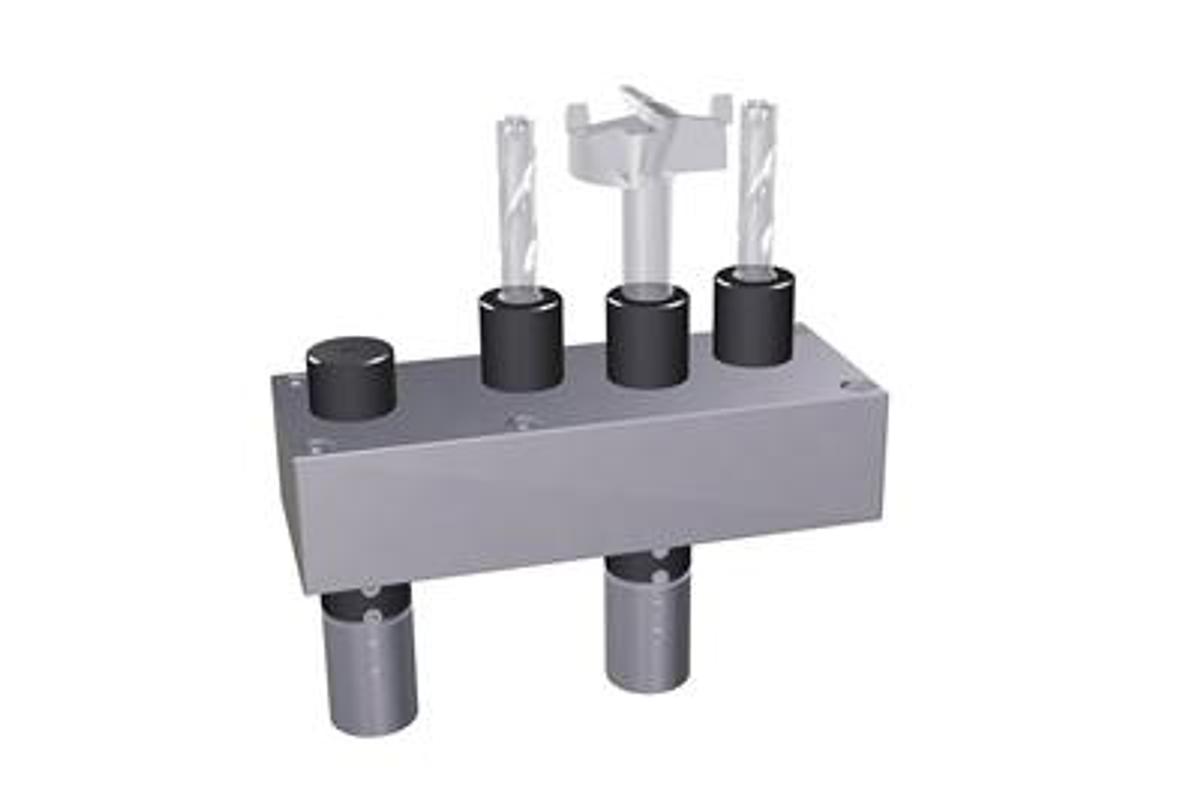

- Hinge Boring Head (Specify Blum, Grass, Salice, or Hettich) $450.00

- Hinge Boring Head - Cabineo (includes three 15 mm RH hinge bits) $895.00

- TDBSE5705LH or RH 5mm x 57mm LH OR RH Brad Point $9.85 ea.

- TDBSE5708LH or RH 8mm x 57mm LH OR RH Brad Point $11.95 ea.

- TDBSEHB5735LH or RH 35mm x 57mm LH OR RH Hinge Point $26.80 ea.
