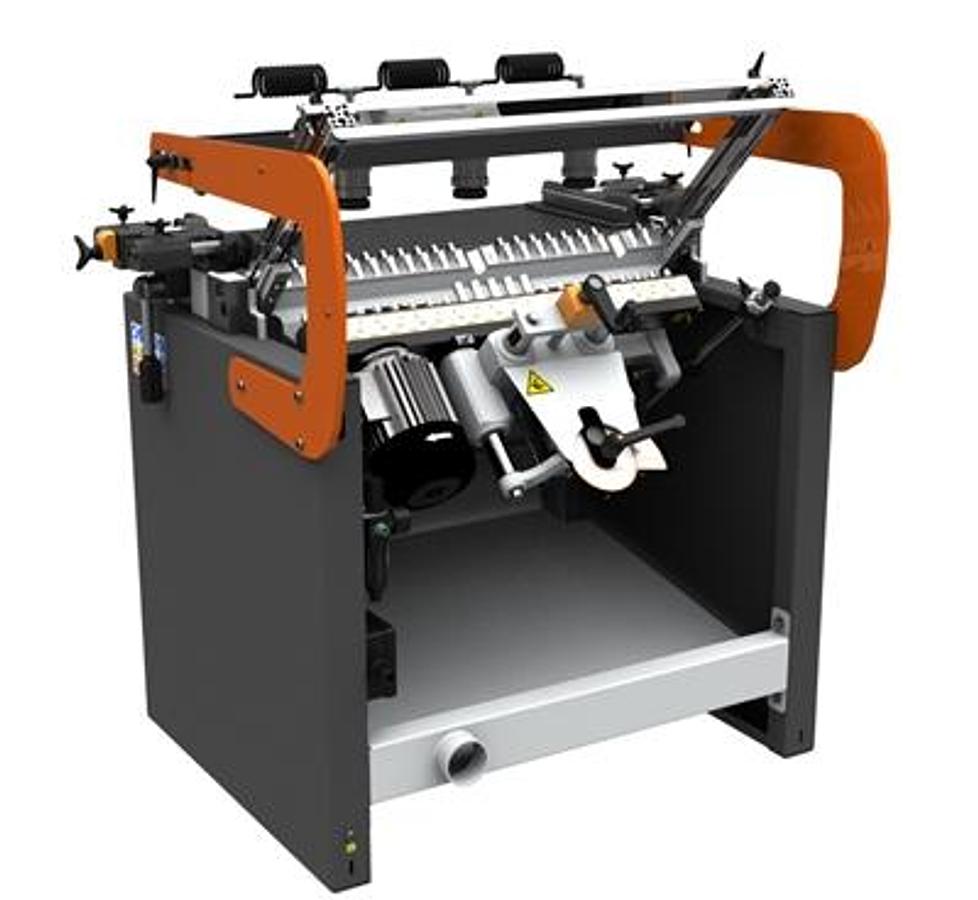

Maggi System 23 Construction/Line Borer

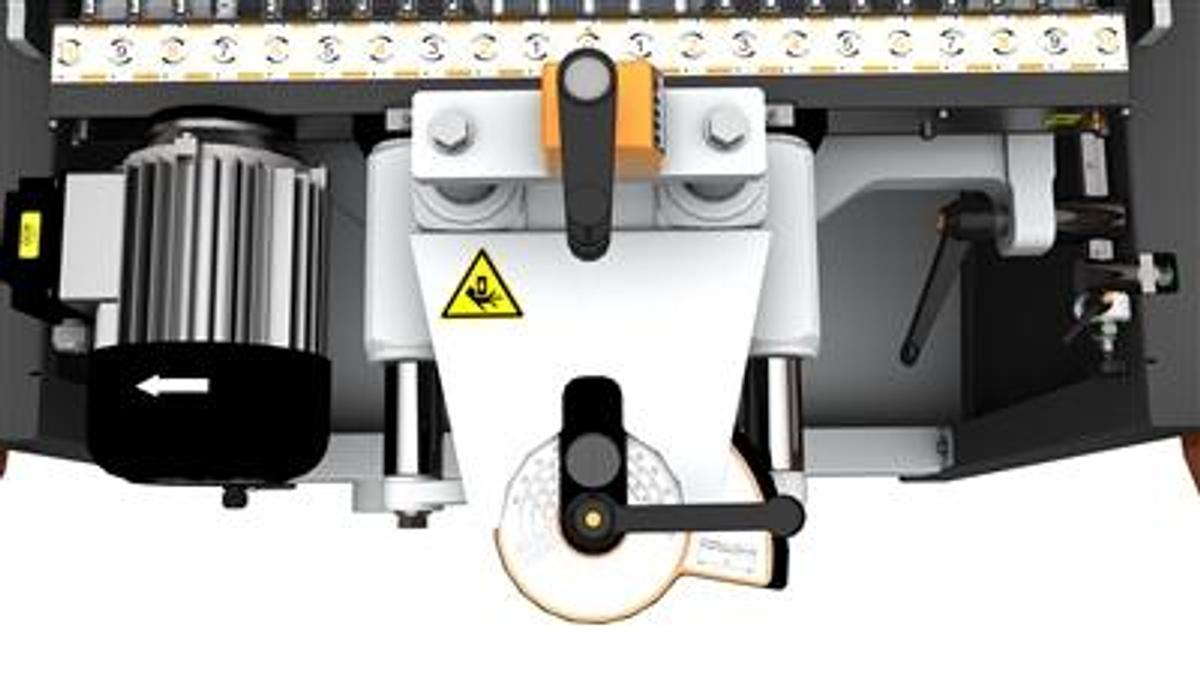

This machine provides a 23 spindle 32 mm universal drilling solution, with horizontal and vertical boring capabilities and pneumatic tilting of the boring unit with locking points from 0 to 90 degrees for quick set-up at any angle.

- Accurate positioning of the boring unit to the table with digital readout

- Two Voltage Options: 230 Volt Single or Three Phase

- 0 to 2.5" adjustable drilling depth with patented spiral setting device

- (2) patented quick release material clamps with auto-setting to firmly hold material to table

- Powerful 2 HP motor

- 37" x 13" cast iron table

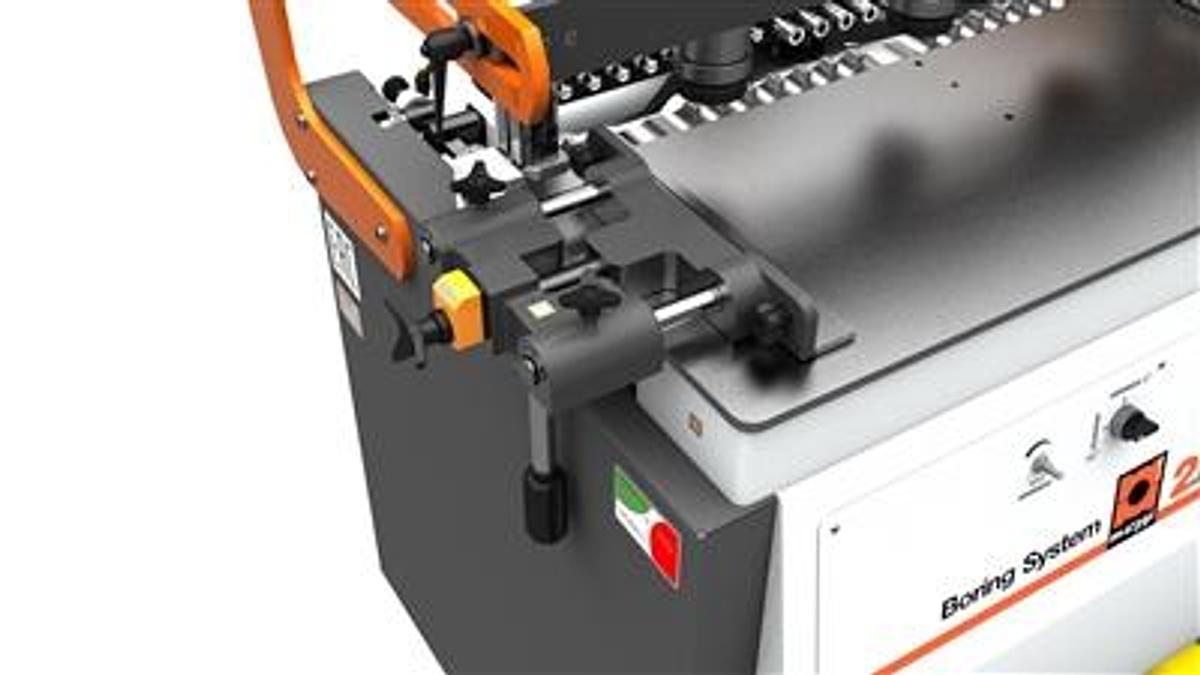

- Side fences with mechanical digital readout for quick and accurate setting

- 120" line boring fence with (4) stops and spring loaded index pin

- Foot actuated pneumatic clamps and drill cycle

- Uses 11 LH (red/orange) and 12 RH (black) boring bits

- Includes: Magnetic Starter with overload protection and (23) quick change chucks

- Dust Outlet: 3"

- Net weight: 630 lbs.

- Dimensions: 51.7" x 37.8" x 50" Tall;

- Crated Dimensions: 42.2" x 37.4" x 40.5" Tall

- Weight: 705 lbs.

OPTIONS:

- 29900100 Stop Reference Pin for Line Boring $215.00

- 26000069 Set of Reference Fences for 45 and 90 degrees $209.00

- 26050801 Extra Stop for Aluminum Fence $139.00

- 29970302 Fence Extension 1000 mm $215.00

- 26028820 Extension Fence Connector Kit $105.00

- 36000061 Additional Quick Change Bit Adaptor $29.00 ea.

- 29971019 Additional Holddown Cylinder Assembly $435.00 ea.

- 26000010 Storage Clamp for extension fences $145.00

- 26000012 Storage trays for side fences $175.00

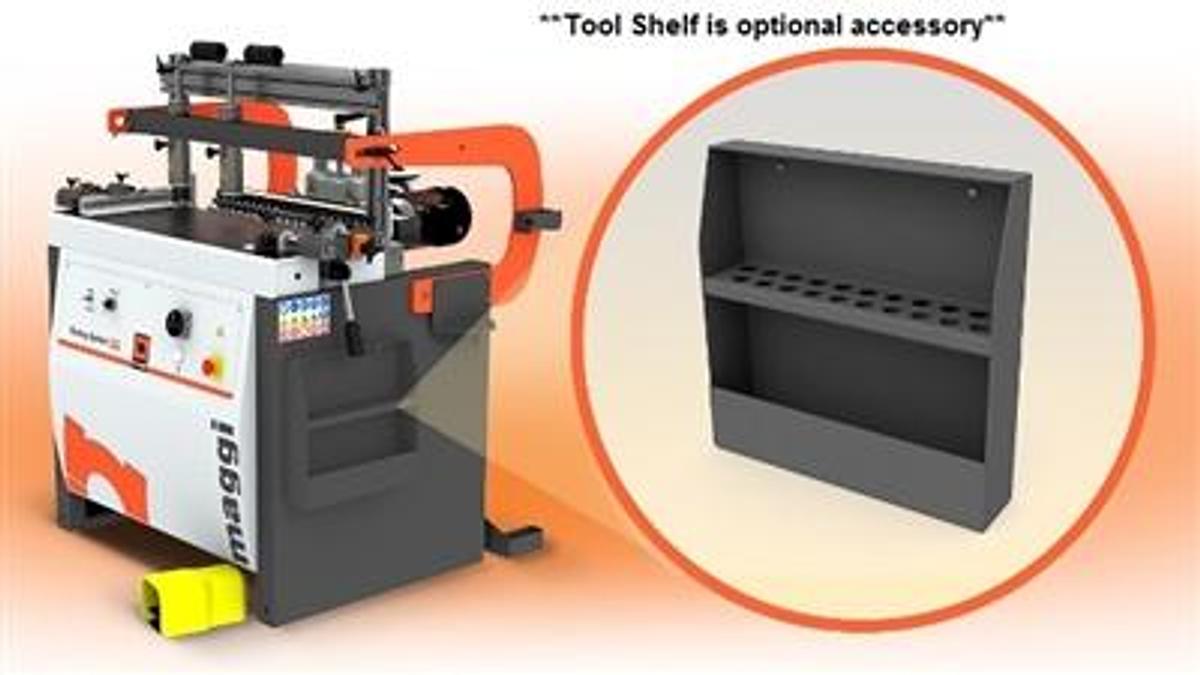

- 26000014 Tool Storage tray $199.00

- Hinge Boring Head (Specify Blum, Grass, Salice, or Hettich) $450.00

- Hinge Boring Head - Cabineo (includes three 15 mm RH hinge bits) $895.00

- TDBSE5705LH or RH 5mm x 57mm LH OR RH Brad Point $9.85 ea.

- TDBSE5708LH or RH 8mm x 57mm LH OR RH Brad Point $11.95 ea.

- TDBSEHB5735LH or RH 35mm x 57mm LH OR RH Hinge Point $26.80 ea.
