7 Wheel Variable Speed Power Feeder - Short Stock DC70

• Ideal for feeding of short material

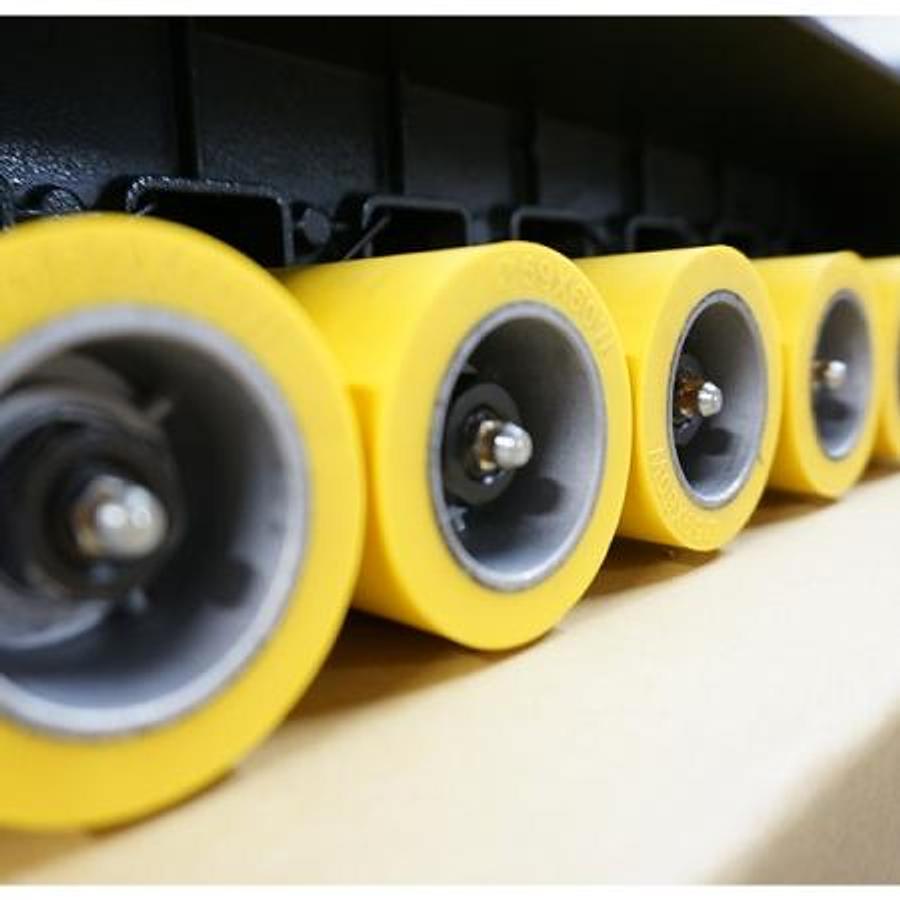

• 7-rolls at 2.36” (60mm) which are closely coupled with a center to center distance of 2.43” (61.7mm)
• Universal stand allows the operator to change the feeder for vertical to horizontal feeding direction or angles as desired

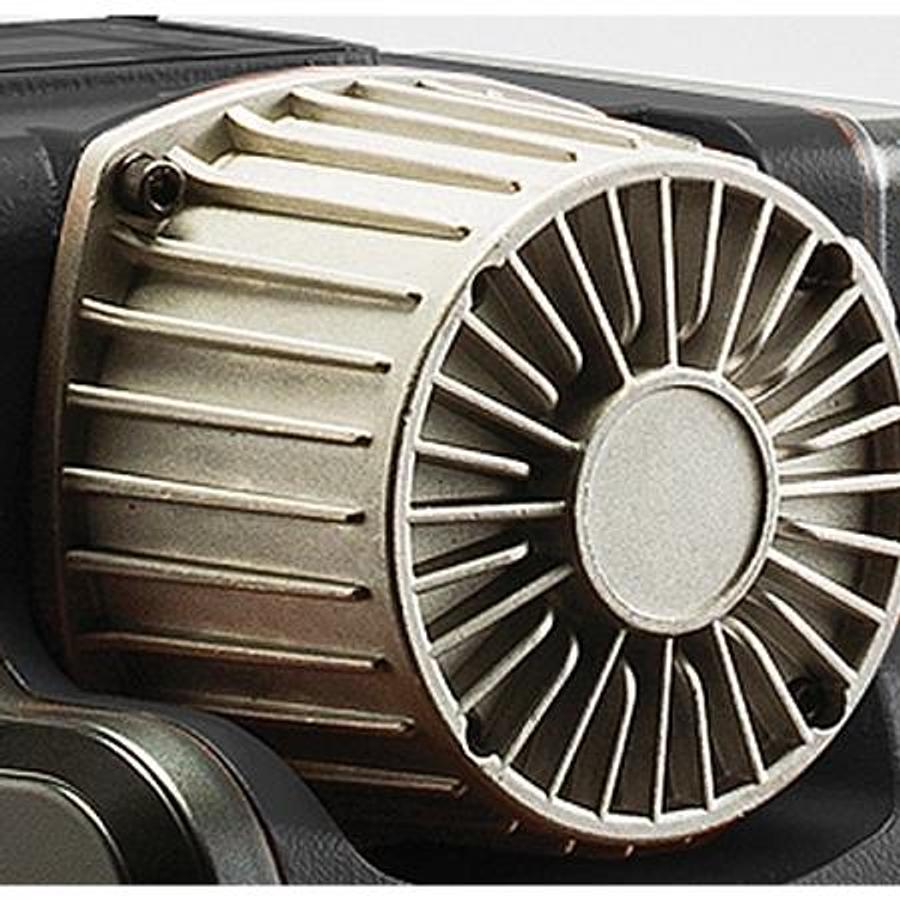

• DC brushless servo motor requires 75% less energy with high torque
• Infinitely variable feed speed from from 7~86 FPM

Roller Size - Ø60 x 60 mm (Ø2.36″ x 2.36″)

Number of Rollers - 7

Feeding Speed -2 – 26 M/min (7 – 86 FPM)

Max. Power Output - 500W

Horsepower - 2/3 HP

Voltage - 100-120V / 1 Phase 200-240V / 1 or 3 Phase

Machine Weight - 24 kg (53 lbs)

Stand Weight - 30 kg (66 lbs)

Packing Size:

Machine - 630 x 350 x 310mm (24.8” × 13.8” × 12.2”)

Packing Size: Stand - 758 x315 x 285mm (29.8” x 12.4” x 11.2”)

Packing Weight: Machine 26 kg (57 lbs)

Packing Weight: Stand - 32 kg (72 lbs)
