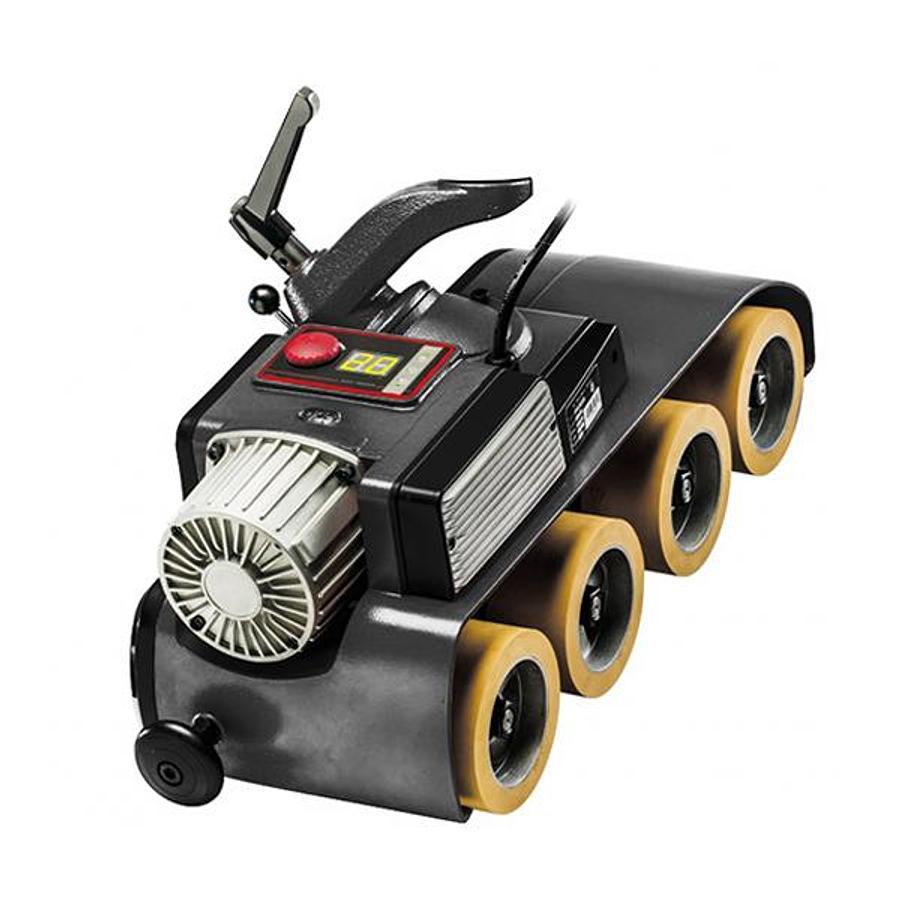

Smart 4 Wheel Variable Speed Power Feeder

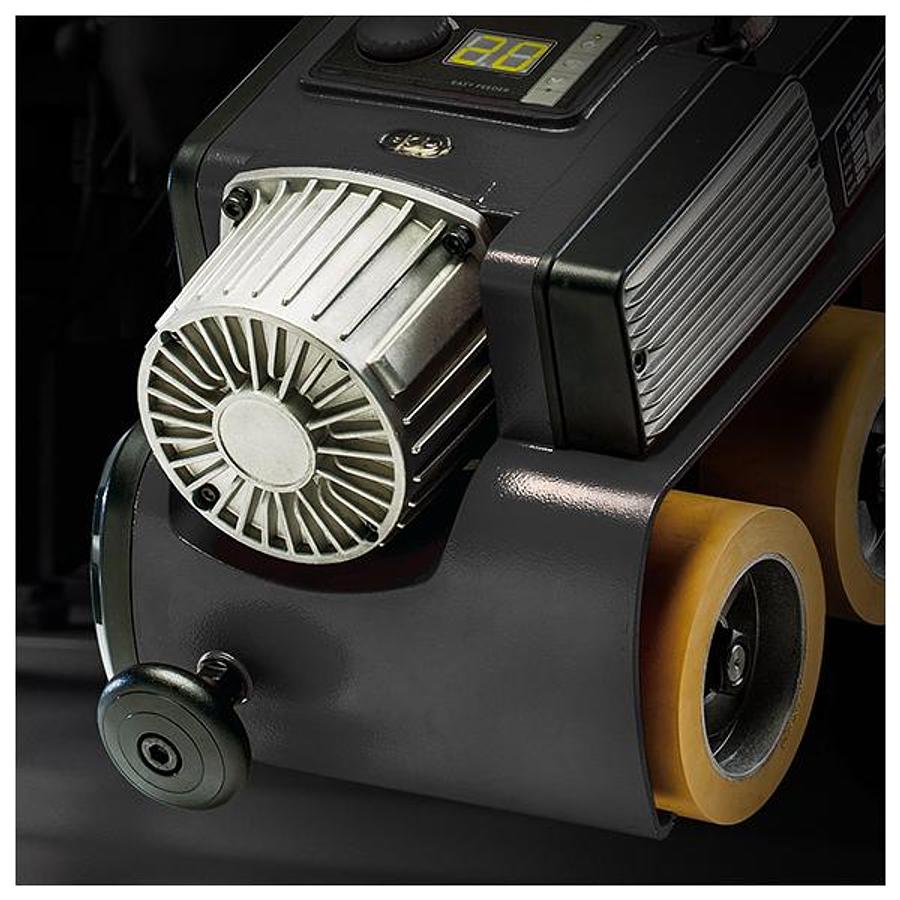

• High efficiency DC brushless servo motor
• High efficiency = more power, more torque!
• Saves +50% power output over other feeders of the same size
• Electronic variable feed speed adjustment for optimum cut quality

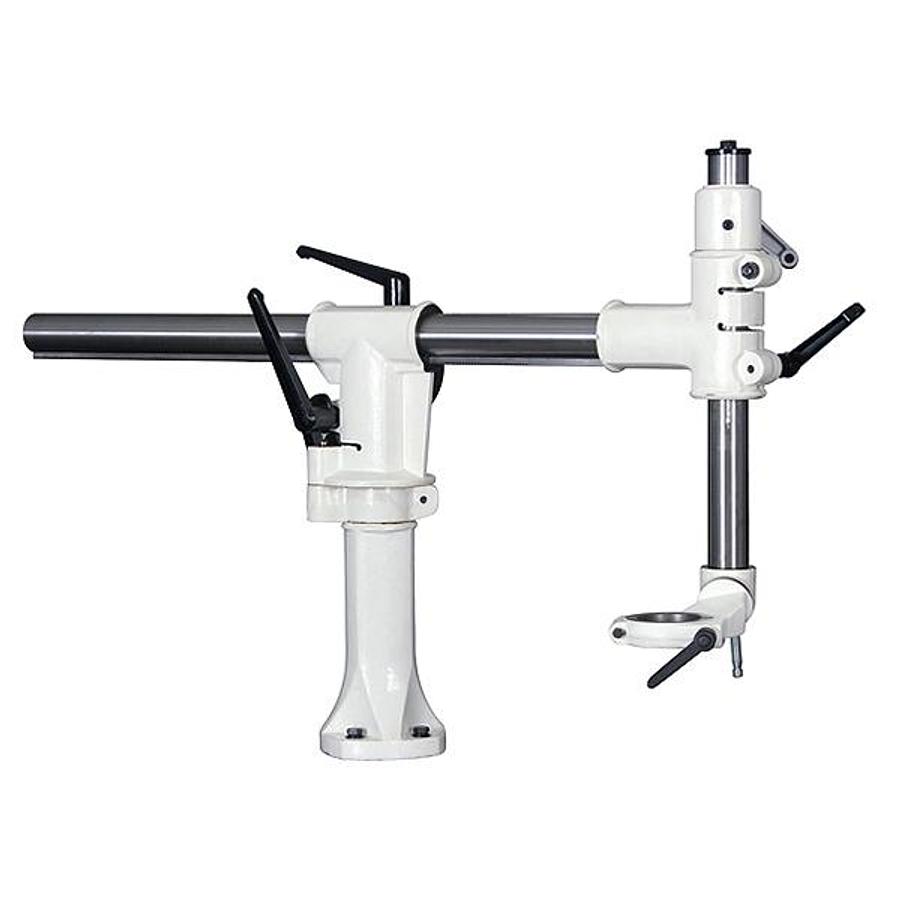

• Includes SS103 Heavy Duty Smart Stand with the following features
• 42” horizontal adjustment arm for even greater reach
• Front mounted vertical adjustment for added operator convenience
• Memo-locking allows for quick and accurate relocation of the feeder unit after adjusting it out of position

Horsepower / Rotation

2/3 HP (500 Watt),1 or 3PH; Forward/Reverse

Range of Speeds (50Hz) (60Hz)

2-22 M/Min (7-72 FPM)

Rollers

Φ120 x 25 mm x 8 rolls (split)

Roller Suspension

18mm (3/4″)

Net Weight

23 + 41 + 10 Kg (51 + 91 + 22 Lb)

Gross Weight

25 + 43 + 11 Kg (55 + 95 + 24 Lb)

Carton for Body

686 × 326 × 316 mm (27″ × 12-3/4″ × 12-3/8″)

Carton for Stand

770 x 320 x 290 mm (30-3/8″ x 12-5/8″ x 11-1/2″)

Carton for Overarm

1080 x 60 x 60 mm (42-1/8″ x 2-3/8″ x 2-3/8″)
