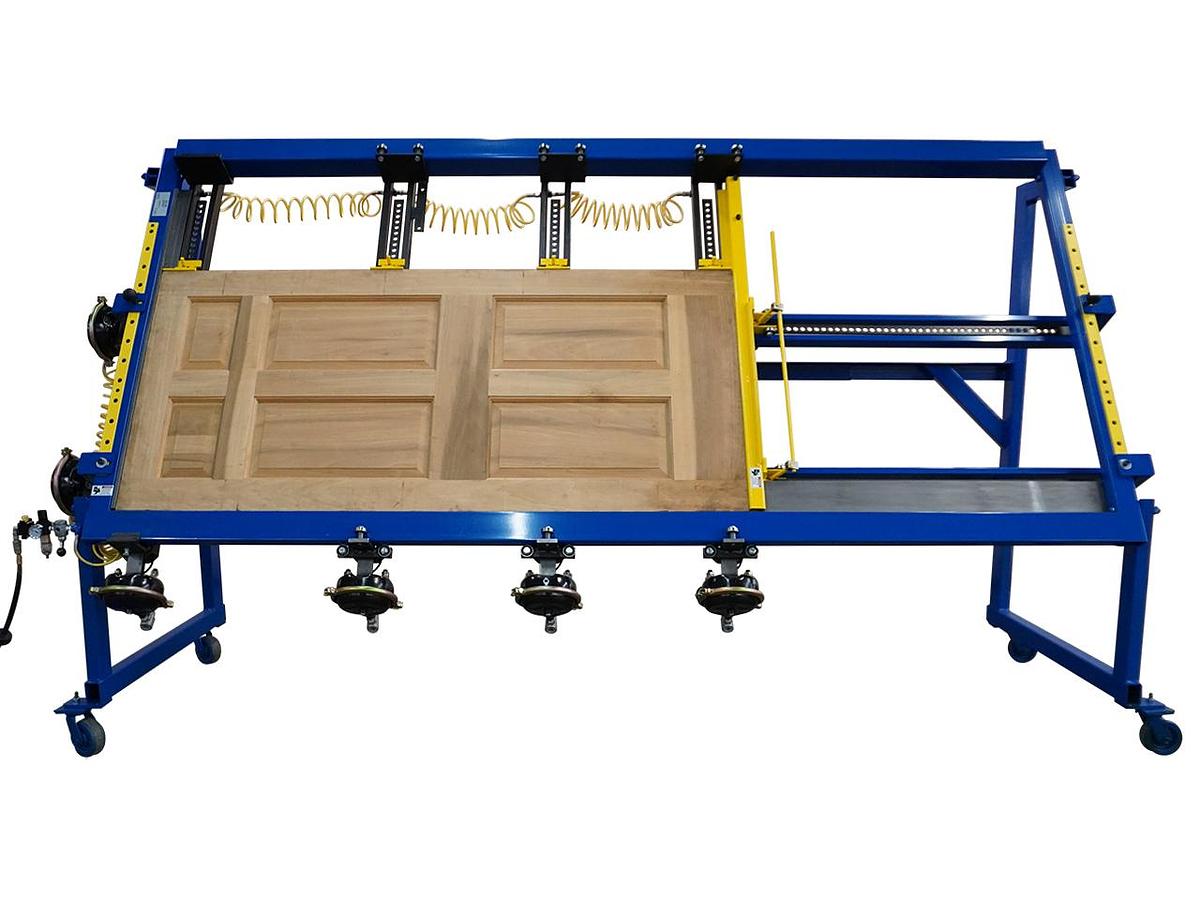

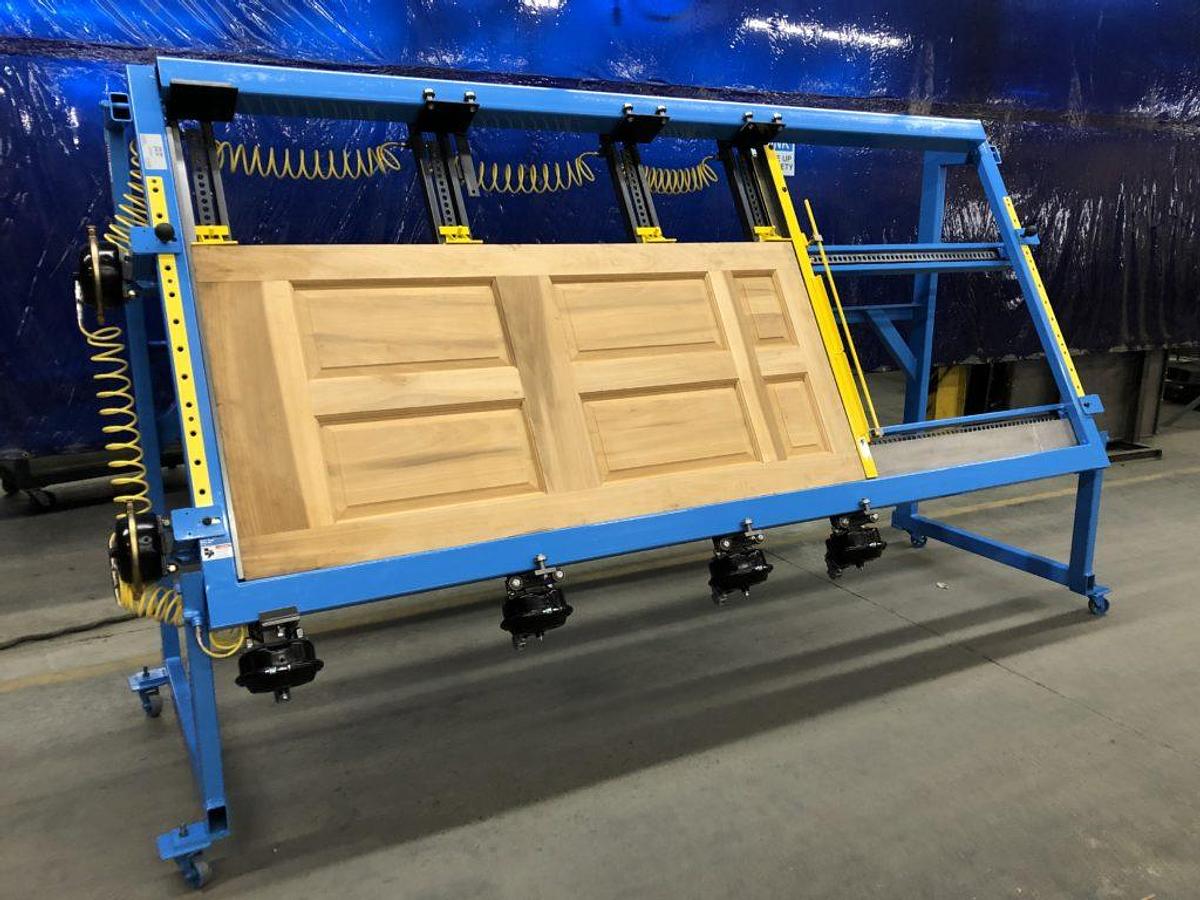

JLT 79K-10 Heavy Duty Entry Door Clamp

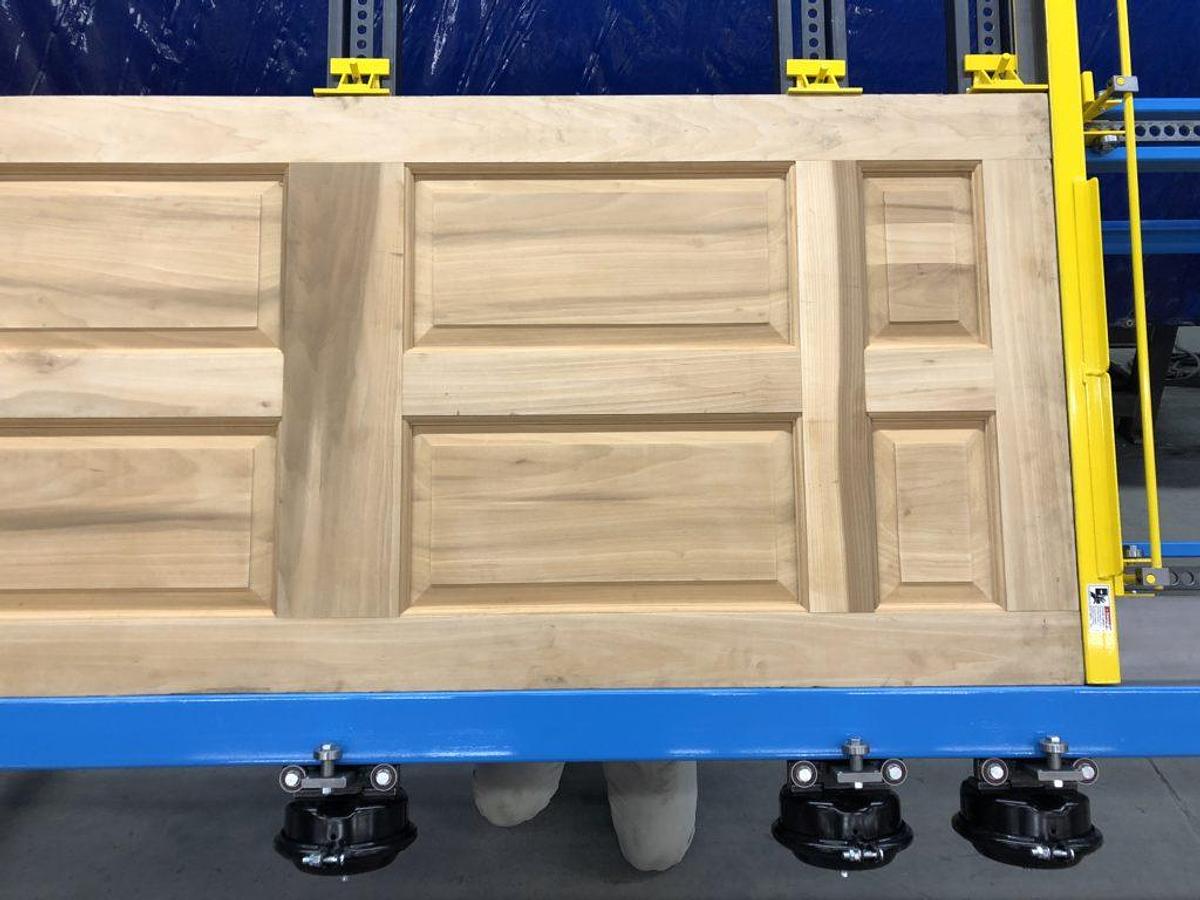

• 48″ x 120″ Capacity for Solid Wood Entry Doors

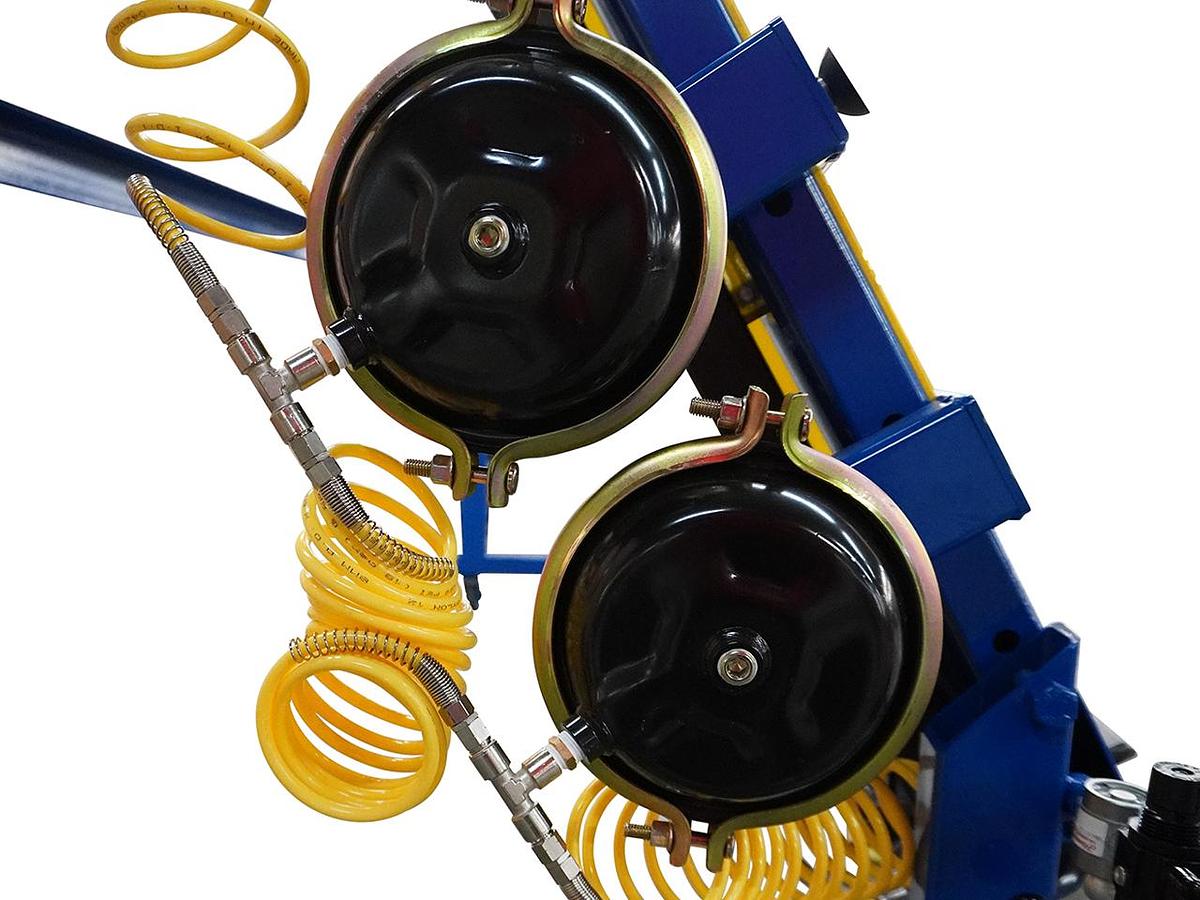

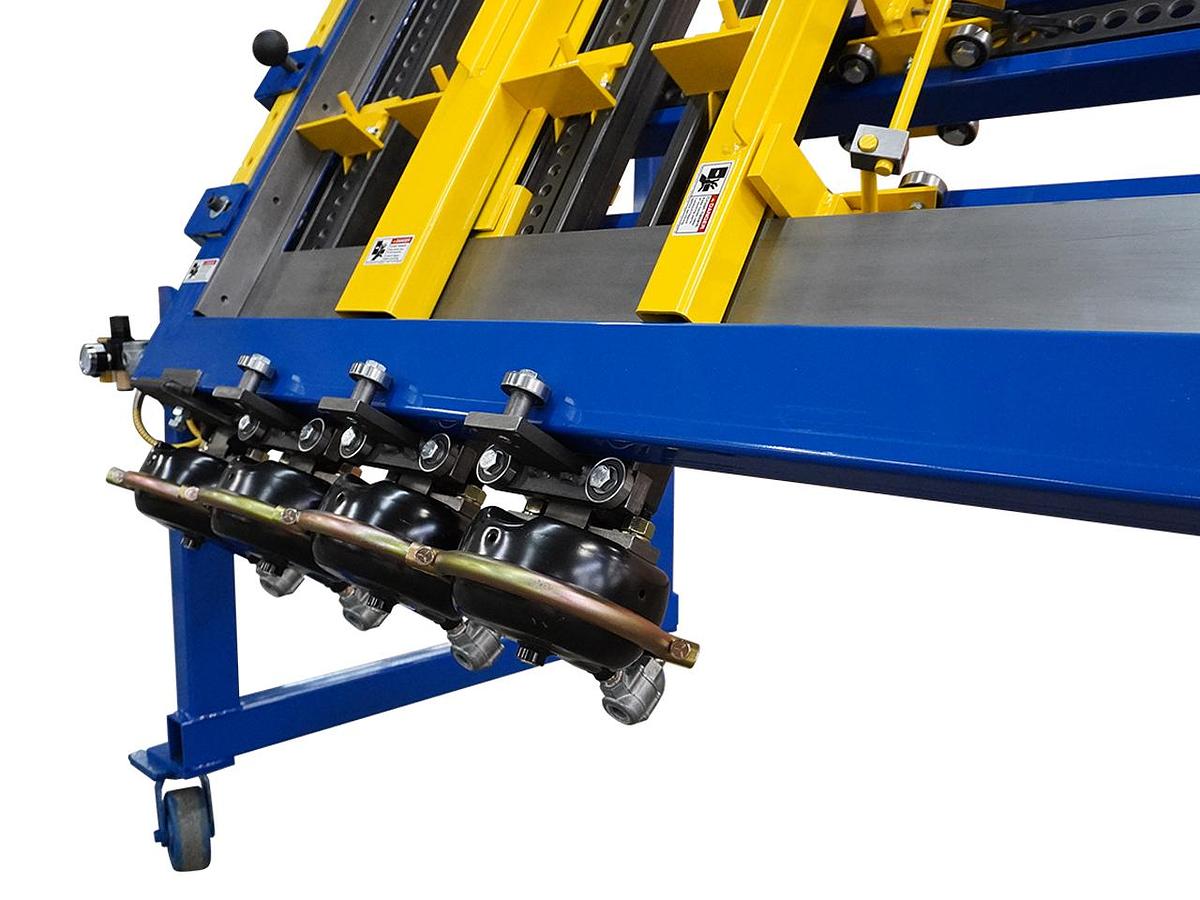

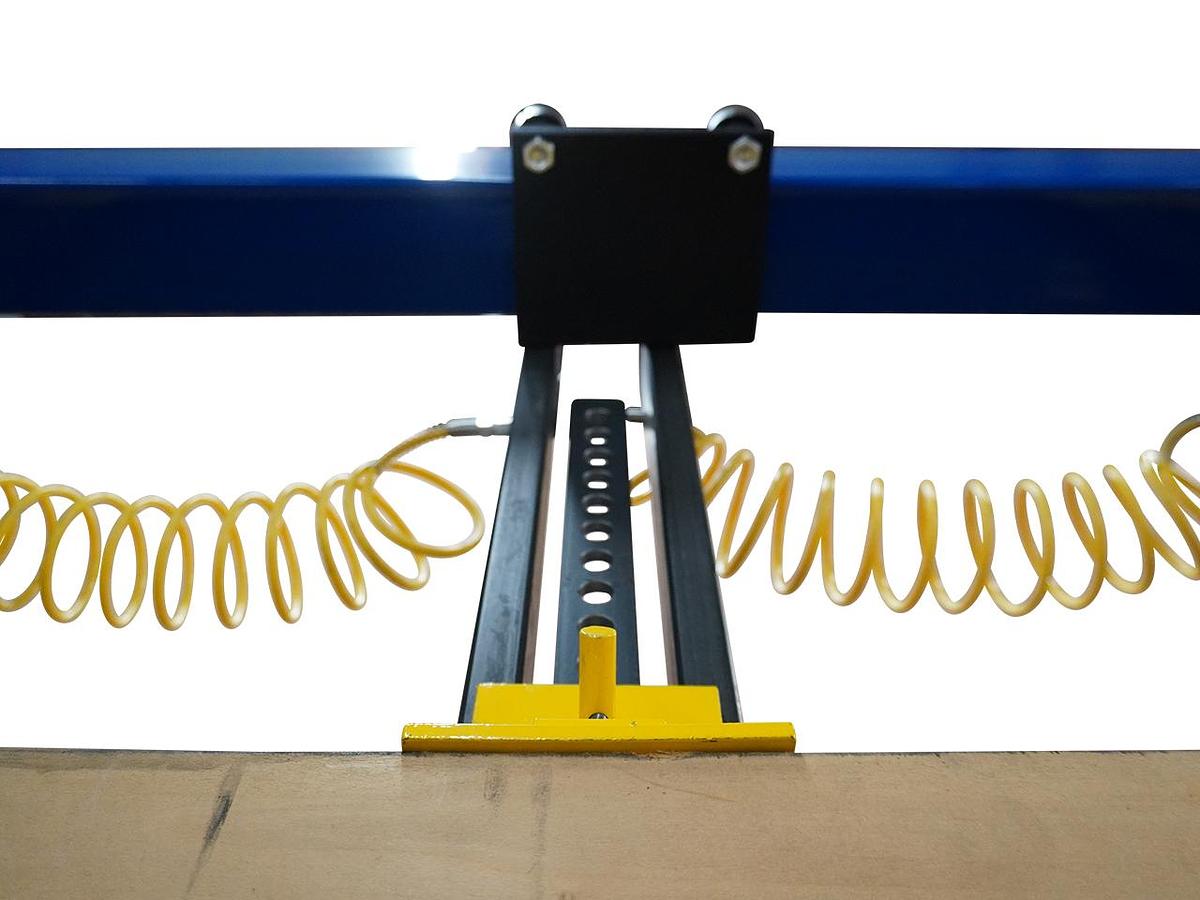

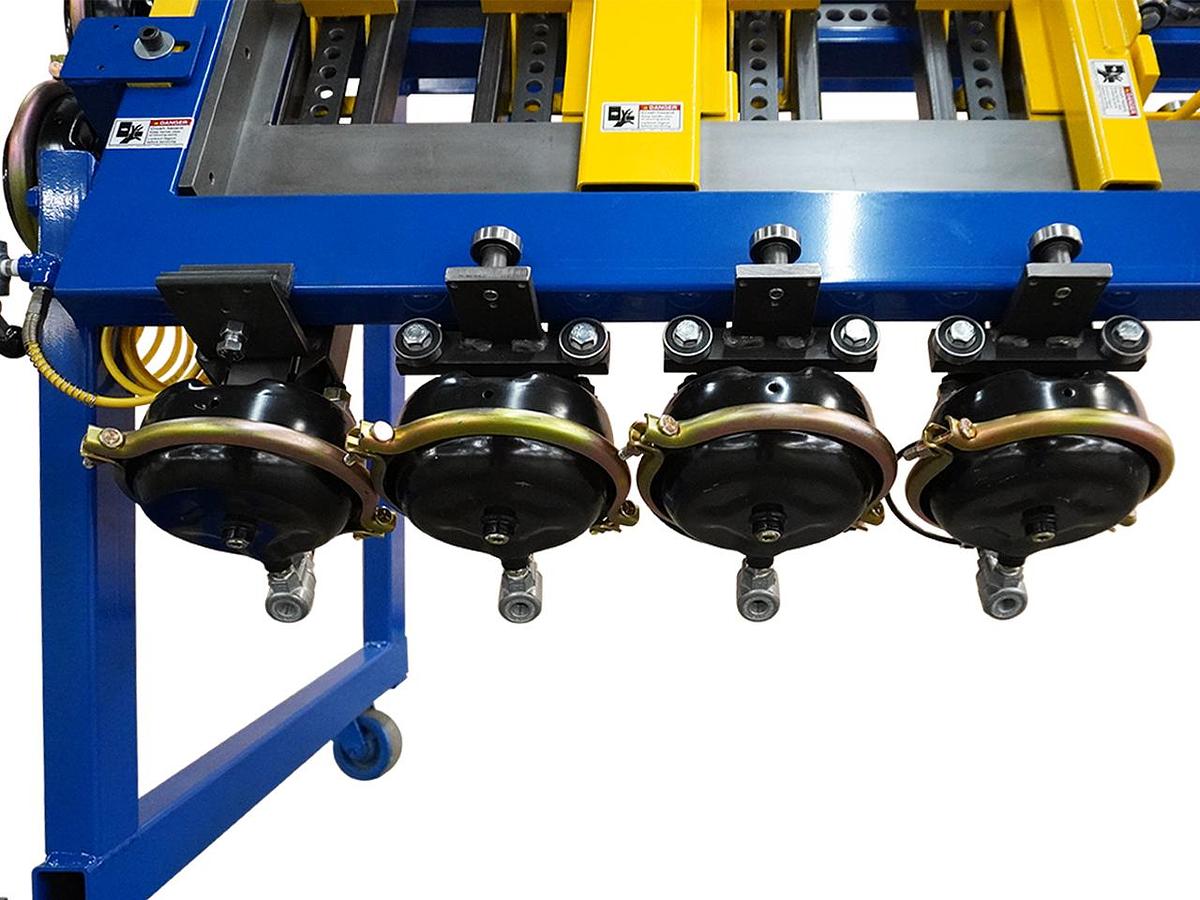

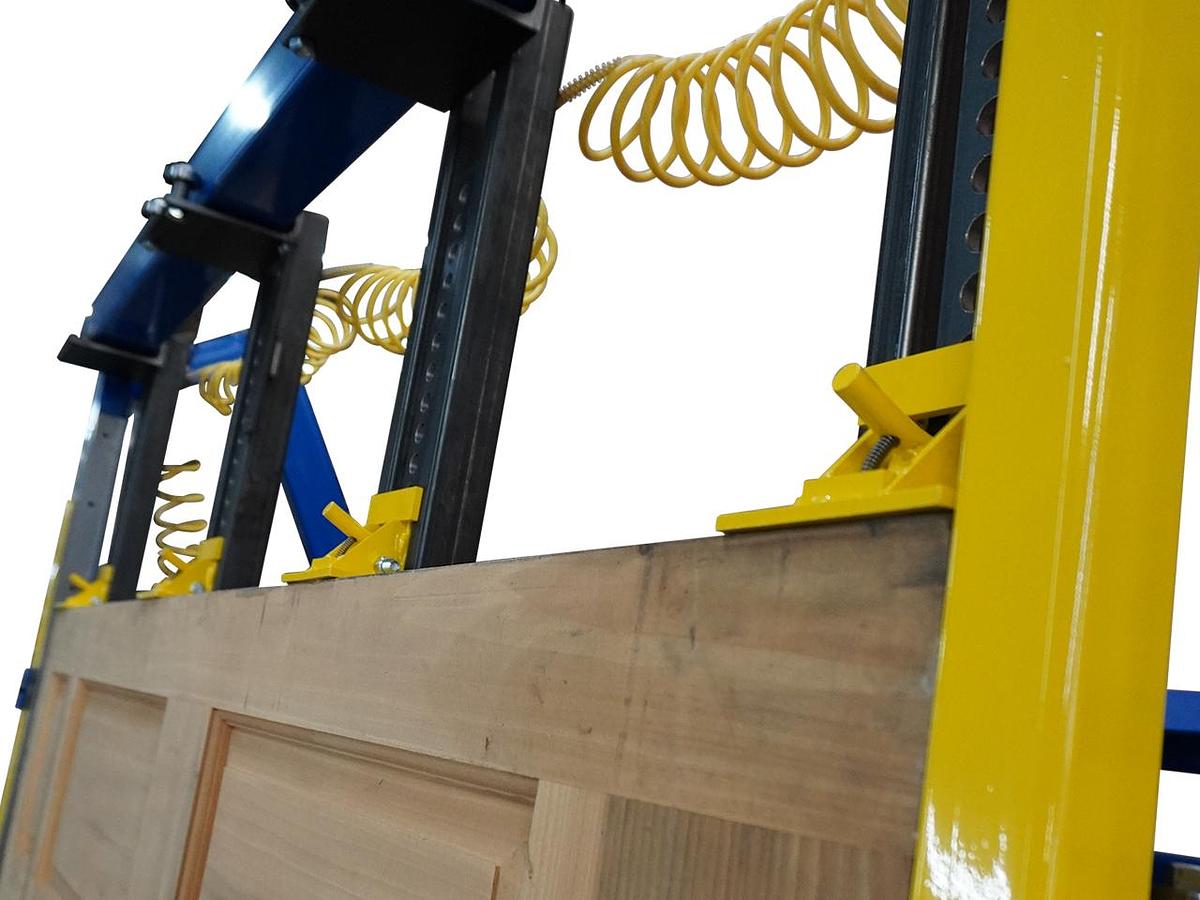

• (4) vertical and (2) horizontal pneumatic clamps with 2500# of clamping pressure per clamp.

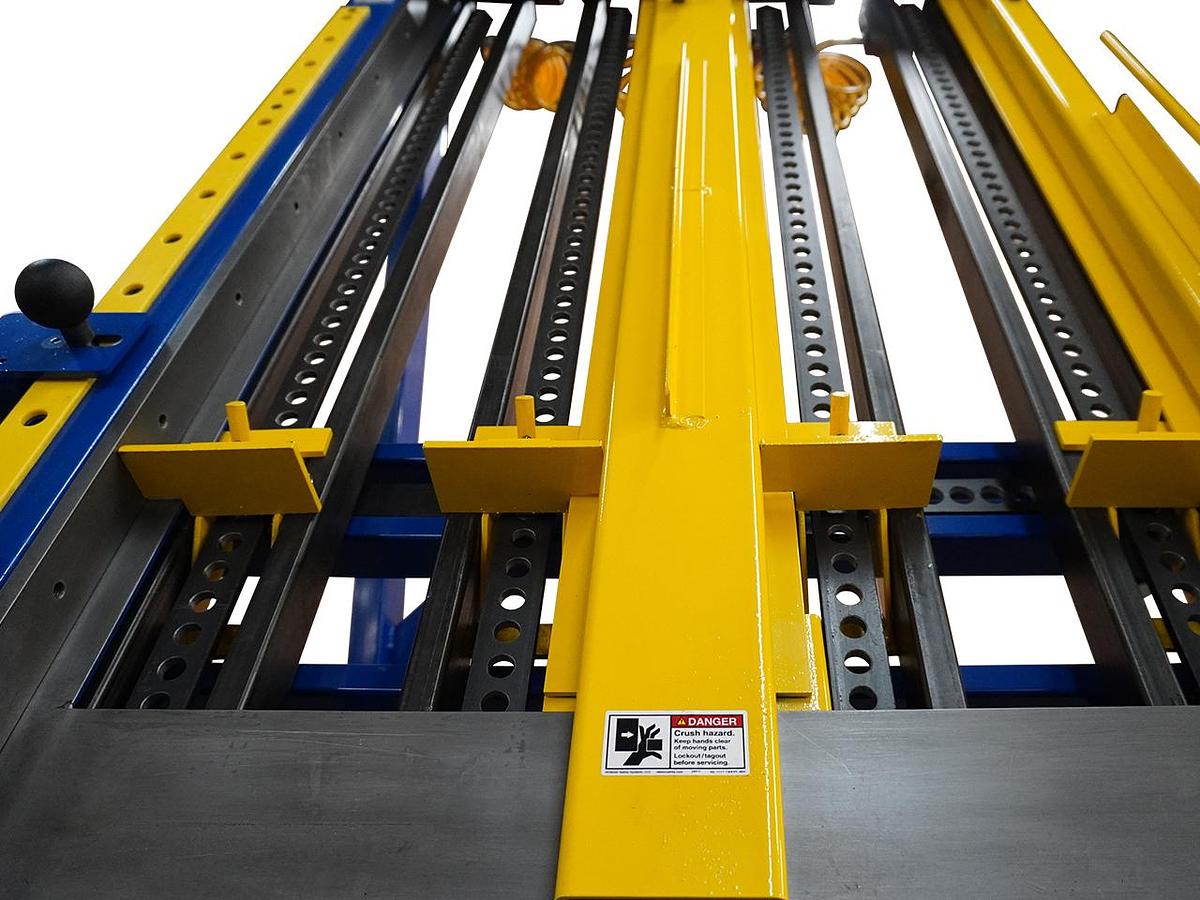

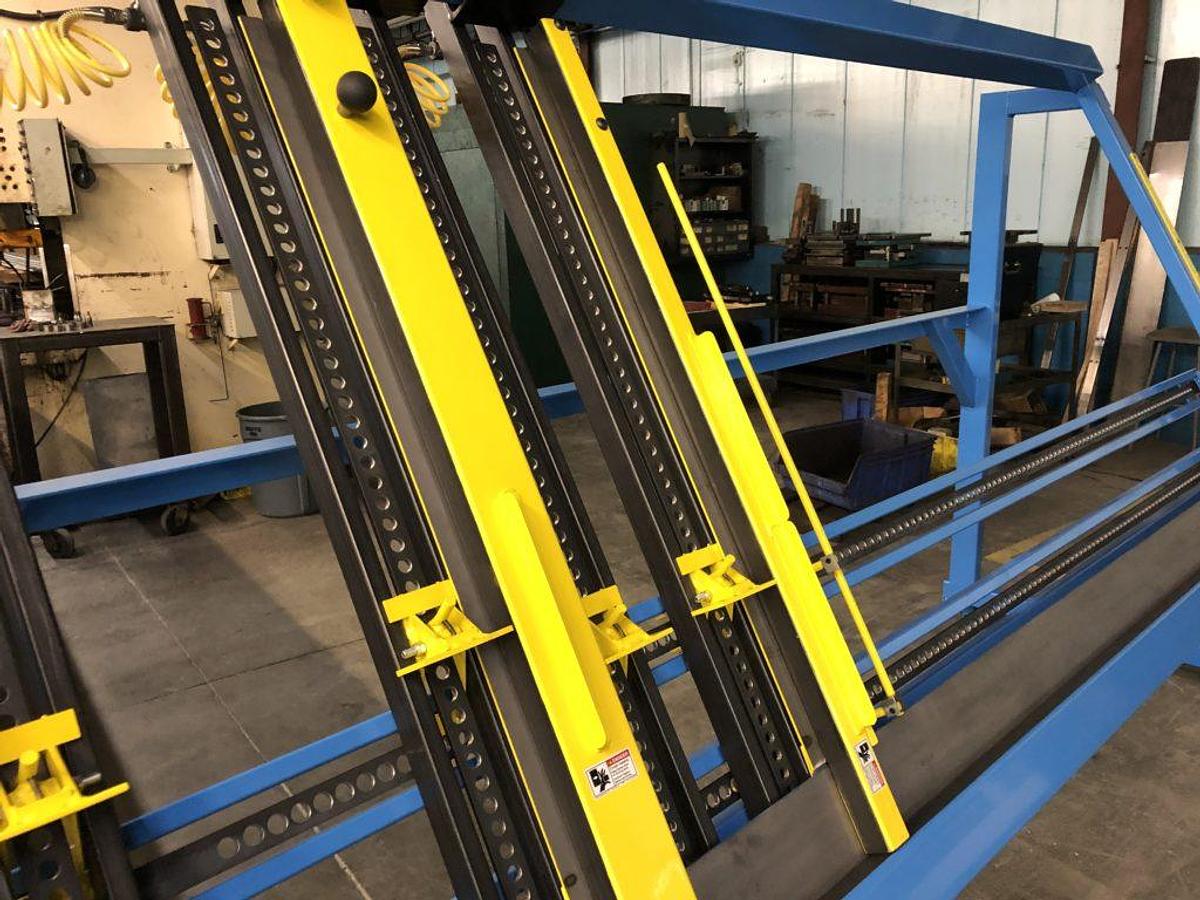

• Removable vertical center rail for multiple cabinet door squaring.

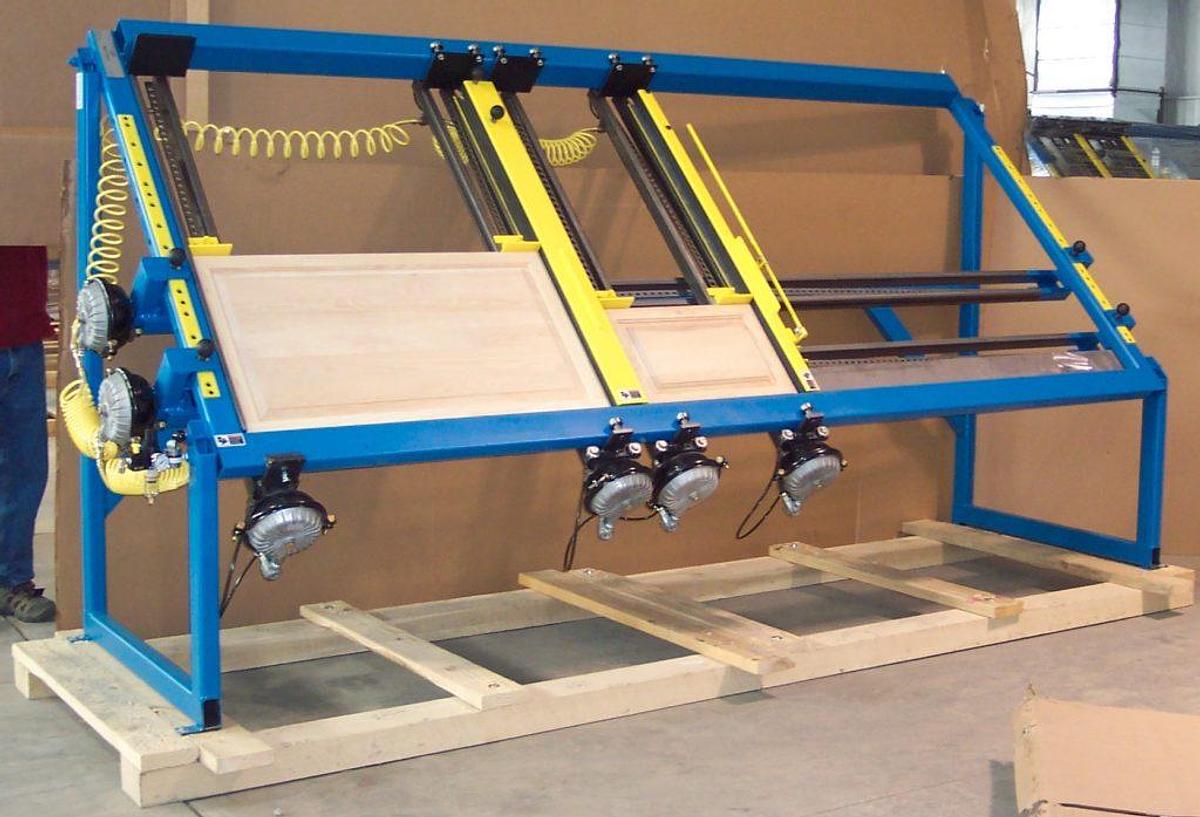

• Attached vertical center rail can clamp (2) 48″ x 56″ cabinet doors side by side.

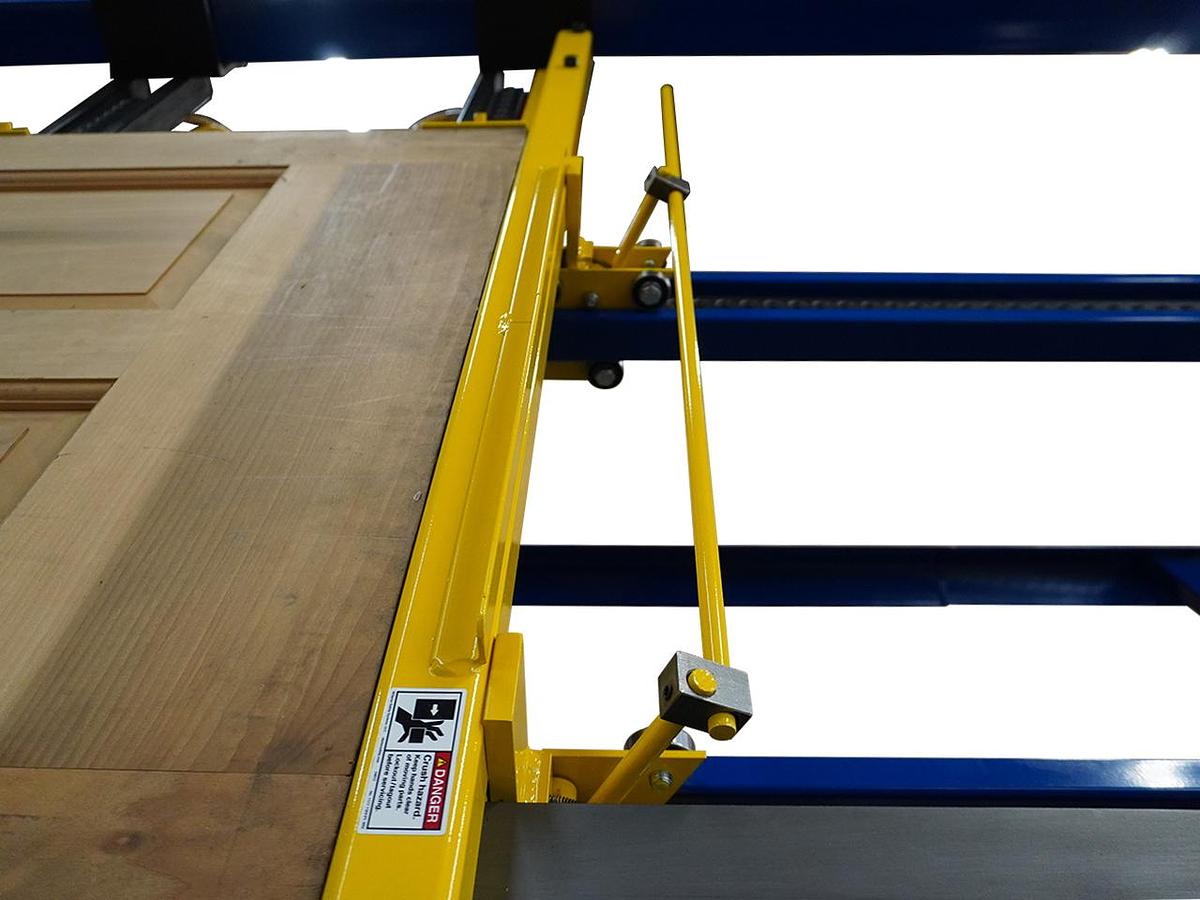

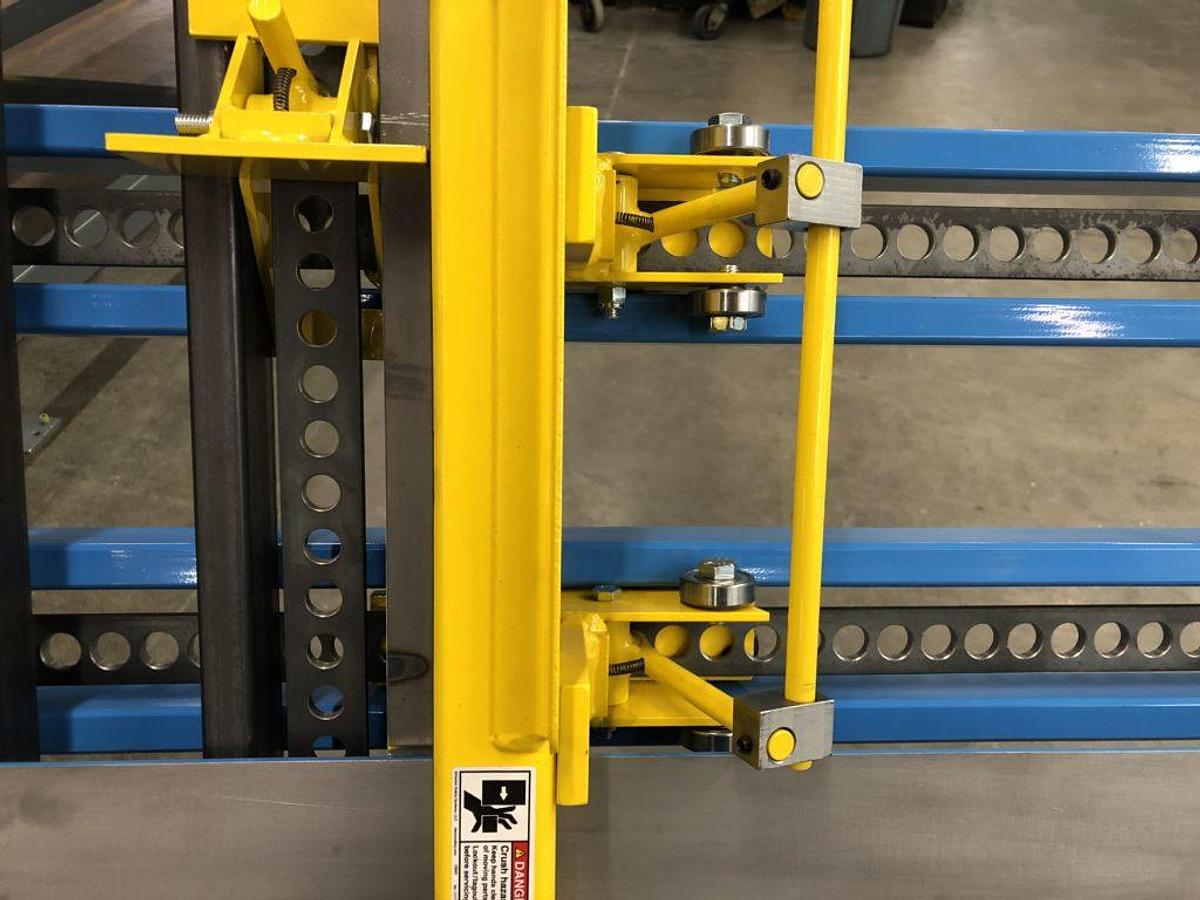

• Single Lever Valve Operation –(2) Second Squaring of Stile & Rail and Entry Doors

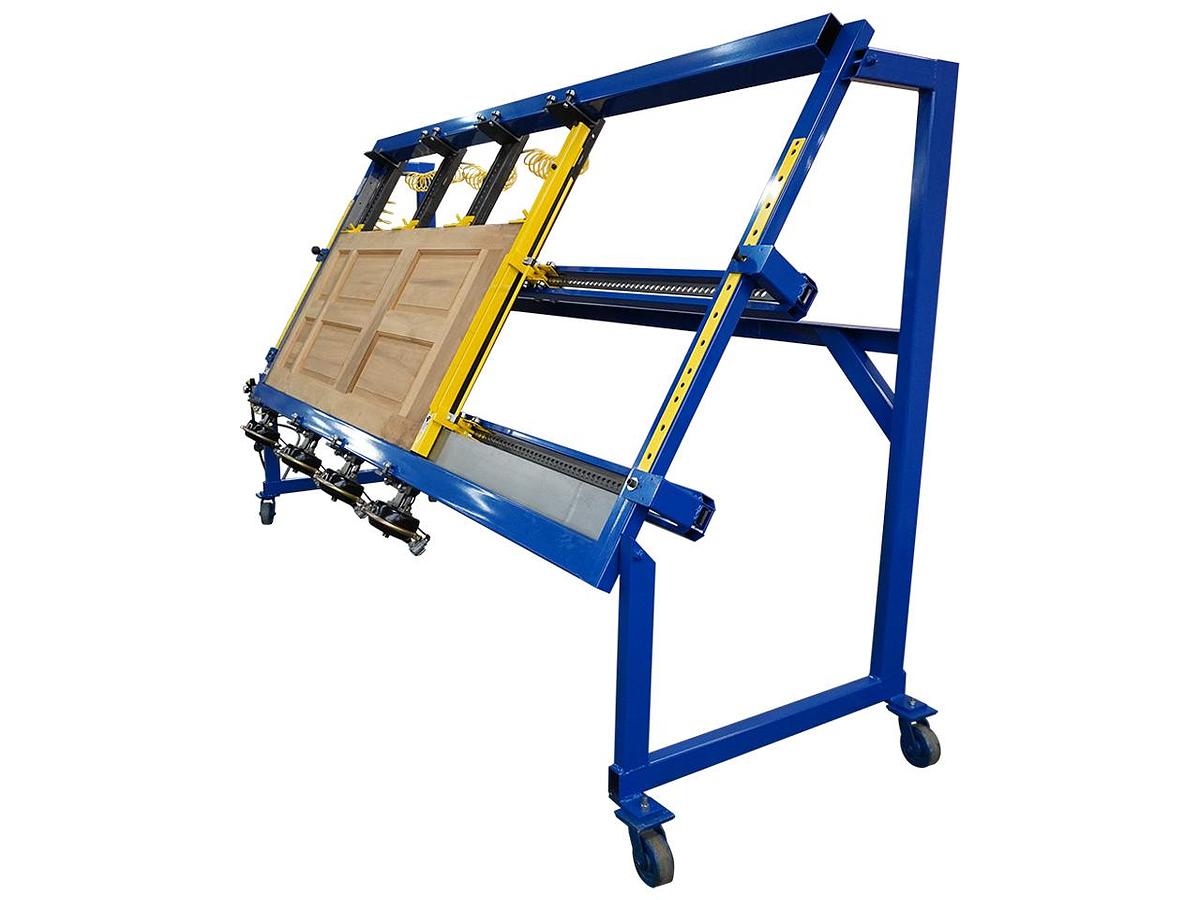

• Space-saving upright design.
• 60 degree vertical working angle.
• Minimum Door Sizes are as Follows:
• With Center Bar Out: 8″ x 30″
• With Center Bar In: 8″ x 14″ (Two Separate Gluing Areas)
• Shipped Pre-Assembled for Easy Installation

Machine Footprint: 145″L x 70″H x 50″W
