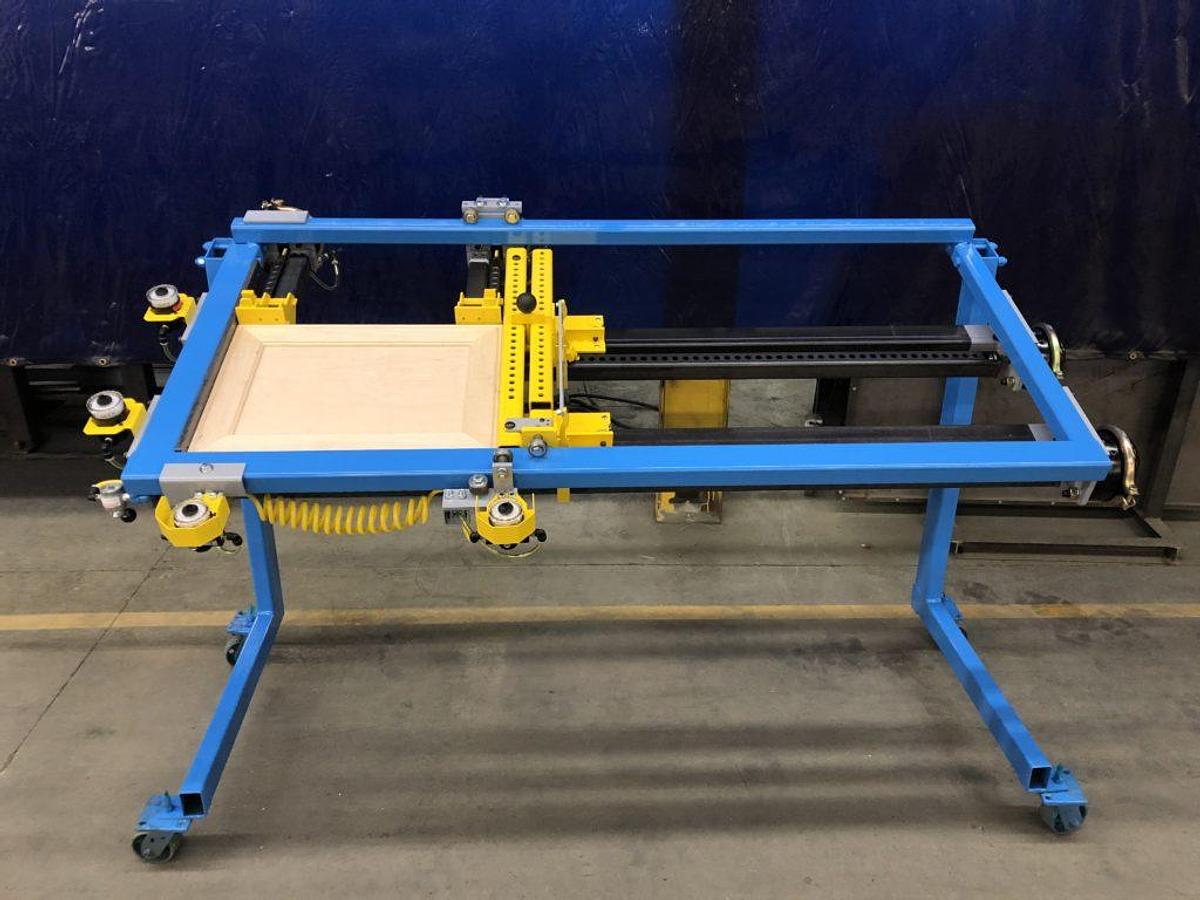

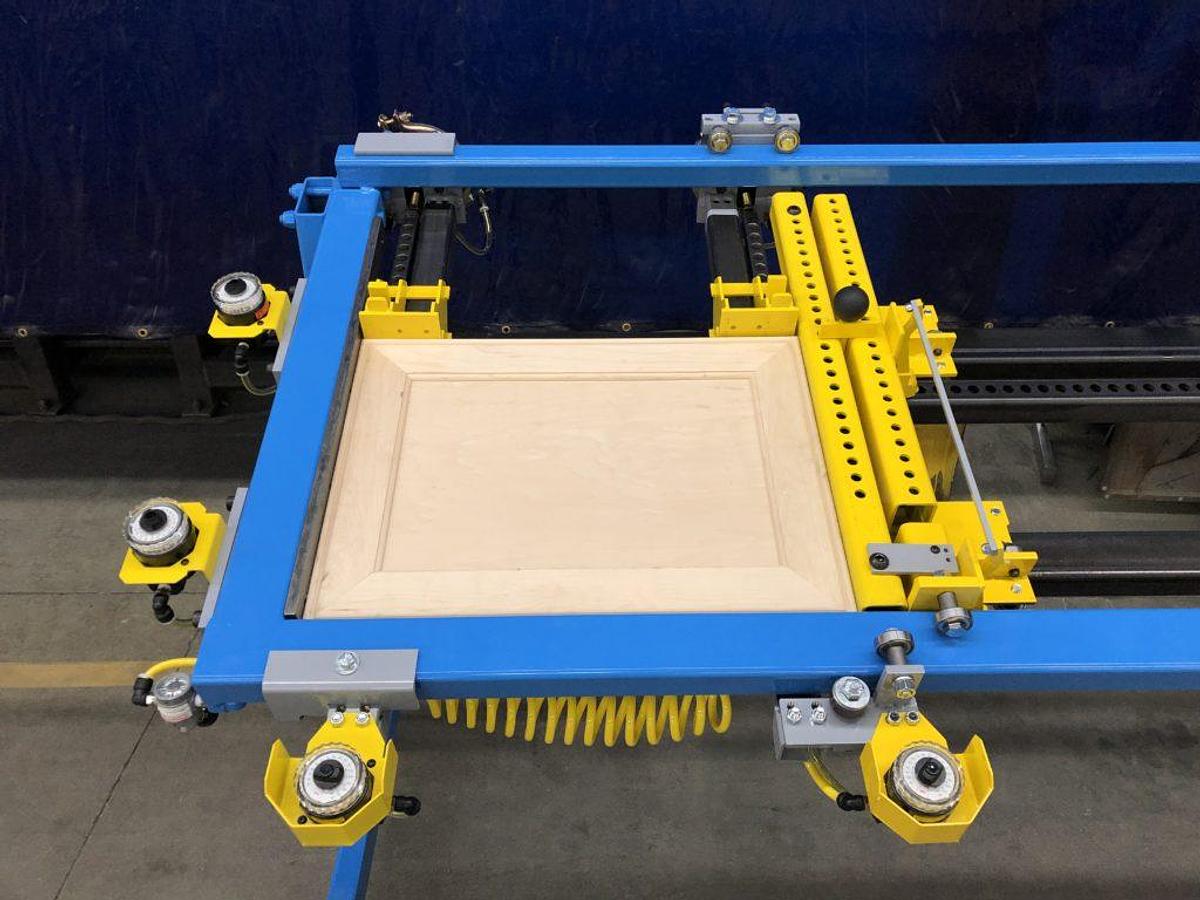

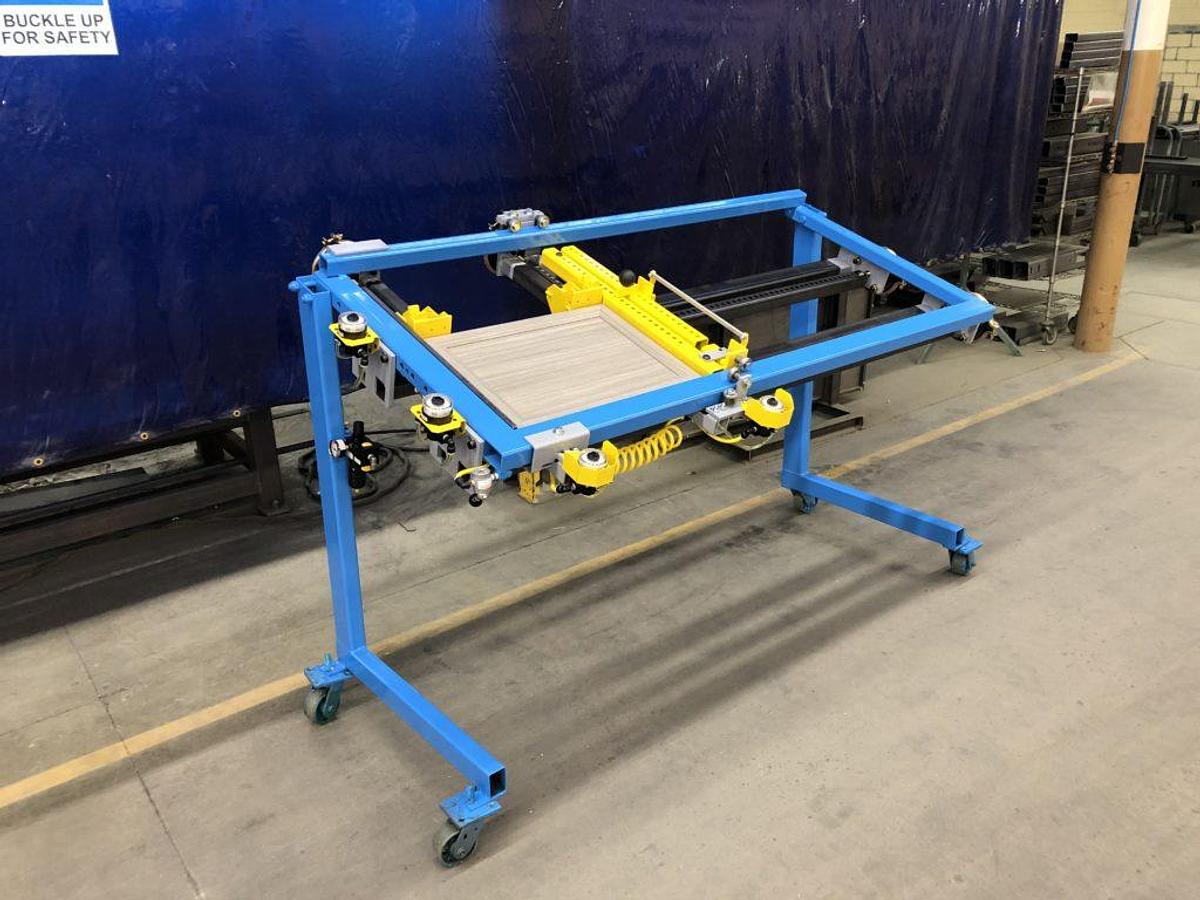

JLT 717C-M Single Miter Door Clamp

Accurately Clamp, Square and Adjust Your Miter Joints

Miter doors leave no room for error, and the JLT Single Miter Door Clamp is built for that. Every clamp has its own dial regulator. Dial the pressure in or out at each corner to close up a tricky miter joint, even while the door is under clamping pressure. Heavy-duty jaws put that pressure right on the corners, and every JLT Door Clamp is pre-squared at our Poughkeepsie, NY factory. The JLT Trident Pin System handles fast changeovers between door sizes. The clamp squares stile-and-rail, MDF and HDF doors as well as miter doors, with a 26″ × 62″ capacity in a compact footprint.

Features

Precision Corner Adjustment

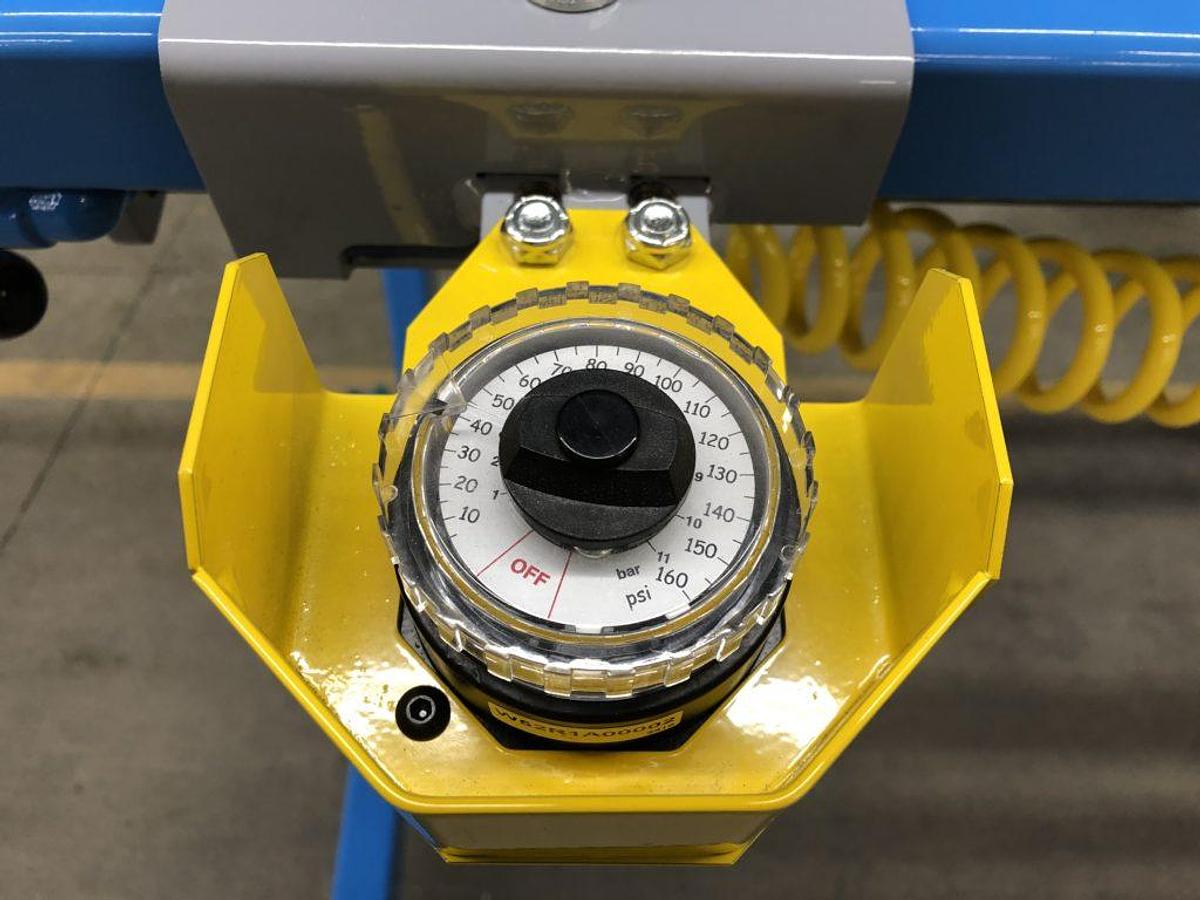

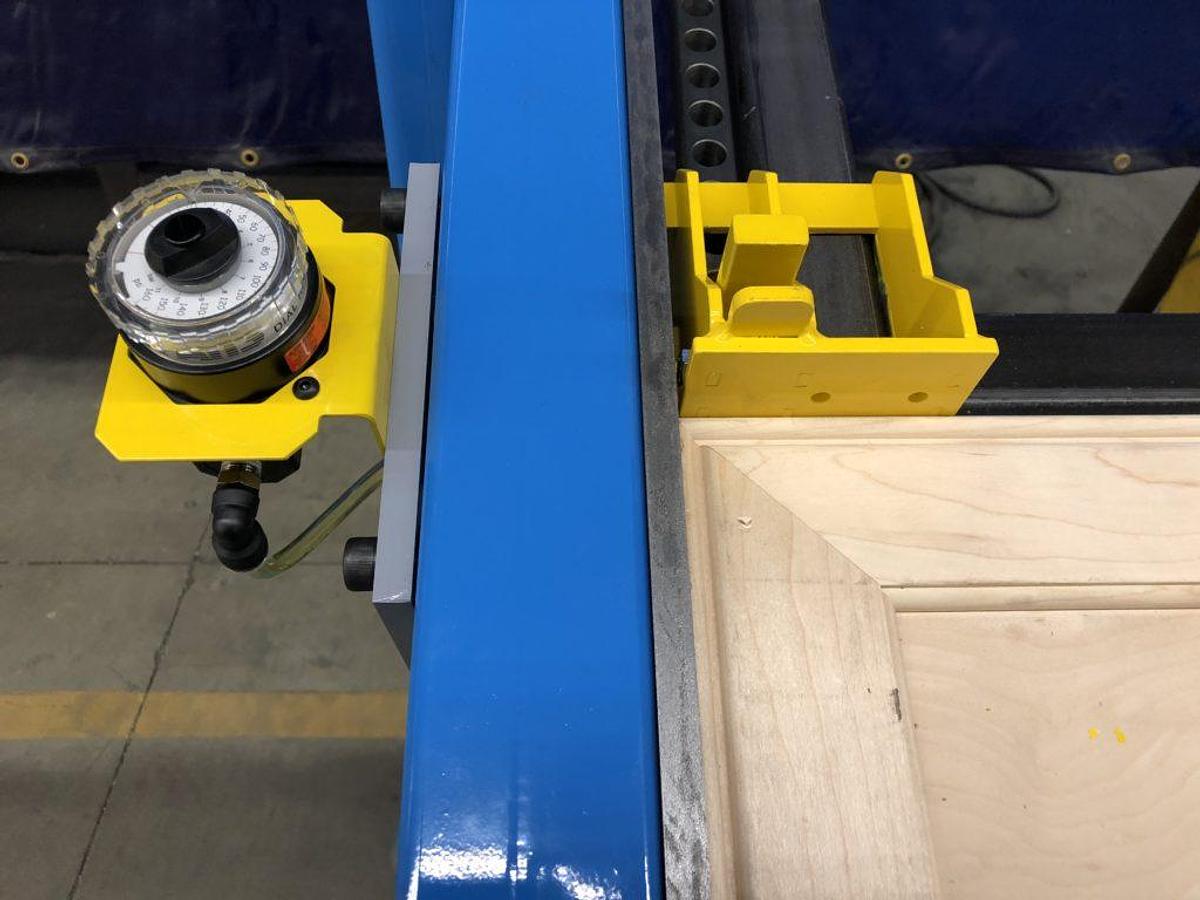

• Dial regulators(See Spec Sheet): "dial" pressure A, B, C or D in or out to adjust each corner, even under clamping pressure

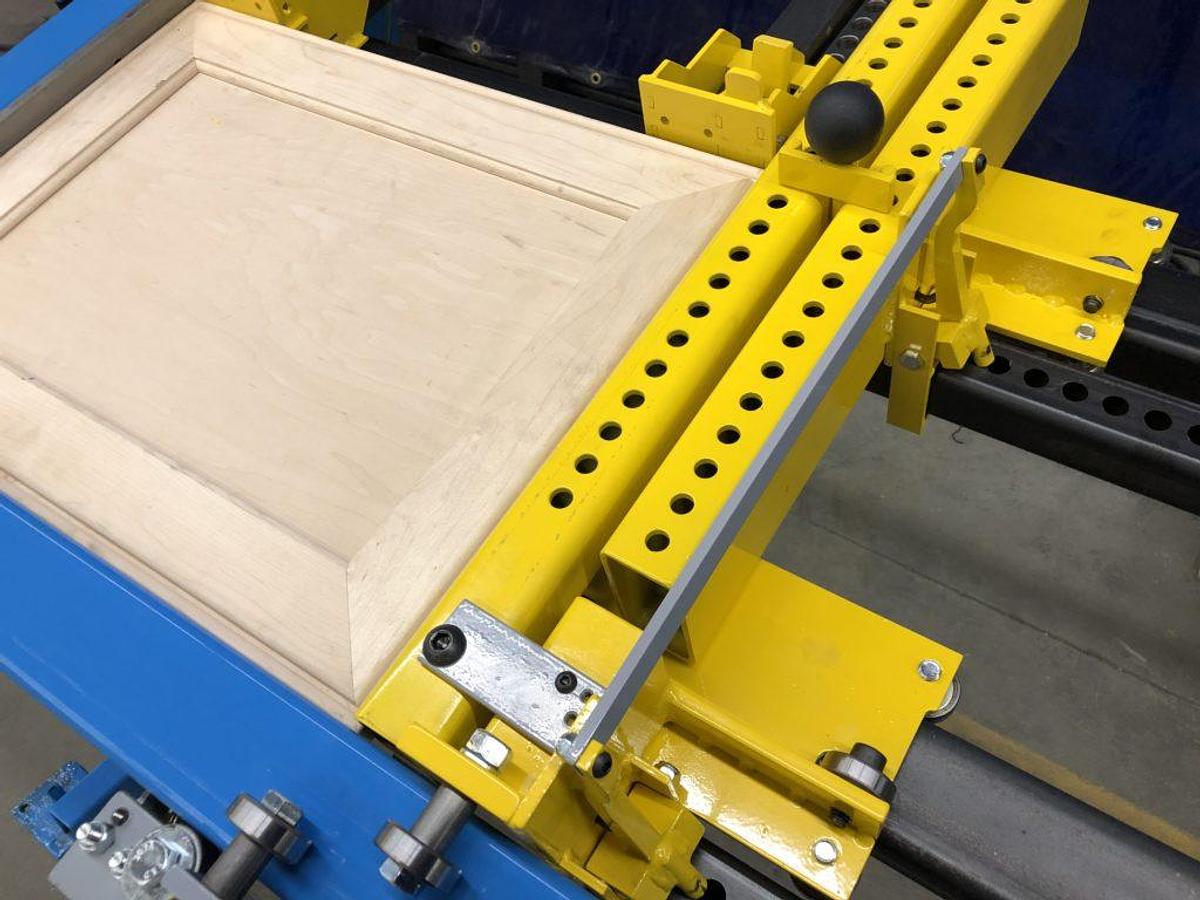

• Heavy-duty jaws bring pressure directly to the corners for precise adjustment of tricky miter joints
• Guaranteed square: every JLT Door Clamp comes pre-squared from our factory

Capacity and Setup

• 26″ W × 62″ L maximum capacity
• Includes (2) vertical and (2) horizontal clamps

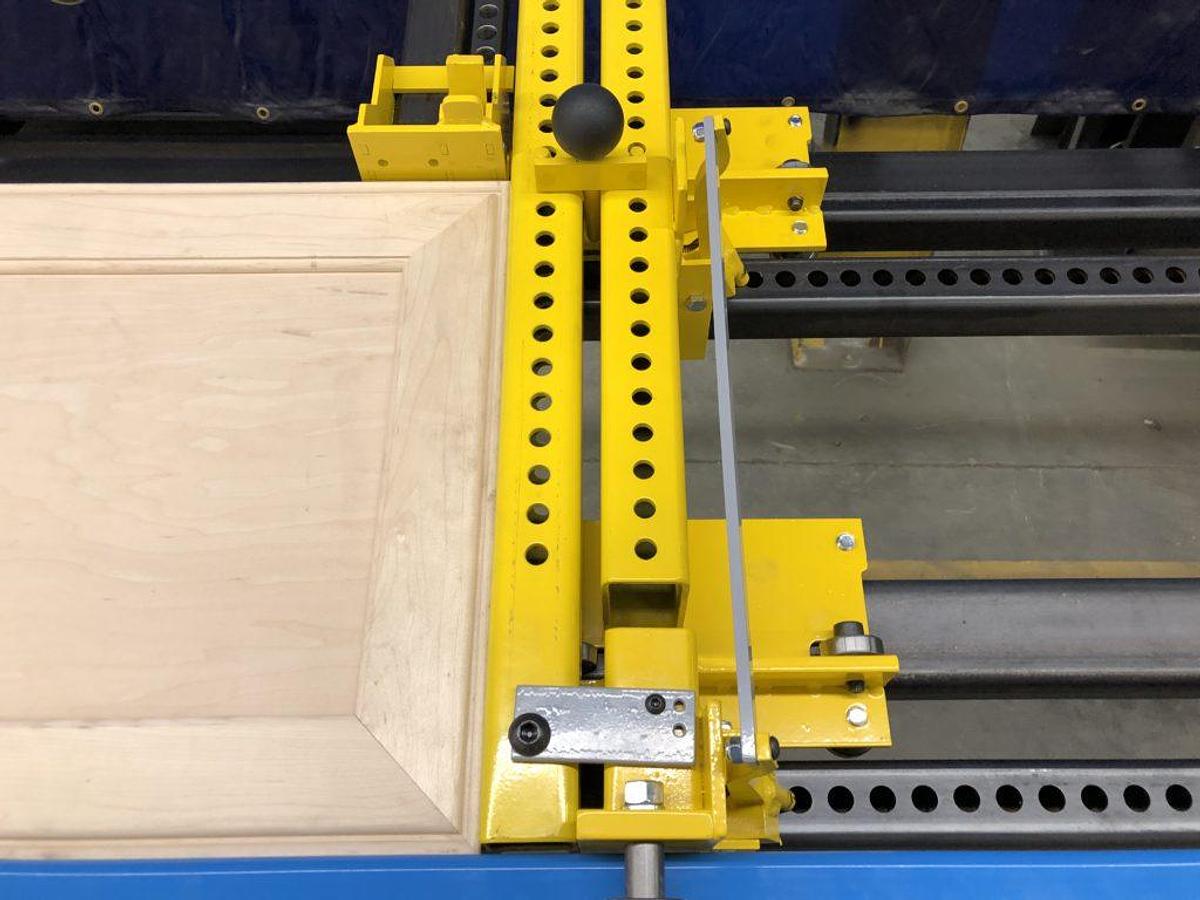

• JLT Trident Pin System for quick changeovers between door sizes (the pin sits at the top of the door)
• Single lever valve air activation

Door Types

• Clamps and squares miter and stile-and-rail doors
• Clamps and squares MDF or HDF doors too, with an optional UHMW Border Kit to protect the door

Warranty and Origin

• Complete 3-year warranty
• Made in the USA, Poughkeepsie, NY

Machine dimensions

Width: 86″ · Height: 51″ · Depth: 45″
