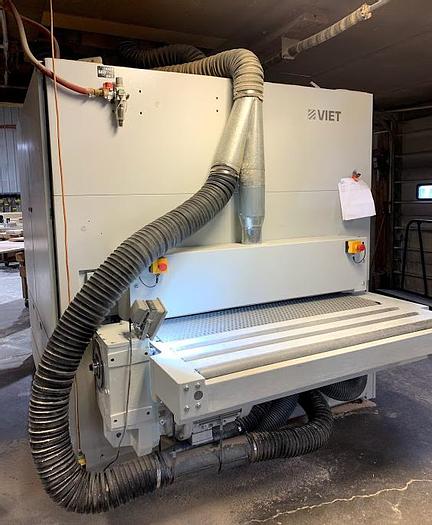

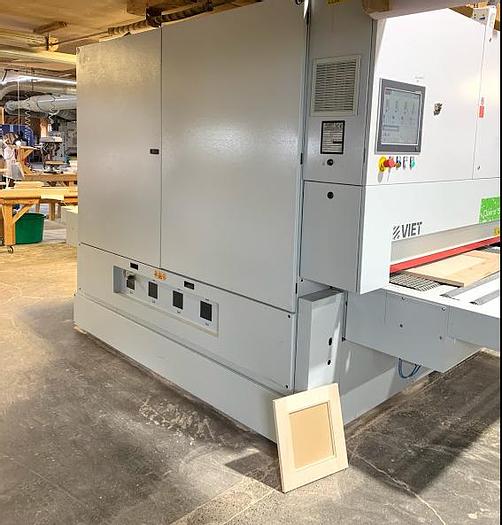

Viet Opera 5-4.3 4-Head Finish Sander

As is where is

Mfg 2017

Price for packing, transport, and install can be added

30HP main motor

460V

3Ph

1350 mm working width

200 mm working height

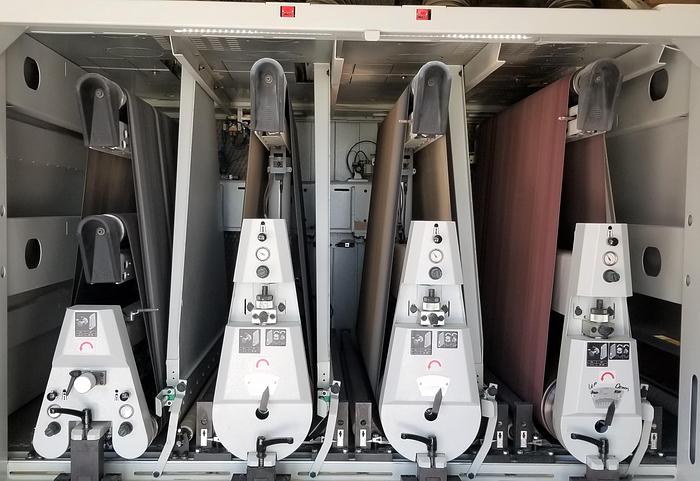

1st Working Unit:

• Roller diameter 240 mm
• 22kW (30HP) main motor
• Linear blower cleaning sanding paper Air Saving System - optimizes air consumption by only blowing and oscillating while the panel is worked
• Infeed pressure shoe
• Outfeed pressure shoe

2nd Working Unit:

• Roller diameter 300 mm
• 18.5Kw (25HP) main motor
• Linear blower cleaning sanding paper Air Saving System - optimizes air consumption by only blowing and oscillating while the panel is worked
• Infeed pressure shoe
• Outfeed pressure shoe

3rd Working Unit:

• Roller diameter 300 mm
• 15kW (20HP) main motor
• Linear blower cleaning sanding paper Air Saving System - optimizes air consumption by only blowing and oscillating while the panel is worked
• Infeed pressure shoe
• Outfeed pressure shoe

4th Working Unit:

• Superfinishing unit
• Pneumatic pad
• Contact insert for pneumatic pad made of steel, felt, and graphite
• Removable graphite cloth
• Electronic anti-dubbing device
• Electronic inverter 11kW (15HP)
• Linear blower cleaning sanding paper Air Saving System - optimizes air consumption by only blowing and oscillating while the panel is worked

Standard outfeed belt prepared for the combination of one group brush and a cleaning accessory

Rotative blower cleaning panel with air saving system

Conveyor:

• Electronic inverter 4kW (5.5HP)
• Vacuum table complete with (1) fan 5.5kW (7.5HP) with electronic system for regulating the flow
• 60SH rubber hardness conveyor belt with profile
• Front table extension with (2) rollers
• Rear table extension with (2) rollers
• Linear blowing cleaning conveyor belt complete with dust collection system

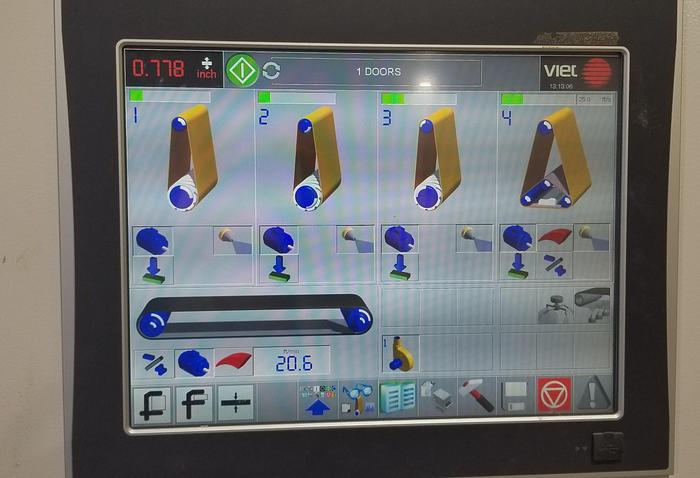

Main Drive Panel - IPC 15" touch screen controls all HW and SW functions of the machine
