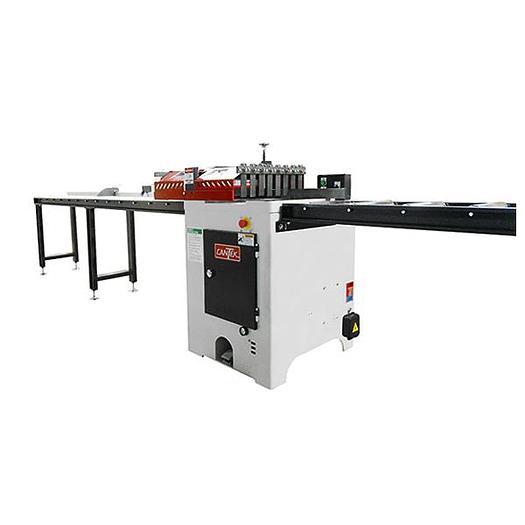

Cantek PCS-18M Pneumatic Cut-Off Saw

Cantek PCS-18M Pneumatic Cut-Off Saw

$8,800 (USD)

orCall 920-452-4494

Description

Cantek's newest addition to their chopsaw line-up. For cutting aluminum and other non-ferrous material.


FEATURES

  • Available in Right Hand & Left Hand configuration
  • Cutting off capacity (thickness x width): 2" x 12", 3" x 11", 4" x 10"
  • Powerful 10HP main motor

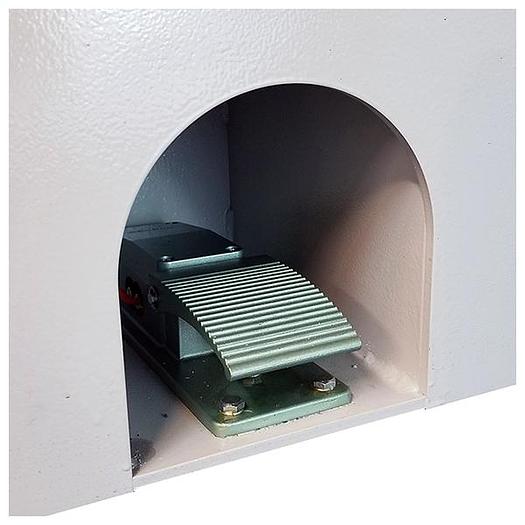

  • Pneumatic foot pedal operation with adjustable cutting speed from the front of the machine
  • Fast cutting rate up to 45 strokes per minute.

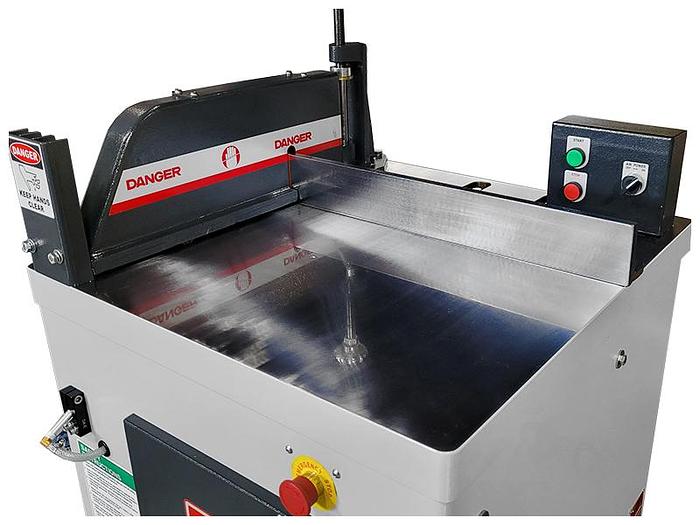

  • Cast iron table surface is precision ground assuring high cutting accuracy.
  • Safety blade guard with adjustable fingers for added safety.

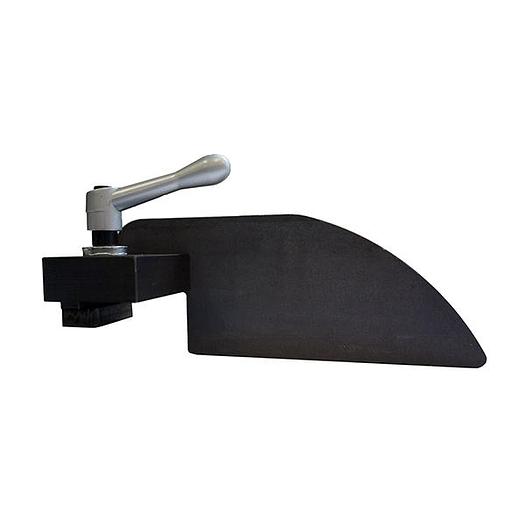

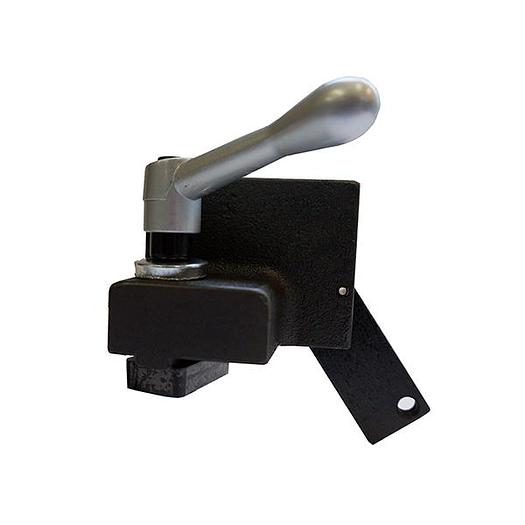

  • Material clamp is easily adjusted for workpiece thickness variation.

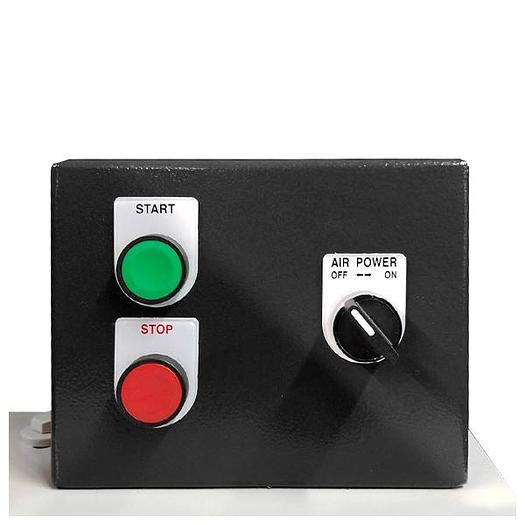

  • CSA magnetic switch
  • Door safety limit switch with 3” long screw

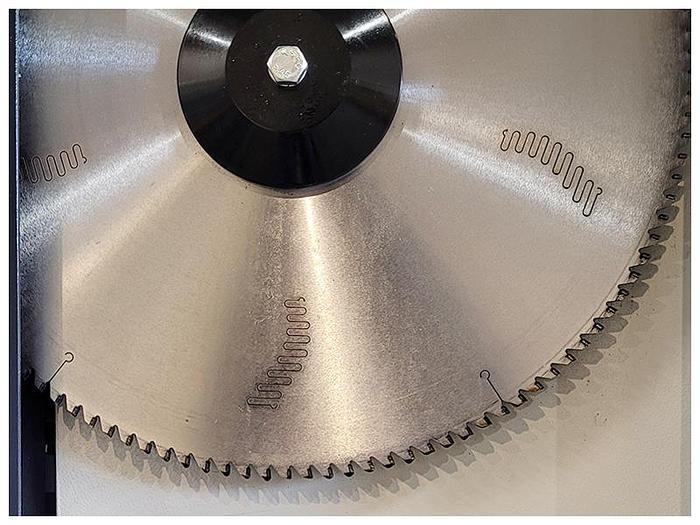

  • Non-ferrous cutting blade included with machine

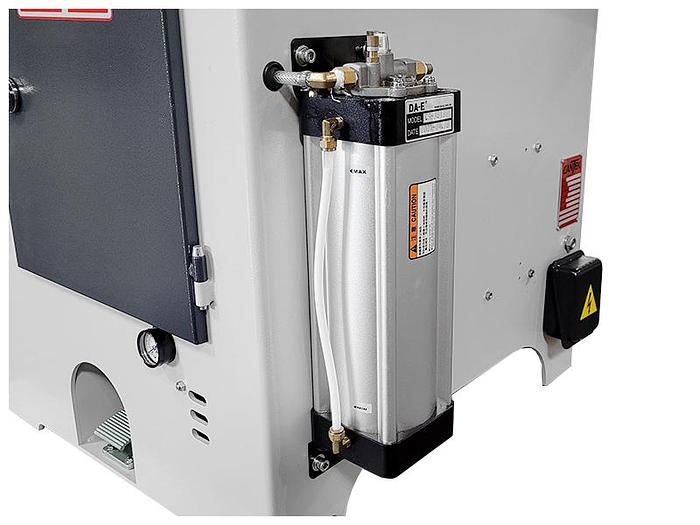

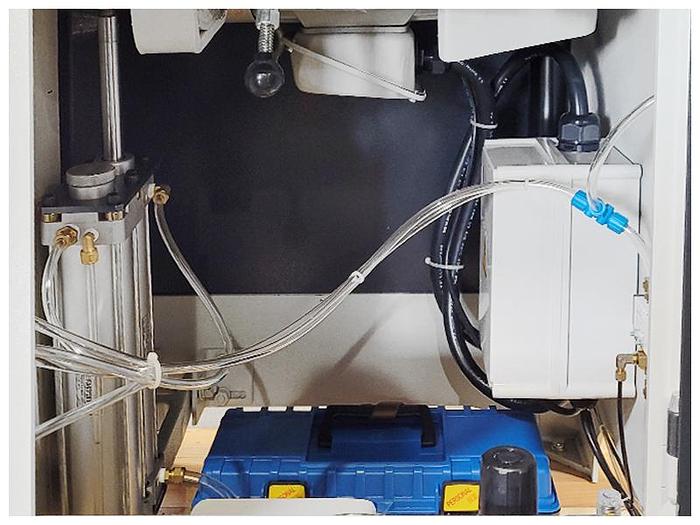

  • Air over Oil for precise speed control
  • Blade misting system - applies a thin film of lubricant that prevents friction build up, maximizes saw blade productivity, and blade life
  • Solid chrome table - corrosion resistant

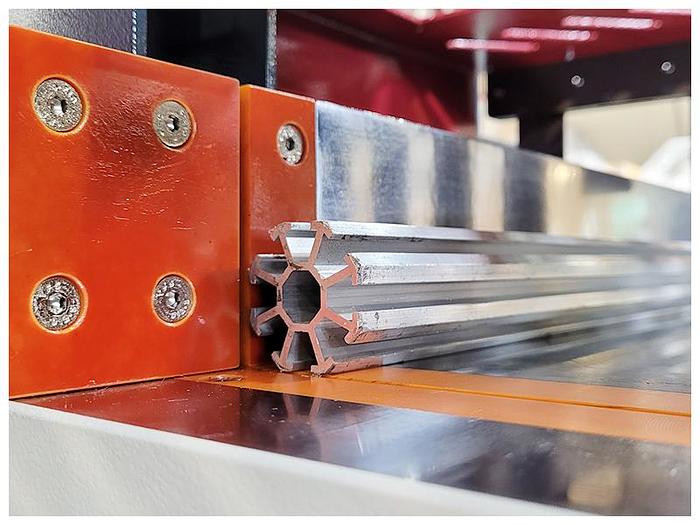

  • Zero cut line with T-clamp - increases precision cuts and reduces possibility of tear out



SPECIFICATIONS

Cutting capacity (thickness x width)               2" x 12", 3" x 11", 4" x 10"

Cycle speed                                                    45 strokes/min

Cycle operation                                               Air

Saw blade size (optional)                               18"

Saw arbor diameter                                        1"

Saw blade speed                                            3600 RPM

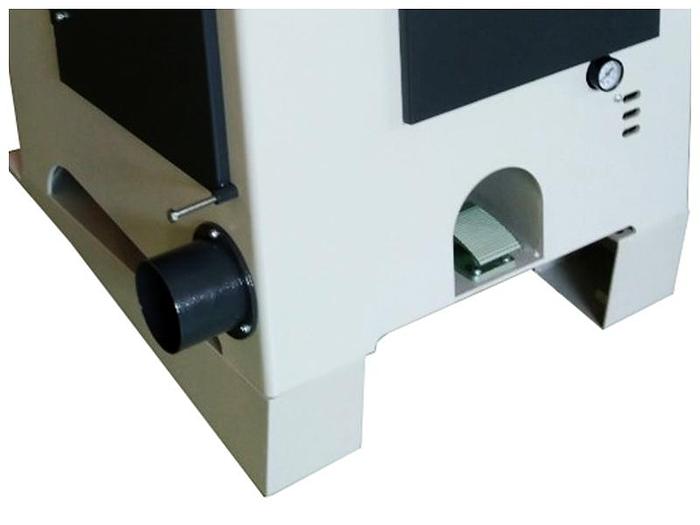

Dust exhaust diameter                                   Ø4"                                    100mm

Air consumption                                              9.8 CFM

Motor                                                               10 HP

Table size                                                       26” x 27 ½”                       660 x 700 mm

Net weight                                                       770 lbs.                             350 kgs

Gross weight                                                   902 lbs.                             410 kgs

Packing dimensions (L x W x H)                    37” x 33 ½” x 53.2”           940 x 850 x 1350mm

Electrics                                                          230/3/60 = 28 Full Load amps

Specifications

ManufacturerCantek
ModelPCS-18M Pneumatic Cut-Off Saw
ConditionNew
