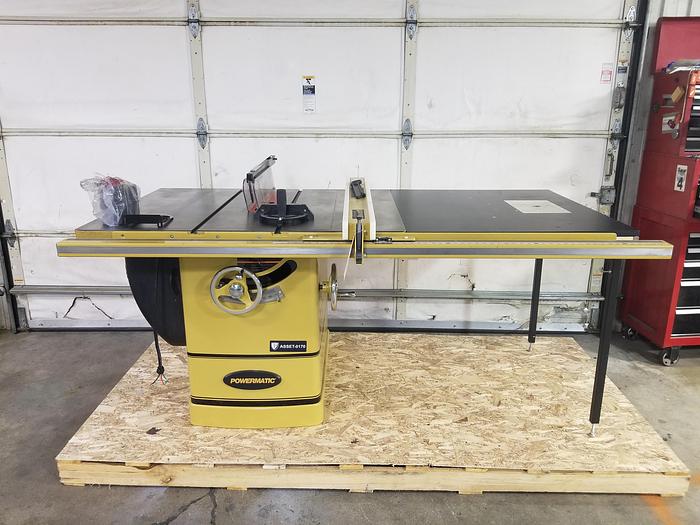

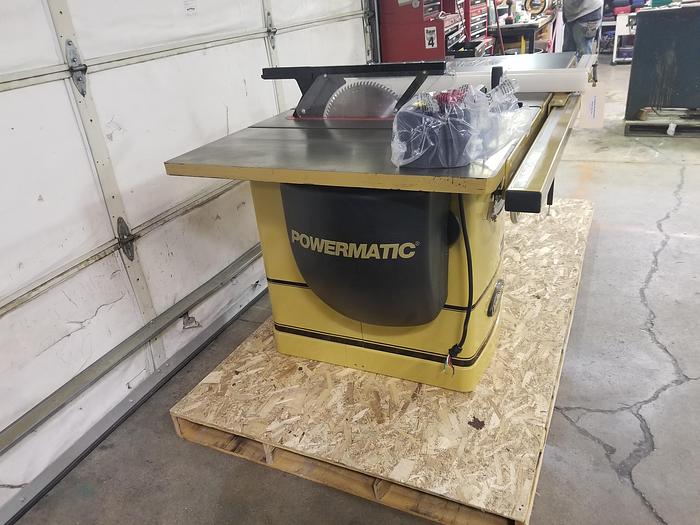

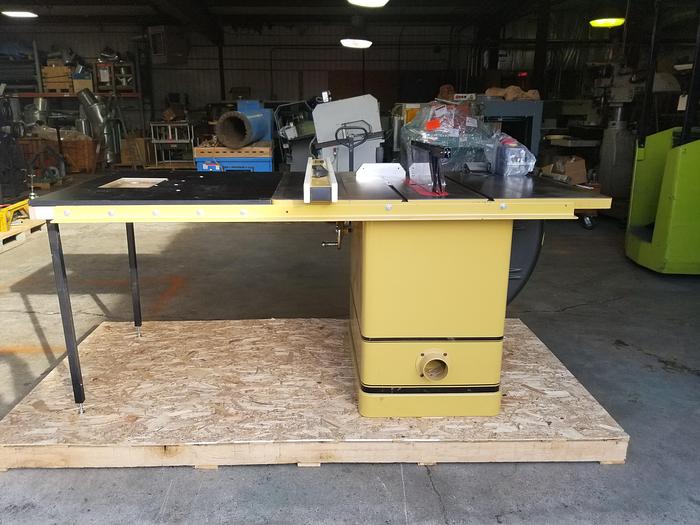

Powermatic PM3000 Table Saw

Cleaned and checked

New 230V control box

FEATURES:

• Quick release riving knife greatly reduces binding/kickback risk

• Push button arbor lock (patent pending) for rapid blade change

• Poly-V drive belt system delivers efficient, quiet operation

• Wide stance heavy-duty trunnion for stability and smooth blade positioning

• Adjustable angle indicators (patent pending) on the blade bevel scale for repeatable bevel cuts

• Industrial-duty Accu-Fence® System ensures accurate cuts

• Enclosed cabinet with wide footprint for stability

• Heavy-duty micro adjustable miter gauge with aluminum extruded fence, for good workpiece guidance and fine angle adjustments

• Precision ground high luster cast iron table top with front edge bevel prevents snagging of workpiece while positioning

• Heavy-duty chrome plated handwheels contribute to smooth trunnion/arbor movement

SPECIFICATIONS:

• Wiring Remarks: 230/460V Currently wired for 460V, new control box

• Style (Type): Cabinet

• Prewired Voltage (V.): 230

• Table Height from Floor (In.): 35

• Maximum Diameter of Dado (In.): 12

• Arbor Speed (RPM): 3,450

• Maximum Rip Left of Blade (In.): 14

• Table Size (In.): 26 x 38

• Maximum Width of Dado (In.): 13/16

• Motor Power (HP): 7-1/2

• Blade Diameter (In.): 14

• Table Type: Polished Cast Iron

• Maximum Rip Right of Blade (In.): 50

• Motor Voltage (V.): 230/460

• Dust Port Outside Diameter (In.): 4

• Table Size with Full Extensions (In.): 81 x 38

• Table T-Slot (In.): 3/4 x 3/8

• Motor Phase: 3

• Arbor Diameter (In.): 1

• Recommended Circuit Size (Amps.): 30/15

• Dust Collection Minimum CFM Required (CFM): 350

• Table Size with Extensions (In.): 48 x 38

• Maximum Depth of Cut at 90 Degrees (In.): 5-1/8

• Maximum Depth of Cut at 45 Degrees (In.): 3-1/2

• Table in Front of Saw Blade at Maximum Depth of Cut (In.): 15-1/2

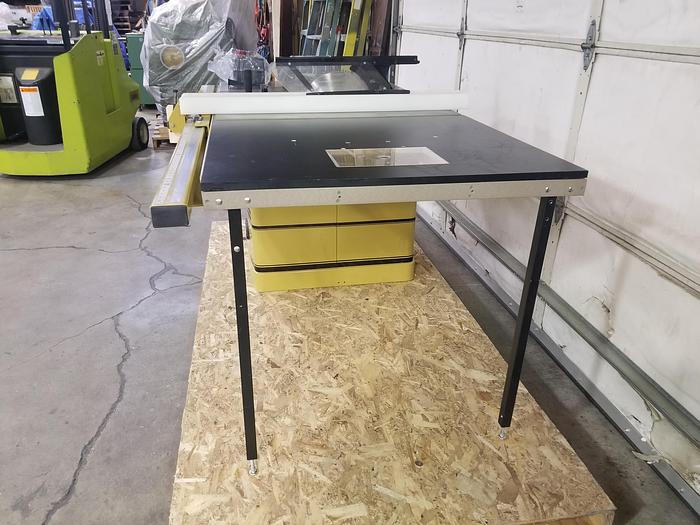

The PM3000 brings heavyweight performance and patented innovations to the 14-inch table saw arena. The riving knife rises and lowers with the blade, substantially reducing kickback risk; and both riving knife and blade guard each have a quick-release, so mounting and removing them is fast and tool-free. A wide-stance trunnion and concave teeth on the trunnion gears promote smooth blade raising/tilting. The Poly-V drive belt system results in quieter, more efficient power transfer with virtually no vibration and less heat build-up. A push-button arbor lock is accessible from above the table top and eliminates the need for dual arbor wrenches. Easy-access controls include jumbo stop switch. Sloped cabinet floor and built-in port for dust extraction. Comes standard with a 33” DuramineTM surfaced extension table and legs.
