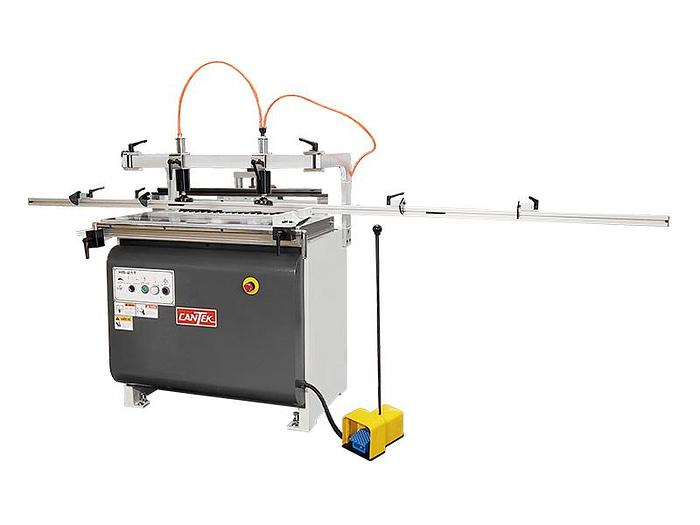

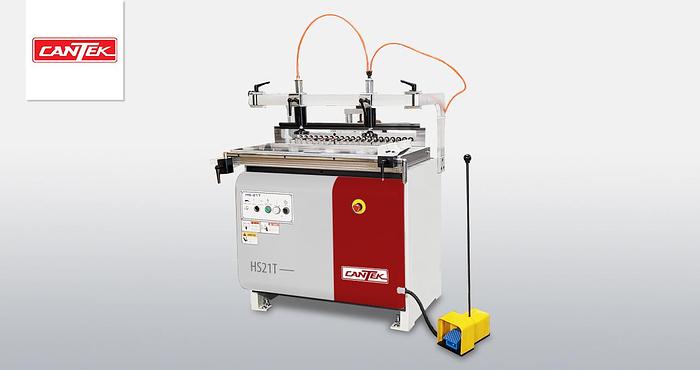

Cantek HS21T 21-Spindle Line Boring Machine

Cantek HS21T 21-Spindle Line Boring Machine

$9,100 (USD)

orCall 920-452-4494

Description

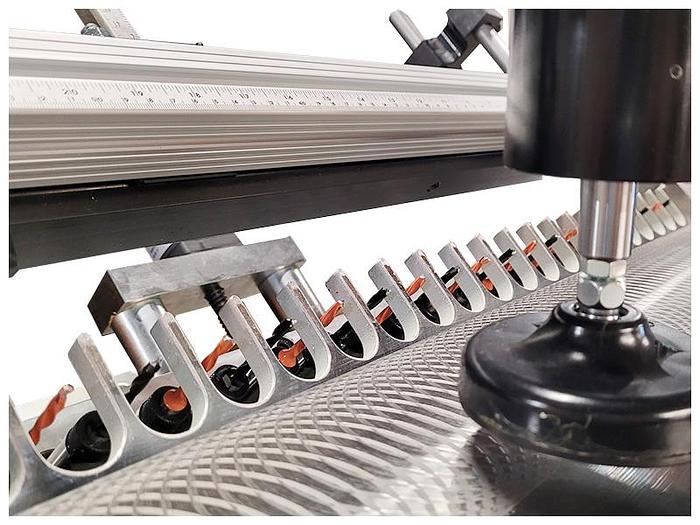

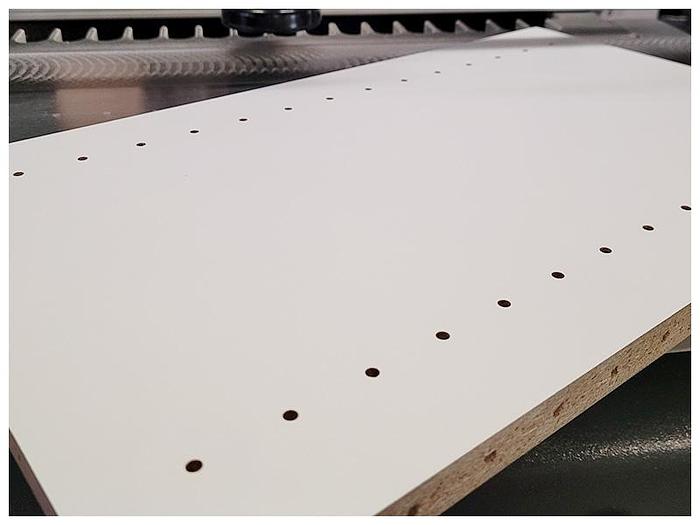

·         Single line boring machine with 21 spindles (11 RH & 10 LH) at 32mm centers

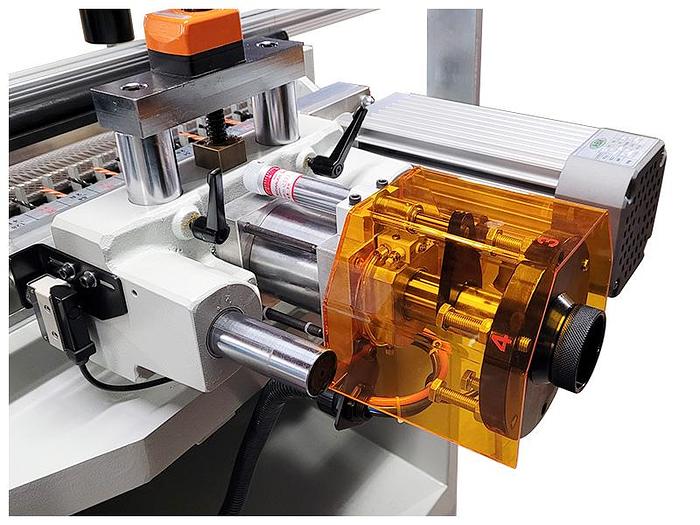

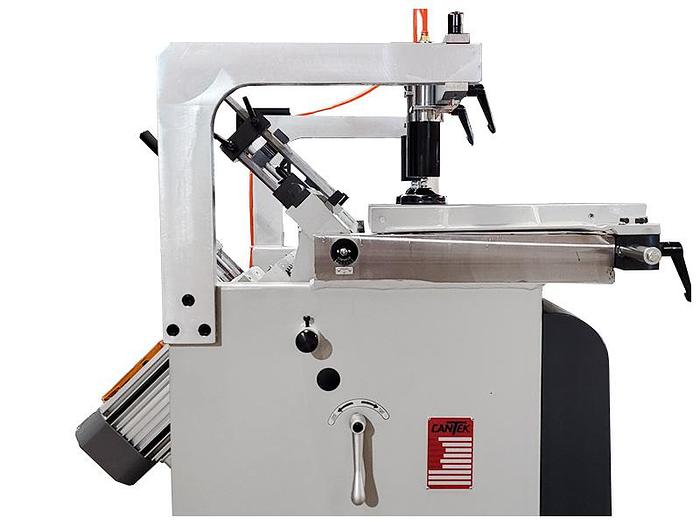

·         Tiltable boring unit can be changed from horizontal to vertical drilling by pneumatic setting

·         Boring unit can be tilted manually for angular drilling

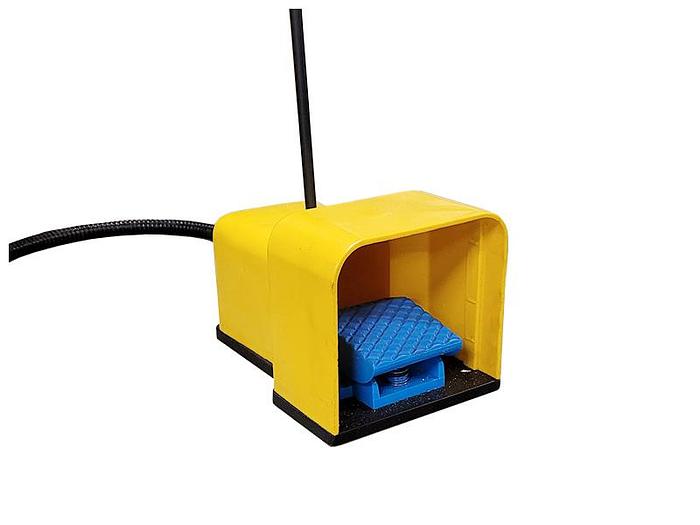

·         Pneumatic drilling cycle by convenient foot pedal

·         Adjustable drill feed speed

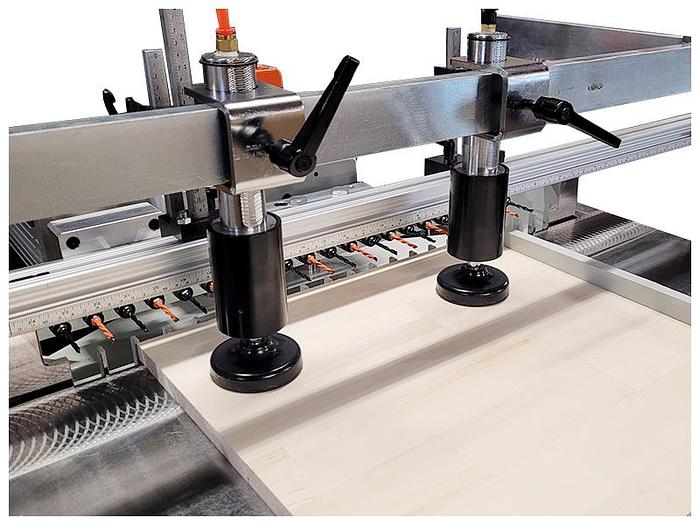

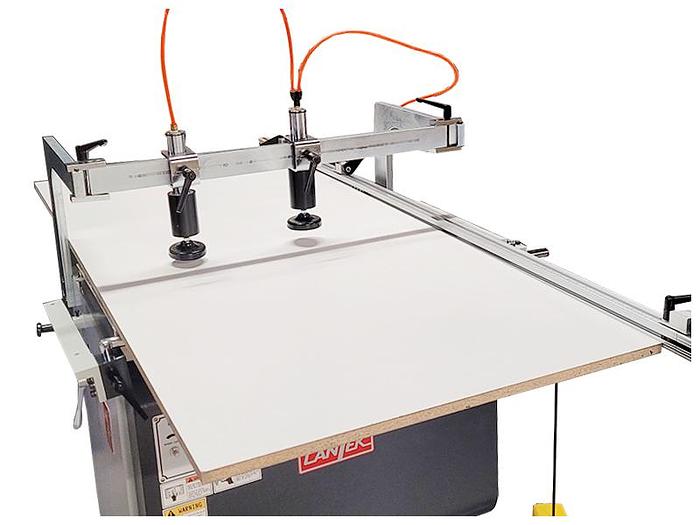

·         Two fences provides convenient positioning of the workpiece

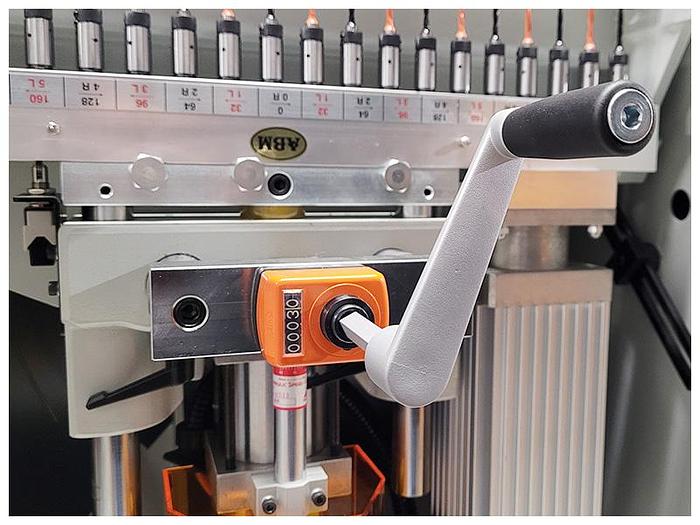

·         Mechanical digital readouts are provided for precise setting of the boring head

·         Quick 6-position boring depth selector for fast changeover

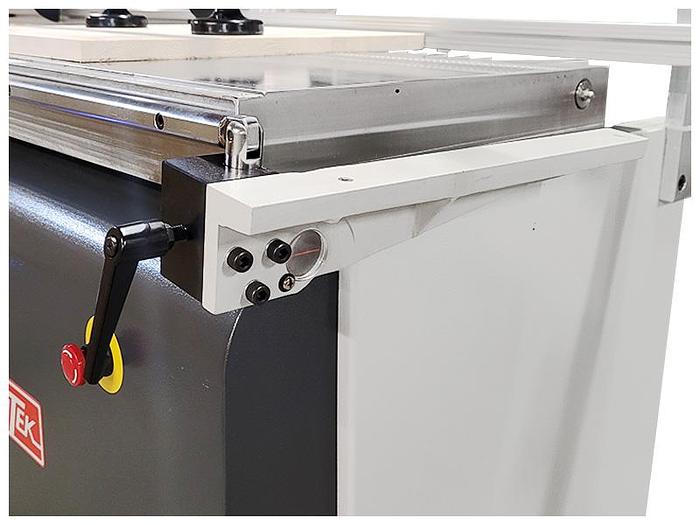

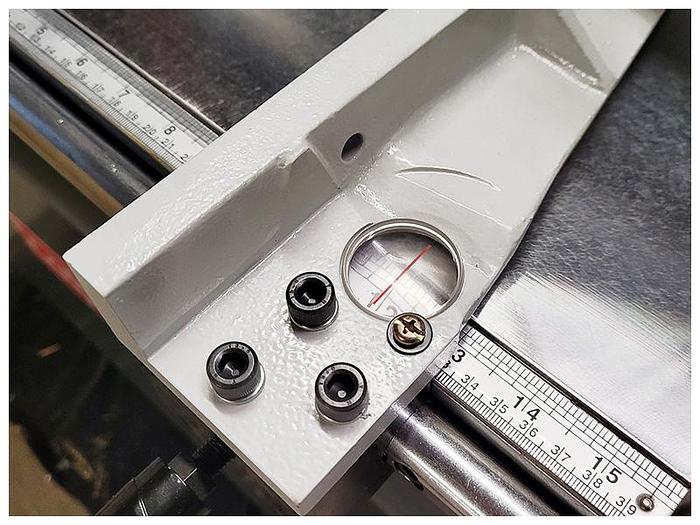

·         Two fold away side fences for end boring or drilling smaller components

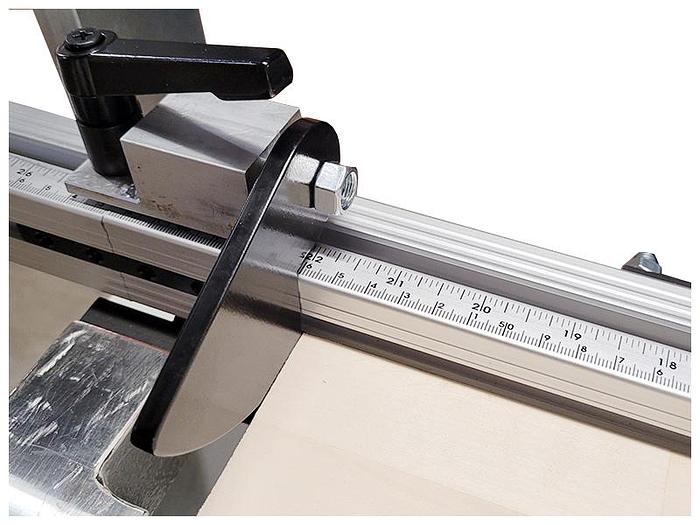

·         3 meter back fence with 4 adjustable stops for line boring or they can be set on the side fence for dowel drilling on the face of the gable

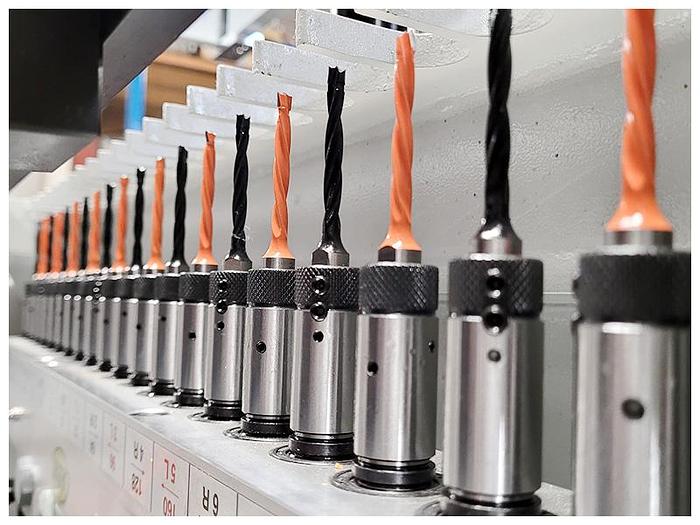

·         21 quick change chuck for fast changeover (additional quick change chucks available upon request)

·         Drill bits not included

Distance between center              32mm

Number of spindles                       21

Max. drilling depth                         3” (75mm)

Boring head adjustment                0°~90°

Table size                                      34.33” x 19.3" (872 x 490mm)

Spindle speed                               2800 RPM

Motor                                             2.5HP

Electrics                                        230/3/60= 9 Full Load Amps

                                                     230/1/60 = 16.9 Full Load Amps

Machine weight                             770 lbs (350kgs)

Shipping weight                            946 lbs (430kgs)

Machine dimensions                     38.11”x32 ¼” x 48” (968x820x1220mm)

Shipping dimensions                     45”x35”x54” (1143x889x1372mm)

Specifications

ManufacturerCantek
ModelHS21T 21-Spindle Line Boring Machine
ConditionNew
