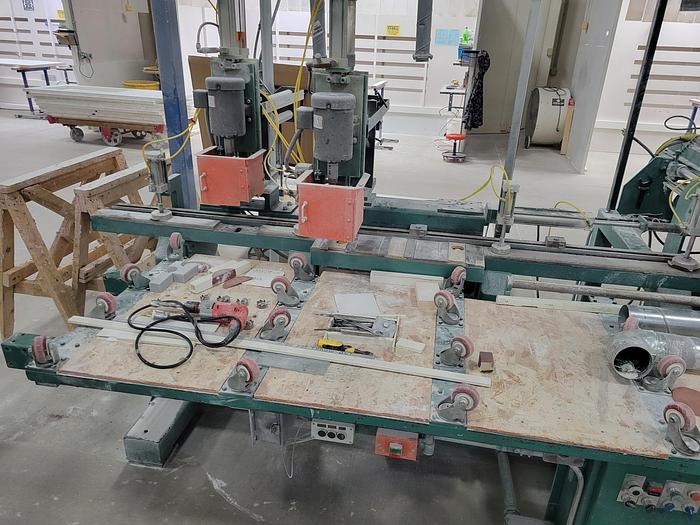

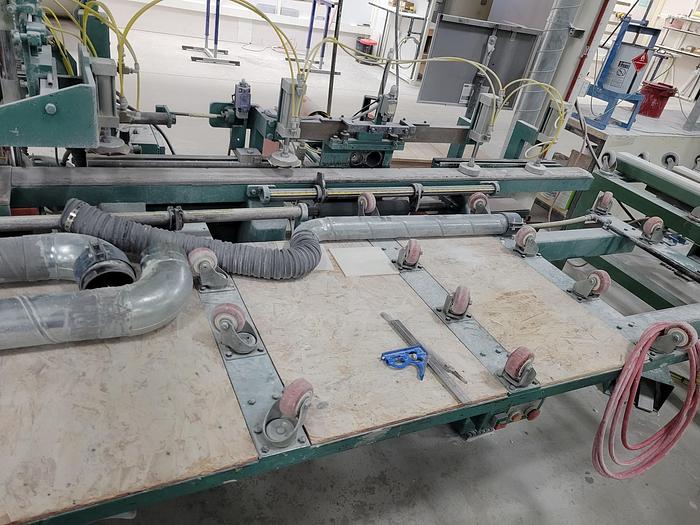

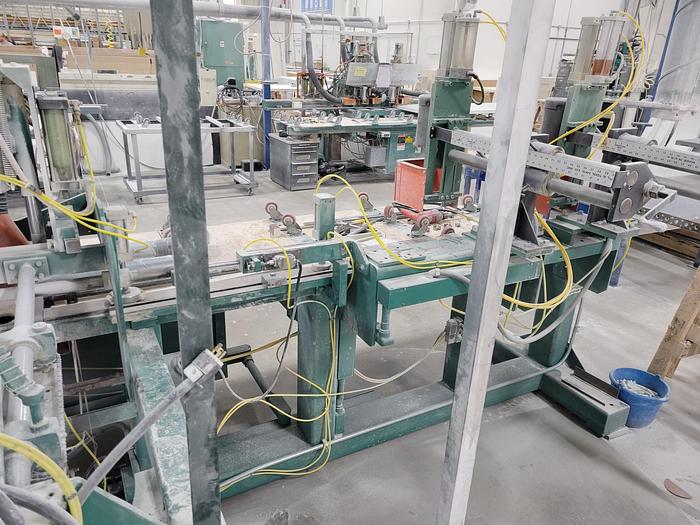

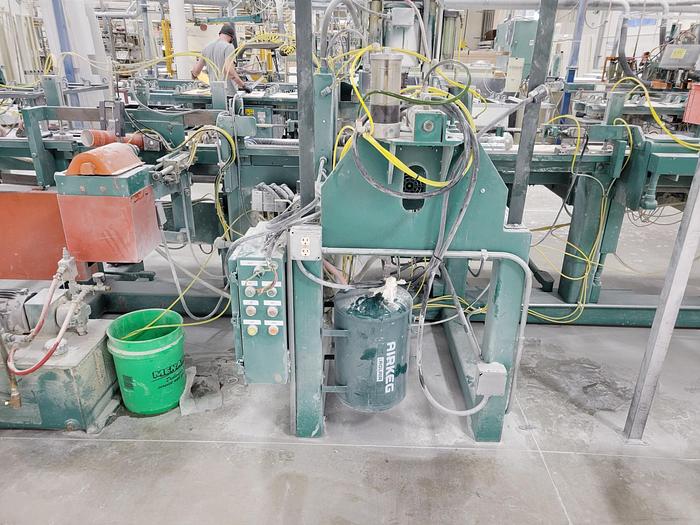

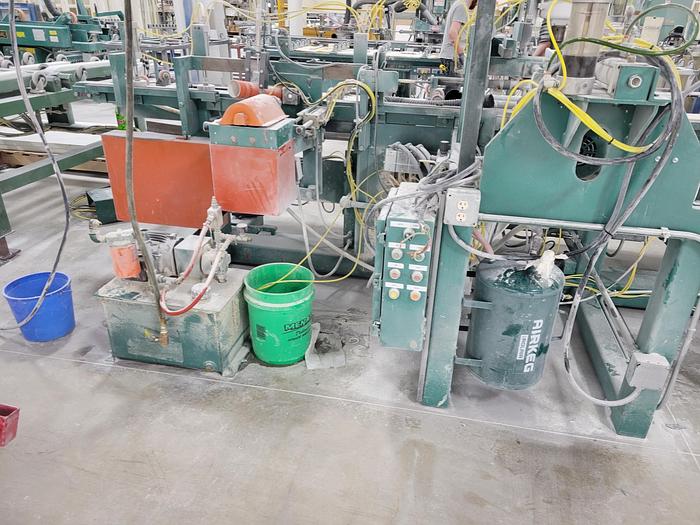

Kval 99B Mortise Machine

As is, where is

Mfg. 1981

Removed from service November 2021

440V

3Ph

5.0CFM

Added (2) drill press heads at the left of the machine

Manual adjustments for location

Hydraulic vertical feed

Individual controls for each drill

Manual horizontal travel 26"

Converted from pneumatic to hydraulic, pump included

Table tilts for bevel edge doors

Machine face drills holes for cylindrical locks, routers the face plate in the edge of the door, and drills the latch bolt hole.

Also capable of mortising the lock body pocket in the edge of the door and the face plate for the mortise lock.

Two drills are capable of drilling the function holes for the mortise lock or peep hole in the center of the door.
