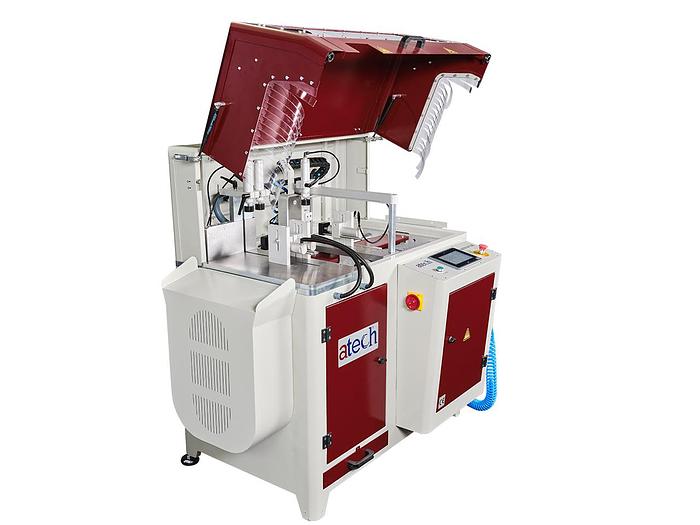

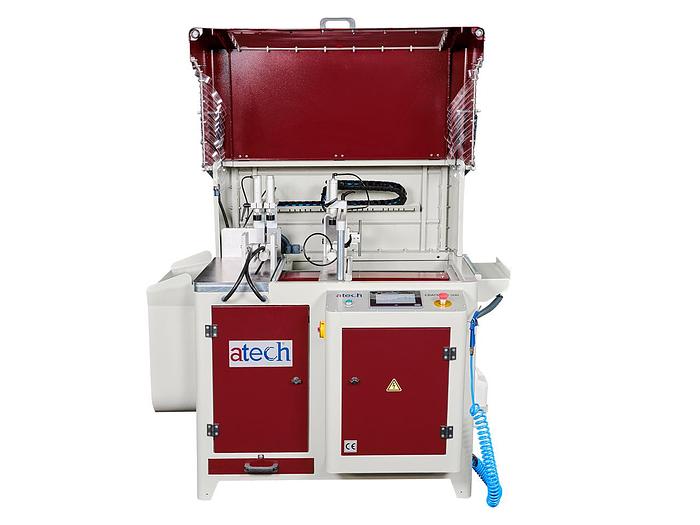

ATech Crater-06 Automatic 20" Straight Upcut Saw

5.5HP

220/440V

3Ph

20" blade

3000RPM

90-120PSI

60" x 47" x 54" dimensions

CRATER-06 AP has been designed for straight cut operations of large size of aluminum and vinyl profiles. It is equipped with a 20” (500 mm) carbide tipped saw blade.

It is ideal for serial and precise slicing operations.

• It is ideal for serial and precise slicing operations.
• Ideal for high-volume slicing of aluminum profiles for window manufacturing and other industrial applications like storefront and curtainwall.
• High precision servo motors and internationally recognized top brand components
• Saving of time thanks to servo controlledprofile infeed speed and saw blade stroke

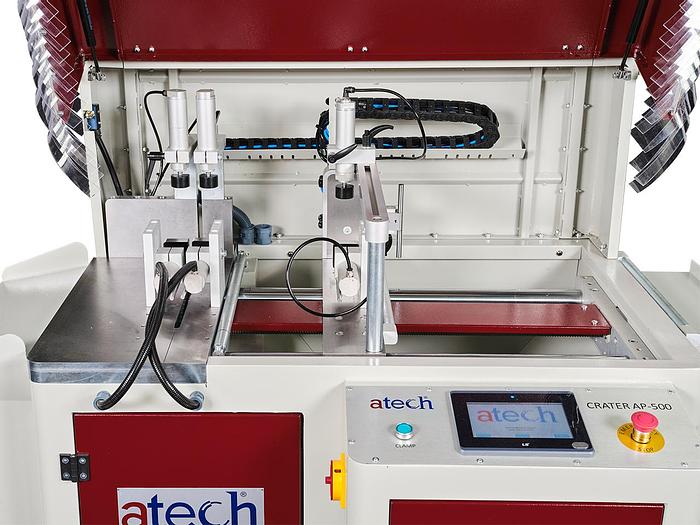

• Horizontal and vertical clamping of the profile during the sawing operation
• Automatic table retraction feature that moves the cut material a small amount after cutting and before the blade comes back down to prevent the re-cut & scratches
• High cutting accuracy by means of robust mechanical structure
• Programmable spray mist lubrication system via control panel
• Large memory capacity for cutting programs
• The machine shuts down automatically after reaching the input cutting quantity

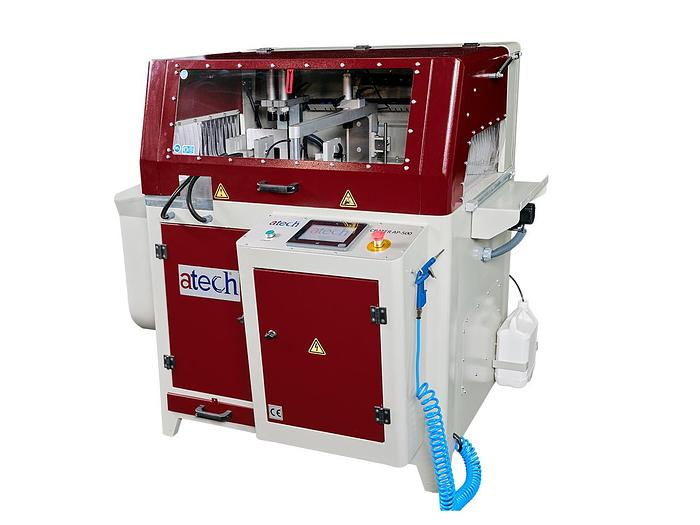

• Operator safety guard equipped with lock on switch
• Feeding distance per cycle ( 5 – 600 mm). No limit for max. dimension.
• Minimum cutting length : 5 mm and unlimited for the maximum cutting length
• and max. clamping capacity: Height 5 mm , 170mm (6.7”) / Depth 5 mm, 270 mm (10.6”)
• Interior LED lighting
• Idle Material Infeed Speed: 10,000 mm/min.

Standard Equipment

• Roller conveyor
• 500 mm (20”) carbide tipped saw blade
• Pneumatic spray mist lubrication system
• Ball screw lubrication system
• Air gun
• 3xhorizontal clamps
• 3xvertical clamps

Optional Equipment

• Additional 500 mm (20”) carbide tipped saw blade

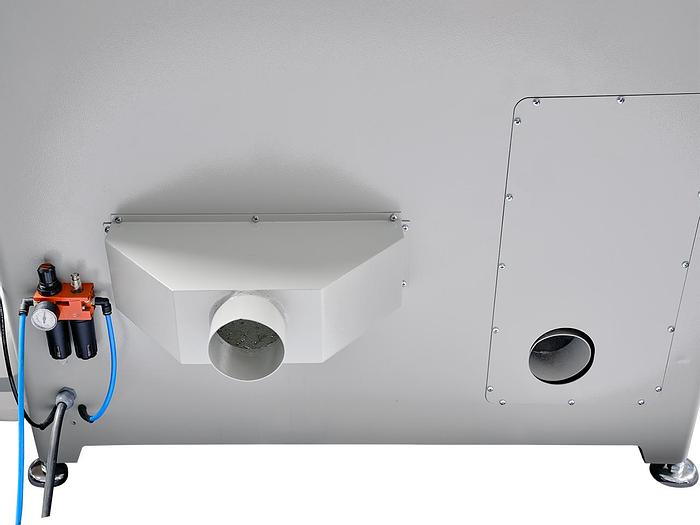

• VCE 1570 chip collector
• Bundle cutting kit
