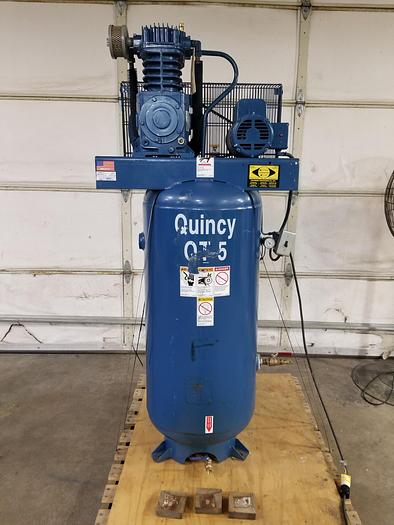

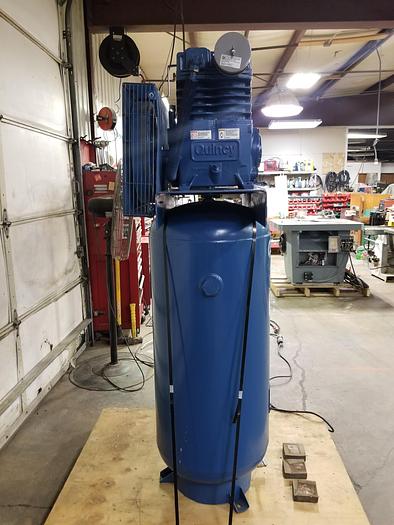

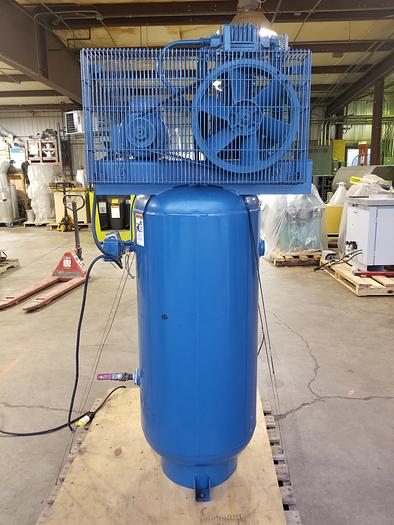

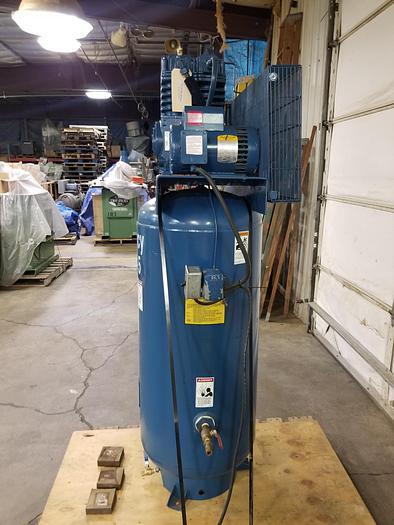

Quincy QT-5 Air Compressor

Cleaned and checked

Mfg. 2000

5HP

230V

1Ph

60 gal. vertical tank

Stage 2

15.4 CFM at 90 PSI

Max. PSI 175

15.6 CFM at 40 PSI

15.2 CFM at max. PSI

145-175 PSI working pressure

Air outlet 1/2" NPT

3450 RPM motor

24 amps

Duty cycle 100%

6.5min tank fill time

Pump life 50,000 + hrs.

Pump material cast iron w/aluminum head

80dB noise level

Oil required

Lubrication system splash

Manual drain

Product weight 475 lb.

29" x 21" x 64" dimensions

Replaced drain, shut off valve, and compressor head pressure relief valve
