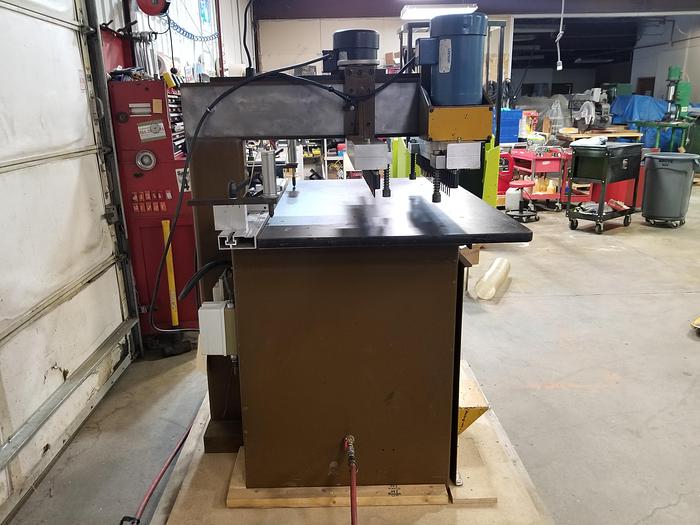

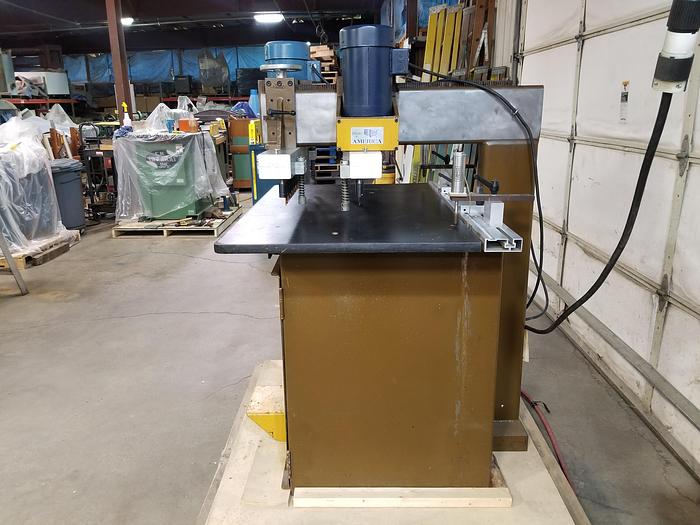

Ritter R-46 Vertical Boring Machine, (2) 23 Drill, 32MM Centers Gear Driven Spindle Rows, 230V, 3PH

Ritter R-46 Vertical Boring Machine, (2) 23 Drill, 32MM Centers Gear Driven Spindle Rows, 230V, 3PH

$3,295 (USD)

orCall 920-452-4494

Description

Cleaned and checked, a few small items replaced or repaired - these pictures were taken after it was cleaned, but not repaired.



Features

  • (2) 3 HP Spindle Drive Motors, TEFC
  • (2) 23-Vertical Gear Driven Spindle Rows
  • 32mm Spindle Centers
  • 10mm Bored Collets
  • (24) Right Hand, (22) Left Hand
  • 4″-24″ Centers Between Rows
  • (3) Quick Set Drill Head Position Stops
  • Rear Drill Row Nesting
  • 48″ Back Fence with (2) Stops
  • (2) Air Index Pins
  • (2) Position Drill Depth Stop Turret
  • 30″ X 48″ Work Table Surface
  • Wired 3-Phase 240 Volt, 60 Hz.
  • Foot Actuated Boring Cycle
  • Used Tooling Included
  • Crated Dimensions: 54″ X 54″ X 76″ and 1,341 lbs.
  • Designed and Manufactured in the USA



Includes:

  • Boring bits 5mm x 57mm
  • Custom sheet metal hoods and 6" flex hose for dust collection included
  • (1) Lot of set-screws for bit holders





Specifications

ManufacturerRitter
ModelR-46 Vertical Boring Machine
ConditionRefurbished
Stock NumberB-1-165(w)
