Cantek Downdraft Table, (2) 1HP motors 115/230V, Single Phase, 84" x 24", 3,900 CFM

Cantek FT2200 | Downdraft Table

Perfect solution for reducing airborne wood dust.

The Cantek FT2200 Downdraft Table is ergonomic, energy efficient, and easy to maintain. Rubber anti-slip rings and removable location stops ensure the material does not move during the sanding process, and the dual filters safely trap sawdust particles. Rear suction boards and side deflector plates are removable for sanding larger surface materials. The FT2200 is perfect for light to medium duty woodworking applications such as sanding and finishing. Click HERE to learn more.

Why Cantek FT2200 Downdraft Table?

·         84” x 24” table surface

·         Perfect solution for reducing airborne wood dust and eliminating time consuming cleanups

·         Two powerful 1HP motors each generating 1950 CFM

·         Side deflector plates can be latched in place or folded down for sanding larger surface materials

·         Dust is collected in two drawers that can be easily removed at the front of the machine

·         Designed for industrial duty applications

Key Advantages

·         For maintaining a clean and dust-free shop environment

·         Virtually eliminating wood dust from the air

·         Two operators can stand side-by-side while they sand workpieces on the worktable.

·         Heavy duty cabinet design and sturdy components provide a strong, durable work surface and investment.

·         Draws the contaminants down and away from the worker’s breathing zone

·         Special deflectors create an even airflow across the table surface

·         Simple to use; plug and play design

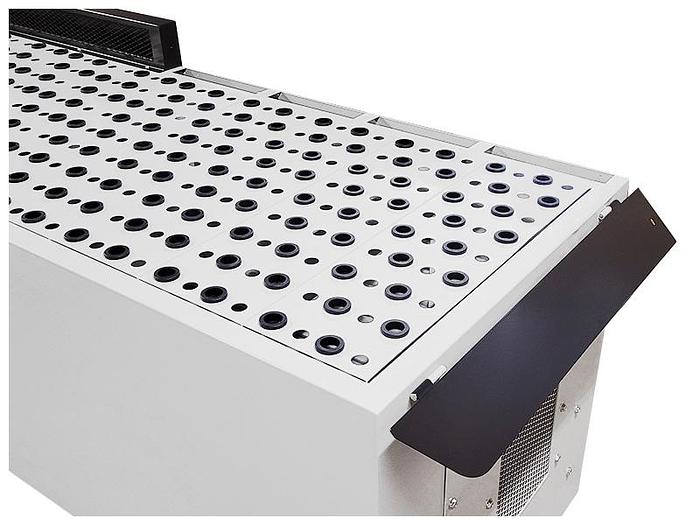

Removable rear suction boards and side deflectors

Comes equipped with rear suction boards to aid in collecting of airborne particles. The suction boards and side deflector plates can be removed when sanding larger surface materials.

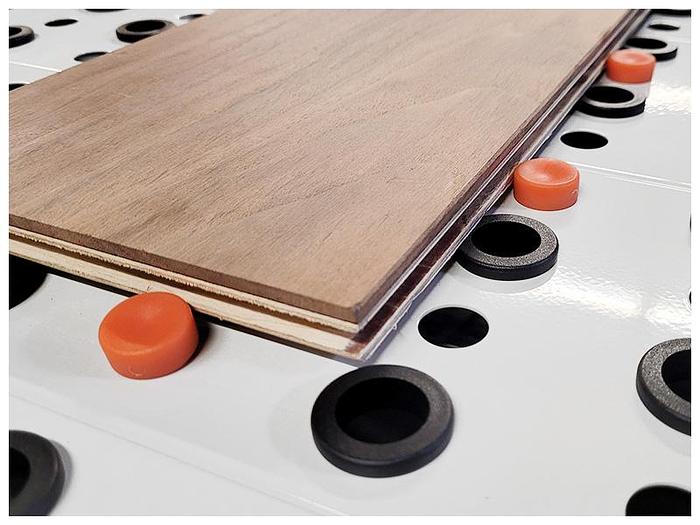

Material Location Stops

Equipped with removable stops which can be used to reference parts when sanding to ensure the piece does not move. Additionally, the material sits on rubber anti-slip rings.

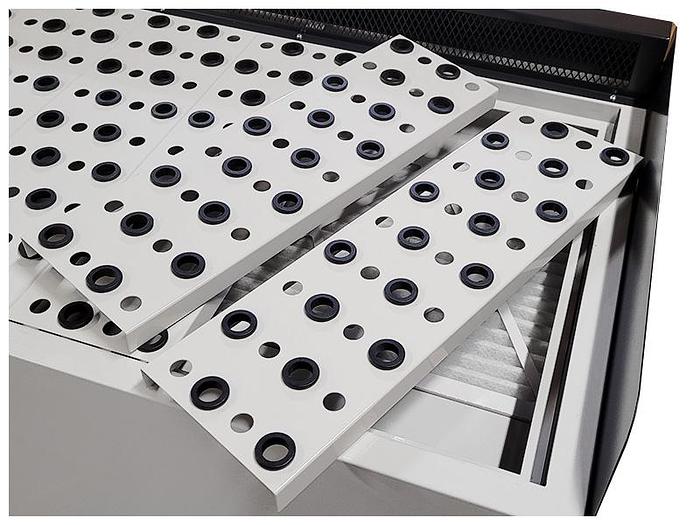

Removable Suction Boards

The table suction plates can be easily removed to allow for full access to clean and change the air filters.

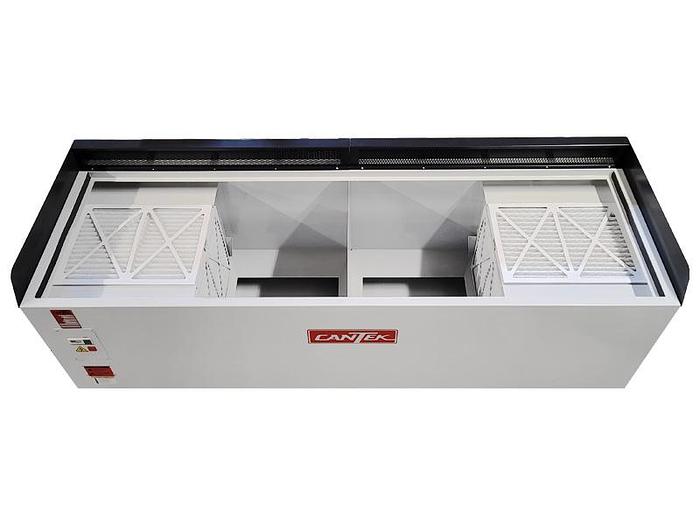

Set of 4 filters

Outfitted with (4) air filters which can be easily removed and cleaned or replaced.

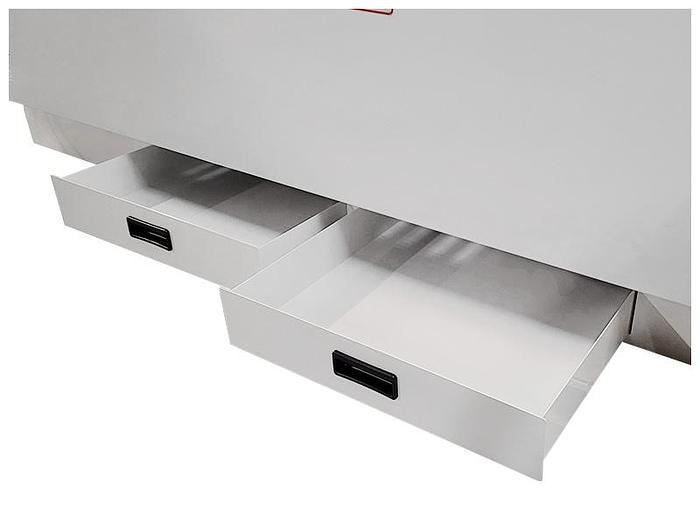

Drawers

Comes with (2) removable drawers which collect dust.  The drawer can be quickly removed and dumped as required.

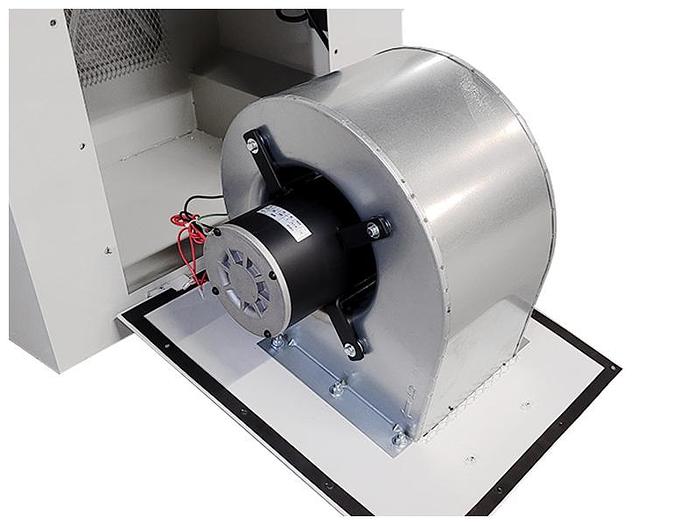

Motors

Comes with (2) 1HP motors each generating 1950 CFM.

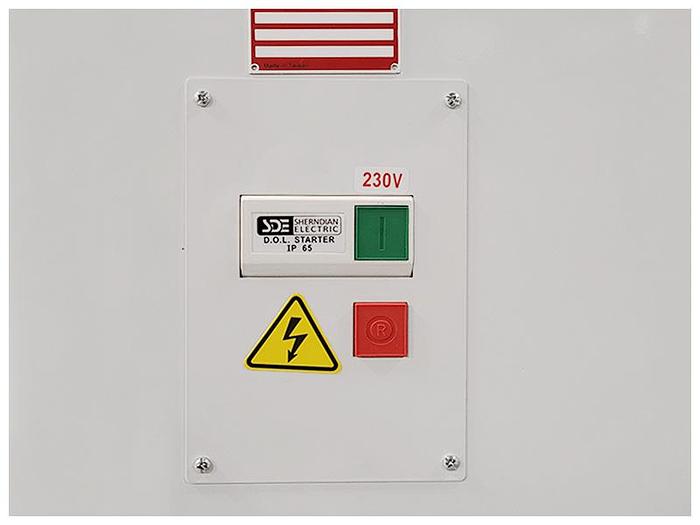

Controls

Equipped with magnetic switch

Cantek FT2200 Downdraft Table | Specifications

DESCRIPTION

SPECIFICATION

Main motor

2 x 1 HP

Air flow CFM

1950 CFM x 2

Table Load Capacity

660 lbs

Cartridges

2

Filter

5 micron / 4pcs 16” x 2” x 1”

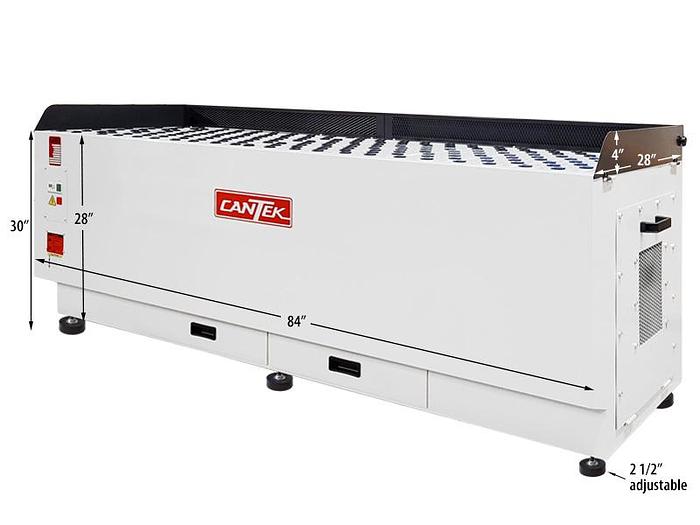

Table size

84” x 24”

Sound

82 dB

Table height from floor

29 ½ to 32”

Machine dimensions

84” x 28 ½” x 36”

Machine weight

375 lbs

Shipping dimensions

86" x 30" x 36"

Shipping weight

400 lbs.

Electrical requirements

          230/1/60 = 8 amps

115/1/60 = 15 amps

Cantek FT2200 Downdraft Table

$5,200.00
