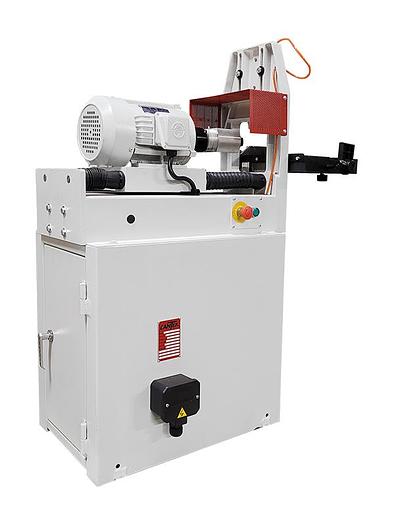

Cantek BM301 2 Spindle Horizontal Boring Machine with Adjustable Centers

Cantek BM301 2 Spindle Horizontal Boring Machine with Adjustable Centers

$5,600 (USD)

orCall 920-452-4494


CANTEK | BM301 2 Spindle Horizontal Boring Machine with Adjustable Centers

Effortless horizontal boring.

Whether you are drilling horizontal holes for door or furniture components the Cantek BM301 Horizontal Boring Machine is a great choice. With its two spindle drilling head with adjustable drill centers from 0.71”~3.93” centers (18~100mm), you can conveniently drill dowel hoes with ease. The drilling assembly and table are made from cast iron for maximum rigidity and durability. The unit is mounted to a fabricated steel base for optimal functionality. The drilling cycle is controlled by a pneumatic cylinder and is actuated by a foot pedal for operator convenience. The drilling speed is adjustable for optimal cycle speeds. The drilling head is driven by a powerful 2HP direct drive motor. A pneumatic clamp ensures the work piece is held firmly during drilling operations.

Why Cantek BM301 Horizontal Boring Machine?

  • Automatic pneumatic drilling cycle actuated by convenient foot pedal
  • Pneumatic clamp holds material firmly in place during drilling cycle
  • Adjustable drilling bit center to center spacing from: 71”~3.93” centers (18~100mm)
  • Industrial cast iron drilling assembly & table, with fabricated steel base

Key Advantages

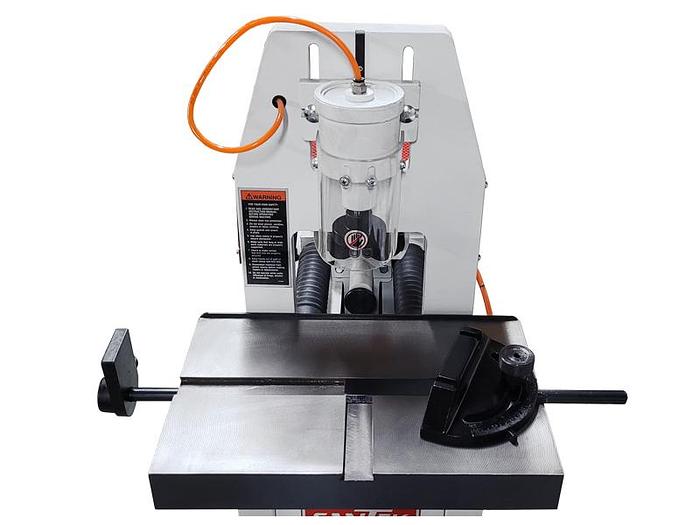

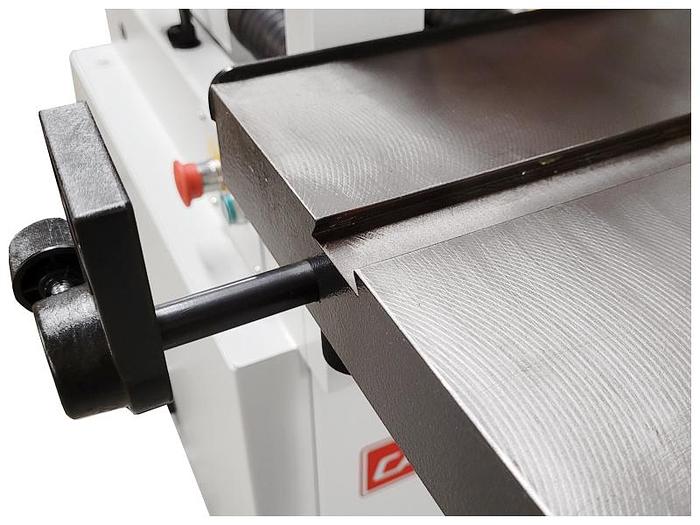

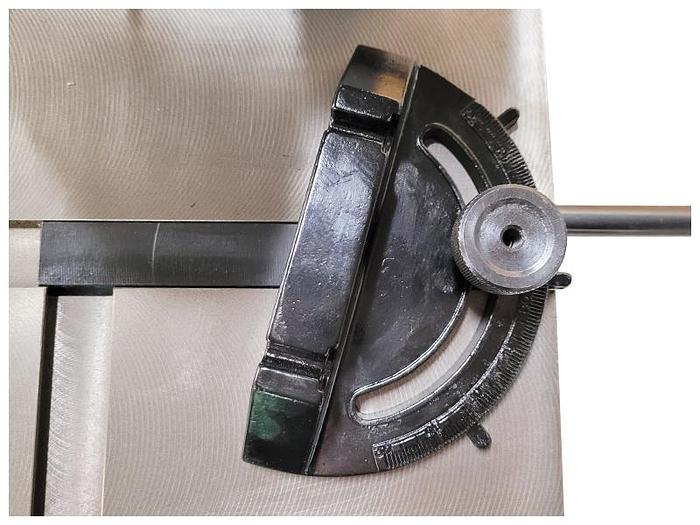

  • Cast iron worktable with miter gauge for angled holes
  • Worktable is conveniently adjusted up & down for varying workpiece thicknesses by an adjustment knob and threaded rod
  • Adjustable drilling depth with maximum stroke of 4” (100mm)
  • Drilling speed can be conveniently adjusted by a speed adjustment knob.

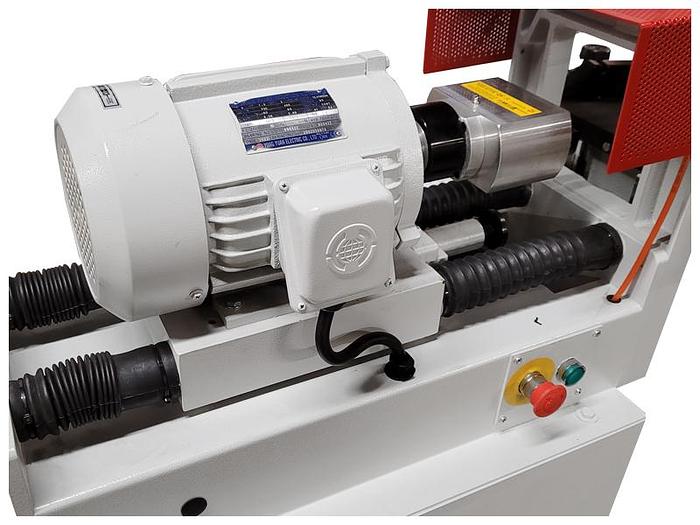

  • Powerful 2HP direct drive motor for effortless drilling


  • Table size: 400 x 250mm
  • Motor: 2HP (230/3/60)
  • Spindle speed: 3450 RPM
  • Thread: M8 x 1.25P or M10 x 1.5P
  • Maxiumum stroke: 100mm
  • Machine weight: 120 kgs.
  • Voltage: 230/3/60
