Weeke BP-80 Optimat Machining Center

Weeke BP-80 Optimat Machining Center

$12,500 (USD)

orCall 920-452-4494

Description

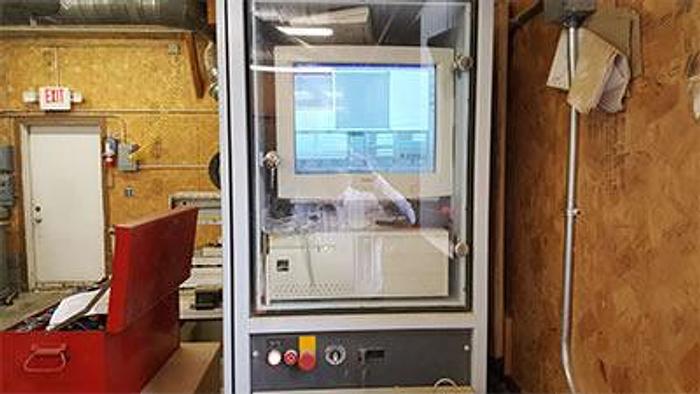

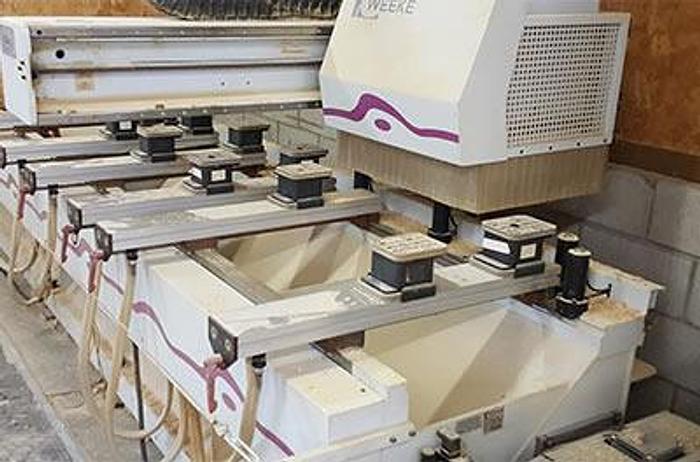

As taken from service Good working condition, low hours Price includes loading on a truck Spindle can be rebuilt for $4,500 2750mm x 900mm x 50mm working table 3030mm x 950mm x 100mm max panel size routing 11 individually selectable vertical boring spindles 4 individually selectable horizontal boring spindles X-direction 2 individually selectable horitzontal boring spindles Y-direction 1 grooving saw in X-direction (d=100mm) 2 routing aggregrates 5kW with quick release hydro claming System ETP25 6 work piece supports with tubeless vacuum clamping system 12 vacuum pods 2 narrow vacuum pods 8 fixed workpiece back stops 2 fixed workpiece side stops Scales and indicators on workpiece supports and vacuum cups 1 maintenance free vacuum pump 40 m3/h 1 vacuum connection for templates Weeke PC (Pentium)

Specifications

ManufacturerWeeke
ModelBP-80 Optimat
Year1998
ConditionUsed
Stock NumberB-2-030(w)
