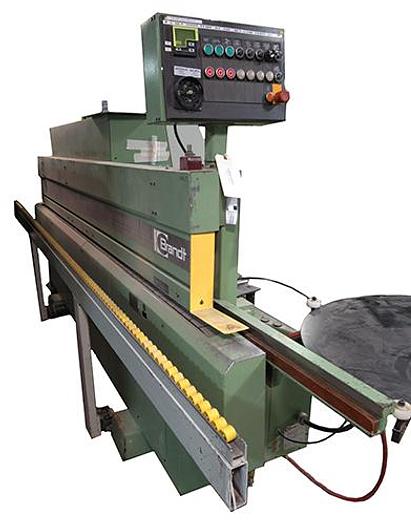

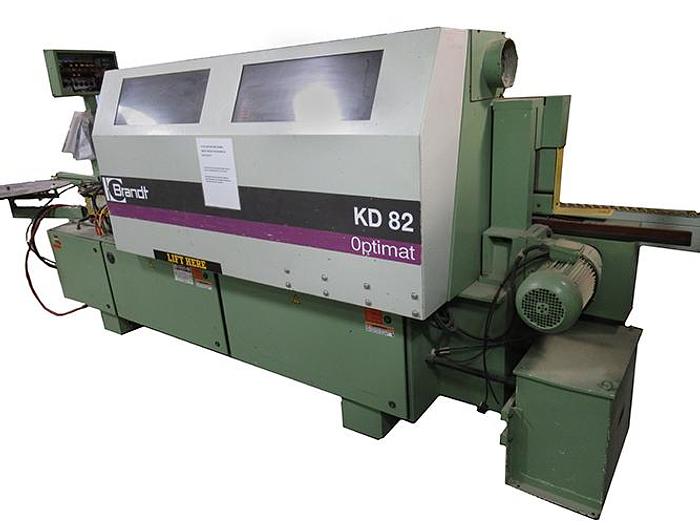

Brandt KD82 Optimat Edgebander

Brandt KD82 Optimat Edgebander
$3,000 (USD)
orCall 920-452-4494
Description
As taken from service
230/460V
3 PH
Edgeband thickness: 0.016" - 1/2"
Edgeband height 1/2" - 2-3/8"
Coil cutoff max. .8 x 60 mm, 3.0 x 45 mm (PVC)
Panel length min: 6-3/8"
Panel width min: 2-1/2"
Panel thickness: 3/8" - 2-3/16"
Feed speed 42 FPM
End trim unit - two motors 1/2HP each, cutting speed 14,400 RPM
Fine trimming unit: 3/4HP, cutting speed 14,400 PRM, tilting range 0° - 25°
Machine dimensions: 14'8" x 65" x 78-3/4"
Working height: 33.5"
Machine net weight: 3,740 lbs.
Dust extraction: 6.3", 1600 CFM
Compressed air connection: 0.18 CFM per panel, 7 bar (100PSI)
Automatic height adjustment of all work stations when upper pressure beam is adjusted to desired height

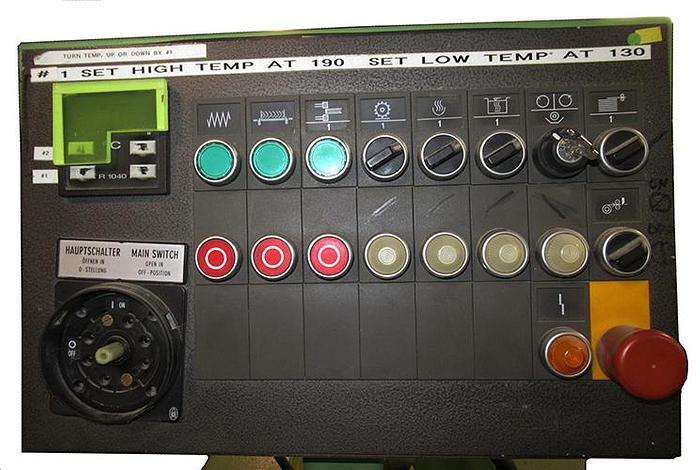

Control panel located at machine feed for operator convenience
800mm diameter coil table
Automatic magazine for strip and coil feeding
Extended infeed fence for easier feed of long workpieces

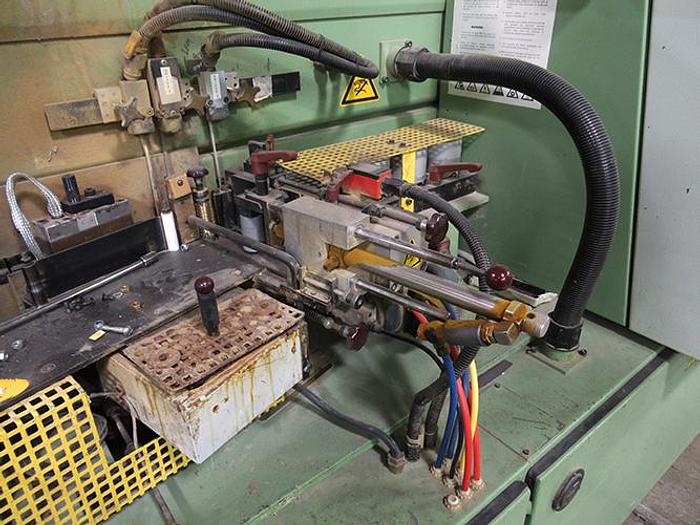

Hotmelt granulate glue application system with approximately 12-minute heat-up time
Reversible rotation of glue application roller, and retractable glue roller
Infrared heating unit positioned between glue roller and pressure zone contributes to improved edge quality
Strengthened precutter for cutting 3mm PVC from the coil
First pressure roller driven and three idle pressure rollers. Pressure zone equipped with digital counter for consistent zone control
Double motor end trimming unit with straight and chamfer trim capability
Top and bottom fine trimming unit with digital "Quickset" system
Padded sound enclosure with centralized dust extraction outlet
Scraping unit with top, bottom, and side tracing device for machining or rounding of pretrimmed PVC edges, 3mm radius reversible profile knives included
Buffing unit with two motors, inclinable and adjustable vertically and horizontally
Electronic frequency changer for all trimming motors, which also incorporates electronic motor brakes
Electrical components according to UL/CSA listings
Manual included
Specifications
Manufacturer | Brandt |
Model | KD82 |
Condition | Used |
Serial Number | 0-261-01-5206 |
Stock Number | I-1-247(w) |
