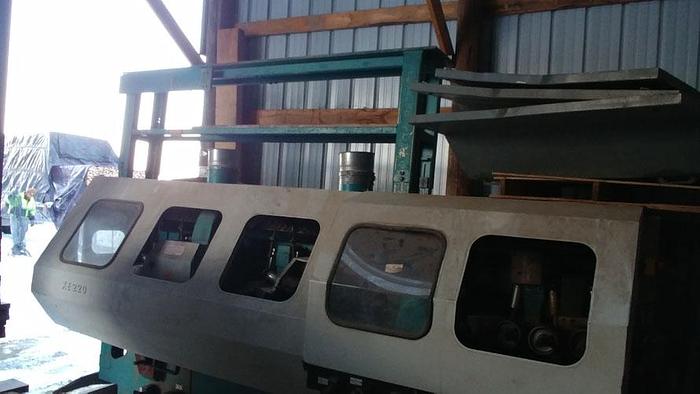

Wadkin XE 220 Planer Moulder

$7,500 (USD)

orCall 920-452-4494

Description

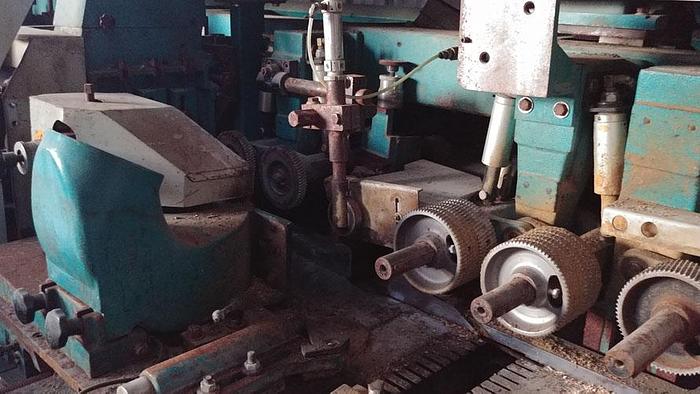

As is 440V 3PH 60Hz 6-head (short infeed table) - Head sequence: Bottom, fence side, nearside, top, second top and second bottom Cardan feed drive w/air loaded feed rolls, 10 HP feed drive motor, variable feed speed from 23 - 120 FPM Head sequence: Bottom 10 HP, right 10 HP, left 10 HP, top 20 HP, top 20 HP and bottom 20 HP motor Free standing pedestal for machine controls separate from machine Four roll heavy-duty push feed works with variable feed speeds 10 - 60 m/min (33 - 198 fpm) and through feed works Power vertical adjustment to top heads and pressures 6-Head (B-R-L-T-T-B), working cap. 8-5/8" x 5" Spindle diameter 1-13/16" Cutterhead speed 6,000 RPM Outboard bearings on all horizontal spindles 1,4,5 and 6 Mechanical digital readouts on all head adjustments Powered bed rolls, motorized overhead feed beam Infeed table 2M (6'6") with manual table lubrication pump

Specifications

ManufacturerWadkin
ModelXE
ConditionUsed
Stock NumberG-2-173
