EZ Door Raised Panel Door Machine, 5 Piece Door in Minutes, 10HP, 3PH, 1 1/4" Arbor, 62" Travel Length of Table

EZ Door Raised Panel Door Machine, 5 Piece Door in Minutes, 10HP, 3PH, 1 1/4" Arbor, 62" Travel Length of Table

$32,500 (USD)

Available quantity:1

orCall 920-452-4494

Description

EZ Door Raised Panel Door Machine, 5 Piece Door in Minutes, 10HP, 3PH, 1 1/4" Arbor, 62" Travel Length of Table

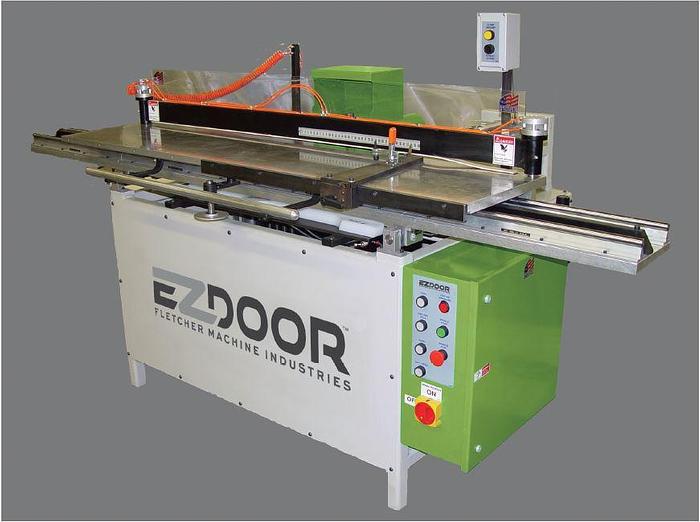

This freestanding machine can produce an entire 5-piece door in a matter of minutes. Easy to operate, the E-Z Door has a 4-position configuration to produce raised panels, cope/stile profiles and mullions for glass doors. Cathedral doors are produced by using a quick change template system.


·      Single button selection for rail/stile, cope, panel and door edge

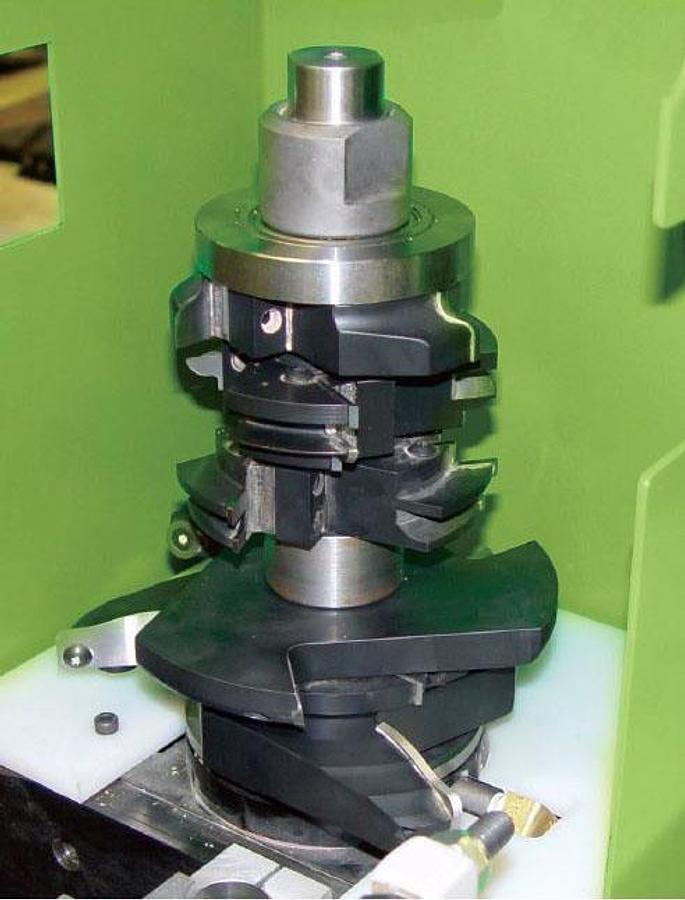

·      Simple and efficient 4-position spindle design

·      All key functions PLC controlled

·      Rigid lubricated spindle assembly

·      Re-circulating ball bearing slides

·      10 HP 230/460V/60HZ spindle motor

·      Pneumatic clamping fence

·      62 inch travel length standard with circulating ball bearing slides, cut rails to 59” and panels to 55”

·      Includes 4 standard cutters (shapes to be decided), others optional

·      Standard arch template set included (7/8” to 2” arches)

·      Cut mullions for glass doors

·      1 ¼” Arbor

·      CFM requirement is 392


Pricing is for the bare machine without any tooling / cutters or template.

Specifications

ManufacturerFletcher
ModelEZDoor
ConditionNew
Stock NumberEZDOOR
