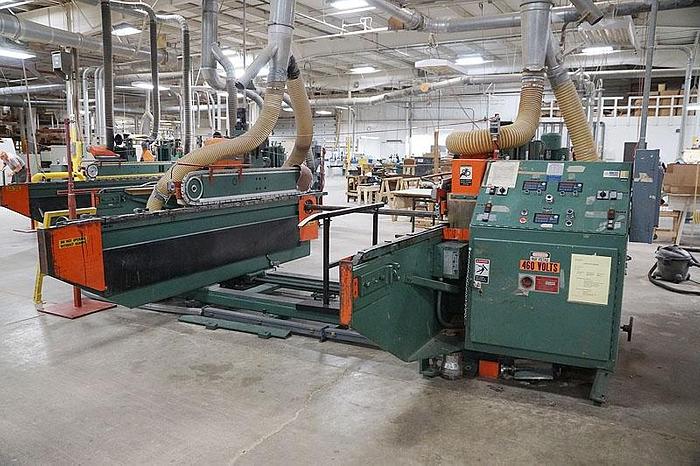

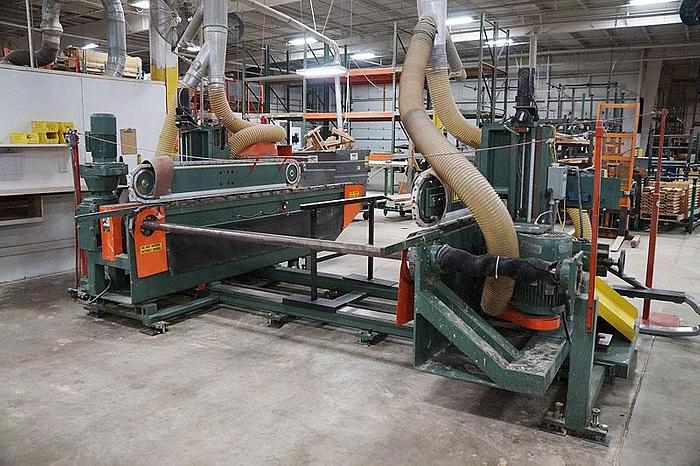

1990 Mereen Johnson 820

As is

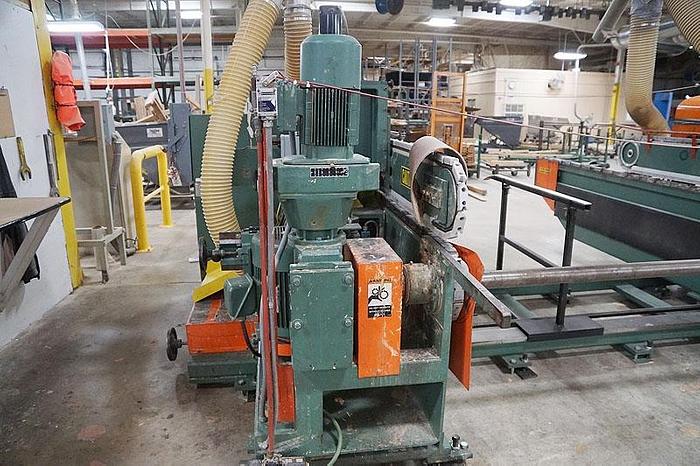

Station #1: (right & left hand) adjustable height tilting trim saw heads 7.5HP 230/460V 3PH

Station #2: (right & left Hand) high speed cope heads 15HP 230/460V 3PH 460V 3Ph 60Hz 100 Amp, 120° tilt

Weight: 13,000 lbs.

Max. working width: 98"

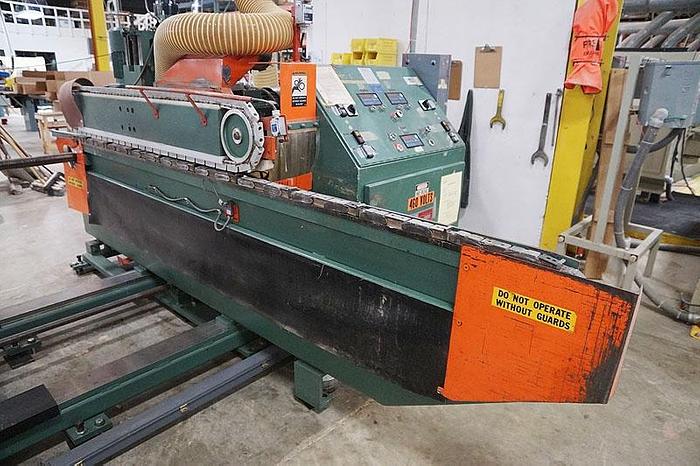

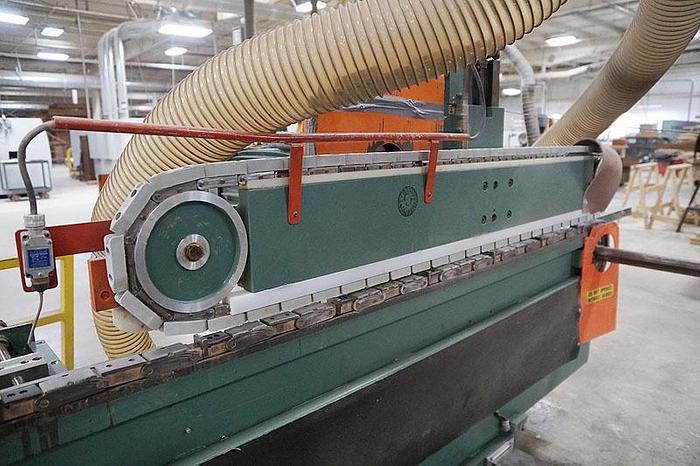

1-1/2" wide rubber padded table feed chains

Chain dogs mounted every 12-5/8" 39" table passline height 48" infeed load space

Rubber padded adjustable top pressure beams

Left hand infeed adjustable fence

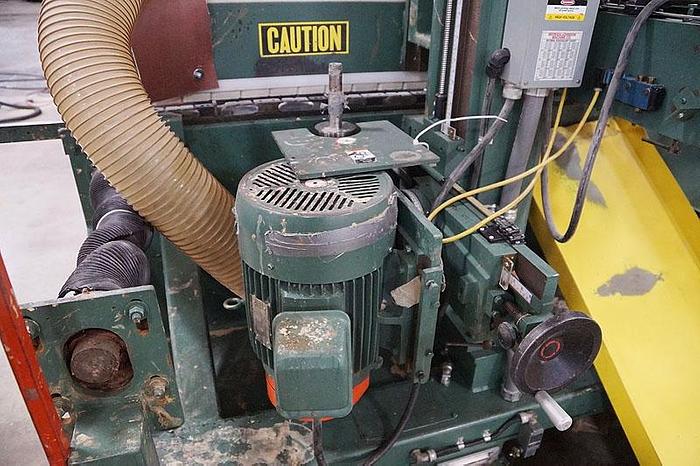

Belt drive spindle arbors 1-3/4" dia. spindles with 5" under the nut capacity 3HP, 230/460V, 3PH

Feedworks drive motor

Variable speed drive system

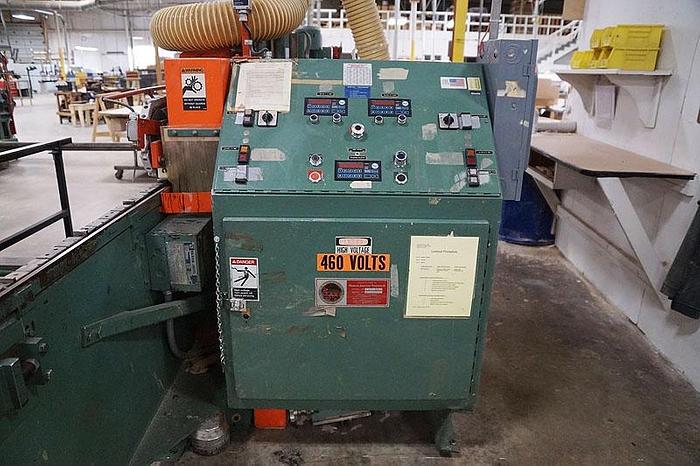

Front-mounted push button operator machine controls

Center stock support table.

Footprint: 17' x 20'

Max. material thickness: 4"
