TigerTec TR510S Stone Working Center

TigerTec TR510S Stone Working Center

Contact us for price

orCall 920-452-4494

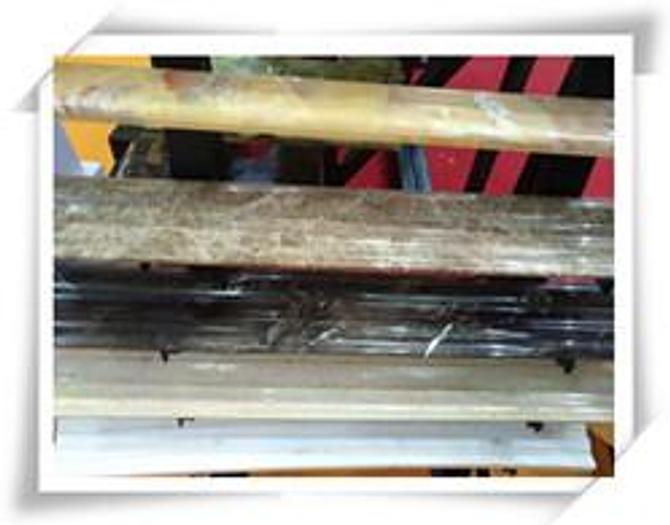

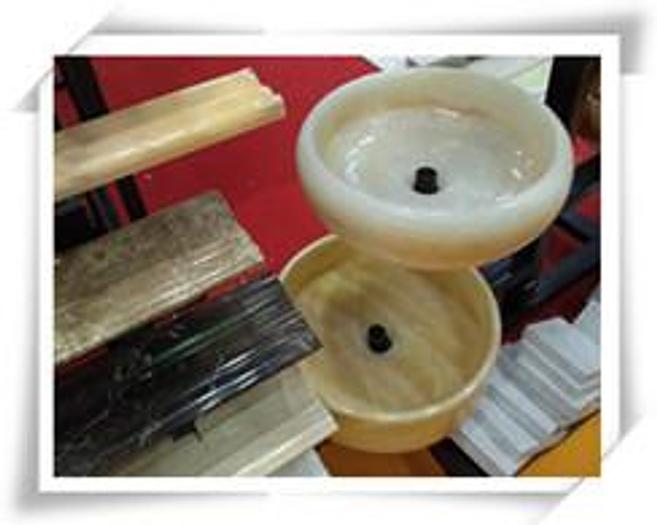

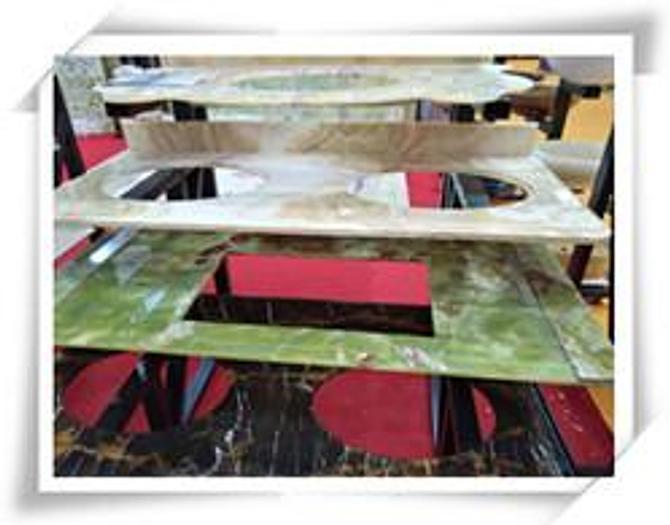

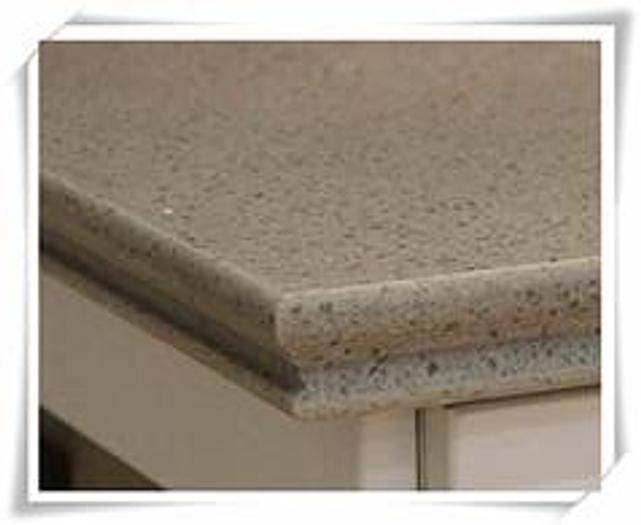

TR510 stone machine center is designed for machining the stone tables in kitchen and bathroom, shaping edge, cutting, polishing and engraving. Whether marble, granite or quartz, all can do the machining. Machine Parts: TR-510S X,Y axis Working Area 1500x3000 Z axis Working Area 300mm Spindle 7.5Kw milling spindle, 8000rpm, 18pcs tool holders, BT40 Cooling system With water collecting system Position system Laser system for edge reading system Control System Windows control system Inverter Delta inverter Driving System Japanese YASKAWA servo driving system, 750w for 3 axis Working Table Vacuum table, with vacuum pump Transmission Terms for X,Y Rack and pinion, square linear, ball screw and linear Transmission Terms for Z Ball screw and square linear Linear Hiwin linear rail, Y 35MM, X Z 30MM Rack and Pinion Germany WMH, helical rack and pinion Ball Screw Taiwan TBI ball screw Machine accuracy 0.03mm Max. Cutting Speed 30000mm/min Max. Travel speed 80000mm/min Command Code G code Working Voltage 380V, 3ph, 50/60Hz


Stock NumberTR510S
