Castaly BS-1212HR 12" X 12" Horizontal Band Resaw

Castaly BS-1212HR 12" X 12" Horizontal Band Resaw

$29,990 (USD)

Available quantity:1

orCall 920-452-4494

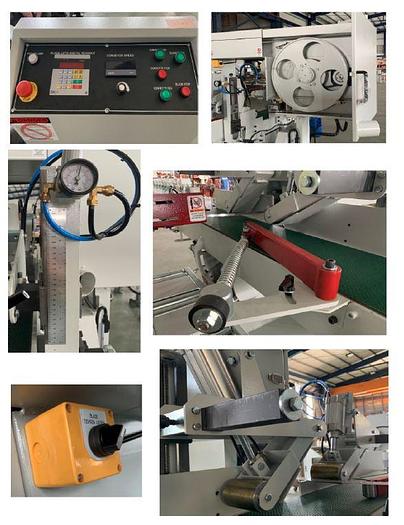

Machine was built with rugged construction throughout for maximum stability, high precision cutting and minimum trouble.

It is equipped with a digital controller for convenient and accurate thickness setting.

The feed conveyor has a tilting design allowing for maximum 30-degree bevel cuts.

When the feed conveyor is tilted for bevel cutting, a side support is applied for safe and stable cutting operations.

Variable feed speed is controlled by a frequency inverter for best cutting requested.

The infeed and outfeed pressure rollers are easily raised or lowered by a gear rack.

The infeed and outfeed pressure rollers are spring loaded and easily adjusted for the horizontal or vertical direction to suit various workpiece thicknesses.

Blade tension is adjusted by means of a hand wheel.

A tension scale allows the operator to correctly adjust the tension for different blade thicknesses.

The cast iron saw blade wheel are dynamically balanced for smooth running.

Blade guard is easily lifted up, supported by two nitrogen gas cylinders for convenient blade change.

The roller type return conveyor equipped at left side of the machine provides easy repetitive cutting.

Specifications BS-1212HR

Max. Working Width 12"

Max. Working Height (under Rollers) 12"

Distance between Blade to Conveyor 1/8" to 10-5/8"

Saw Wheel Diameter 28" x 2

Saw Blade Length (Width) 196" (1" ~ 2")

Saw Blade Speed 6000 FPM

Feed Conveyor Size (W x L) 10-5/8" x 165-1/2"

Feed Conveyor Tilt Degree 0 ~ 30

Feed Speed (Variable) 20 ~ 60 FPM

Main Motor 20 HP

Saw Blade Lift Motor 1/2 HP

Feed Conveyor Motor 1 HP

Dust Hood 4" x 2

Machine Size 88" x 85" x 74"

N.W. 2900 LBS


Stock NumberBS-1212HR
