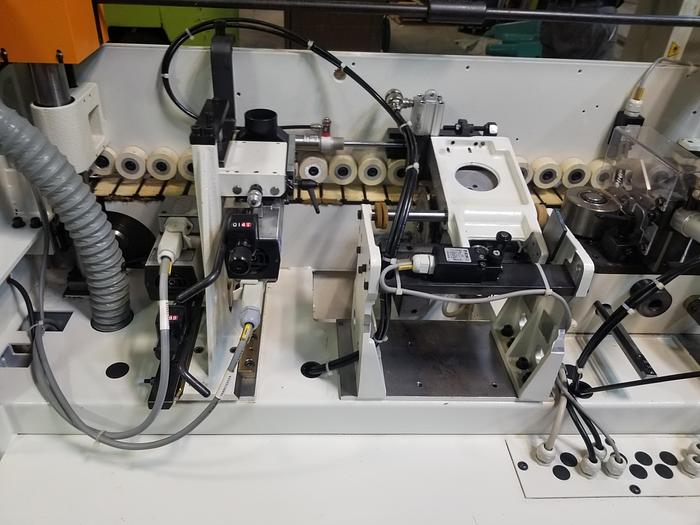

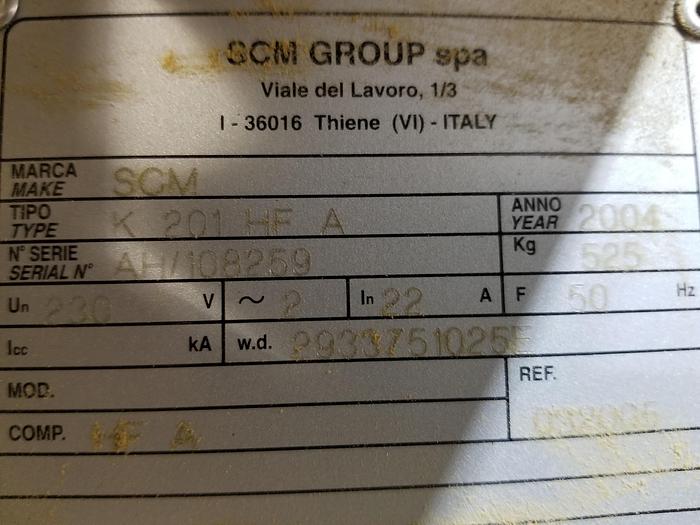

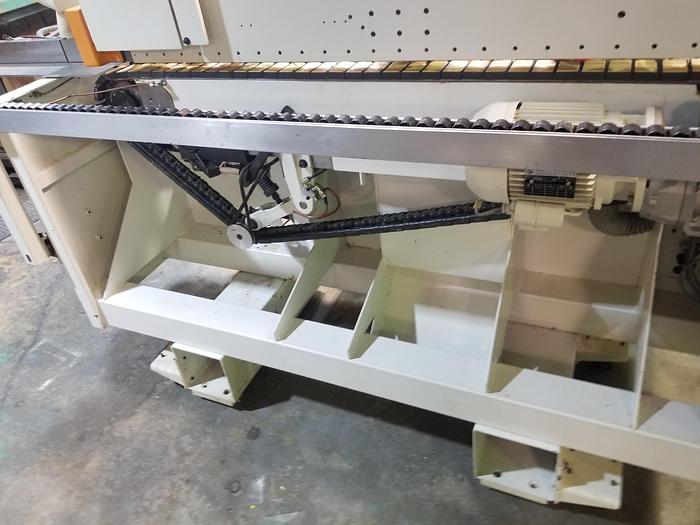

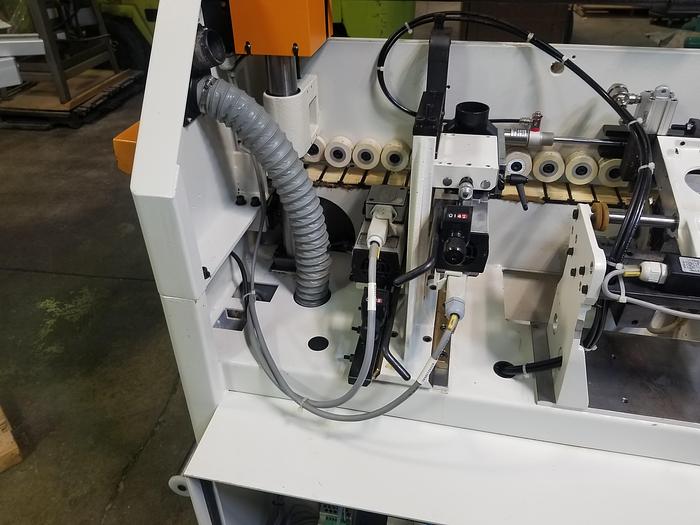

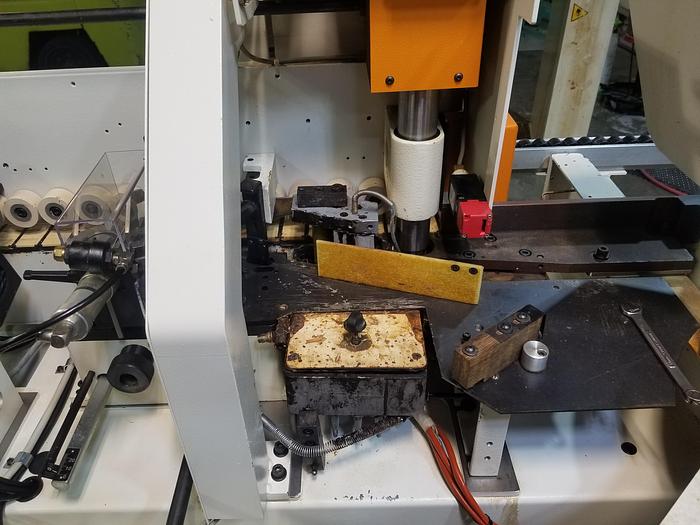

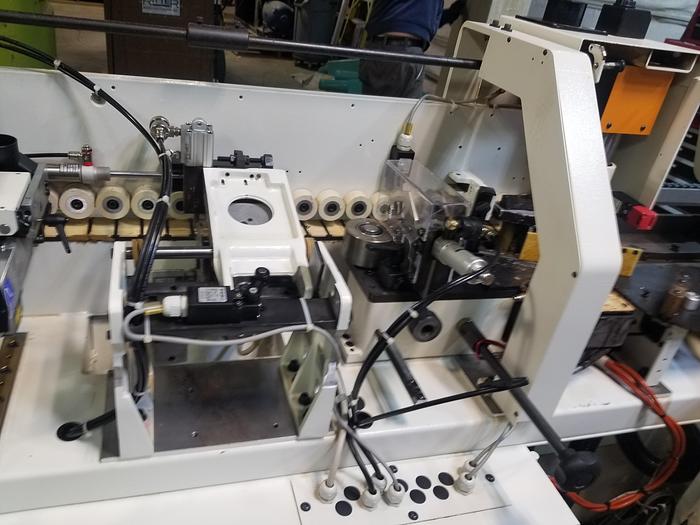

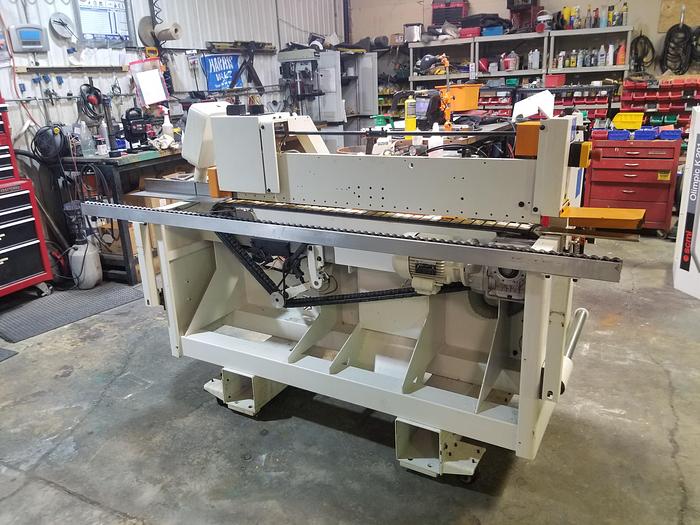

Olimpic K 201 HF A Edgebander, 2004, .4-3mm Band/Strip Capacity, 230V, 1PH, Cleaned, Checked

Olimpic K 201 HF A Edgebander, 2004, .4-3mm Band/Strip Capacity, 230V, 1PH, Cleaned, Checked

Cleaned and checked, Video is being made

Older bander, but from local shop where it was regularly serviced and maintained by our contract service techs.

New capacitor for feed motor.

Specifications:

• Edgebanding thickness cap. (for both coil & strip) 0.4 - 3 mm

• Min. panel length for coiled edges (Min. width 200 mm) 140 mm

• Min. panel width for coiled edges 65 mm

• Panel thickness 8 - 40 mm

• Feed speed (29 FPM).

• Automatic adjustment of all units when panel thickness is changed.

• 20" Dia. Coil table.

• Automatic coil feed magazine, Manual strip feed.

• Teflon-coated glue pot.

• 1.2 mm (0.05") Cap. guillotine.

• Eye-level control, with GEFRAN "1000" LED Temperature controller.

• Adjustable feet.

• Single-motor end trimming unit, with (1) (1/4 HP) 12,000 RPM high-frequency motor & copying device.

• Top & bottom flush trimming unit, with (2) (1/2 HP) 12,000 RPM high-frequency motors and front & vertical copying devices.
