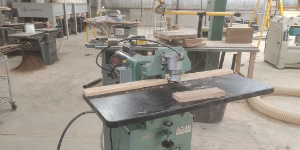

Ritter R130 Horizontal Single Spindle Boring Machine, 3/4HP, 1PH, Cleaned, Checked

Ritter R130 Horizontal Single Spindle Boring Machine, 3/4HP, 1PH, Cleaned, Checked

Key Specifications & Features:

• Spindle: Single, 7/16-14 female threaded collet, 3450 RPM.
• Motor: 0.75 HP TEFC drive motor, 110/120V, 60Hz, 1-phase.
• Boring Depth: 0 to 2 inches, adjustable.
• Work Table: 6" x 20"
• Clamping: Pneumatic cylinder, 2" bore, with foot-actuated cycle.
• Positioning: (4) Material positioning stops, adjustable index stops, bed height, and depth.
• Air Requirements: 2 CFM @ 80–100 PSI.
• Dimensions: 24" x 24" footprint, 40" work height.
• Weight: Approx. 381 lbs (shipping weight).
