Ideal Manufacturing RM100 Mini Moulder, 8HP, 230V, 3PH

Ideal Manufacturing RM100 Mini Moulder, 8HP, 230V, 3PH

$45,000 (USD)

Available quantity: 1

orCall 920-452-4494

Description

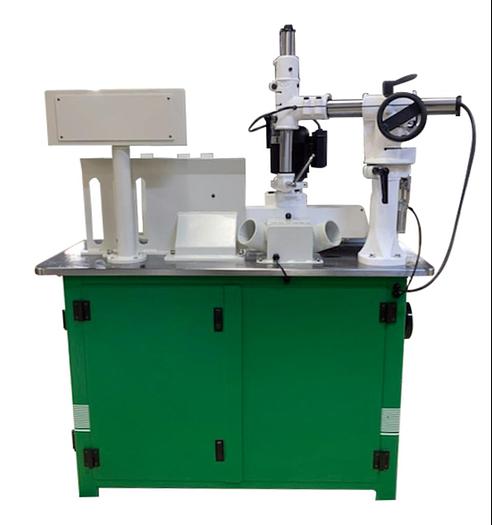

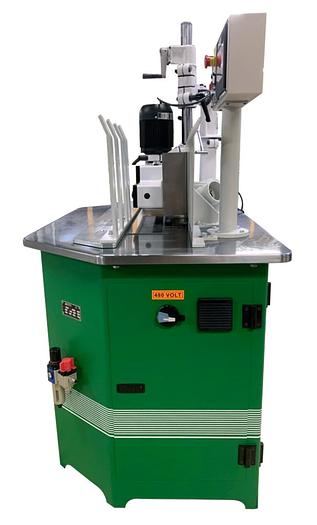

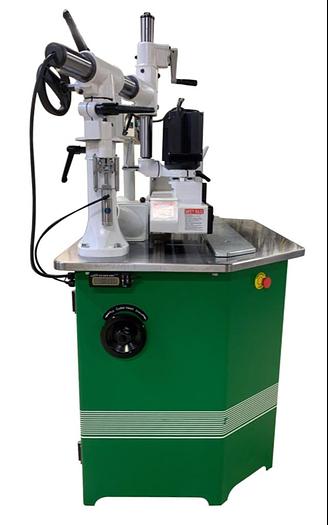

Ideal Manufacturing RM100 Stile and Rail Shaping Machine.

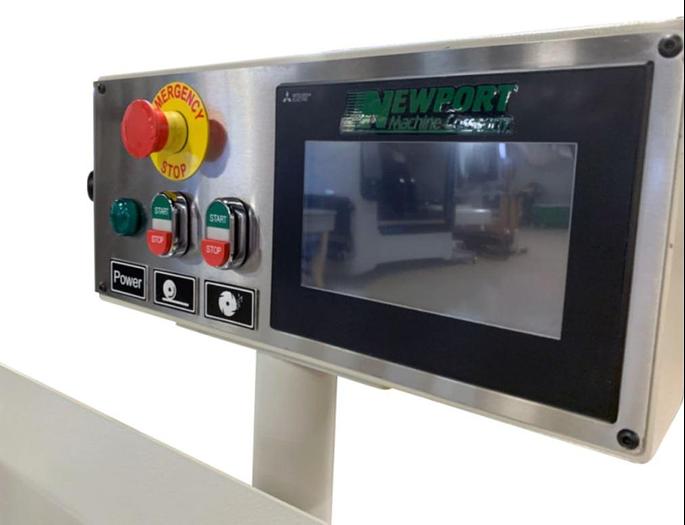

For the production profiling of door stile and rail material. Machine is a hopper fed, HSK63 interchangeable spindle with integrated power feeder and touch screen control. Operator enters the tool diameter and the desired finished work-piece thickness and the machine will set the fence position automatically.



• HSK interchangeable spindle, standard. (Other spindle types available)


• 8 Hp at 7,500 RPM


• 230 volt, 3phase, 60 hz standard


• Variable spindle RPM


• Reversible rotation for climb cutting (requires safety cage)


• Bore diameter determined by tool holders.


• Hopper feeding, typically face down

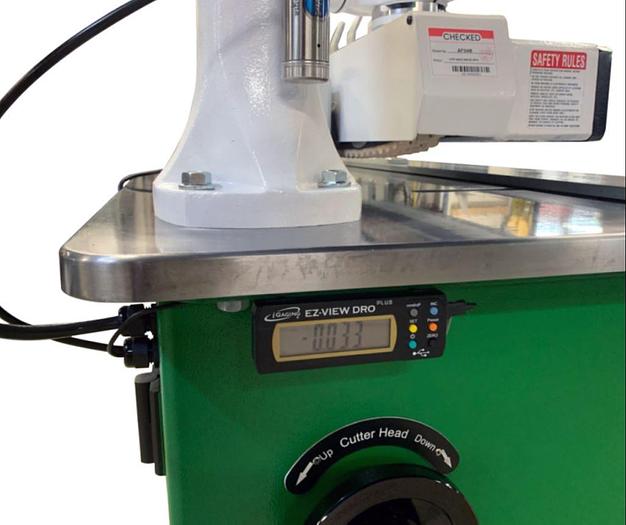

• Digitally positioned sizing fence,


• Up to 20 preset “recipes” for pre-programmed set-ups


• Part length maximum: none


• Part length minimum: 3-1/2” (depending on part width)


• Part width maximum: 8-1/2”


• Part width minimum: 1-1/2”


• Dust collection: 2 outlets at 4” (climb or conventional cutting)


• Compressed air required: 80 PSI


Specifications

ManufacturerNewport
ModelRM100 Mini Moulder
ConditionNew
Stock NumberVT755137
