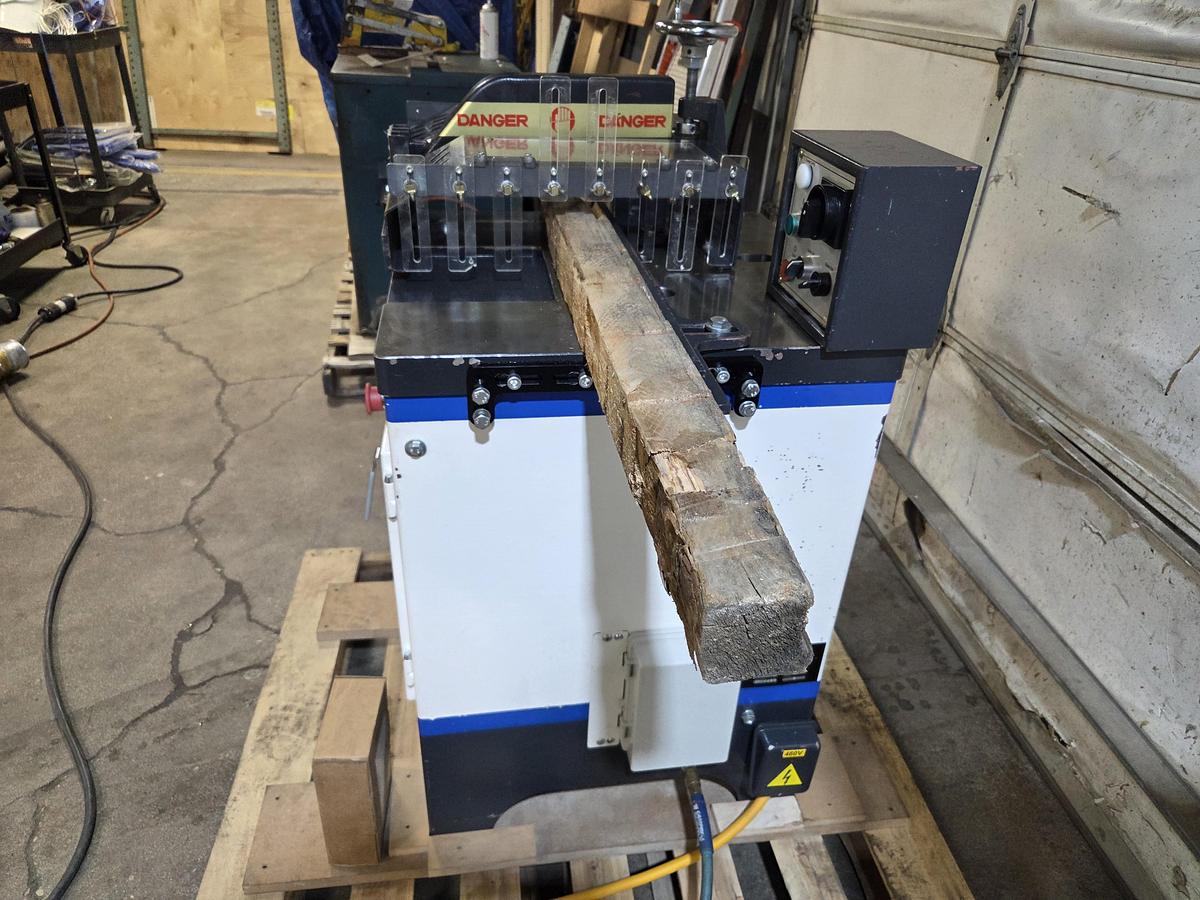

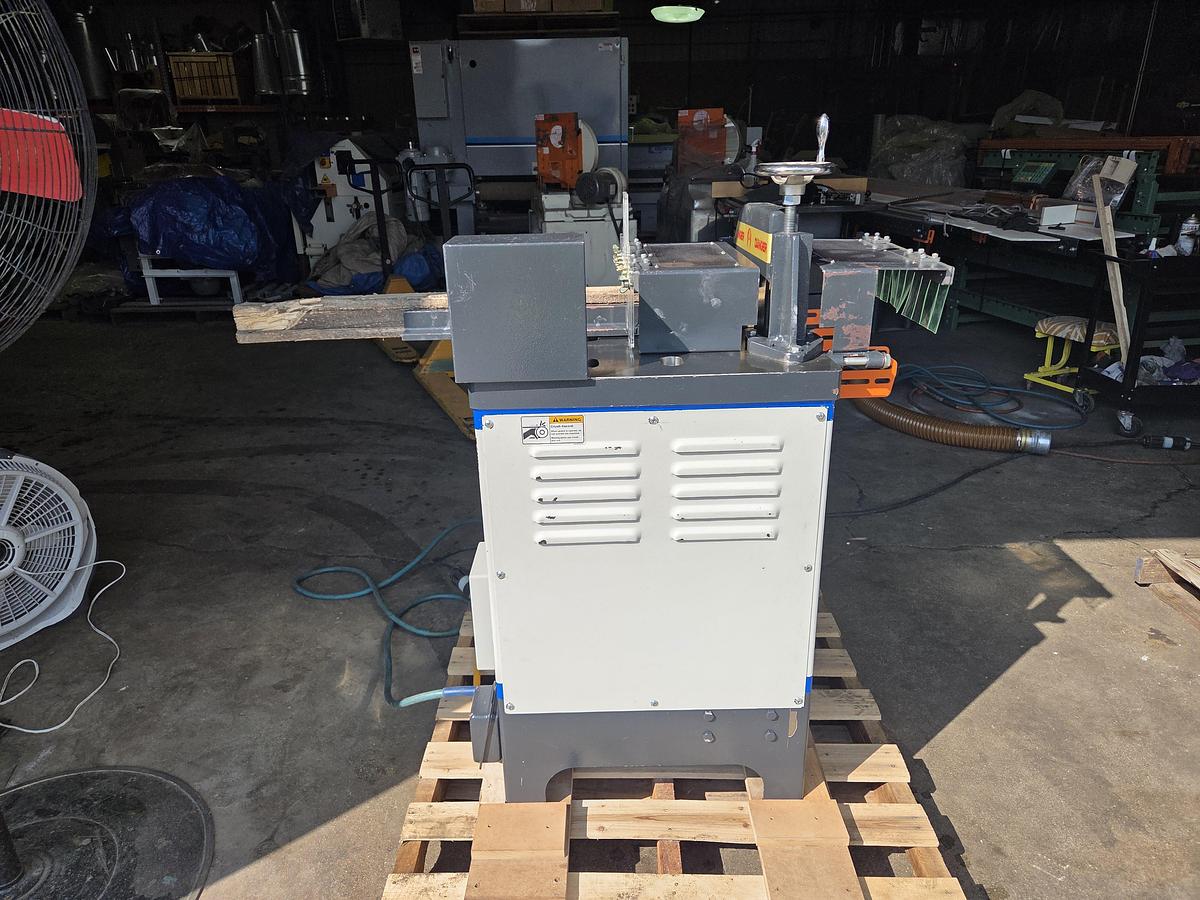

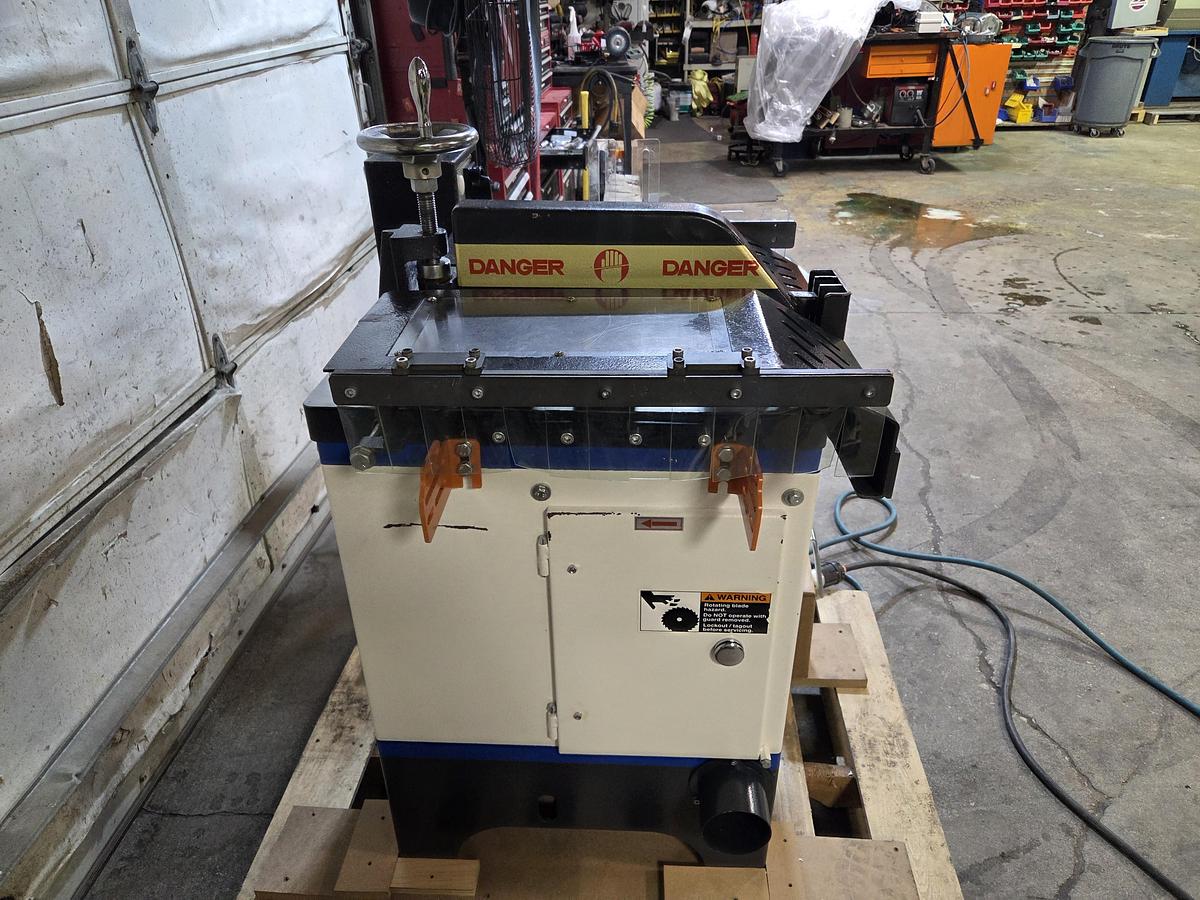

Ironwood Upcut Saw, Cut14L, 5HP, 3PH, 14" Blade Cap. 1" Arbor, Cutting capacity 1” x 10”/ 2” x 9” / 3” x 8”

Ironwood Upcut Saw, Cut14L, 5HP, 3PH, 14" Blade Cap. 1" Arbor, Cutting capacity 1” x 10”/ 2” x 9” / 3” x 8”

Cleaned, Checked, Repaired as needed

Product Description

The IRONWOOD CUT14 Cut-off Saw offers operators a safe and reliable, compact crosscutting solution.

The table surface of the CUT14 saw is precision ground to ensure absolute cutting accuracy while maintaining maximum stability during heavy cutting operations. The pneumatically operated machine highlights enhanced safety guards, fast cutting speeds, and the powerful motor torque required when working with multiple material types and dimensions.

Technical Specifications

Cutting capacity (thickness x width) 1” x 10”/ 2” x 9” / 3” x 8”

Cycle operation Pneumatic

Material Feed Direction LH

Saw blade size 14”

Saw arbor  1”

Saw blade speed 4,100 RPM

Table size 23 ¼” x 25” Working table height 34 ¼”

Motor 5HP

Dust port 4”

CFM requirement 450

Air pressure  80-90 PSI

Air consumption 12 CFM at 45 CPM

Gross weight 640 lbs

Packing Dimensions 30" x 34” x 51”

Electrical Connection 230 Volts | 3-phase | 60 Hz.
