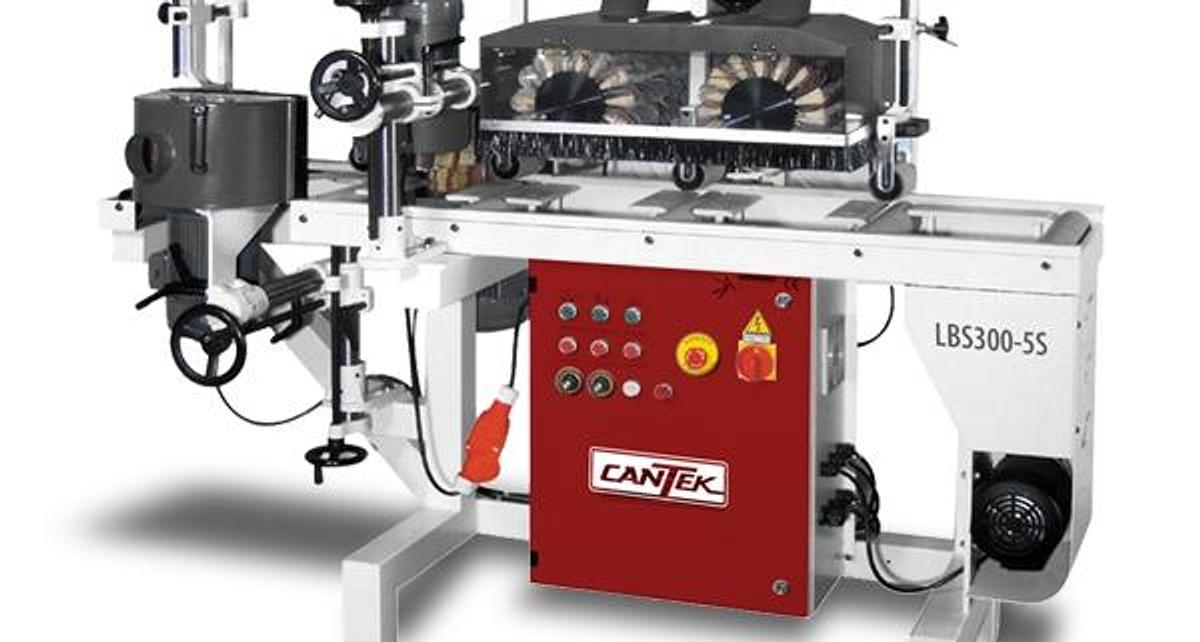

Cantek LBS300-5S 3-SIDED LINEAL BRUSH SANDER

• Designed for sanding linear profiled wood on three sides

• Brushing heads consist of abrasive cloth strips and cleaning brushes and are design to

access profiled components.

• Main frame is fabricated of heavy steel plate and ribbed to minimize vibration

and deflection.

• Centralized control panel for operator convenience. Clearly identified & color coded

push buttons simplifying setup & operation

• Variable speed adjustment by inverter (VFD’s) to all brush sanding heads (200-1200 RPM)

for optimum sanding results

• (2) sets of top brushing sanding heads with working height adjusted by handwheel

and can be set on an angle for bevel siding & angled moldings

• Left side brush sanding head is adjustable up/down, in/out and can be set on an angle

• Right side brush sanding head which can be adjusted up/down and in and out and

can be set on an angle

• Additional left side sanding head is adjustable up/down, in/out, and can be set on an angle

• Top press rolls working height adjusted by hand wheel.

• Brushing head consists of cleaning brush units and abrasive cloth units

• The dovetail pocket design allows for easy abrasive/brush replacement.
