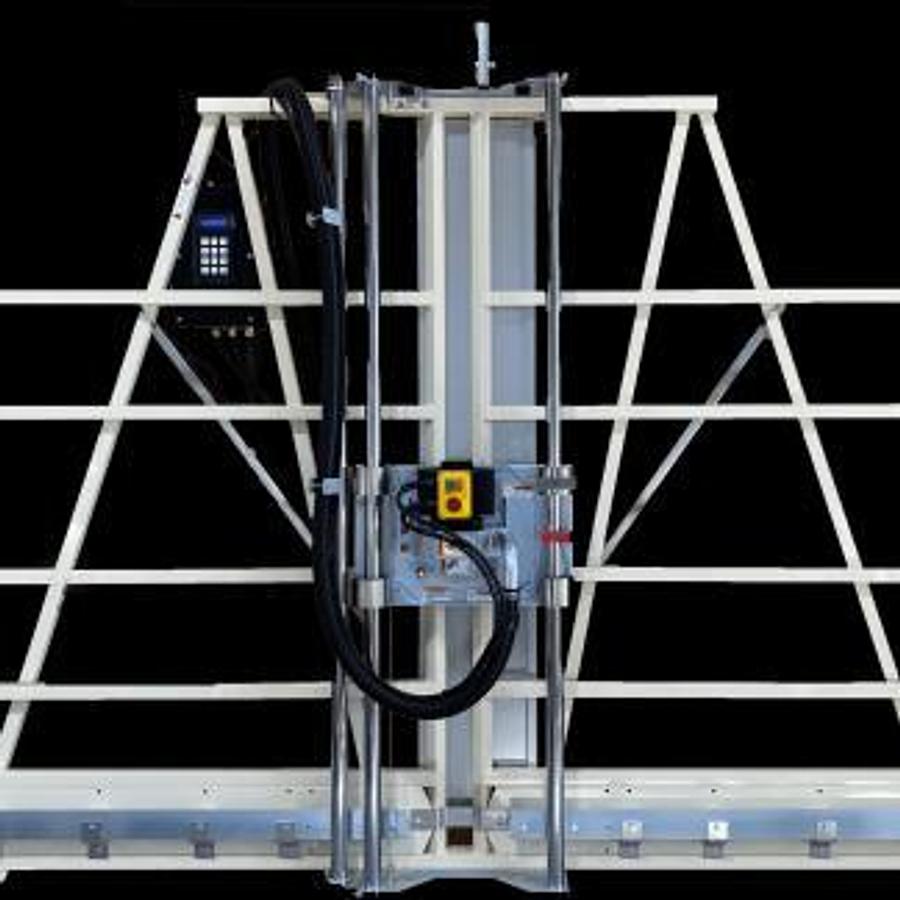

Safety Speed EF5 Panel Saw

Our customers were instrumental in identifying changes along the multi-year process of developing this machine. It continuously performed in high usage settings with multiple operators, cutting continuously throughout the day.

Standard Equipment

• 10 ft. welded steel frame.
• Chrome-plated 1 3/4″ guide tubes.
• 8 Nylatron roller bearing systems.
• Adjustable vertical and horizontal rulers.
• Quick change from vertical to horizontal cutting.
• Thin material pressure guard.
• Solid aluminum material rollers.
• Enclosed counterweight system.
• Integrated dust collection system.

Weight598 lbsDimensions124 x 17 x 92inMax. Crosscut64"/1625mm

Max. Rip CutUnlimited

Cut Depth1 ¾"/45mm

Cut Accuracy1/64"/.4mm

Frame Length120"/3050mm

Daily UsageContinuous (8+ Hours)

Rollers14

Saw Blade Diameter8"/210mm

Motor amps and voltage20 amp, 120 volt, 10 amp 240 volt

Motor Horsepower (HP)3 HP

Blade RPM500-5,500 revolutions per minute

Diameter of dust collection kit1.5"

Country of Origin USA
