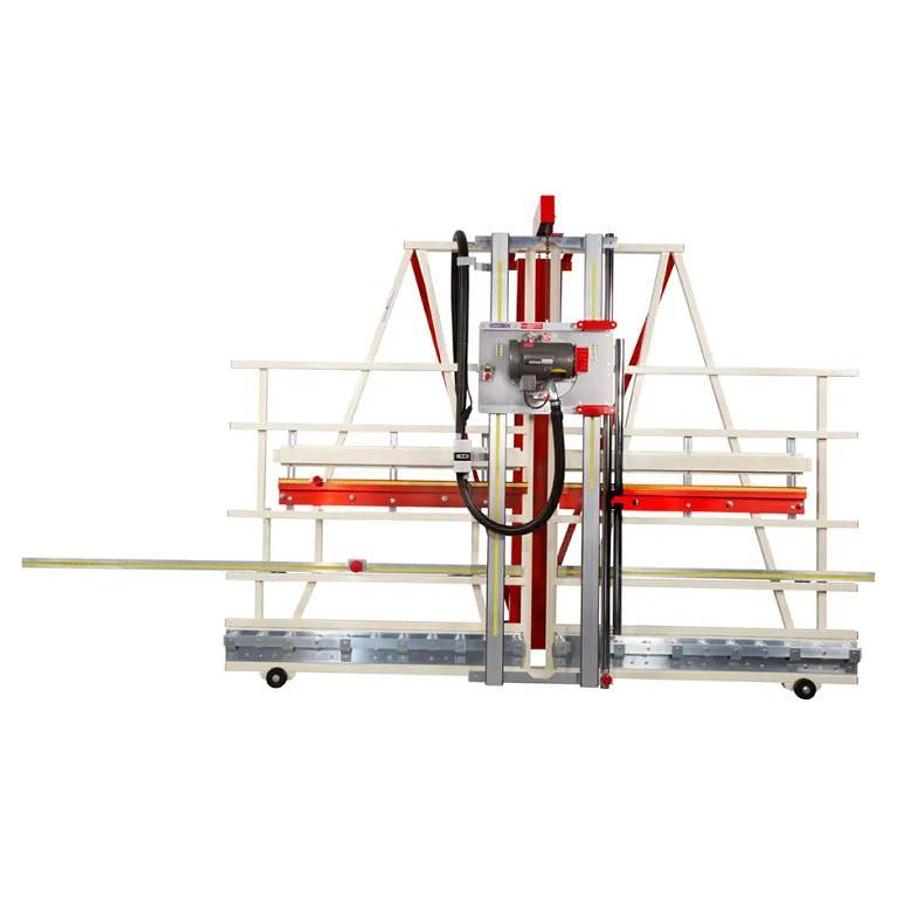

Safety Speed 7400 Panel Saw

Continuous usage panel processing done the easy way. The 7400M panel saw features a 10′ frame, and the 7400XL features a 13′ frame. There are no other differences between these two machines.

Standard Equipment

• Your choice of single or three phase, heavy duty induction saw motor.
• Welded steel frame and integrated stand system.
• Dual V-track precision guide system.
• Adjustable vertical and horizontal rulers
• Quick stop gauges (8′ left, 5′ right).
• Saw blade. Quick change from vertical to horizontal cutting.
• Floating pressure saw foot.
• Solid aluminum material rollers.
• Enclosed counterweight system.
• MID-WAY FENCE™.
• Dust collection ready.
• Hold down bar.
• Wheels.
• 3 year warranty.
• TUV certified to UL/CSA standards

Weight950 lbsDimensions124 x 98 x 48inMax. Crosscut64"/1625mm

Max. Rip Cut Unlimited

Cut Depth2 ⅛"/55mm

Cut Accuracy.005"/.125mm

Frame Length120"/3050mm

Daily Usage Continuous (8+ Hours)

Rollers22

Saw Blade Diameter8"/210mm

Motor2HP, 1~ 230V, 11.5 AMPS, 3HP, 3~ 230V, 7.6 AMPS, 3HP, 3~ 460V, 3.8 AMPS

Saw Blade Revolutions Per Minute3450 RPM

Power supply options Single phase or three phase power at 50/60HZ

Country of Origin USA
