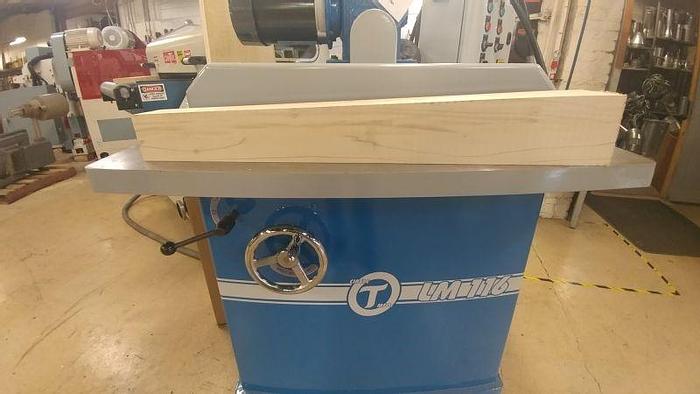

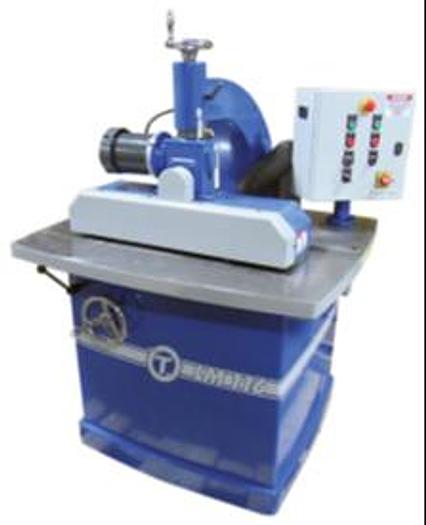

Circle T LM116 Lockmiter Machine

Specially designed to produce a lock miter joint

5HP spindle motor

230V

3Ph

7,600 RPM spindle speed

1-1/4" spindle diameter

1" max. material thickness w/standard tooling

3/4" - 1-1/8" material thickness w/optional tooling

1/2" min. material thickness

1-1/4" min. material width

12" min. material length

Machining angles from 90 - 30 degrees

0.5HP feed motor

Variable feed speed 20 - 60 FPM

Spring loaded hold down for narrow parts

40" x 47" table size

Dust collection requirements: 670CFM, 4" outlet

Heavy-duty 11-roll feeder

NOTE: due to a fire at the manufacturing facility, Circle T anticipates stock will again be available at the end of 2021 or early 2022.
