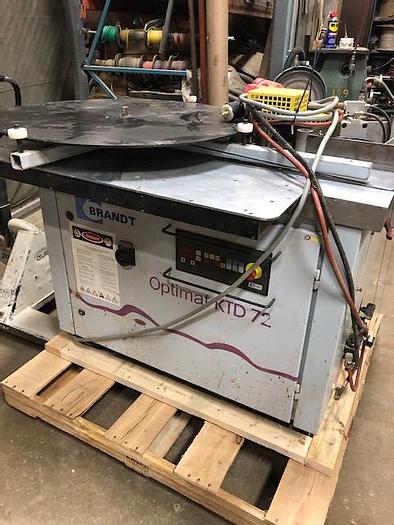

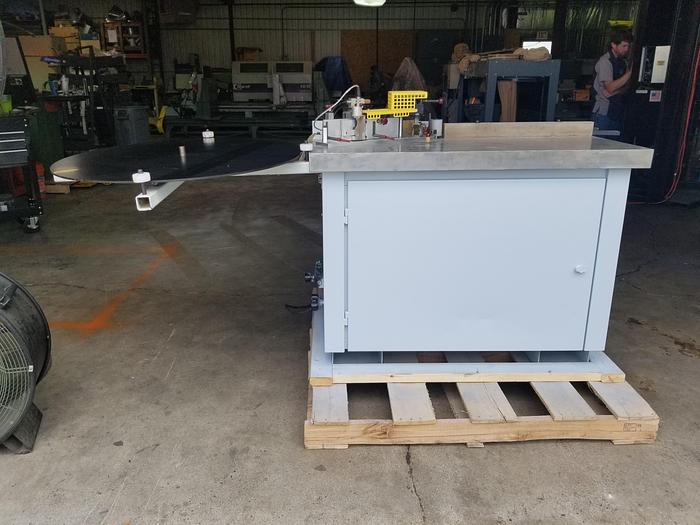

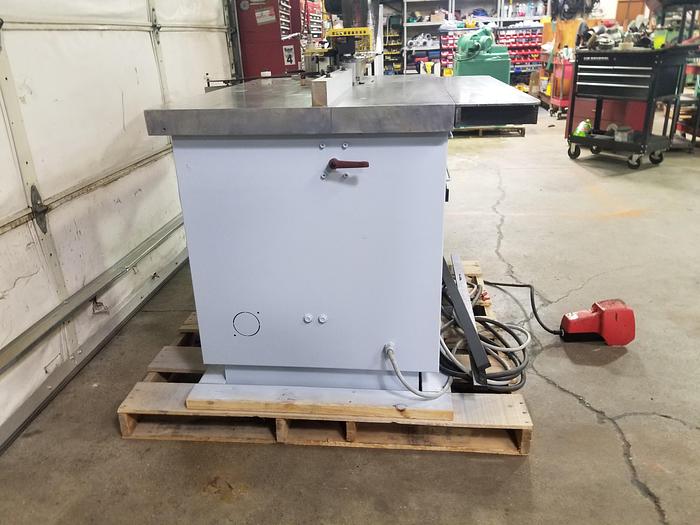

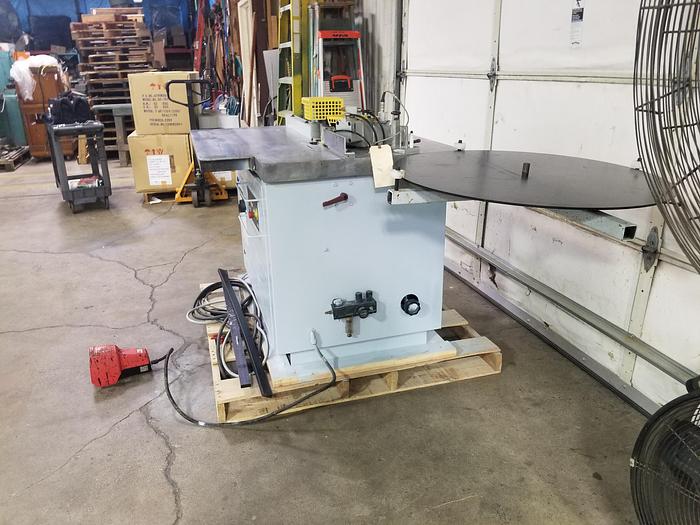

2002 Brandt Optimat KTD 72 Contour Edgebander

Cleaned and checked

Exterior repainted

5HP

208V

3Ph

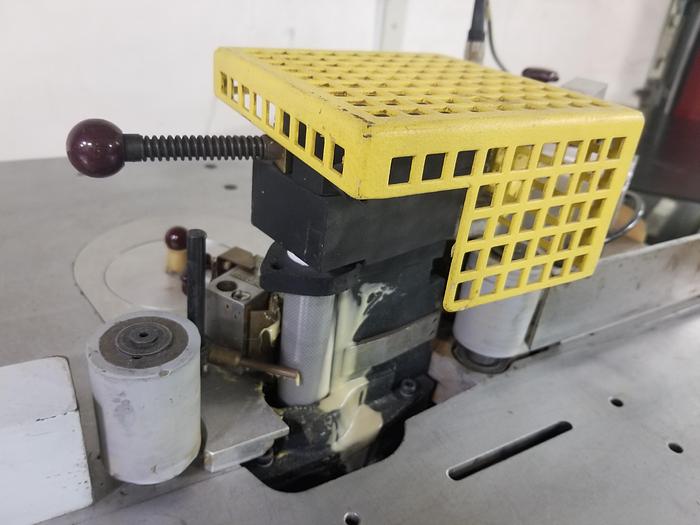

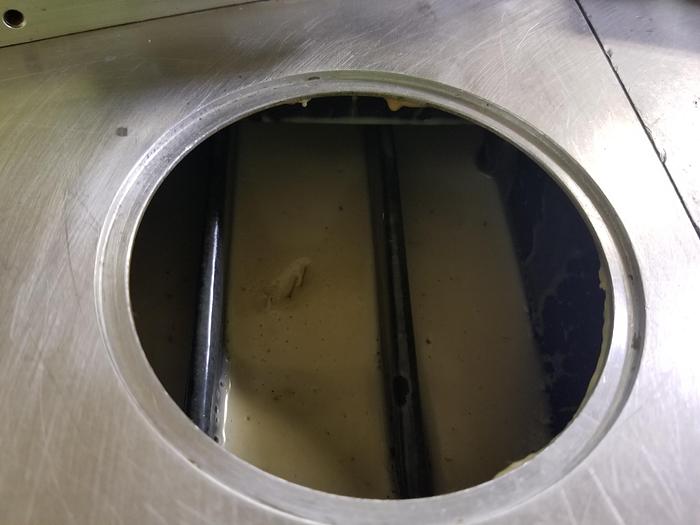

Hot melt glue pot and application system with thermostatic glue temperature control

Used for veneer, PVC edges, and solid wood edges

Working speed determined by driven roller, workpiece fed manually

Automatic edge in-feed controlled via foot pedal activation

Length control cutting device

Working piece length: min 180 mm

Working piece thickness: 10 - 55 mm

Working piece width: min ca. 30 mm

Edge thickness: 0.5 – 1.0 mm (for Edges with height max. 60 mm)

0.5 - 3 mm (for edges with height max. 30 mm)

Inner radius (for glueing) min. Cap. 25 mm plus edge thickness

Variable speed: feed speeds from 13-29 F.P.M.

Air pressure: 6 bar

working height: 900 mm
