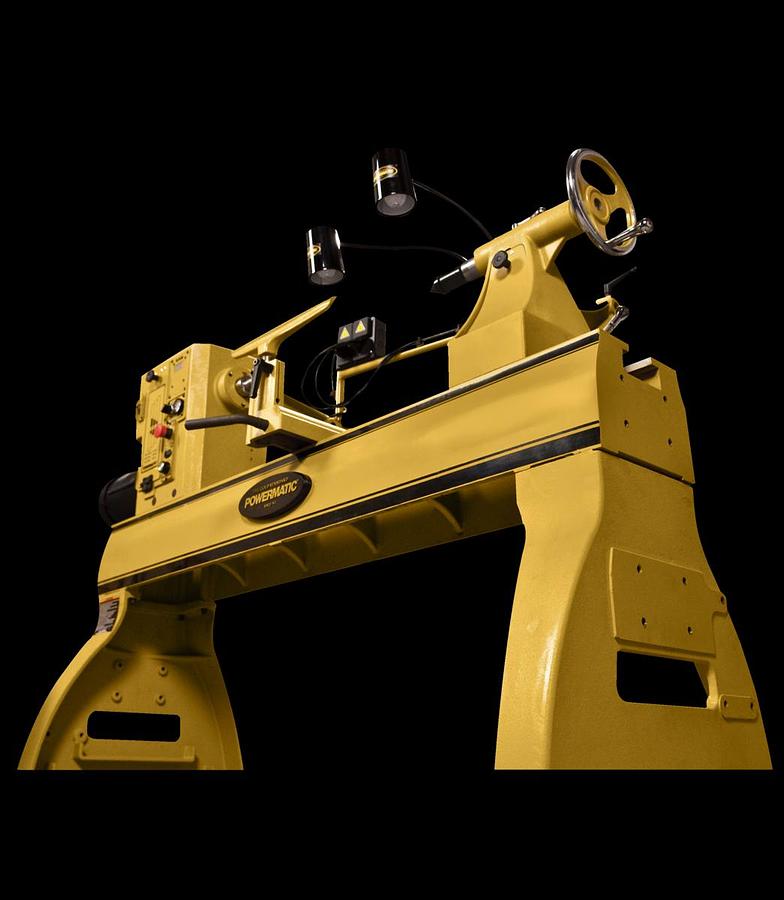

Powermatic 4224B Lathe with Lamp Kit 1794224K, 3HP, 220V, 1PH, 24 x 42 Capacity

Powermatic 4224B Lathe with Lamp Kit 1794224K, 3HP, 220V, 1PH, 24 x 42 Capacity

New Machine!

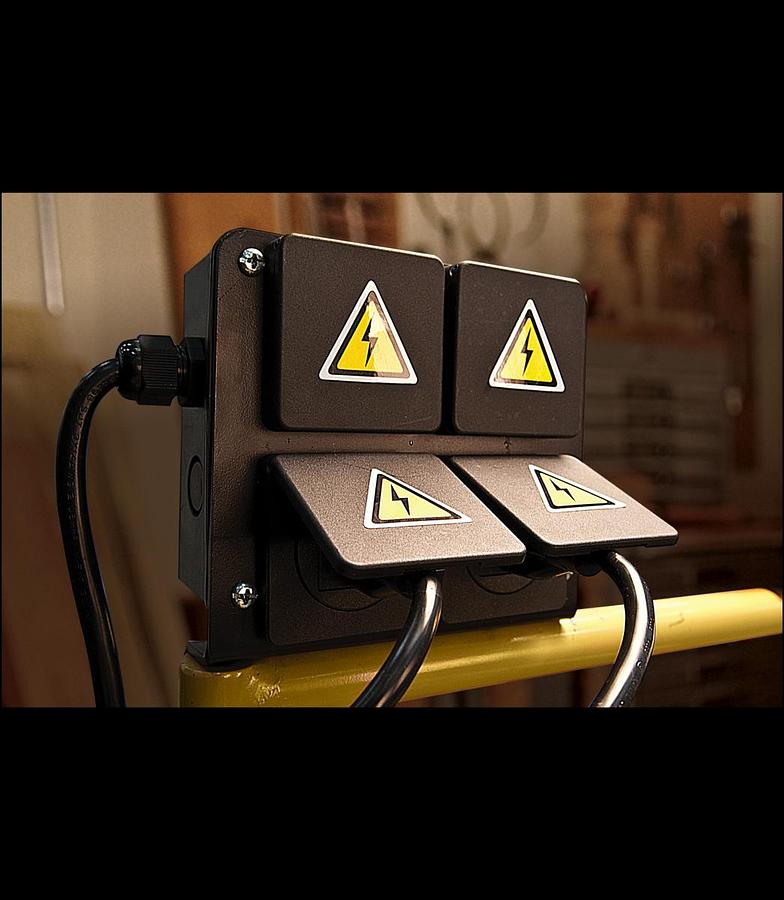

• 15 Amp quad receptacle for easy reach of powered accessories
• Variable frequency drive allows machine to run on single- or three-phase power
• Air nozzle with quick connect for clearing dust/chips

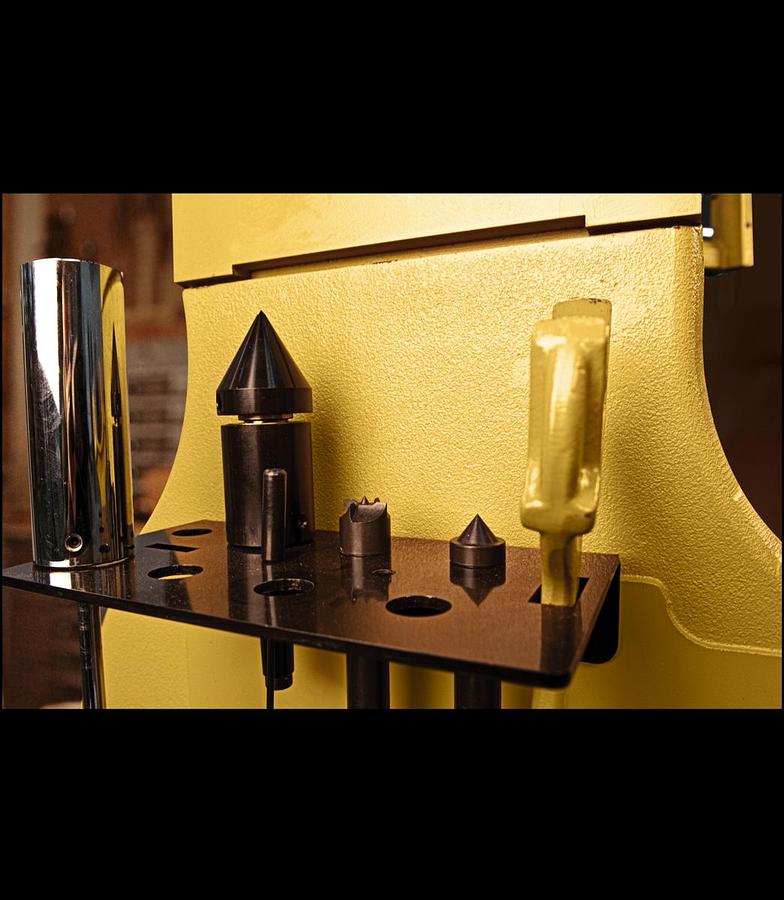

• Brass-tipped knockout bar concentrates the action in the sliding handle; the brass tip will not damage drive centers

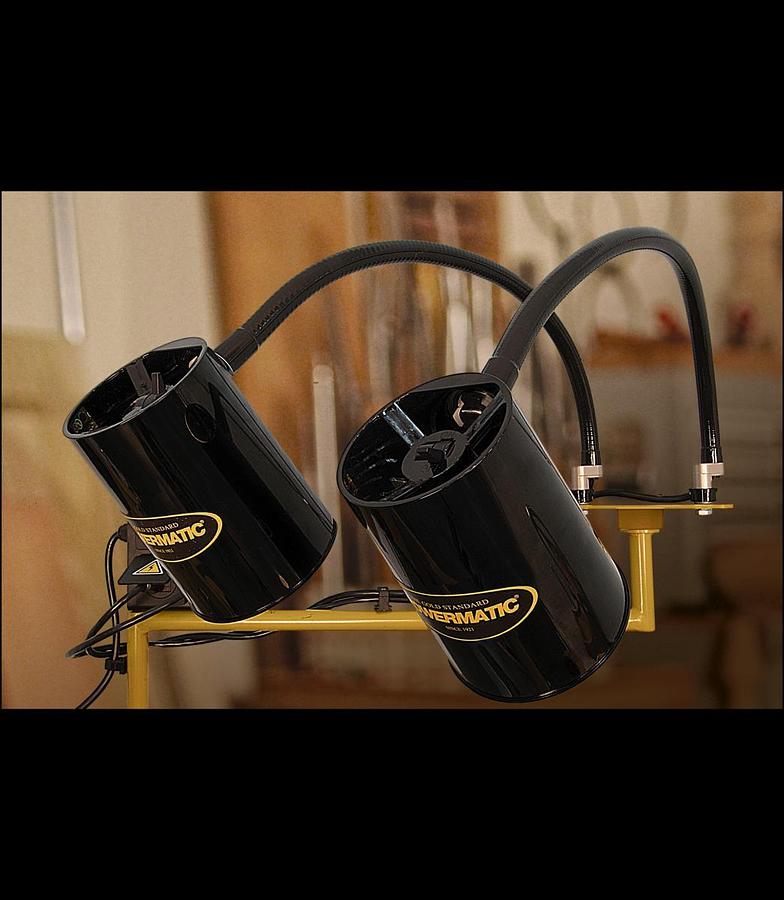

• Includes two 100W task lamps to provide ideal lighting and safety guard.
• Magnetic-backed moveable control box for versatility and safety

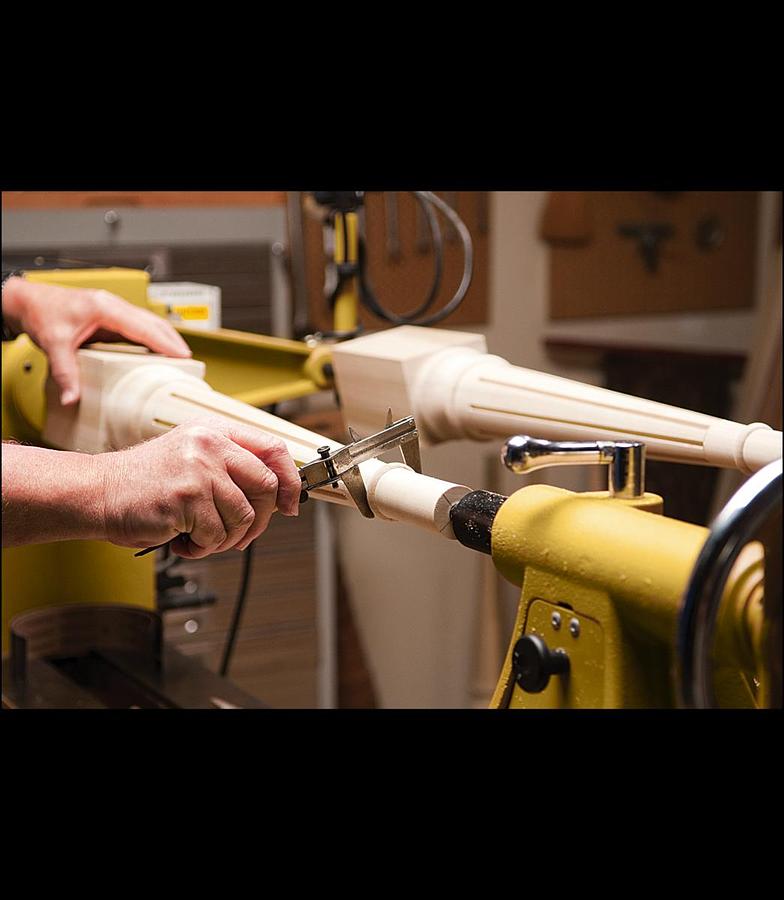

• Set of dead centers which hold a spindle for visual comparison

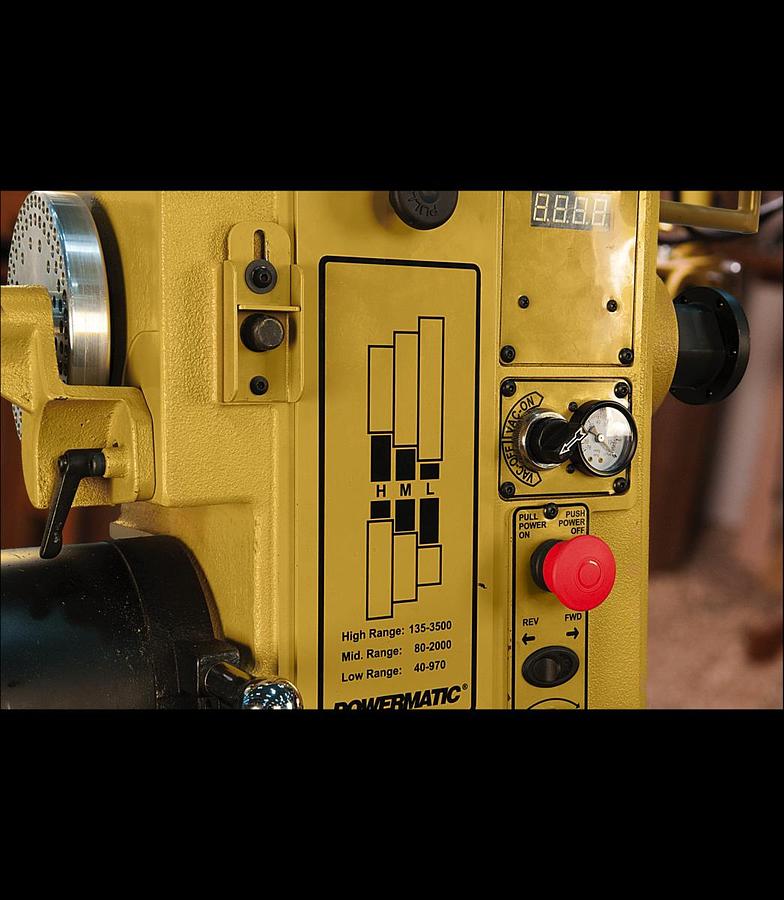

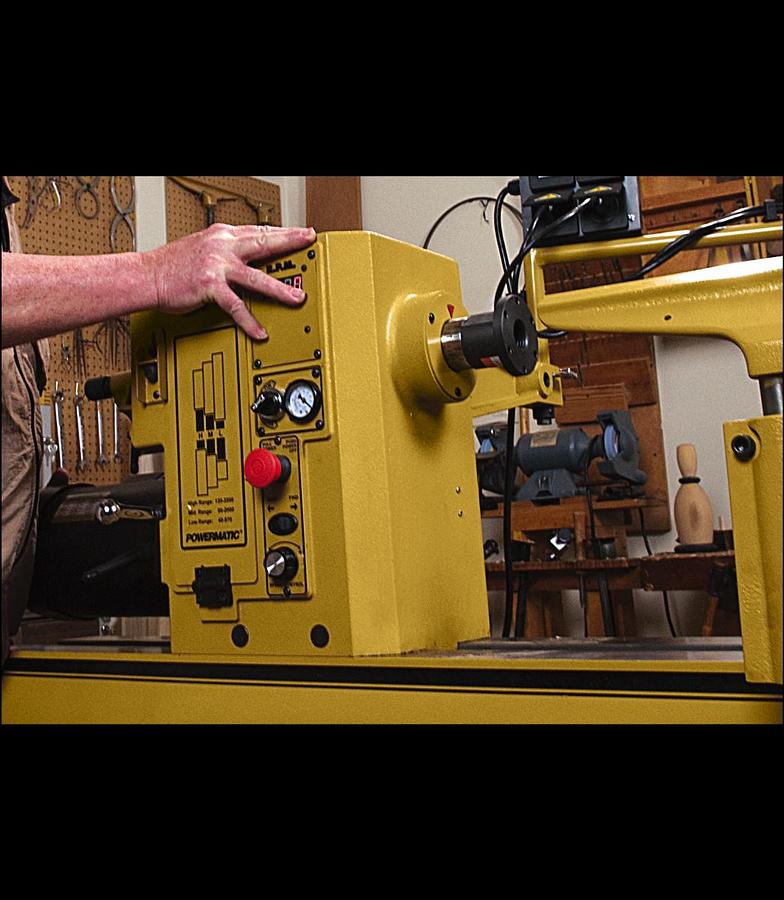

• Sliding headstock with electronic variable speed

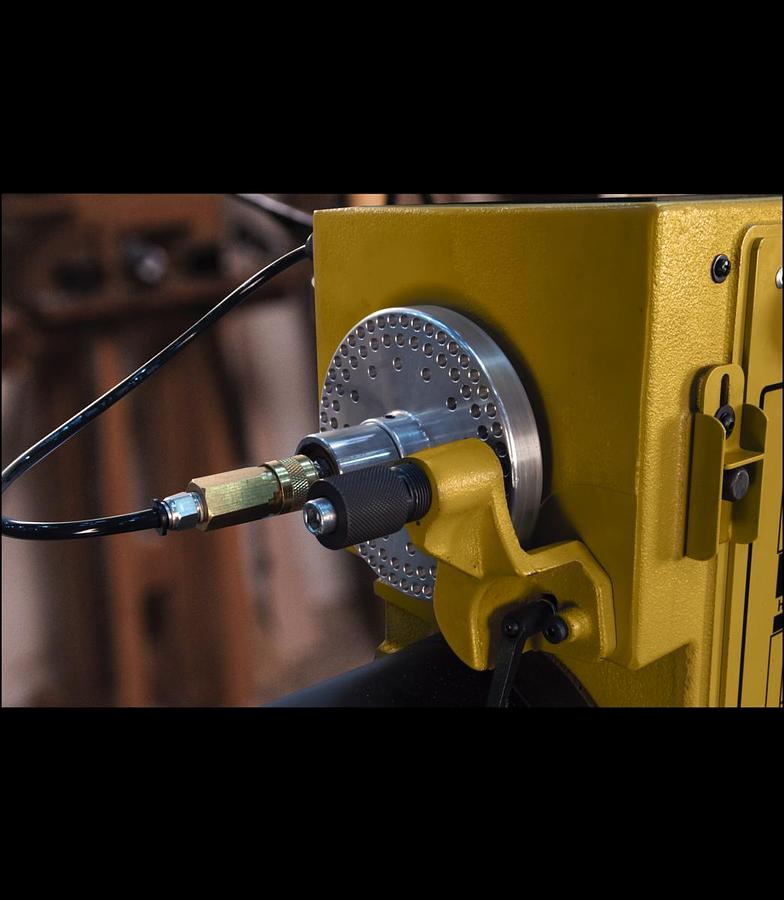

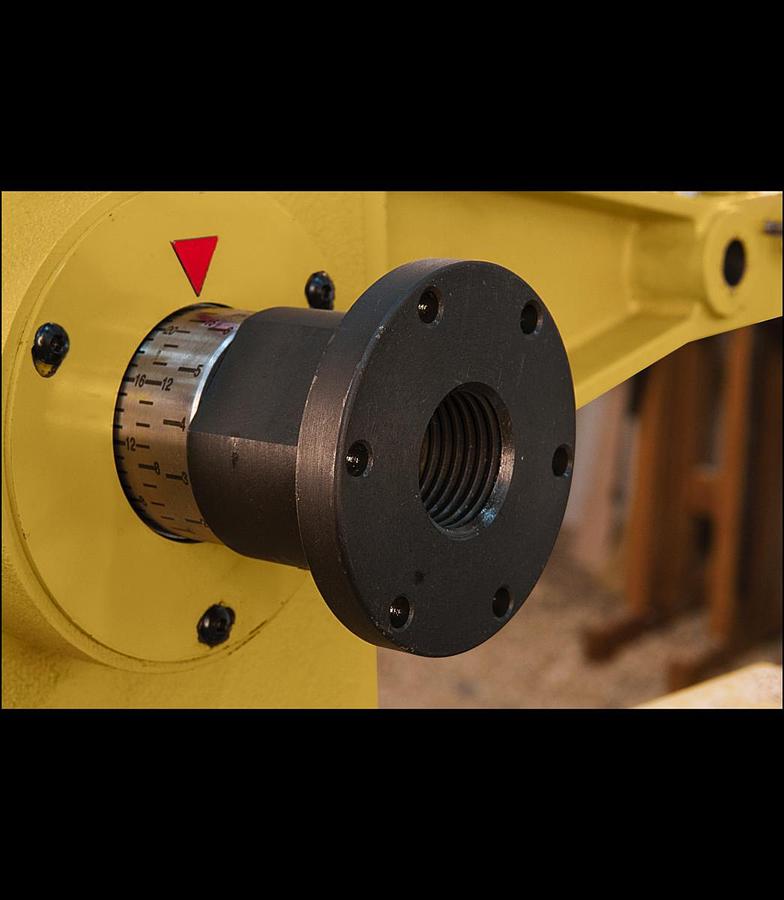

• Spindle lock and built in spindle indexing on the headstock for drilling hole patterns, routing flutes and other equally spaced features

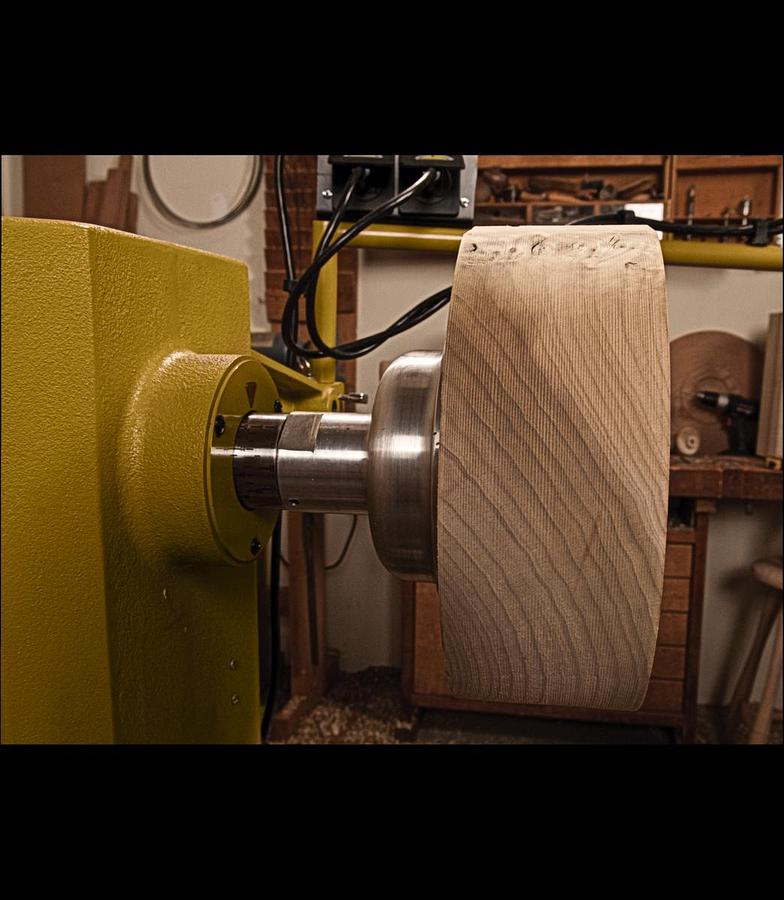

• Vacuum system provides quick method of chucking bowl blanks

Specification Value

Swing Over Bed (In.) 24

Distance Between Centers (In.) 42

Weight (Lbs.) 870

Centerline of Spindle to Floor (In.) 44

Motor Power (HP) 3, 220V, 1PH

Bed Construction Cast Iron

Overall Dimensions (L x W x H) (In.) 89 x 28 x 65

Motor Amps 10 Recommended Circuit Size (Amps.) 30

Shipping Dimensions (L x W x H) (In.) 68 x 27 x 31.5

Net Weight (Lbs.) 870

Gross Weight (Lbs) 945

Input Power 220V, 1PH

Length 68"
